UT5470

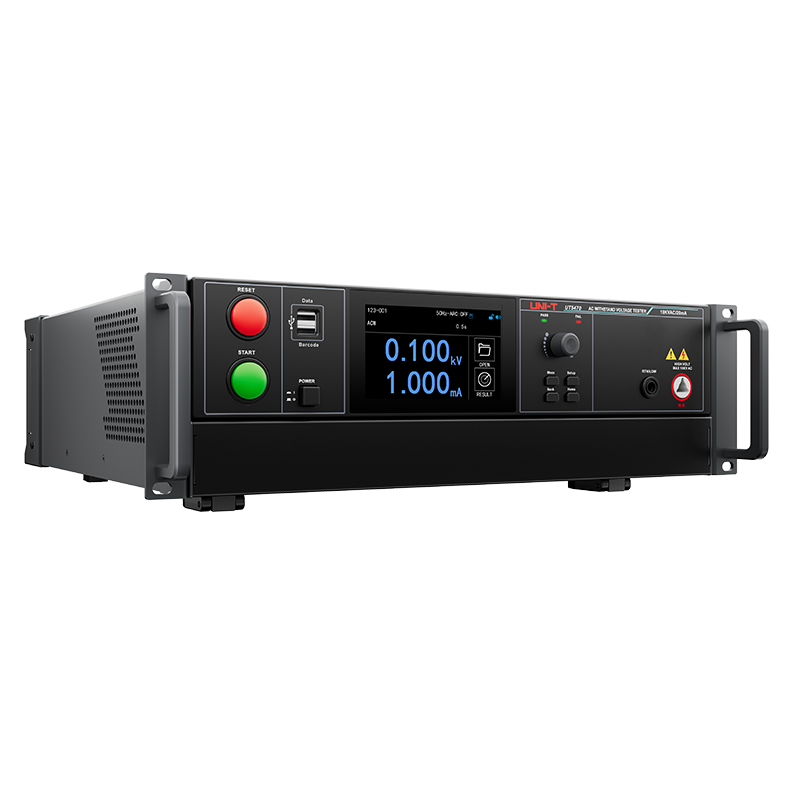

NewThe UT5470 Series Ultra-High Voltage Withstand Testers are engineered to address rigorous testing requirements for high-voltage insulation and component reliability. Capable of delivering outputs up to 12 kV with a precise current resolution of 0.1 μA, the series ensures accurate and dependable performance in demanding applications. It includes two dedicated models: the UT5470 for AC testing (10 kV/20 mA) and the UT5472 for DC testing (12 kV/10 mA). Designed with user efficiency in mind, the instruments feature a 5-inch multi-touch screen and integrated barcode scanning, streamlining operation and test management. With comprehensive connectivity interfaces, the UT5470 series readily integrates into automated test systems, supporting enhanced safety, reliability, and productivity in industrial environments.
1
CHANNELS
0.050kV-10.000kV
AC VOLTAGE
0.050kV-12.000kV
DC VOLTAGE
0.001mA – 20mA
AC CURRENT
0.1μA - 10000μA
DC CURRENT
0.1MΩ-50GΩ
INSULATION RESISTANCE
5'' TFT LCD (touch screen)
DISPLAY
RS232, RS485, USB Host, LAN, Handler
CONNECTIVITY
KEY FEATURES
FEATURES
AC Withstand Voltage (ACW)
Maximum supported range:
Voltage: 0.05 kV to 10 kV;
Current: 0.001 mA to 20.00 mA.
DC Withstand Voltage (DCW)
Maximum supported range:
Voltage: 0.05 kV to 12 kV;
Current: 0.1 μA to 10.00 mA.
Insulation Resistance Test (IR)
Maximum supported range:
Voltage: 0.05 kV to 6 kV;
Resistance: 0.1 MΩ to 50 GΩ

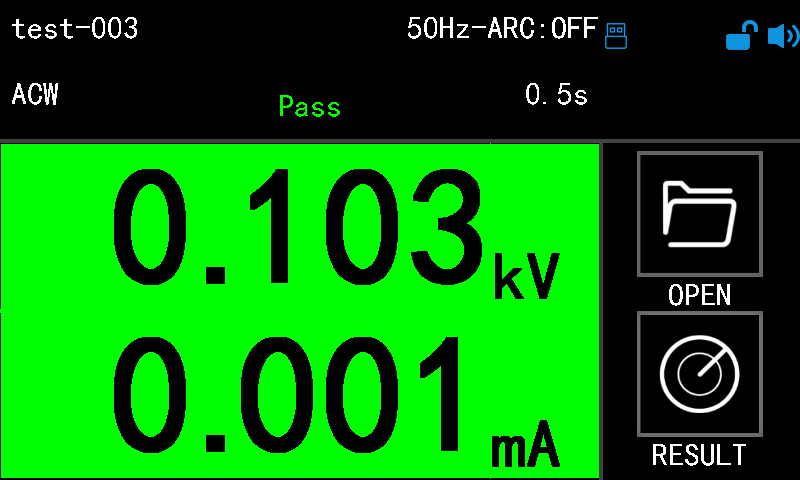

Convenient and Efficient User Interface
-5-inch capacitive touchscreen
-3U standard rack height
-Extensive interfaces: RS232/485, USB Host, LAN, Handler, Barcode
-Standard protocols: SCPI, MODBUS
Multiple Safety Protections
Designed with multiple layers of safety protection, the instrument includes electric shock protection, short-circuit protection, upper/lower limit judgment, and over-temperature protection to safeguard both operators and equipment.
Continuous Output
Unlike conventional testers where voltage drops, continuous output enables step-by-step boosting and cyclic aging tests to meet advanced safety requirements.
Level 9 Arc Detection

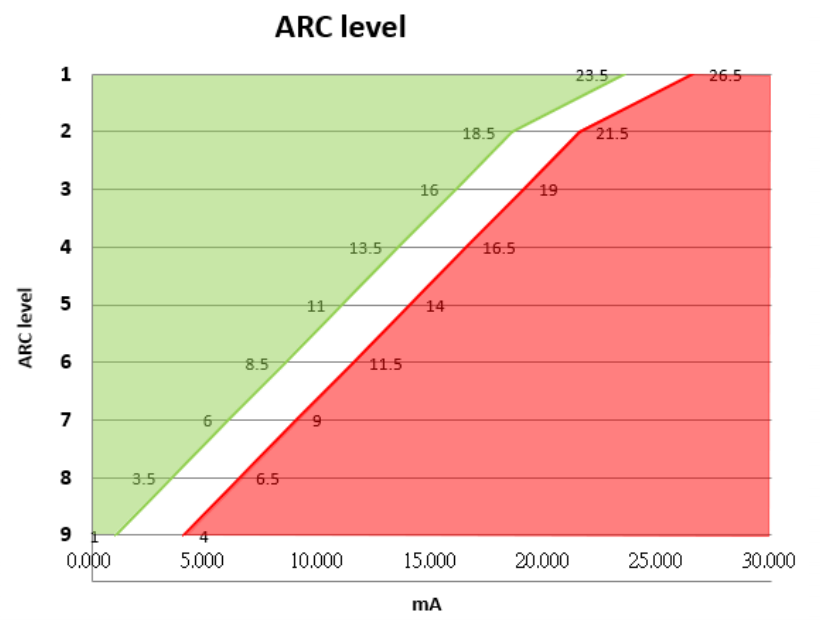

The adjustable Arc Detection (1-9 levels, with off option) provides unmatched precision in identifying hazardous leakage currents. This enhances test reliability and offers crucial flexibility for diverse safety compliance applications.
Wiring Reliability Detection

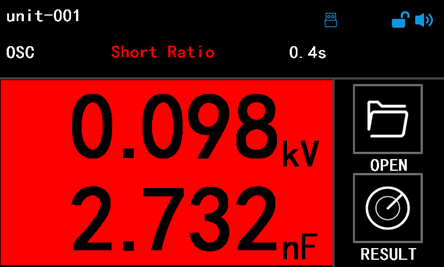

The UT5470 is equipped with OSC functionality, which detects wiring faults and thereby enhances testing efficiency and reliability.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UT5470 |
1 | 0.050kV-10.000kV | / | 0.001mA – 20mA | / | / |
 UT5472 |
1 | / | 0.050kV-12.000kV | / | 0.1μA - 10000μA | 0.1MΩ-50GΩ |
