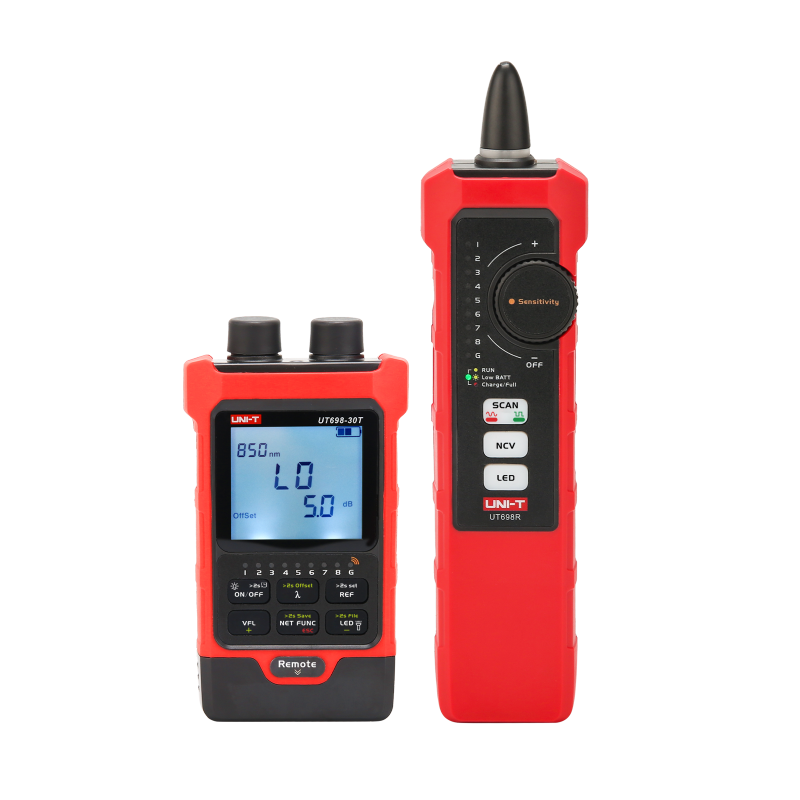

UT698-15KIT UT698-30KIT Optical Power Meter & LAN Cable Tester
NewUT698 Series Optical Power Meter & LAN Cable Tester combines optical power test, red light fault locator, NCV detection, wire tracing, network cable check, RJ45 crimp test, and flashlight in one unit. Ideal for telecom, network maintenance, and security technicians, it delivers higher working efficiency for fiber and copper cable installation & repair.
Key Features
Features
Features of UT698-15KIT UT698-30KIT Optical Power Meter & LAN Cable Tester
- Powerful Red Light
- Fiber Optic Power Measurement
- Network Cable Wire Sequence Test
- Wire Tracing
- Single-End RJ45 Crimp Test
- NCV Detection
7. PC Software Communication
8. Built-in High-Power LED Flashlight
9. 500 Data Records Storage
10. Lithium battery USB Direct Charging
11. Built-in Offset Setting (Self-Calibration)
Technical Specification
| Model | UT698-15KIT | UT698-30KIT |
|---|---|---|
| Technical Details | ||
| Detector Type | InGaAs | |
| Calibrated Wavelengths | 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm | |
| Power Range | -50~+30dBm | |
| Accuracy | (1550nm, 1310nm, 1490nm, 1625nm)±0.4dB, (850nm, 980nm, 1300nm, 1270nm, 1577nm, 1650nm) ±1dB ±0.8dB: +23dBm~+26dBm, -45dBm~-40dBm@1550nm +3.0dB:+26dBm~+30dBm,-50dBm~-45dBm@1550nm |
|
| Display Unit | dB, dBm, mW, uW, nW. | |
| Mode / Frequency Identification | 270Hz/330Hz/1kHz/2 kHz. | |
| Power Meter Interface | 2.5mm Universal connector | |
| Red Light Wavelength | 650±20nm | |
| Applicable Network | UTP/STP network cables | |
| Network Cable Interface | RJ45 (8P8C+G) | |
| Test Type | Network cable sequence | |
| Test Distance | 600m | |
| Detection Distance | 600m | |
| LAN Cable Tester Signal | Analog/Digital | |
| Sensitivity | Knob adjustment | |
| Test Interface | RJ45× 1 | |
| Headphone Jack | Φ3.5mm×1 | |
| Interface | 2.5mm Universal connector (Power Meter, Red Light Source) | |
| Resolution | 0.01dBm | |
| Red Light Source Output Power | 15mW | 30mW |
| Features | ||
| Wavelength Memory | Yes | |
| User Self-Calibration | Yes | |
| Relative Measurement | Yes | |
| Auto Power Off | Optional | |
| Data Storage | 500 set | |
| Screen Backlight | Yes | |
| Crimping Detection | RJ45 8pin: >10cm | |
| Cable Tracing Function | Analog & Digital mode | |
| Non-contact Voltage Detection | AC 90V-1000V | |
| Network Cable Test | RJ45 Interface | |
| General Information | ||
| Charging Port | Type-C port | |
| Operating Environment | -10~50℃; <90%RH | |
| Product Dimensions | 114*65*29mm 180*45*26 |
|
| Low Battery | Battery state | |
| Standard Accessories | Optical Power Meter, LAN Cable Tester, Gift Box, Type-C Charging Cable, Headphone, RJ45 Patch Cord, RJ45 Alligator Clip Patch Cord, Cloth Bag, User Manual | |
| Battery | Lithium polymer battery 3.7V/450mAh Lithium polymer battery 3.7V 450mAh |
|
| Product Weight | About 120g About 100g |
|
| Standard Quantity Per Carton | 20pcs | |
| Test conditions | Test conditions: 23°C±2°C, 40%-60%RH, using standard test cables. Test distance is affected by environmental conditions and visual sensitivity. |
|
