UT8806E

New

UT8806E is a 6½-digit desktop digital multimeter with a maximum display of 2,000,000. It has the characteristics of high precision, multi-function, and full automation. UT8806E is equipped with a 4.3-inch TFT display with a resolution of 480*272, supports LAN, USB, RS-232C and GPIB (optional) operations, and is suitable for high-precision measurements in laboratories and automated test systems.

6 ½

READING RESOLUTION

10,000rdgs/s

FASTEST TEST RATE

300kHz

FREQUENCY RESPONSE

0.0035%

DC VOLTAGE ACCURACY in a Year

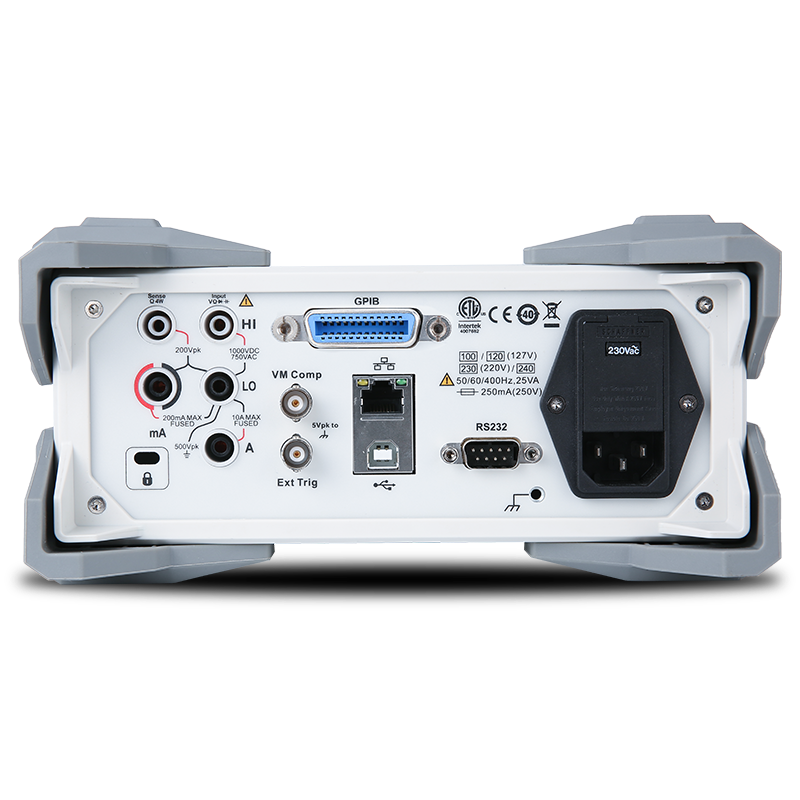

USB(Device & Host), LAN, RS-232C, GPIB (optional)

CONNECTIVITY

Get a quote Download Resources

KEY FEATURES

Model
UT8806EG

FEATURES

2,000,000 counts

Provide high-quality, high-precision measurement experience

Multiple display styles

The measured data can be analyzed and viewed in four ways: numbers, bar graphs, trend graphs and histograms.

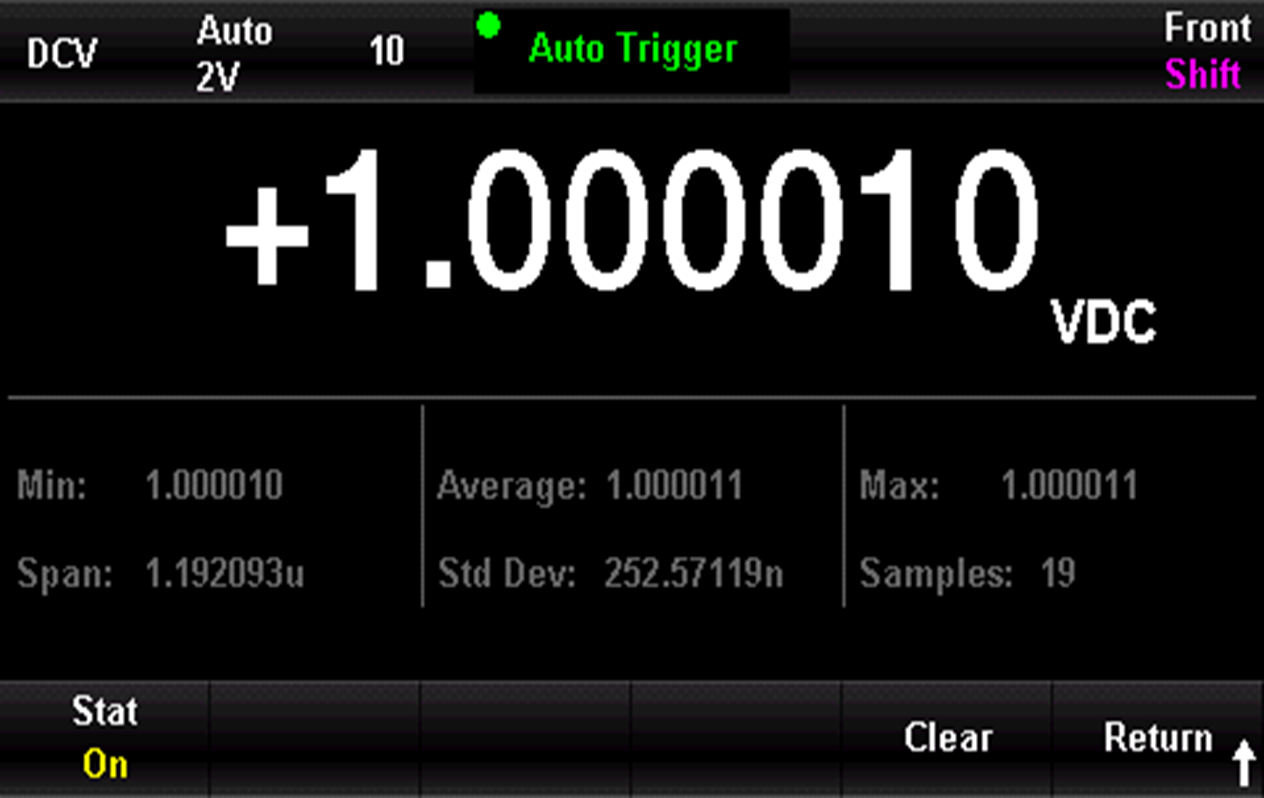

Various mathematical operation

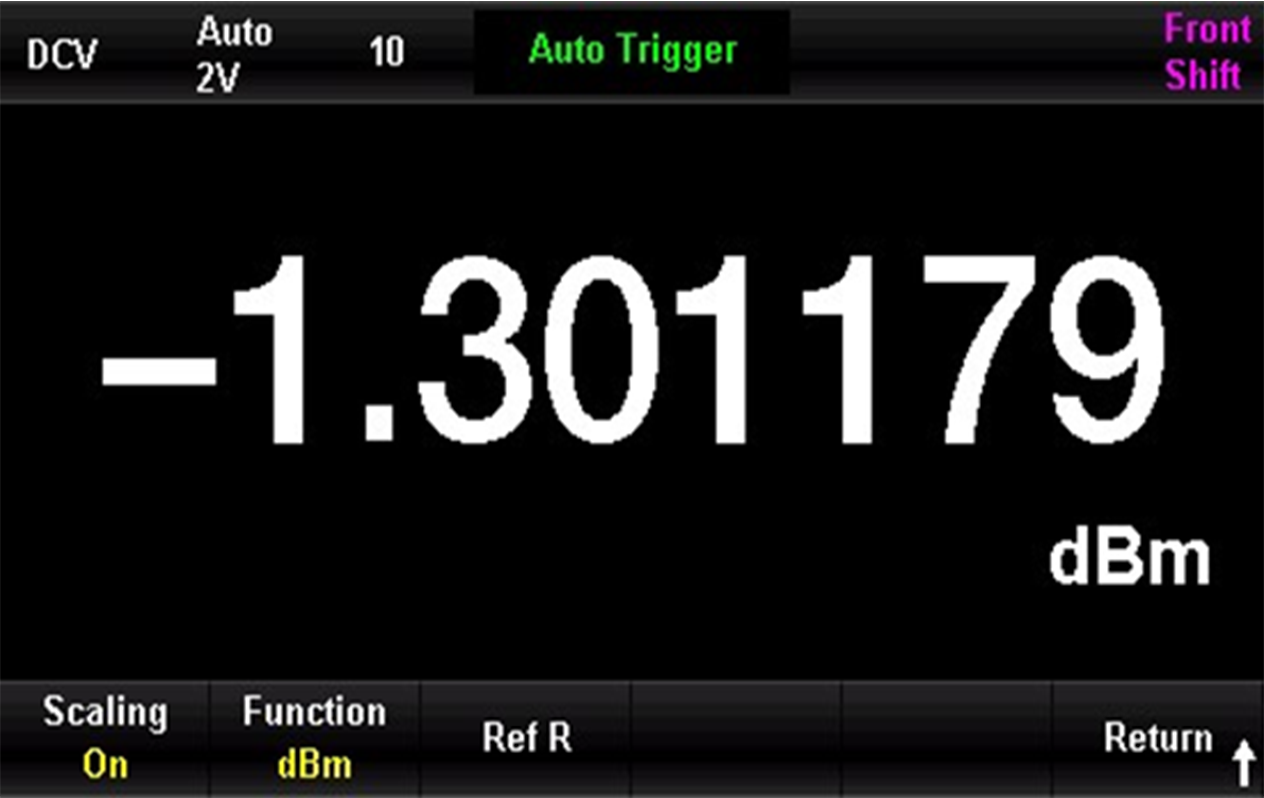

Statistics, limits, dB, dBm, relative operations. Provide convenience to meet measurement requirements under different conditions.

Dual display

Showing main measurement and secondary measurement at the same time

Powerful help system

Help you quickly become familiar with the instrument.

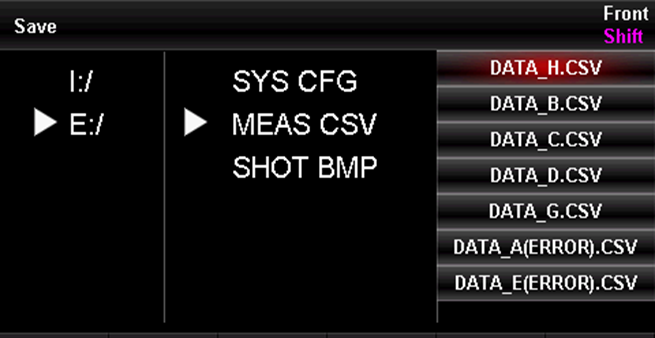

Mass storage

Internal 32G NandFlash + external USB flash drive. Worry-free storage of setup and measurement data.

MODEL

Model Bandwidth Analog Channels Real-time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels

UT8806EG

 6 ½ 10,000rdgs/s 300kHz 0.0035% USB(Device & Host), LAN, RS-232C, GPIB

UT8806E

 6 ½ 10,000rdgs/s 300kHz 0.0035% USB(Device & Host), LAN, RS-232C, GPIB (option

Technical Specification

Model UT8806EG UT8806E
Key Specifications
Reading Resolution 6½
Fastest Test Rate 10,000 rdgs/s
Frequency Response 300 kHz
DC Voltage Accuracy in a Year 0.0035%
Technical Details
DC Voltage Range 200 mV / 2 V / 20 V / 200 V / 1000 V
DC Voltage Accuracy ±(0.0035% reading + 0.0006% range), 1 year
DC Current Range 2 μA / 20 μA / 200 μA / 2 mA / 20 mA / 200 mA / 2 A / 10 A
DC Current Accuracy ±(0.05% reading + 0.002% range), 1 year
AC Voltage Range 200 mV / 2 V / 20 V / 200 V / 750 V
AC Voltage Accuracy ±(0.06% reading + 0.03% range), 1 year
AC Current Range 200 μA / 2 mA / 20 mA / 200 mA / 2 A / 10 A
AC Current Accuracy ±(0.1% reading + 0.04% range), 1 year
Resistance Range 20 Ω / 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 10 MΩ / 100 MΩ / 1 GΩ
Resistance Accuracy ±(0.01% reading + 0.001% range), 1 year
Capacitance Range 2 nF / 20 nF / 200 nF / 2 μF / 20 μF / 200 μF / 2 mF / 20 mF / 100 mF
Capacitance Accuracy ±(1% reading + 0.1% range), 1 year
Frequency Range 3 Hz–1 MHz
Frequency Accuracy ±0.007% reading, 1 year
Features
Mathematical Operation Max/Min/Average, Std Dev, Relative, dB/dBm, Pass/Fail, Histogram, Trend, Bar Chart
Data Storage 10k readings; 32 Gb NAND Flash
2/4 Wire Measurement 2-wire / 4-wire
Diode Measurement 0–4 V
Connectivity Yes; adjustable threshold up to 2 kΩ
Temperature −270 to 1760 °C; thermocouple / RTD
TRMS Yes
General Information
Display 4.3-inch TFT LCD, 480 × 272
Interface USB Host, USB Device, LAN, RS-232C, GPIB USB Host, USB Device, LAN, RS-232C
Power AC 90–110/110–132 V, 45–440 Hz; 200–240/216–264 V, 45–66 Hz
Product Net Weight 4.4 kg
Product Dimensions (W×H×D) 256 × 113.2 × 378.2 mm
Standard Quantity Per Carton 1 pc
Certification CE, cETLus
Warranty 3 Years

DATA SHEET

QUICKSTART GUIDE

MANUAL

SOFTWARE

Software package

Instrument Application

Current Version: V2.00_1031 | 2025/11/12

Release Notes

Instrument Application …………………………………………………………………………………………………………………………………………………… Version: 2.00 Date: 2024/9/23 1. Adjustment of the handling of communication failures …………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………… Supported Devices： Power Supply: UDP4303S, UDP3000S Series, UDP6900 Series, UDP5000 Series, UDP6700 Series Bench Meters: UT8806E, UTE300 Series, UTE9800+ Series Please note that these updates are aimed at improving the performance and stability of the software. We recommend updating to the latest version for a better user experience. If you encounter any issues while using the software, please contact our technical support team. Thank you for your support and usage of our software!
Software package

UNI-T SDK

Current Version: V2.3 | 2025/8/8

Release Notes

Software Development Kit, a collection of tools and resources that developers use to do second development with UNI-T instruments which have programmable feature.

FIRMWARE

Software package

UT8806E Firmware

Current Version: V1.01.0101 | 2026/1/26

Release Notes

UT8806E V1.01.0101 1. Fixed an issue where certain temperature measurement parameter settings were ineffective; 2. Revised the temperature calculation coefficient; …………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………… UT8806E V0.01.0100 1. Fixed issue where manual settings for upper and lower limits of DCI and ACV trend graphs were not effective. …………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………… UT8806E V0.01.0085 1. Fixed the problem that the unit “u” could not be displayed. …………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………… UT8806E V0.01.0084 1. Fix the VMC output polarity problem; 2. Optimize serial port communication reception; 3. Web meets PSTI requirements; 4. Increase the German menu; 5. Fix the problem of switching between Save interface and Help interface. …………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………… UT8806E V0.01.0082 1. First version of firmware
Software package

UT8806E Firmware

Current Version: V0.01.0100 | 2025/8/8

Release Notes

UT8806E V0.01.0100 1. Fixed issue where manual settings for upper and lower limits of DCI and ACV trend graphs were not effective. …………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………… UT8806E V0.01.0085 1. Fixed the problem that the unit “u” could not be displayed. …………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………… UT8806E V0.01.0084 1. Fix the VMC output polarity problem; 2. Optimize serial port communication reception; 3. Web meets PSTI requirements; 4. Increase the German menu; 5. Fix the problem of switching between Save interface and Help interface. …………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………… UT8806E V0.01.0082 1. First version of firmware
Software package

UT8806E Firmware

Current Version: V0.01.0085 | 2024/9/6

Release Notes

UT8806E V0.01.0085 1. Fixed the problem that the unit “u” could not be displayed. …………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………… UT8806E V0.01.0084 1. Fix the VMC output polarity problem; 2. Optimize serial port communication reception; 3. Web meets PSTI requirements; 4. Increase the German menu; 5. Fix the problem of switching between Save interface and Help interface. …………………………………………………………………………………………………………………………………………………… …………………………………………………………………………………………………………………………………………………… UT8806E V0.01.0082 1. First version of firmware
