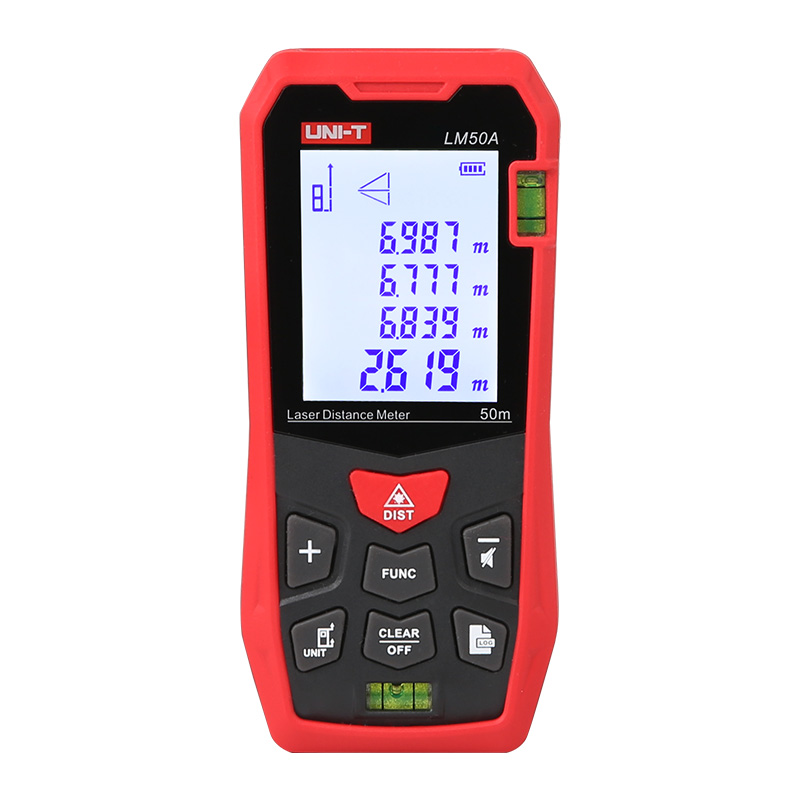

LM A Series Laser Distance Meters
The new LM A series laser distance meters are new design to measure the distance precisely. It can measure AREA, VOLUME, ADDITION, SUBTRACTION, etc easily. It can also store 99 groups data. These meters can be used in interior/exterior design, construction, factory supervision, engineering inspection, real estate development and so on.
Models in LM A Series: LM50A, LM70A, LM100A, LM120A
Key Features
● Ergonomic exterior, comfortable handling
● Millimeter accuracy
● 99 groups data storage
● Quick, self calculation with real-time readout
● Physical leveler(Horizontal and vertical)
● Multiple functions: Max/Min/continuous measurement, data storage, etc
Technical Specification
| Model | LM50A | LM70A | LM100A | LM120A |
|---|---|---|---|---|
| TECHNICAL DETAILS | ||||
| Display Size | 2.0-inches | |||
| Display Type | LCD | |||
| Range | 50m | 70m | 100m | 120m |
| Resolution | 0.001 | |||
| Measurement Units | m/ ft/ in | |||
| Measurement Basis | front/ rear | |||
| Accuracy | ±(2.0mm+5×10⁻⁵D) | |||
| Laser Class | CLASS Ⅱ | |||
| Laser Type | 630~670nm, <1mW | |||
| FEATURES | ||||
| Single Measurement | ✔ | |||
| Continuous Measurement | ✔ | |||
| Max/Min Measurement | ✔ | |||
| Area Measurement | ✔ | |||
| Volume Measurement | ✔ | |||
| Pythagorean Measurement | ✔ | |||
| Add/Subtract | ✔ | |||
| Self Calibration | ✔ | |||
| Sound ON/OFF | ✔ | |||
| Horizontal Bubble | 2 | |||
| Auto Laser Off | 30s without operation | |||
| Auto Power Off | 3 minutes without operation | |||
| Battery Status Display | ✔ | |||
| Data Storage | 99 groups | |||
| Battery Life | Up to 8000 measurements | |||
| GENERAL INFORMATION | ||||
| Product Size | 112×50×25mm | |||
| Product Net Weight | About 180g | |||
| Standard Accessories | Carrying bag, AAA batteries, User manual, Gift box | |||
| Standard Quantity Per Carton | 40pcs | |||
| Power Supply / Battery Type | 1.5V AAA×2 | |||
| Storage Temperature | -20℃~60℃ | |||
| Working Temperature | 0℃~40℃ | |||
Application
Volume measurement
Area measurement
Single measurement (1)
Single measurement (2)
