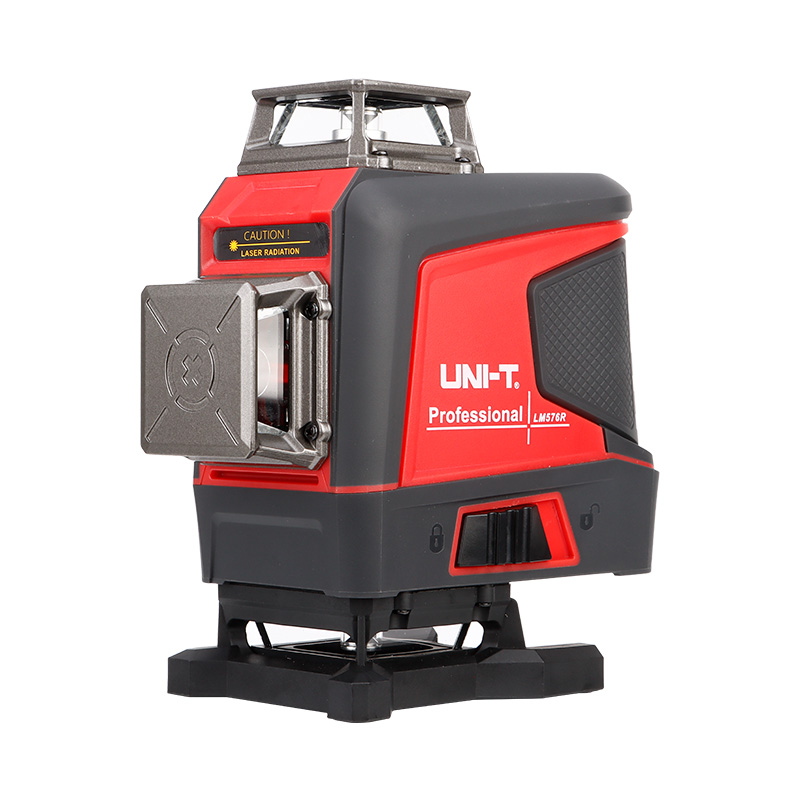

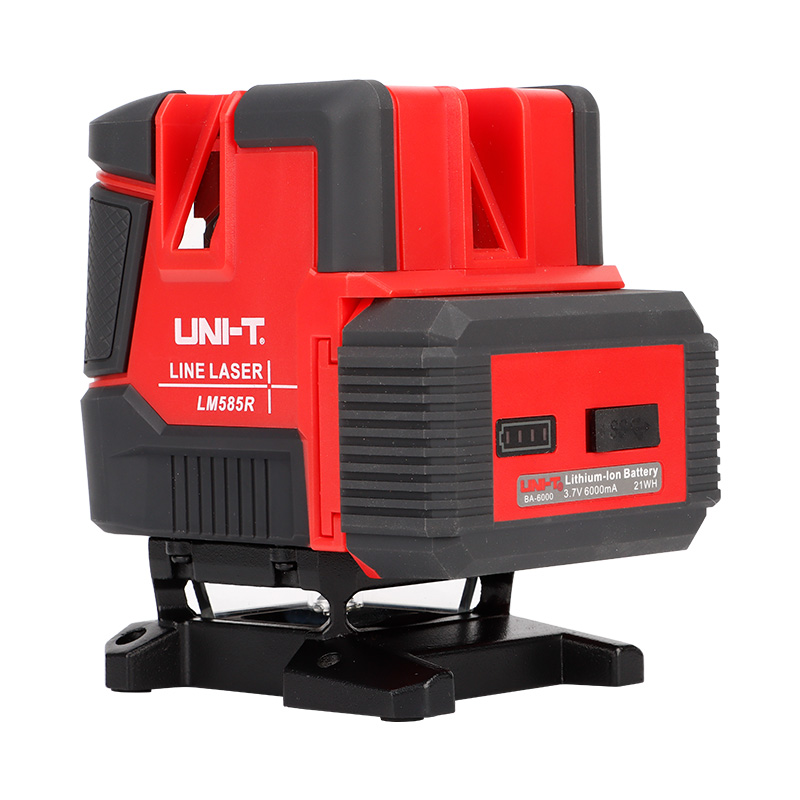

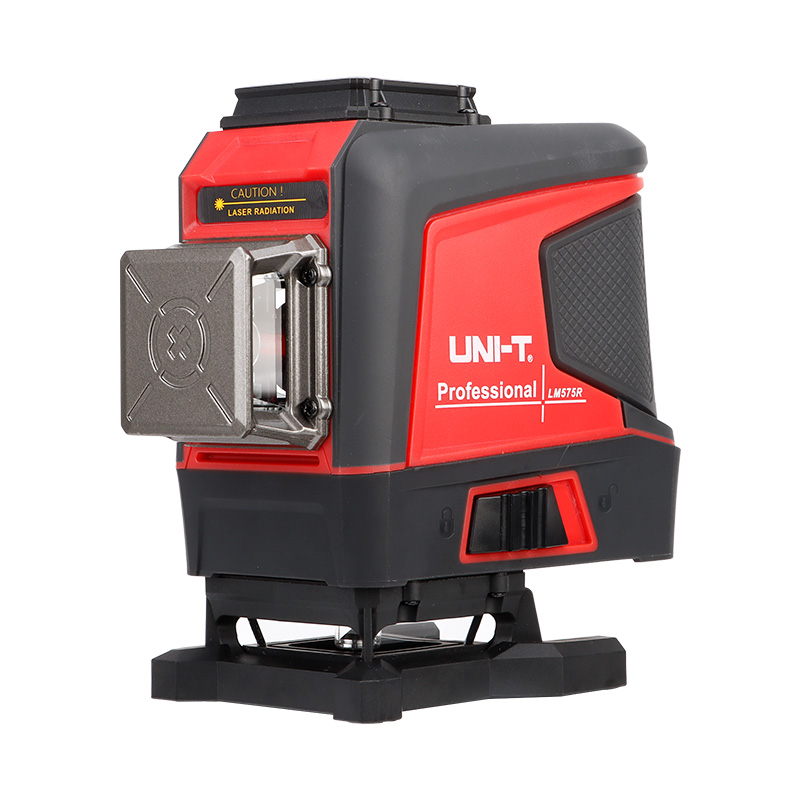

LM570R/585R Laser Levels
These laser levelers are equipped with red laser,which allows for fast, accurate layout of reference points and lines.They are ideal tools for stair laying,furniture installation, electrical and residential construction.
Key Features
Features
Certifications : ROW
● Laser high-brightness display
● 360°emission angle
● Self-leveling
● Pendulum lock
● Laser diagonals
● Wireless remote control
Model
LM573R
Technical Specification
| Model | LM573R | LM575R | LM576R | LM585R |
|---|---|---|---|---|
| Laser Type | SHARP LD, Red, high brightness | |||
| Laser Lines | 12 lines | 16 lines | 8 lines | |
| Laser Wavelength | 635nm±10nm | |||
| Laser Class | CLASS Ⅱ | |||
| Horizontal Accuracy | ≤±3mm/10m | |||
| Vertical Accuracy | ≤±3mm/10m | |||
| Brightness Adjustment | 3 scales adjustable | |||
| Laser Linewidth | ≤5mm±1/10m (80~100lux indoor) | |||
| Operating Range | Radius >30m at highest brightness | |||
| Emission Angle | 360° | Horizontal: 360°, vertical: 120° | ||
| FEATURES | ||||
| Remote Control | ✔ | × | ||
| Minimum Distance to Wall | 10mm | 20mm | ||
| Minimum Distance to Ground | — | 15mm | — | |
| Self-Leveling Range | ±(3±1)° | |||
| Operating Time | >30h | |||
| Wall Mount | ✔ | × | ||
| Leveling Modes | Magnetic damping, heavy hammer | |||
| Alarm Modes | Buzzer + laser line flashes | |||
| Diagonal Mode | ✔ | |||
| GENERAL INFORMATION | ||||
| Product Size | 130×87×120mm | 135×87×130mm | 135×87×150mm | 85×75×115mm |
| Standard Quantity Per Carton | 20pcs | |||
| Standard Accessories | Laser level, 6000mAh battery pack, Type-C cable, user manual, wall-mounted bracket, iron plate, remote control | Laser level, 6000mAh battery pack, Type-C cable, user manual, lifting table, tripod base | ||
| Operating Temperature | -10℃~50℃ | |||
| Battery / Power Supply | 3.7V 6000mAh | |||
