LM600A Series Laser Rangefinders
The LM600A series have 2.0 inch external screen. Measurement data will be displayed on dual screens at the same time while measuring objects in a certain range. They can be used in golf, power equipment installation, highway, municipal engineering, forestry survey and design, construction, network planning and communication maintenance.
Models in LM600A Series: LM600A, LM800A, LM1000A, LM1200A, LM1500A
Key Features
Features
● Compact and portable
● External screen
● Multi-function LCD
● High precision
● Harmless laser
● 6 x optical
● Vibration hint
● Flagpole lock mode
● Golf mode
● Built-in 750mAh rechargeable lithium battery
Model
LM1500A
Technical Specification
| Model | LM600A | LM800A | LM1000A | LM1200A | LM1500A |
|---|---|---|---|---|---|
| TECHNICAL DETAILS | |||||
| Distance Range | 3-600m | 3-800m | 3-1000m | 3-1200m | 3-1500m |
| Units | m, Yd, Ft, km/h, kY/h | ||||
| Accuracy | ±1m ± range×0.2% | ||||
| Measurement Height | 250m | 300m | 450m | 500m | 600m |
| Speed Range | 18~300km/h | ||||
| Magnification | 6X | ||||
| Diopter Adjustment Range | ±6° | ||||
| Angle Range | ±45° | ||||
| Angle Error | ±1° | ||||
| Objective Aperture | 21.5mm | ||||
| Eyepiece Aperture | 15mm | ||||
| Exit Pupil Diameter | 3.7mm | ||||
| Laser Wavelength | 905nm | ||||
| Laser Power | <1mW | ||||
| Laser Class | Class 1 | ||||
| FEATURES | |||||
| Flagpole Lock Mode | ✔ | ||||
| Golf Trajectory Compensation | ✔ | ||||
| Slope Measurement | ✔ | ||||
| Height Measurement | ✔ | ||||
| Volume Measurement | ✔ | ||||
| Area Measurement | ✔ | ||||
| Angle Measurement | ✔ | ||||
| Tripod Threaded Hole | ✔ | ||||
| Horizontal Distance Mode | ✔ | ||||
| Speed Measurement Mode | ✔ | ||||
| Vibration Mode | ✔ | ||||
| Auto Power Off | ✔ | ||||
| GENERAL INFORMATION | |||||
| Battery | 3.7V 750mAh lithium battery | ||||
| Product Weight | 170.7g | ||||
| Product Size | 108×72.5×42.2mm | ||||

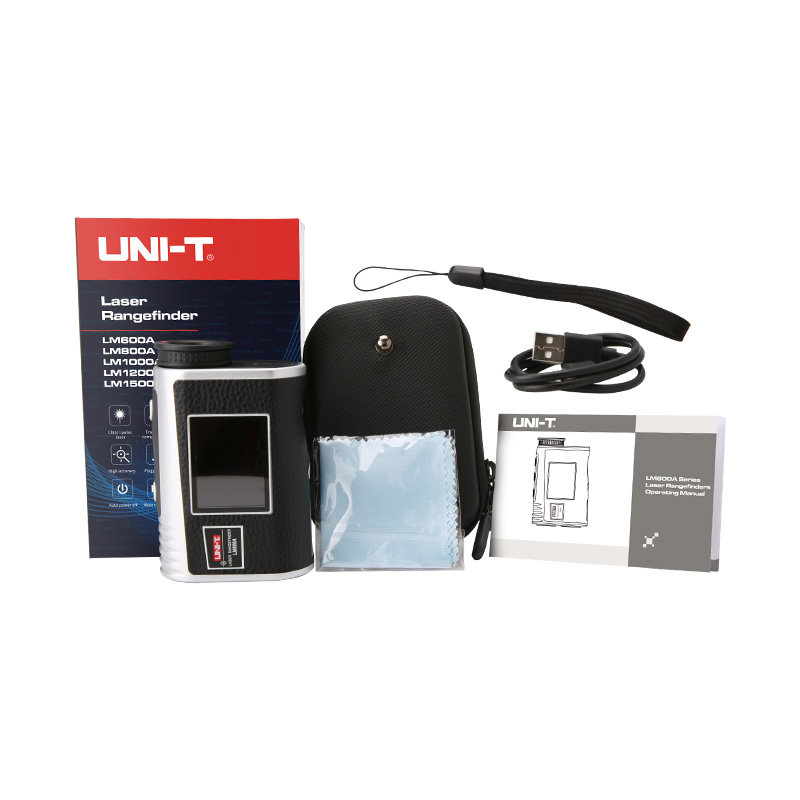

| Standard Accessories | USB cable, gift box, English manual, carrying bag, hand strap | ||||
| Standard Quantity Per Carton | 5pcs | ||||
| Operating Temperature | -10℃~50℃ | ||||
Application
Distance measurement
Velocity measurement
