UTi740E
Professional Enhanced Thermal Imager
A new addition to the E-series hammer thermal imagers—UTi740E, which is integrated with a 12μm infrared sensor of 384×288 resolution, complemented by a 30Hz refresh rate and 40mK thermal sensitivity for enhanced performance. It delivers an extended temperature measurement range of up to 650℃ with ±1.5℃/±1.5% accuracy, accurately meeting the refined measurement requirements of various industrial scenarios. Equipped with newly added video recording and WiFi live projection functions, it enables real-time synchronous viewing of the detection situation and convenient retrospective tracking of object temperature change trends throughout the measurement process. It is tailored for refined industrial measurement applications.
IR Resolution
384×288
Temperature Range
-20℃~650℃
Thermal Sensitivity
≤40mK
Field of View (FOV)
28.9°×21.7°
Frame Rate
≤30Hz
Display
3.5″ IPS (640×480)
FEATURES
384×288 High-definition infrared resolution (upscales to 768×576 pixels when super resolution is on)
Lorem ipsum dolor sit amet consectetur. Cursus amet non felis suscipit cursus ultricies nulla non. Nunc morbi proin dictumst purus.
3.5" IPS display (640×480)
Lorem ipsum dolor sit amet consectetur. Fermentum magna sapien interdum imperdiet platea ligula donec tortor. Augue in orci praesent in dignissim etiam vel. Eu scelerisque at tincidunt dolor venenatis orci malesuada.
30Hz frame rate
Precise high-resolution thermal imaging with fast refresh rates, delivering accurate temperature readings and hot-spot detection for critical diagnostics.
Temperature measurement range from -20℃ to 650℃
Rugged, reliable, and user-friendly design engineered for demanding electrical, mechanical, and HVAC building diagnostic applications.
High-accuracy measurement (up to ±1.5℃/±1.5% whicherver is greater)
Advanced on-screen measurement and analysis capabilities with customizable color palettes and seamless report export.
T-Mix image fusion algorithm
Equipped with long-lasting rechargeable battery power and durable industrial-grade casing rated for reliable field operations.
Technical Specification
| Technical Data | |
| Display | 3.5″ IPS (640×480) |
| Detector type | UFPA (Vanadium oxide) |
| IR resolution(Pixels) | 384×288 |
| Super resolution(Pixels) | 768×576 |
| Spectral range | 8~14µm |
| Pixel size | 12µm |
| Frame rate | ≤30Hz |
| Thermal sensitivity(NETD) | ≤40mK |
| Focus | Focus Free |
| Lens focal length | 9.1mm |
| Field of view(FOV) | 28.9°(H) × 21.7°(V) |
| Spatial resolution(IFOV) | 1.3mrad |
| Focusing distance | 1m (Optimum) |
| Temperature measurement range | -20℃~650℃ |
| Accuracy | 0~650℃, ±1.5℃ or ±1.5% whichever is greater -10~0℃, ±2℃ |
| Functions | |
|---|---|
| Color palettes | White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava |
| Image modes | Thermal, Visual image, T-Mix fusion, PIP |
| On-screen analyzer | 5 Points/1 Line/3 Rectangles/3 Circles |
| Isotherm | Auto/Ratio/Below/Above/Section/Manual |
| HI/LO temperature alarm | LCD animation & LED flashlight |
| HI/LO temperature tracking | ✔ |
| Digital camera resolution | 5MP |
| Digital zoom | 2x, 4x |
| Video recording | ✔ |
| Wi-Fi / Wi-Fi live streaming | ✔ |
| LED lighting | ✔ |
| Analysis software | PC+APP |
| General Characteristics | |
| Battery | 5200mAh detachable Li-ion battery pack (UT-M17) |
| Operating time | ≥4 hours (with Wi-Fi off) |
| USB | Type-C |
| Storage | 32GB SD card |
| Image storage format | Radiometric JPEG |
| Video storage format | MP4 |
| Protection | IP54 & 2m drop proof |
| Certificates | CE, FCC, RoHS |
| Languages | EN, FR, DE, IT, ES, SV, PL, CS |
| Weight | 700g |
| Dimension | 260mm×97mm×99mm |
| Packing Details | |
| Standard accessories | Type-C USB cable, SD card, Li-ion battery pack×2, Quick Start Guide, Documents Download Operation Guide |
| Standard individual packing | Toolbox & Gift box |
| Standard Qty per carton | 1pcs |
| Standard carton size | 400mm×185mm×345mm |
| Standard carton G.W. | 4kg |
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |

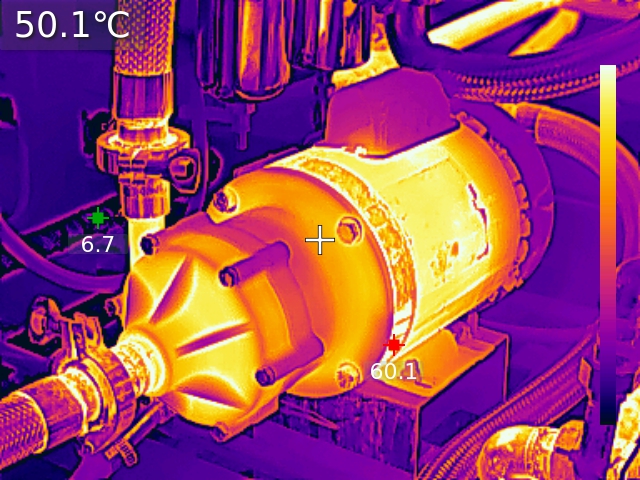

THERMAL GALLERY
