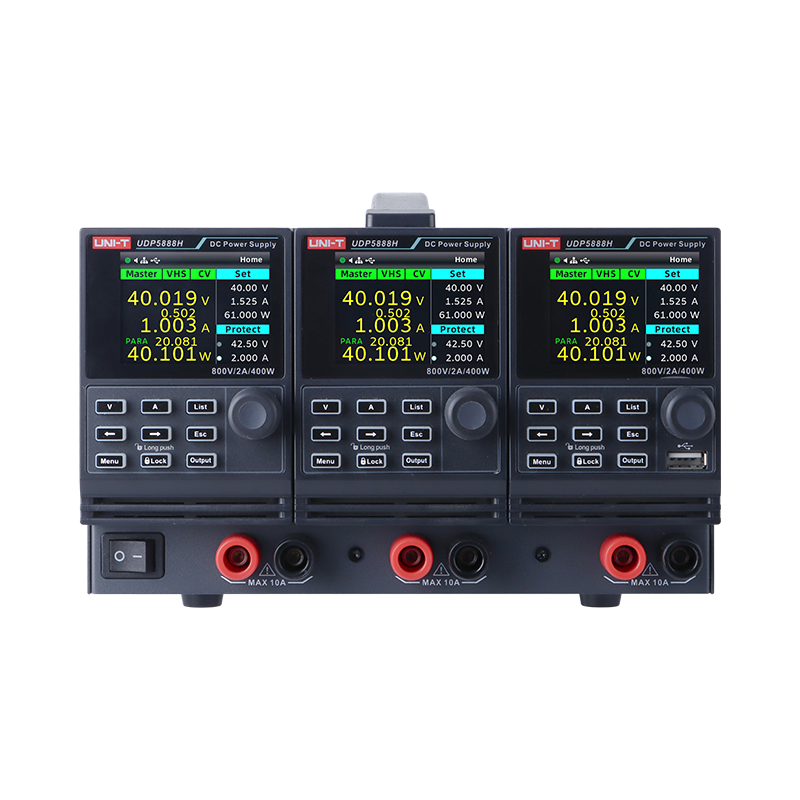

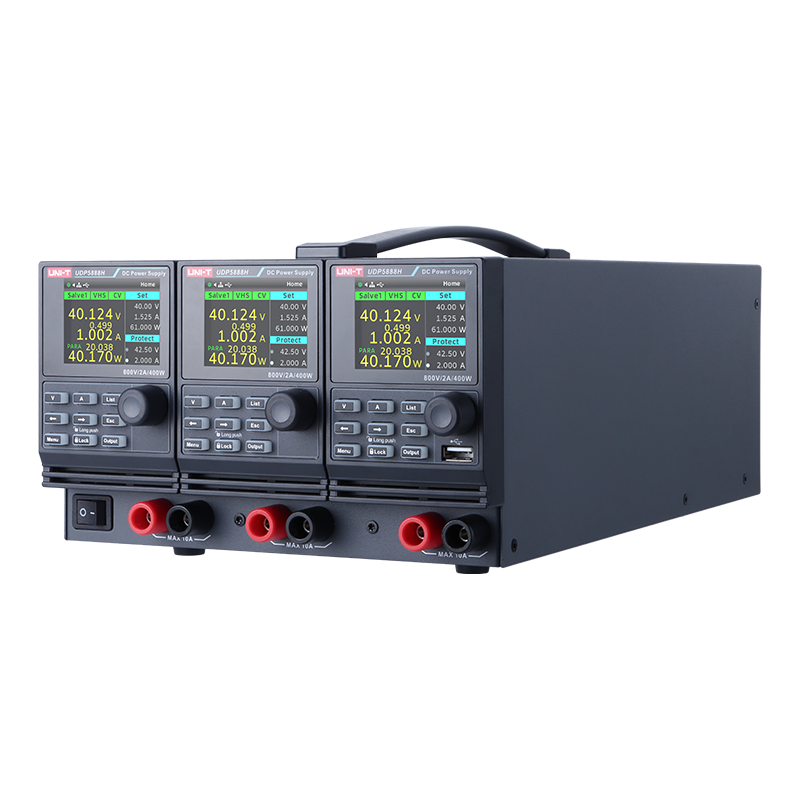

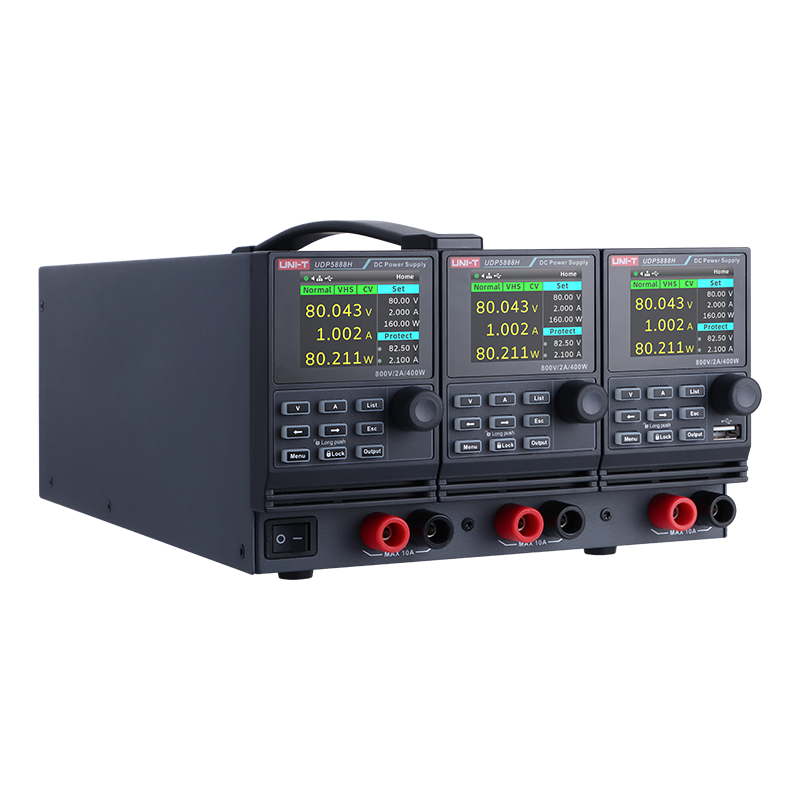

UDP5000 Multi-Channel

New

UDP5000 multi-channel series is a dual-output and triple-output programmable switched DC power supply. Each output channel is rated at 400 W. The series includes five rated output voltages (40 V, 80 V, 160 V, 250 V, 800 V) across two configurations (dual-output and triple-output), forming a total of 10 models. UDP5000 multi-channel series features an output delay of less than 0.1 ms between channels of the same voltage, adjustable output power-on/off sequencing, and independent or simultaneous control of each channel, combined with a compact design, high performance, versatile functionality, a wide output range, user-friendly operation, and application flexibility.

Switching

TYPE

2/3

CHANNELS

1200W

TOTAL POWER

0 - 800 V/CH

OUTPUT VOLTAGE

0 - 40 A/CH

OUTPUT CURRENT

1 mV,1 mA

RESOLUTION

V:0.05%+0.05%FS I:0.5%+0.1%FS

SETTING ACCURACY

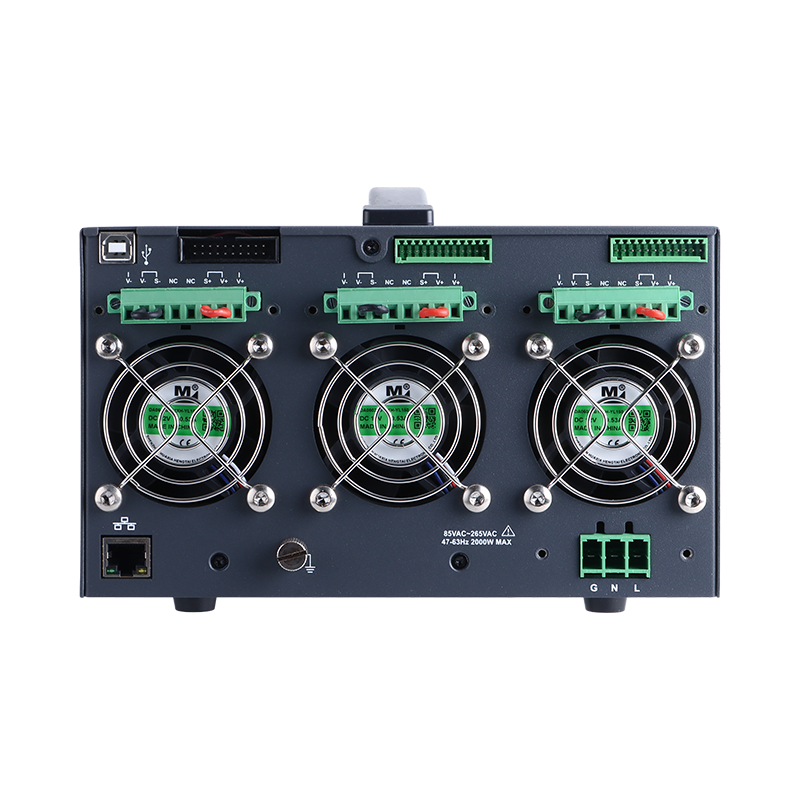

USB Host, USB Device, LAN

CONNECTIVITY

Get a quote

Download Resources

KEY FEATURES

Model

UDP5888H

FEATURES

Flexible Series/Parallel Operation

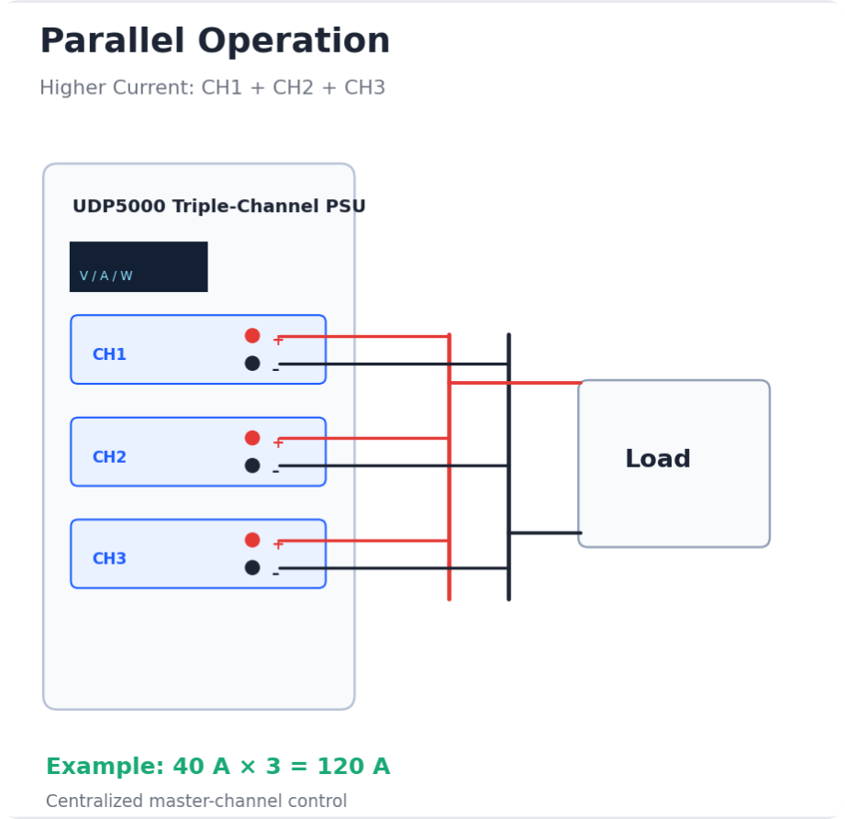

Multi-channel expansion supports parallel operation across all channels and two-channel series operation. For higher system power, multiple units can also be connected in parallel or series, supporting up to four channels in parallel and two channels in series.

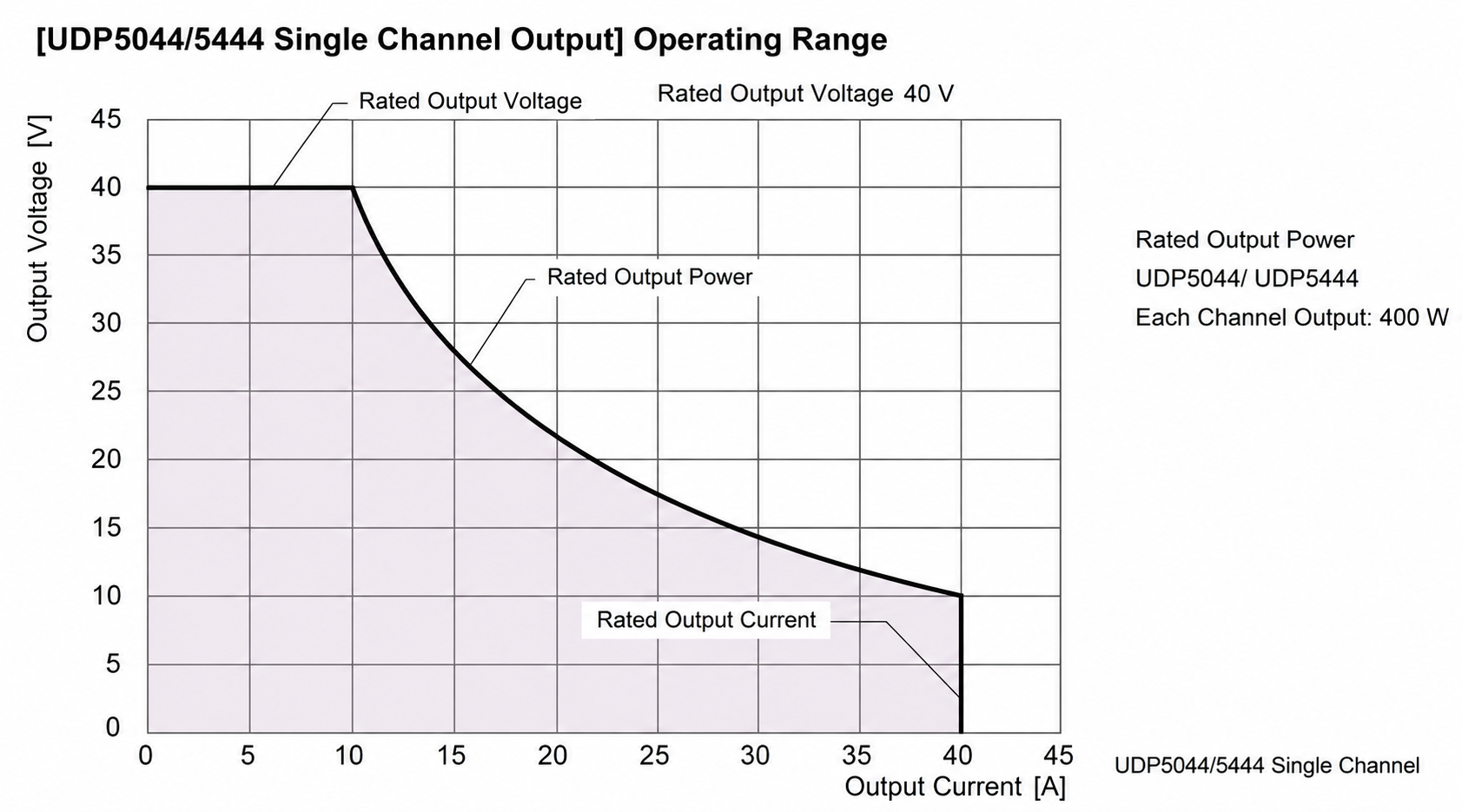

Auto Range Output

Auto Range operation delivers flexible voltage/current combinations under the rated power limit, reducing the need for multiple fixed-range supplies.

Adjustable Internal Resistance

Simulate the internal resistance of various batteries, real test application scenarios
Adjustable range: 0 to 300 Ω

Adjustable Slew Rate

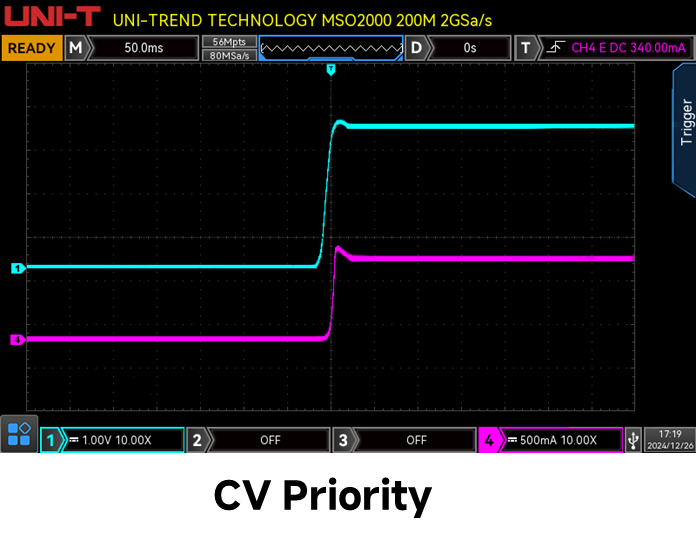

Configurable voltage and current rise/fall rates help reduce output overshoot and protect sensitive loads during power transitions.

CC/CV Priority Mode

CV priority mode for fast voltage rise
CC priority mode for improved current overshoot

List And Delayer

Can measure external voltage, flexible application

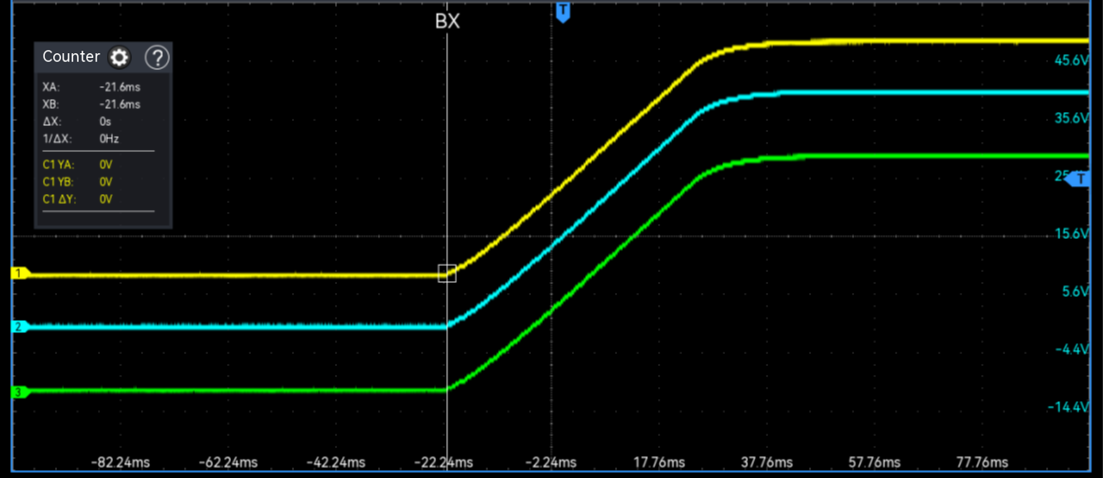

Coordinated Multi-Channel Operation

Coordinated Operation enables centralized master-channel control of multiple outputs, allowing channels to start simultaneously or follow programmable power-on/off timing with less than 0.1 ms inter-channel delay.

MODEL

Model	Bandwidth	Analog Channels	Real-time Sample Rate	Max. Memory Depth	Waveform Capture Rate	Digital Channels
UDP5888H	Switching	3	1200W	0 - 800 V/CH	0 - 2 A/CH	1 mV,1 mA
UDP5222	Switching	3	1200W	0 - 250 V/CH	0 - 6 A/CH	1 mV,1 mA
UDP5111	Switching	3	1200W	0 - 160 V/CH	0 - 8 A/CH	1 mV,1 mA
UDP5888	Switching	3	1200W	0 - 80 V/CH	0 - 20 A/CH	1 mV,1 mA
UDP5444	Switching	3	1200W	0 - 40 V/CH	0 - 40 A/CH	1 mV,1 mA
UDP5088H	Switching	2	800W	0 - 800 V/CH	0 - 2 A/CH	1 mV,1 mA
UDP5022	Switching	2	800W	0 - 250 V/CH	0 - 6 A/CH	1 mV,1 mA
UDP5011	Switching	2	800W	0 - 160 V/CH	0 - 8 A/CH	1 mV,1 mA
UDP5088	Switching	2	800W	0 - 80 V/CH	0 - 20 A/CH	1 mV,1 mA
UDP5044	Switching	2	800W	0 - 40 V/CH	0 - 40 A/CH	1 mV,1 mA

Technical Specification

Technical Details
Model	UDP5888H	UDP5222	UDP5111	UDP5888	UDP5444	UDP5088H	UDP5022	UDP5011	UDP5088	UDP5044
Key Specifications
Type	Switching
Channels	3	3	3	3	3	2	2	2	2	2
Output Voltage	0–800 V/CH	0–250 V/CH	0–160 V/CH	0–80 V/CH	0–40 V/CH	0–800 V/CH	0–250 V/CH	0–160 V/CH	0–80 V/CH	0–40 V/CH
Output Current	0–2 A/CH	0–6 A/CH	0–8 A/CH	0–20 A/CH	0–40 A/CH	0–2 A/CH	0–6 A/CH	0–8 A/CH	0–20 A/CH	0–40 A/CH
Output Power	1200 W	1200 W	1200 W	1200 W	1200 W	800 W	800 W	800 W	800 W	800 W
Voltage Resolution	10 mV	10 mV	10 mV	1 mV	1 mV	10 mV	10 mV	10 mV	1 mV	1 mV
Current Resolution	1 mA
Ripple And Noise Voltage	≤200 mVpp	≤100 mVpp	≤100 mVpp	≤50 mVpp	≤50 mVpp	≤200 mVpp	≤100 mVpp	≤100 mVpp	≤50 mVpp	≤50 mVpp
Ripple And Noise Current	≤18 mArms	≤12 mArms	≤30 mArms	≤40 mArms	≤80 mArms	≤6 mArms	≤12 mArms	≤30 mArms	≤40 mArms	≤80 mArms
Readback Accuracy Voltage	±(0.05% of reading + 0.05% rated)
Readback Accuracy Current	±(0.5% of reading + 0.1% rated)
Load Regulation CV	±403 mV	±26 mV	±20 mV	±10 mV	±6 mV	±403 mV	±26 mV	±20 mV	±10 mV	±6 mV
Load Regulation CC	±6.44 mA	±6 mA	±7 mA	±9 mA	±13 mA	±6.44 mA	±6 mA	±7 mA	±9 mA	±13 mA
Line Regulation CV	±403 mV	±26 mV	±20 mV	±10 mV	±6 mV	±403 mV	±26 mV	±20 mV	±10 mV	±6 mV
Line Regulation CC	±6.44 mA	±2.5 mA	±3 mA	±4 mA	±6 mA	±6.44 mA	±2.5 mA	±3 mA	±4 mA	±6 mA
Programming Accuracy Voltage	±(0.05% of setting + 0.05% rated)
Programming Accuracy Current	±(0.5% of setting + 0.1% rated)
Features
Channel Isolation	Yes
Remote Sense	Yes
Series Parallel Operation	Internal series/parallel; model-dependent
Protection	OVP/OCP/OTP/OPP
Multi-Unit Expansion	Yes
CC/CV Priority Mode	CC/CV priority
Adjustable Slew Rate	Yes
List Function	Yes
Delayer Function	Yes
Trigger Function	Yes
General Information
Display	2.4-inch TFT LCD
Interface	USB Host, USB Device, LAN, external analog
Power	AC 85–265 V, 47–63 Hz
Product Net Weight	7.5 kg	7.5 kg	7.5 kg	7.5 kg	7.5 kg	5.5 kg	5.5 kg	5.5 kg	5.5 kg	5.5 kg
Product Dimensions (W×H×D)	214 × 141 × 417 mm	214 × 141 × 417 mm	214 × 141 × 417 mm	214 × 141 × 417 mm	214 × 141 × 417 mm	142 × 141 × 375 mm	142 × 141 × 417 mm	142 × 141 × 417 mm	142 × 141 × 417 mm	142 × 141 × 417 mm
Standard Quantity Per Carton	1 pc
Warranty	3 Years

specifications	Range	Accuracy
AC Voltage Detection	0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω	±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω）
Current (AC)	0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω	±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω）
Features
Jaw size	0.010Ω-0.199Ω
Timer	✔
