UT500 Series Insulation Resistance Testers
UT500 series insulation testers are used to measure the insulation resistance of electrical equipment and household appliances. This is done by measuring the insulation resistance between electrical circuits or between circuits and ground. UT500 series can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption). These are dieal tools for ensuring transformers, genera-tors, high voltage motors, capacitors, cables, arresters and other electrical equipment that can oprate in a safe and accurate manner.

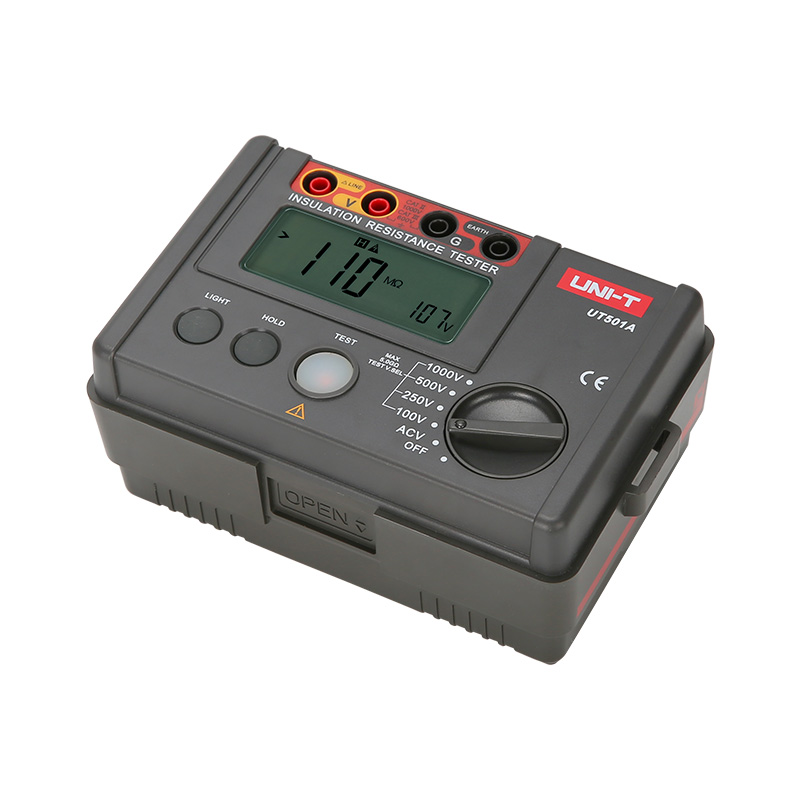

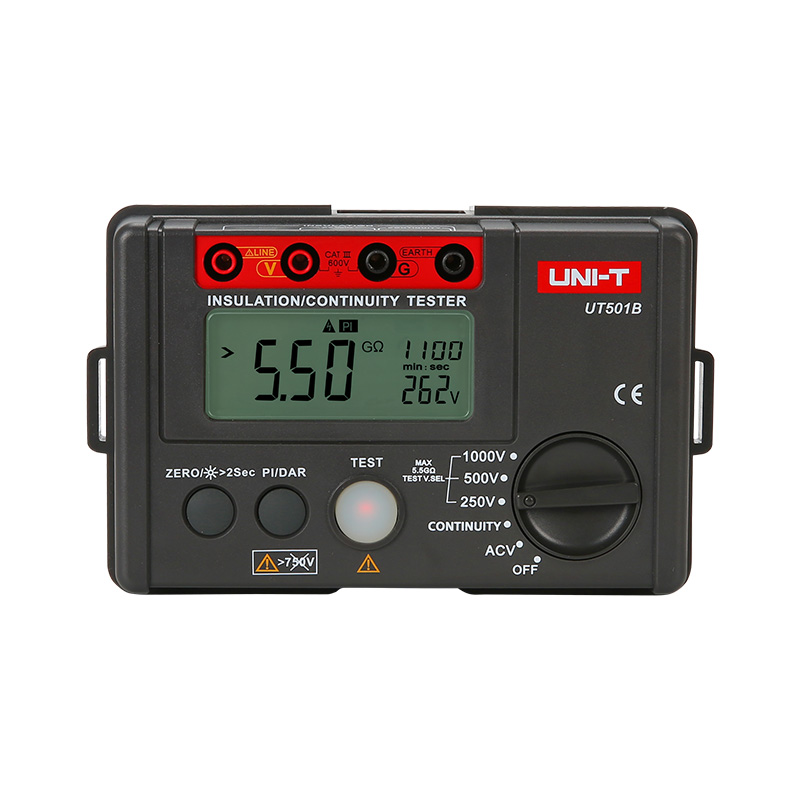

Models in UT500 series: UT501A, UT501B, UT502A
100V250V500V1000V
Insulation Test Voltage (V)
5GΩ
Insulation Resistance
<2mA
Short-Circuit Current
750V
AC Vo-Tage (V)
CAT III 600V
Safety Rating
CE/UKCA
Certificates
Key Features
● 2000 count LCD display, overload indication, backlight
Technical Specification
| Specifications | Range | UT501A | UT501B | UT502A | |
| Insulation resistance (Ω) | Test voltages | 100V/250V/500V/1000V | 0%~10% | ||
| 250V/500V/1000V | 0%~10% | ||||
| 500V/1000V/2500V | 0%~10% | ||||
| 100V | 0MΩ~100MΩ | ±(3%+5) | |||
| 250V | 0MΩ~99.9MΩ | ±(3%+5) | ±(3%+5) | ||
| 100MΩ~5GΩ | ±(5%+5) | ±(5%+5) | |||
| 500V | 0MΩ~99.9MΩ | ±(3%+5) | ±(3%+5) | ±(3%+5) | |
| 100MΩ~5GΩ | ±(5%+5) | ±(5%+5) | ±(5%+5) | ||
| 1000V | 0MΩ~99.9MΩ | ±(3%+5) | ±(3%+5) | ±(3%+5) | |
| 100MΩ~5GΩ | ±(5%+5) | ±(5%+5) | ±(5%+5) | ||
| 2500V | 0MΩ~99.9MΩ | ±(3%+5) | |||
| 100MΩ~9.9GΩ | ±(5%+5) | ||||
| 10GΩ~20GΩ | ±(10%+5) | ||||
| Load current | 50V (R=50kΩ) 1mA | 0%~10% | 0%~10% | 0%~10% | |
| 100V (R=100kΩ) 1mA | 0%~10% | 0%~10% | 0%~10% | ||
| 250V (R=250kΩ) 1mA | 0%~10% | 0%~10% | 0%~10% | ||
| 500V (R=500kΩ) 1mA | 0%~10% | 0%~10% | 0%~10% | ||
| 1000V (R=1MΩ) 1mA | 0%~10% | 0%~10% | 0%~10% | ||
| 2500V (R=1MΩ) 1mA | 0%~10% | ||||
| Short-circuit current | <2mA | <2mA | <2mA | ||
| Low resistance (Ω) | 0.01Ω~200Ω (about 5.0V/>200mA） | ±(2%+3) | ±(2%+3) | ||
| AC voltage (V) | 30V~750V | ±(2%+3) | |||
| 30V~600V | ±(2%+3) | ±(2%+3) | |||
| Features | |||||
|---|---|---|---|---|---|
| Display count | 2000 | 2000 | 2000 | ||
| DAR | 60s/15s and 60s/30s | ✔ | ✔ | ||
| PI | ✔ | ✔ | |||
| Auto range/Low battery indication | ✔ | ✔ | ✔ | ||
| LCD backlight/Light alarm | ✔ | ✔ | ✔ | ||
| Buzzer alarm/High voltage indication | ✔ | ✔ | ✔ | ||
| Overload indication/Auto discharge | ✔ | ✔ | ✔ | ||
| Test voltage secondary display | ✔ | ✔ | ✔ | ||
| 10MΩ internal resistance test | ✔ | ✔ | ✔ | ||
| Meets IEC 61557 | 61557-1:2007; 61557-2:2007; 61557-4:2007 (UT502A only) | ||||
| General Characteristics | |||||
| Power | 1.5V battery (LR6) x 6 | ||||
| Display | 70.6mm x 34mm | ||||
| Product color | Red and grey | ||||
| Product net weight | 500g | ||||
| Product size | 150mm x 100mm x 71mm | ||||
| Standard accessories | Batteries, test leads, alligator clips, gallus, test probes (UT502A) | ||||
| Standard individual packing | Gift box, carrying bag, English manual | ||||
| Standard quantity per carton | 20pcs | ||||
| Standard carton measurement | 500mm x 380mm x 330mm (0.063 CBM per standard carton) | ||||
| Standard carton gross weight | UT501A: 17.7kg; UT501B: 20.9kg; UT502A: 18.9kg | ||||

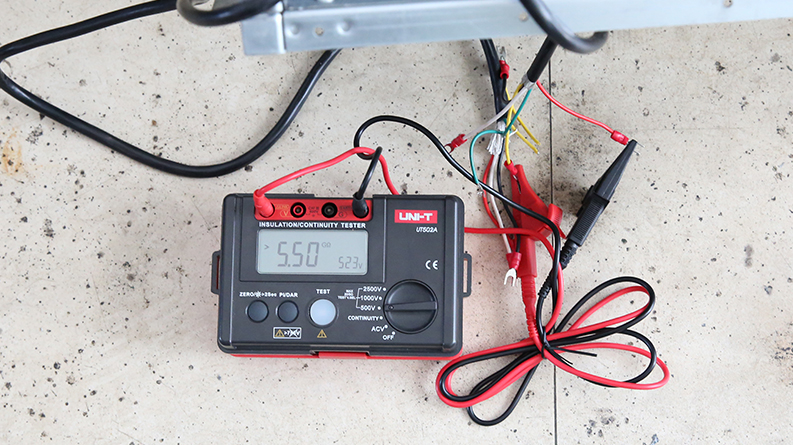

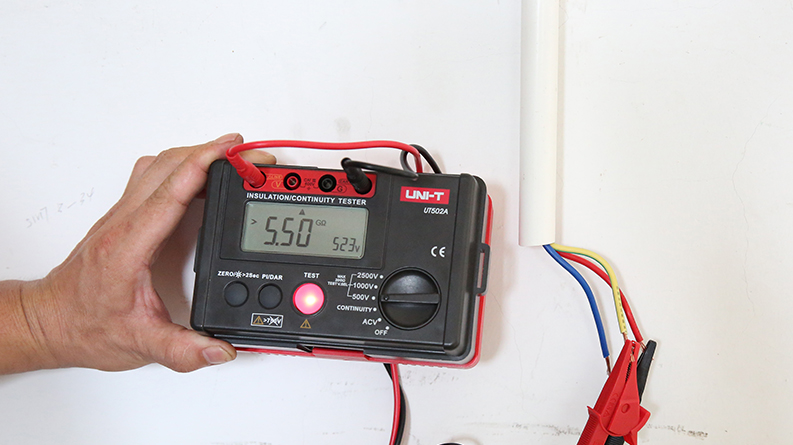

Application
