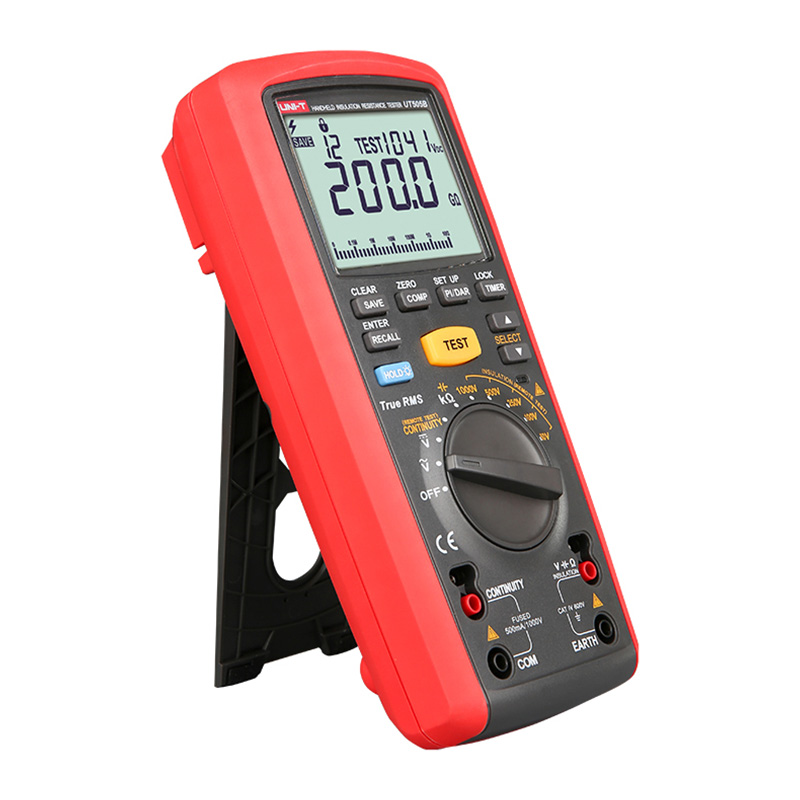

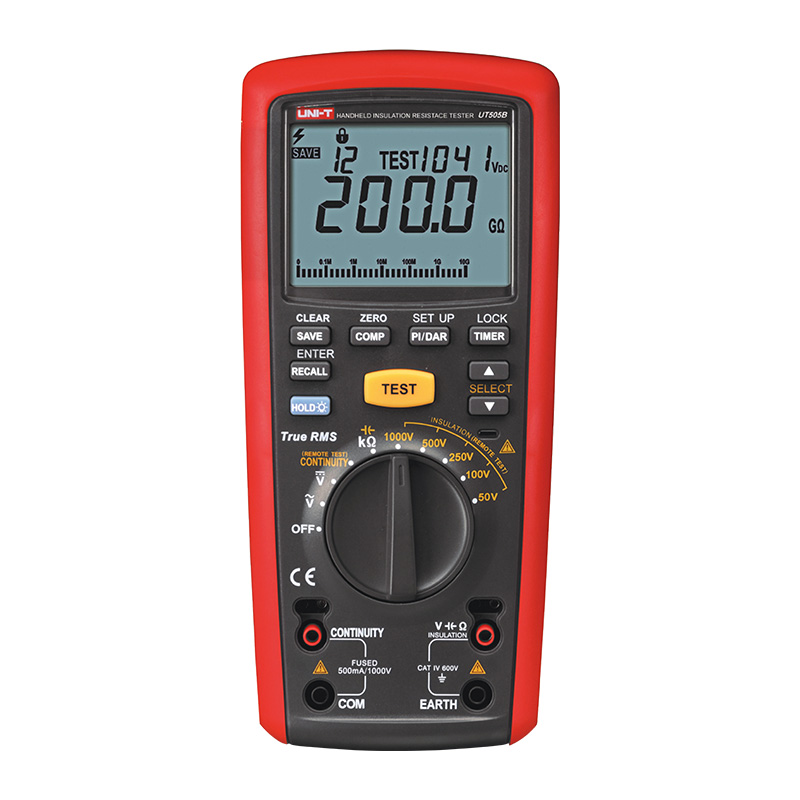

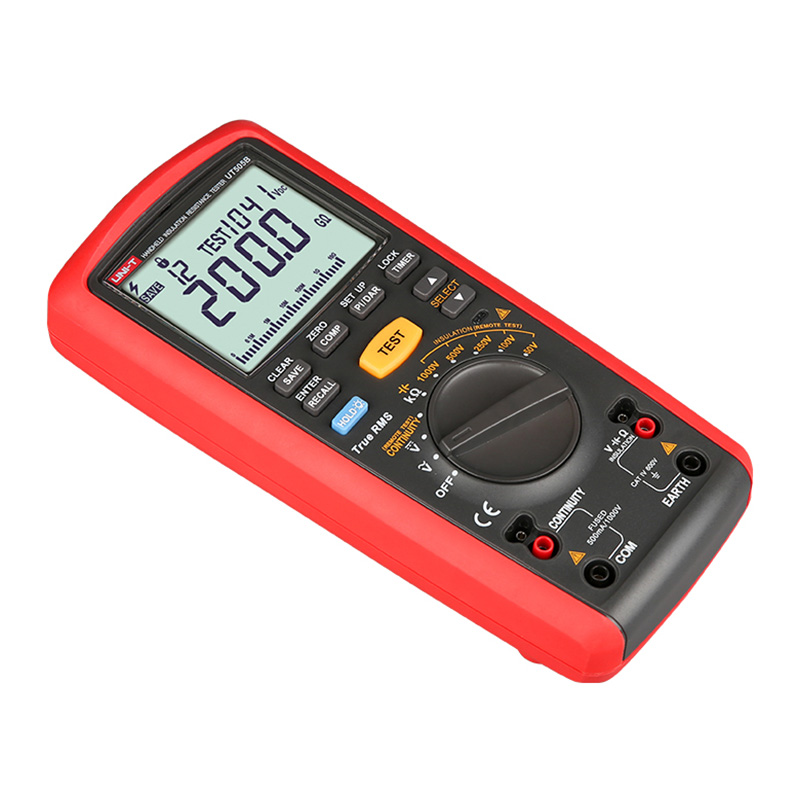

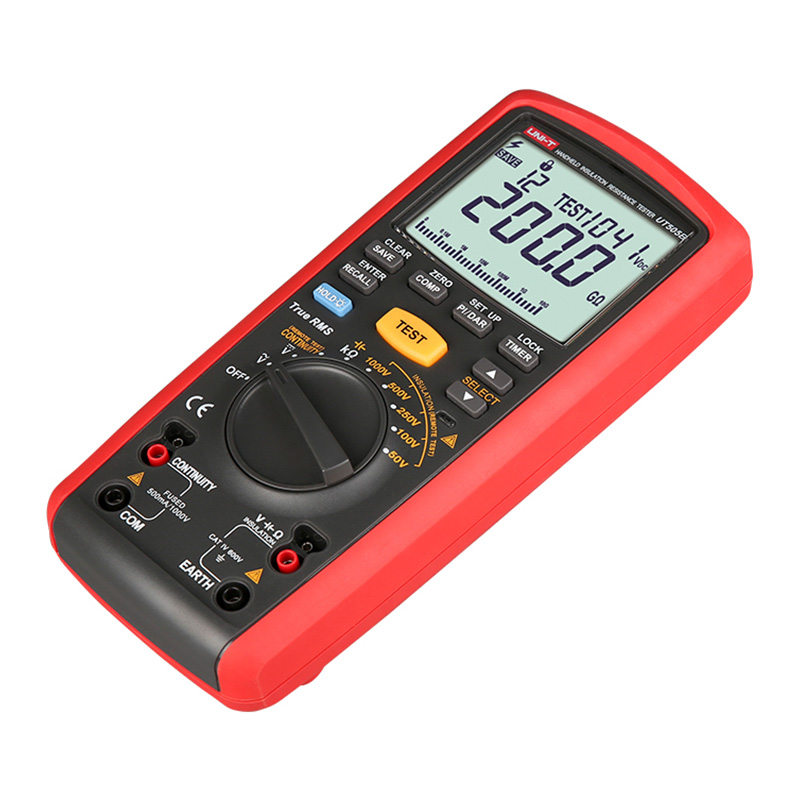

UT505 Series Handheld Insulation Resistance Testers
UT505 series handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester. Aside from the typical multimeter functions, these meters can also measure insulation resistance, PI, DAR, and automatically calculate resistance ratio to determine the insulation status.
Models in UT505 series: UT505A, UT505B
50V100V250V500V1000V
Insulation Test Voltage (V)
20GΩ
Insulation Resistance
<2mA
Short-Circuit Current
600V
AC Vo-Tage (V)
600V
DC Vo-Tage (V)
20kΩ
-Ow Resistance(Continuity)
Key Features
● Auto power off
Technical Specification
| Specifications | Range | UT505A | UT505B | |
| Insulation resistance (Ω) | 50V | 50V/100V/250V/500V/1000V | 0%~10% | 0%~20% |
| 0.01MΩ~50MΩ | ±(3%+5) | ±(3%+3) | ||
| 50MΩ~1GΩ | ±(3%+3) | |||
| 100V | 1GΩ~10GΩ | ±(10%+3) | ||
| 0.01MΩ~100MΩ | ±(3%+5) | ±(3%+3) | ||
| 100MΩ~1GΩ | ±(3%+3) | |||
| 250V | 1GΩ~20GΩ | ±(10%+3) | ||
| 0.01MΩ~200MΩ | ±(1.5%+5) | ±(1.5%+5) | ||
| 200MΩ~1GΩ | ±(1.5%+5) | |||
| 500V | 1GΩ~50GΩ | ±(10%+3) | ||
| 0.01MΩ~500MΩ | ±(1.5%+5) | ±(1.5%+5) | ||
| 500MΩ~1GΩ | ±(1.5%+5) | |||
| 1000V | 1GΩ~100GΩ | ±(10%+3) | ||
| 0.1MΩ~2000MΩ | ±(1.5%+5) | ±(1.5%+5) | ||
| 2GΩ~9.9GΩ | ±(10%+3) | ±(5%+3) | ||
| 10GΩ~20GΩ | ±(20%+10) | ±(7%+3) | ||
| 20GΩ~200GΩ | ±(20%+3) | |||
| Load current | 50V (R=50kΩ) 1mA | 0%~10% | 0%~10% | |
| 100V (R=100kΩ) 1mA | 0%~10% | 0%~10% | ||
| 250V (R=250kΩ) 1mA | 0%~10% | 0%~10% | ||
| 500V (R=500kΩ) 1mA | 0%~10% | 0%~10% | ||
| 1000V (R=1MΩ) 1mA | 0%~10% | 0%~10% | ||
| Short circuit current | <2mA | <2mA | ||
| Leakage current (A) | 10~2000μA | ±(10%+3) | ||

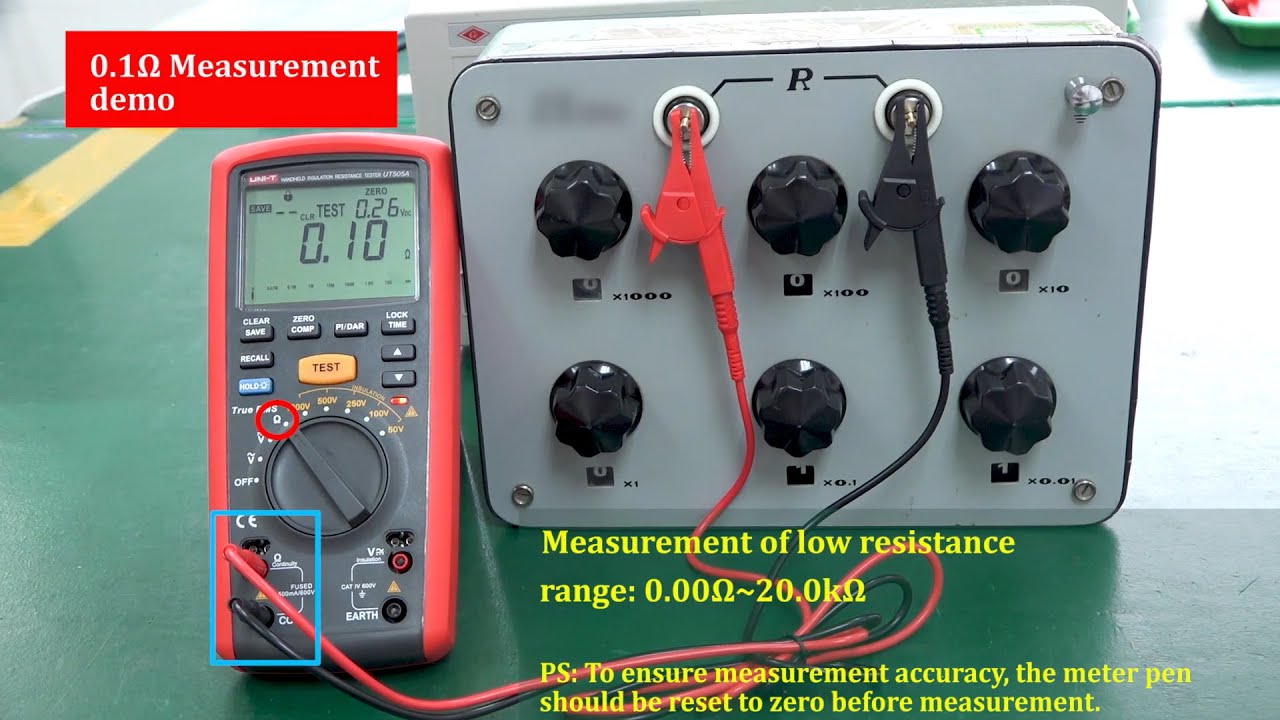

| Low resistance (Ω) | 0.01Ω~20kΩ (about 5V/>200mA) | ±(1.5%+3) | ||
| 0.01Ω~100Ω (about 5V/>200mA/20mA optional) | ±(1.5%+3) | |||
| General resistance (Ω) | 0.01kΩ~10MΩ | ±(3%+3) | ||
| DC voltage (V) | 0V~600V | ±(2%+3) | ±(2%+3) | |
| AC voltage (V) | 0V~600V | ±(2%+3) | ±(1.5%+5) | |
| Frequency (Hz) | 45~1kHz | ±(0.1%+3) | ||
| Capacitance (F) | 100pF~500μF | ±(5%+5) | ||
| Features | ||||
|---|---|---|---|---|
| Display count | 6000 | 6000 | ||
| Auto range/True RMS | √ | √ | ||
| Step voltage | 10% steps at 50%~120% of range | √ | √ | |
| DAR | 60s/15s and 60s/30s | √ | √ | |
| PI/Timing measurement | √ | √ | ||
| Auto discharge | √ | √ | ||
| Auto fuse check | √ | |||
| Analog bar graph | √ | √ | ||
| Continuity buzzer | √ | √ | ||
| Comparison measurement | √ | √ | ||
| Low battery indication | √ | √ | ||
| General Characteristics | ||||
| Power | 1.5V battery (LR6) x 6 | |||
| Display | 78mm x 59mm | |||
| Product color | Red and grey | |||
| Product net weight | 630g | |||
| Product size | 103mm x 225mm x 59mm | |||
| Standard accessories | Batteries, test leads, test probes, alligator clips, remote test lead (UT505B only) | |||
| Standard individual packing | Carrying bag, gift box, English manual | |||
| Standard quantity per carton | 20pcs | |||
| Standard carton measurement | 515mm x 380mm x 385mm (0.075 CBM per standard carton) | |||
| Standard carton gross weight | 20.8kg | |||
Application
DC voltage measurement
AC voltage measurement

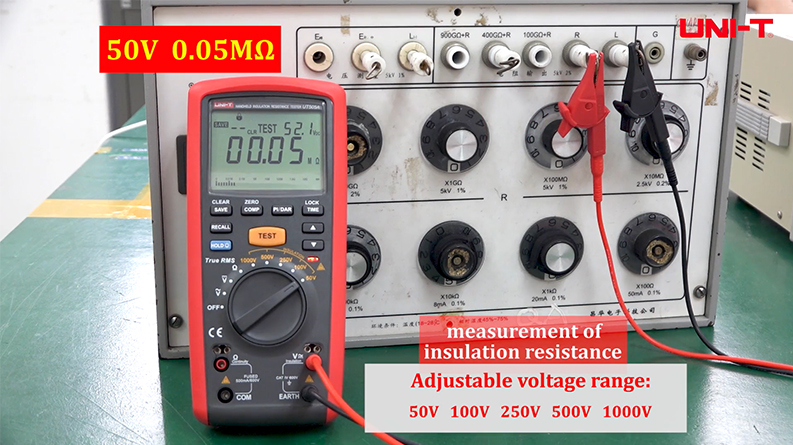

Insulation resistance measurement
Motor wire and case insulation measurement
