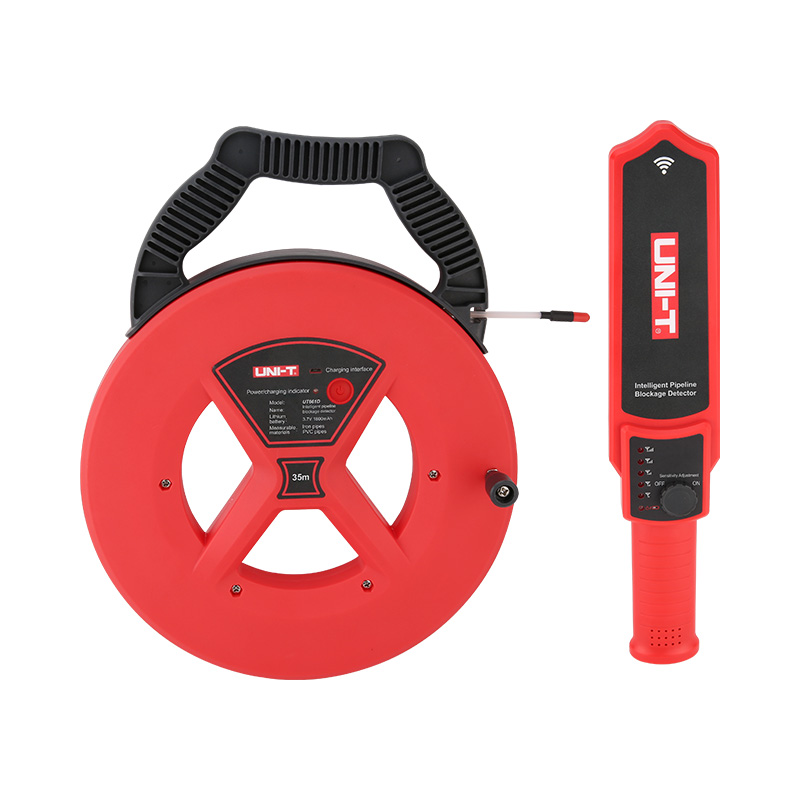

UT661 Series Pipeline Blockage Detectors
The UT661 series pipeline blockage detectors can quickly locate blockages clogging inside pipelines. They are able to detect pipes from a maximum distance of 50cm, the signal wire can be inserted into pipelines up to 25/35m for UT661C/D respectively. UT661 series are easily operable, and can be used to detect steel, iron, and pvc pipes.
Models in UT661 Series: UT661C, UT661D
Key Features
Features
● The location of the blockage in the pipe can be detected
● Measurable pipe material: plastic pipes, metal pipes
● Maximum detection distance(depth): 50cm
● Buzzing prompt and Flash prompt
Technical Specification
| Model | UT661C | UT661D |
|---|---|---|
| TECHNICAL DETAILS | ||
| Signal Wire | 25m | 35m |
| Maximum Detection Depth | 50cm | |
| Transmitter Current | Shutdown current <2uA; operating current: 230~310mA | |

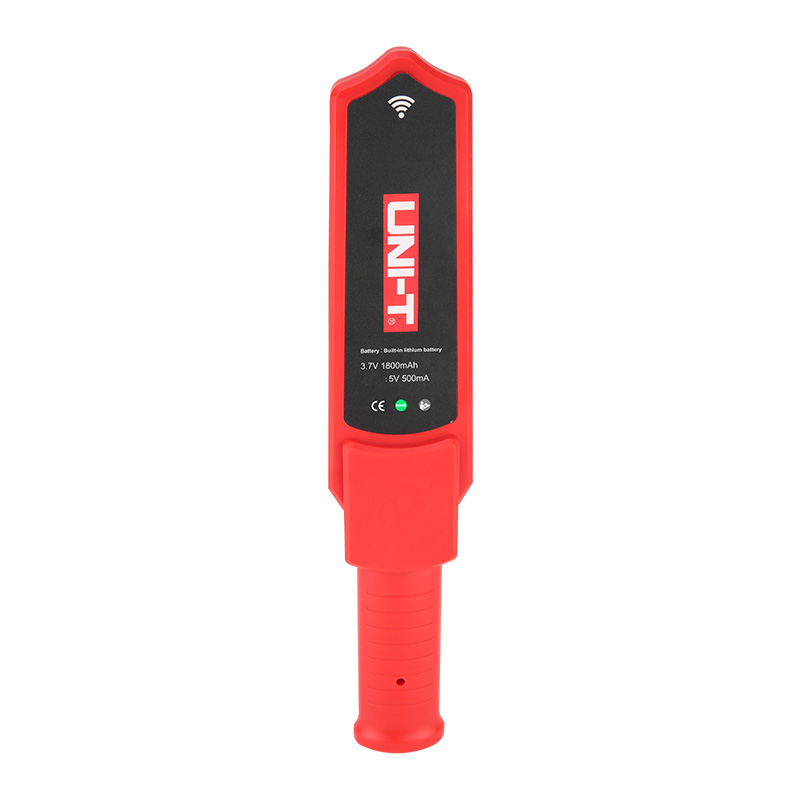

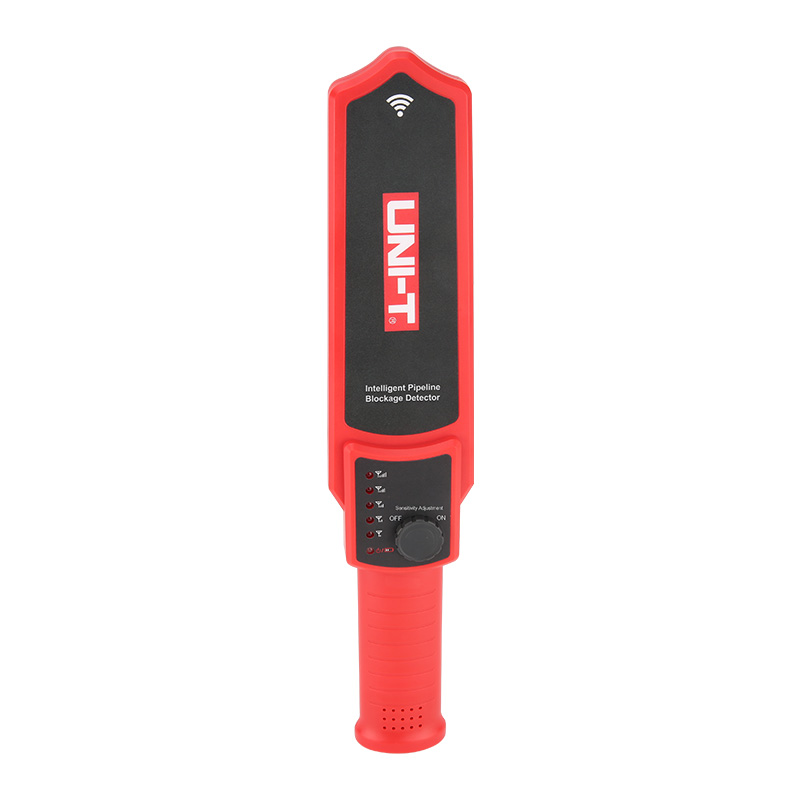

| Receiver Current | Shutdown current <2uA; standby current <40mA; maximum operating current: 150~450mA (1cm distance) | |
| Charging Current | 450~550mA | |
| Sound (1cm Distance) | 93dB | |
| Sound (0.5m Distance) | 75dB | |
| Measurable Pipe Materials | Plastic pipes, metal pipes | |
| FEATURES | ||
| Buzzer | ✔ | |
| Flash | ✔ | |
| Low Battery Indication | ✔ | |
| IP Rating | IP67 (probe) | |
| Transmitter | ✔ | |
| Receiver | ✔ | |
| Battery Duration | 10 hours | |
| GENERAL INFORMATION | ||
| Transmitter Battery | Built-in lithium battery (3.7V 2000mAh) | |
| Receiver Battery | Built-in lithium battery (3.7V 2000mAh) | |
| Standard Accessories | Charging cable, probe kit | |
| Standard Individual Packing | Gift box, user manual | |
| Standard Quantity Per Carton | 5pcs | |
| Standard Carton Measurement | 405×90×350mm | |
| Operating Temperature & Humidity | -20℃~60℃; 10~80%RH | |
