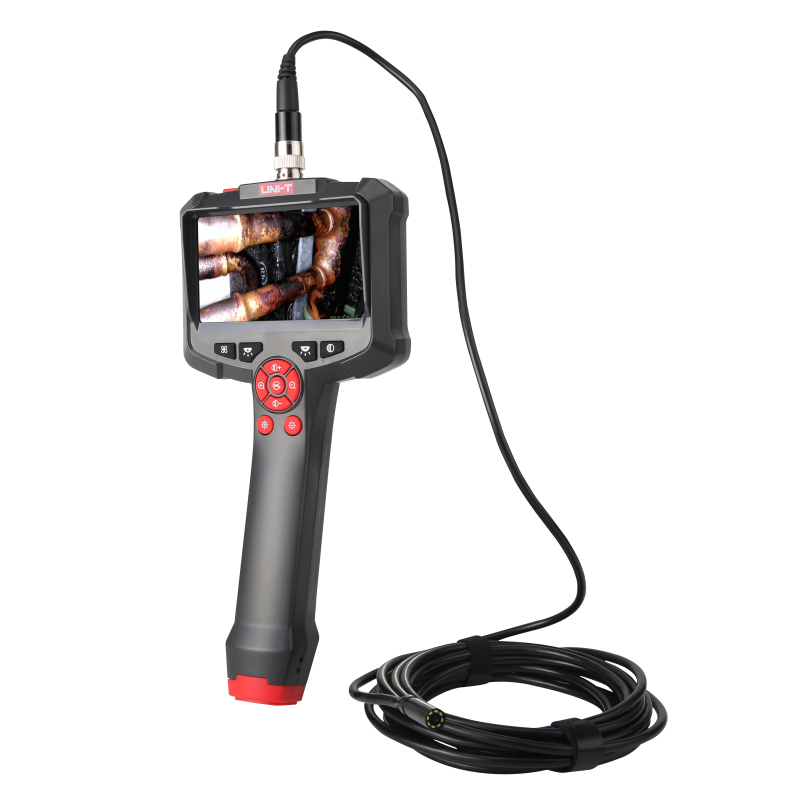

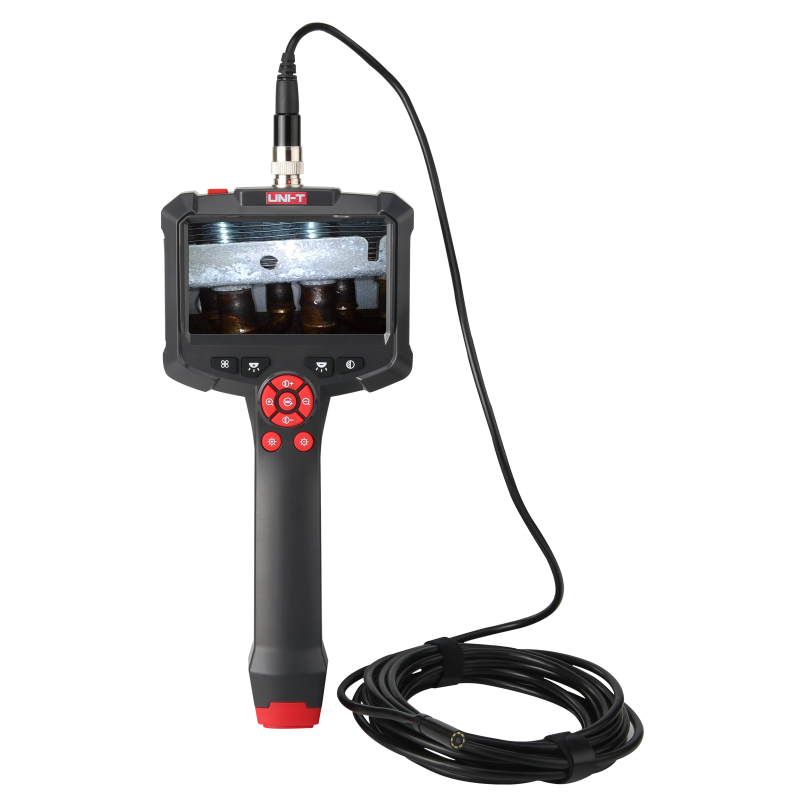

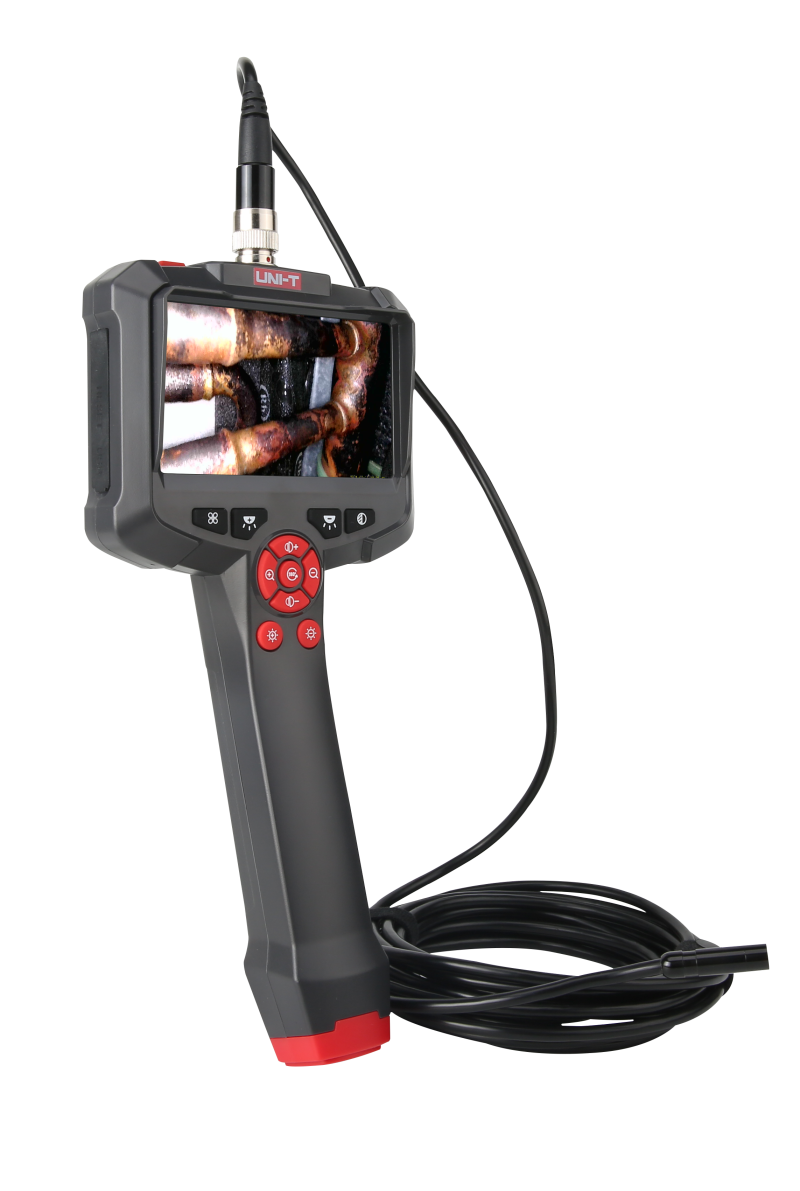

UT665P Handheld Single Lens Industrial Borescope

The UT665P series industrial endoscope is professionally designed and produced to meet the market’s demand for complex environments that are inaccessible to the human eye. Its portable, plug-and-play aviation connector and flexible snake tube can be bent into the desired shape. The ergonomic handle design offers a good grip and is anti-slip and shock-resistant. The user-friendly UI interface makes operation simple and clear, ensuring easy human-machine communication. It truly achieves portability, ease of use, and long-lasting durability!

Get a quote

Data Sheet

Download Resources

Key Features

Features

● 4.3″ Display Screen

● 8 Adjustable Brightness LEDs

● Large Storage of Li-ion Battery

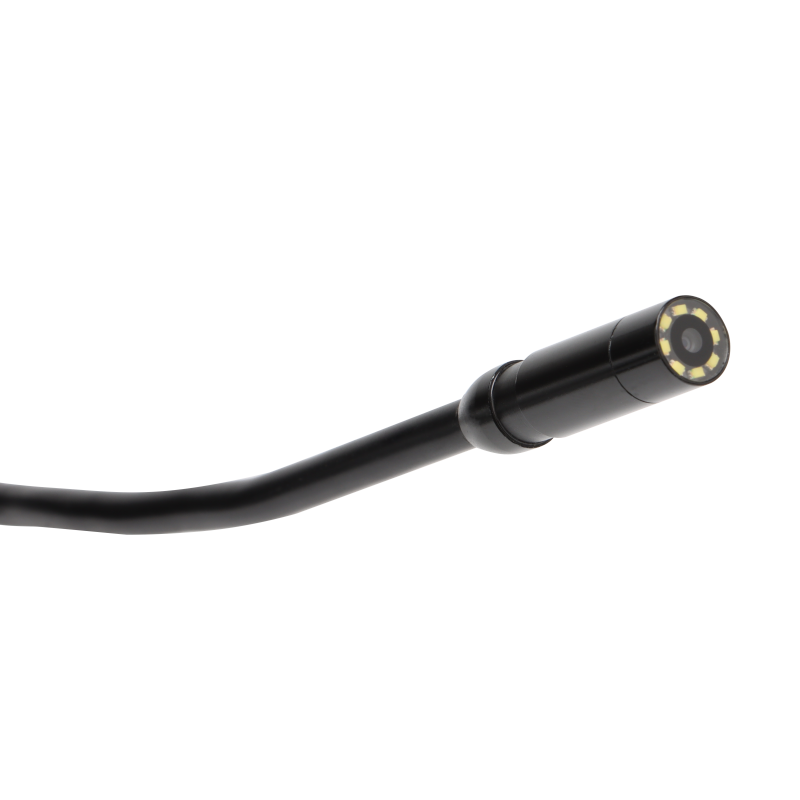

● IP67-Rated Camera

● Image Rotation

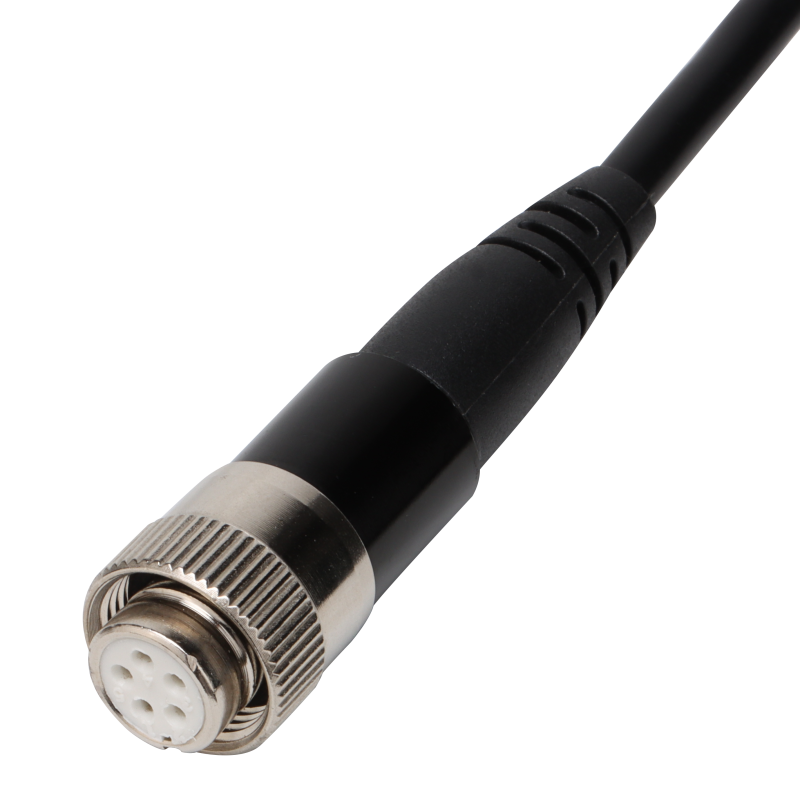

● Aviation-Plug Hose

● Optional Hose Length: 1m, 5m, 10m

Model

UT665P

Technical Specification

Model	UT665P	UT665P-5m	UT665P-10m
TECHNICAL DETAILS
Screen Size	4.3"
Screen Type	IPS
Screen Pixels	1280×720
Lens Diameter	8mm
Light Sensor Chip	CMOS
Field of View (FOV)	70°
Adjustable LED Lights	4 settings, 8 LEDs
Pixels	300K
Hose Material	Replaceable hardwire with aviation plug
Hose / Probe Length	1m	5m	10m
Depth of Field (DOF)	20~100mm
FEATURES
Basic Functions	Screen rotation, contrast adjustment, black-white images, color conversion, image zoom, screen brightness adjustment
System Languages	English
Battery Power Indicator	✔
GENERAL INFORMATION
Product Size	256×120×50mm
Product Net Weight	About 270g(Hose not included)
Standard Quantity Per Carton	20pcs
Standard Accessories	Handheld single-lens industrial borescope, Type-C cable, gift box, user manual, blister tray, hook, side mirror, magnet, 3 fixed buckles
Battery / Power	3.7V / 2000mAh
Battery Life	6h
Lens Working Temperature	0°C~80°C
Working Temperature	0°C~45°C
Humidity	<90%RH, no condensation
IP Rating	IP67
