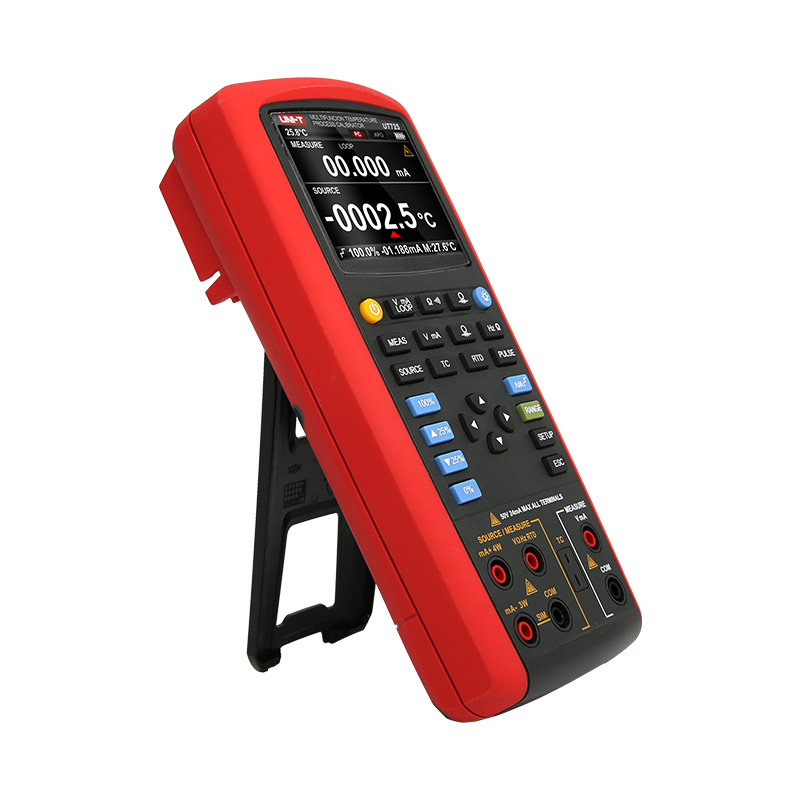

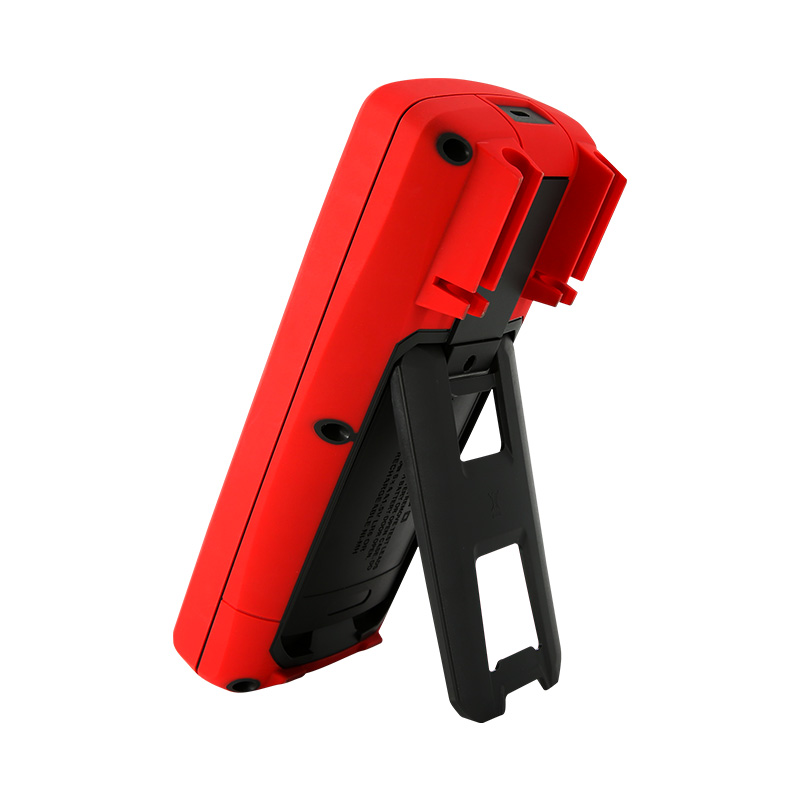

UT725 Multifunction Process Calibrator

The UT725 multifunction process calibrator combines with temperature process calibrator and loop process calibrator function. You can easily measure and source most of the process parameter: mA, volts, temperature, frequency, ohms in one tool.

Get a quote

Data Sheet

Download Resources

Key Features

Features

● Step/ramp functions

● Source and measure accuracy up to 0.02%

● Rechargeable battery

● Contrast adjustment

● Auto power off (Time adjustable)

● Stores and recalls setups

● USB communication

● Simultaneously measure and output different process signal in real time

● Pressure measure with specified pressure modules, and sourcing pressure

● Provides 24V loop power to transmitter while conducting mA current measurement at the same time

Technical Specification

Source accuracy
Specifications	Range	UT725
Measurement
DC voltage (V)	50mV/500mV/50V	±(0.02%+2)
DC current (mA)	20mA	±(0.02%+2)
Loop current (mA)	20mA	±(0.02%+2)
Resistance (Ω)	500Ω/5000Ω	±(0.05%+10)
Frequency (Hz)	100Hz/1kHz/10kHz/100kHz	±(0.01%+1)
Thermocouples	R,S,K,E,J,T,N,B,L,U,XK,BP
RTDs	Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120
Continuity test	√
Pulses (Hz)	1~15kHz (1~100000 periods)
DC voltage (V)	100mV/1000mV/10V	±(0.02%+10)
DC current (A)	20mA/20mA(SIM)	±(0.02%+2)
Resistance (Ω)	400Ω/4000Ω/40kΩ	±(0.05%+10)
Frequency (Hz)	200Hz/2000Hz/20kHz/100kHz	±(0.01%+1)
Pulses (Hz)	100Hz/1kHz/10kHz	±1
Thermocouples	R,S,K,E,J,T,N,B,L,U,XK,BP
RTDs	Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120
Display count	20000
Operation temperature	-10°C~55°C
General Characteristics
Power	1.2V x 6 AA rechargeable battery
Product net weight	650g
Product size	195mm x 95mm x 58mm
Standard accessory	Test lead, USB cable, power adapter, temperature probe, English manual
