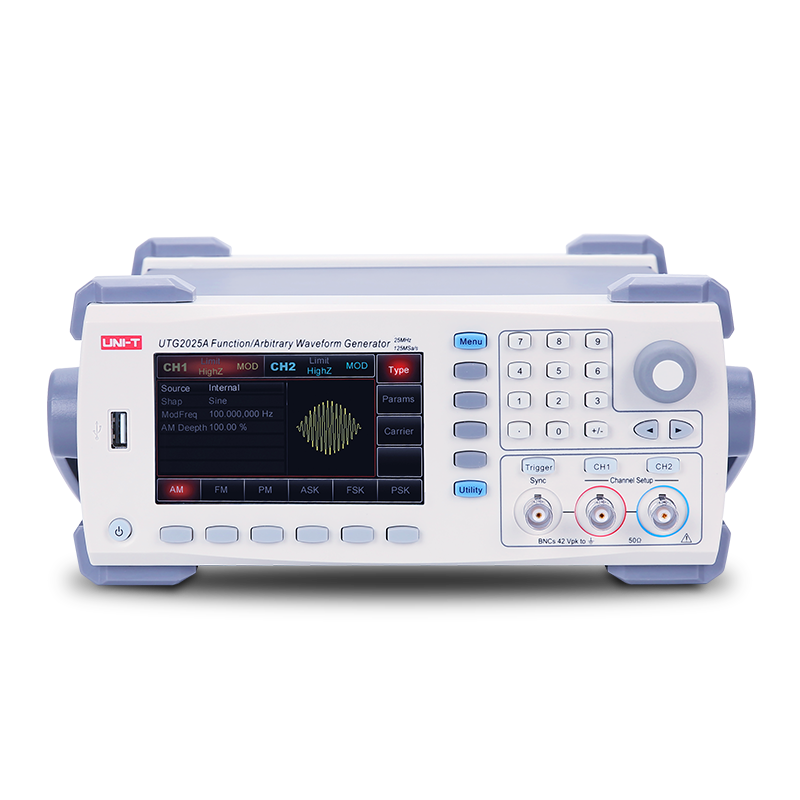

UTG2000A
The UTG2000A Series redefines the entry level waveform generator by bringing advanced capabilities like 14-bit high resolution, 125MSa/s sampling rate to our most affordable line of generators. 48 built-in arbitrary waveforms enable. the UTG2000A Series delivers a powerful low cost signal generator for students and engineers alike.
25 MHz
Max. Output Frequency
125 MSa/s
Sample Rate
14 bits
Vertical Resolution
2
Channels
8 Kpts
Arbitrary Wave Length
4.3 inch TFT LCD
Display
KEY FEATURES
FEATURES
25MHz maximum frequency output, multiple waveform signals
2Channl,25MHz maximum frequency output,
multiple waveform signals are available:
sine wave, square, ramp, pulse, noise, DC, arbitrary waveform

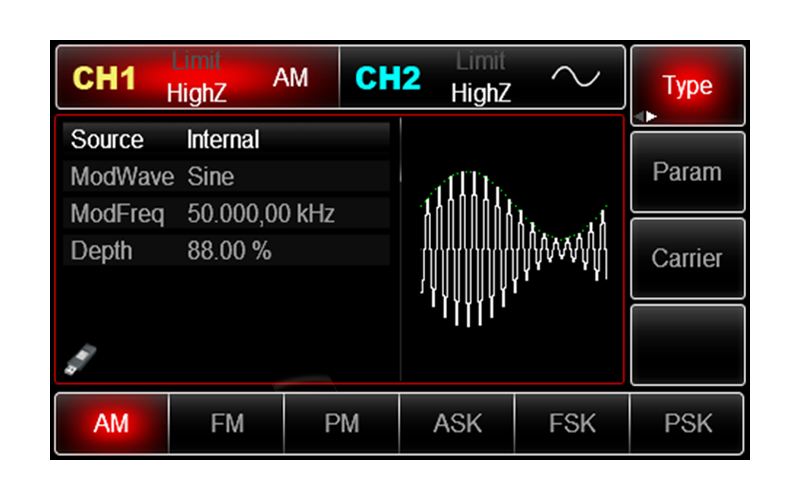

Multiple modulation functions
Multiple analog and numerical modulation functions
Modulation type;AM、FM、PM、ASK、FSK、PSK、PWM

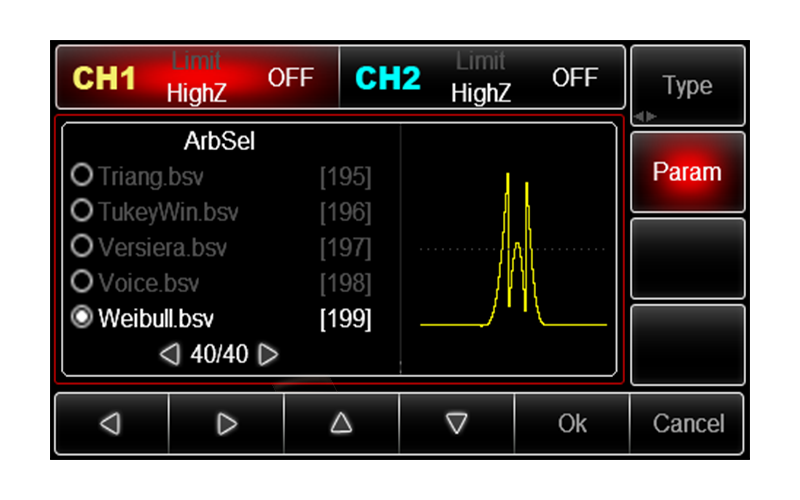

Built-in 48 arbitrary waveforms
UTG2000A built-in non-volatile 48 kinds of standard waveforms,
commonly used functions, mathematical functions,
trigonometric functions, window functions
Sweep mode and burst mode function
Sweep mode:
It can scan output in linear or logarithmic mode from high to low and low to high.

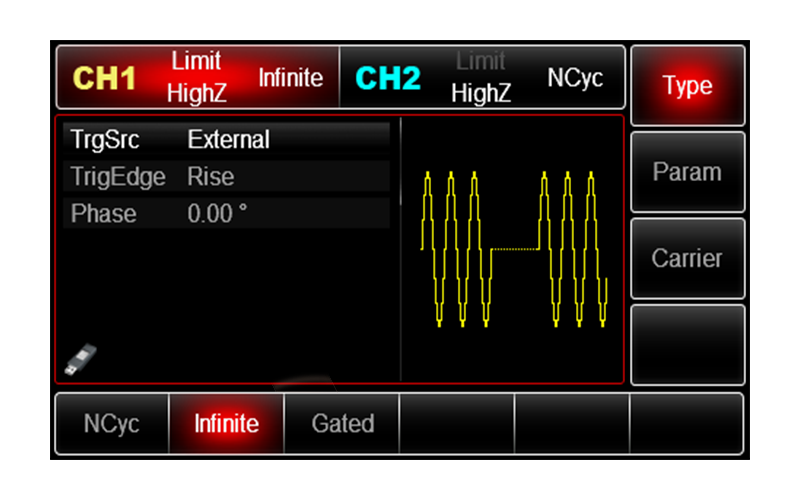

Burst mode function:
Provides three types of pulse trains: N cycle cycle, infinite and gated.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UTG2025A |
25 MHz | 125 MSa/s | 14-bit | 2 | 8 kpts | 4.3 inch TFT LCD |
DATA SHEET
MANUAL
SOFTWARE
FIRMWARE
UTG2000A_HW2.04 Firmware
Current Version: V1.23.07 | 2024/4/17
Release Notes
Videos
UTG2000A SERIES
