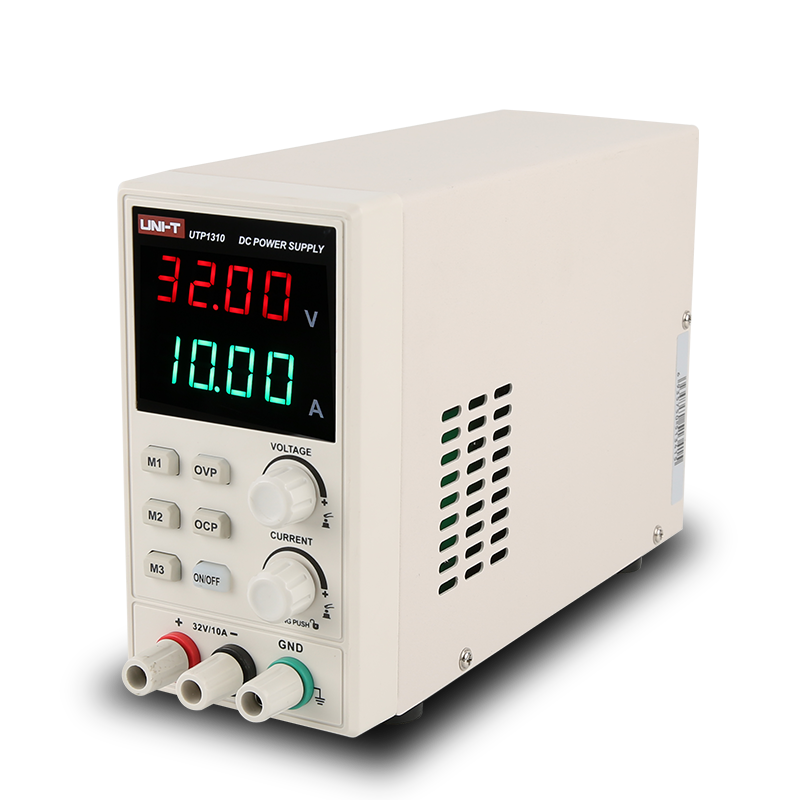

UTP1000
The UTP1000 Series power supply is an economical switching type DC regulated power supply with single output. It has a pure output, excellent performance indicators, and can meet diverse testing needs. Used in product debugging and maintenance, quality control and testing, production automation testing, teaching experiments, etc.
Switching
Type
1
Channels
320W
Total Power
32V
Output Voltage
10A
Output Current
10mV/1mA
Resolution
Voltage :≤(0.01% + 5mV), Current:≤(0.2% + 3mA)
Setting Accuracy
/
Connectivity
KEY FEATURES
FEATURES

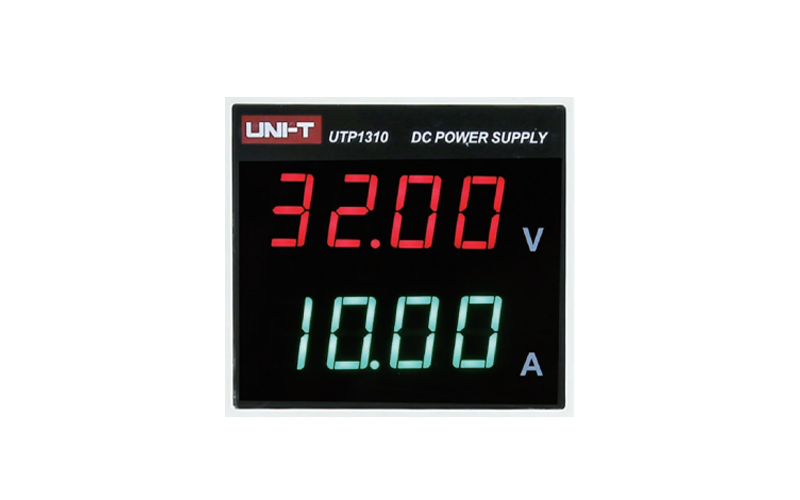

32V/10A,High resolution display
Maximum output voltage 32V, output current 10A, resolution 10mV, 1mA

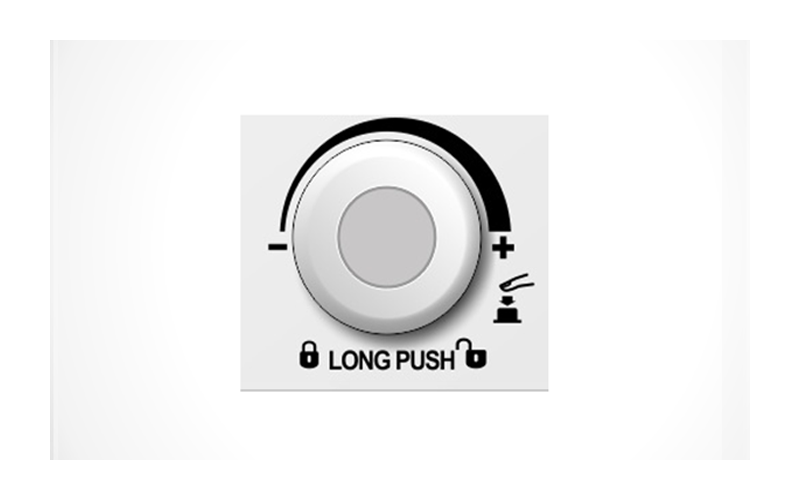

Panel lock function and Three sets of data storage calls

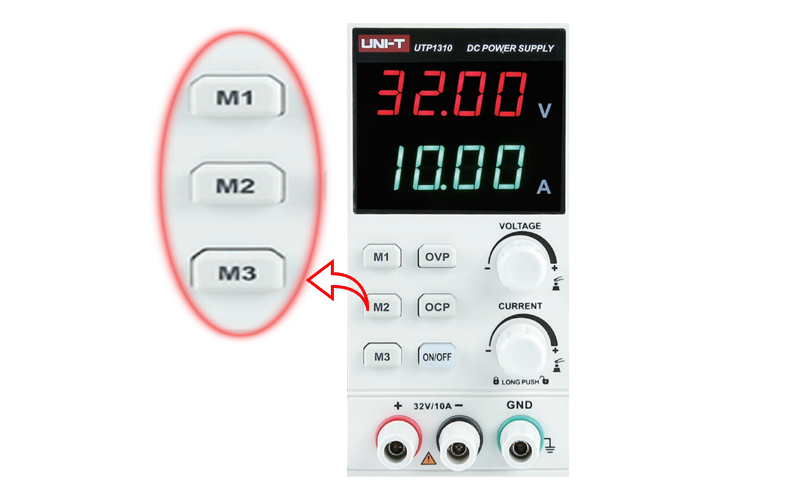

Long press to lock the panel to prevent misoperation Three sets of data storage calls，Long press to save, short press to call
Over current protection, over voltage protection
When the actual output voltage is higher than the set value, the protection function is triggered and the screen displays “ER OV” When the actual output current is higher than the set value, the protection function is triggered and the screen displays “ER OC”
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UTP1310 |
Switching | 1 | 320W | 32V | 10A | 10mV/1mA |
 UTP1306 |
Switching | 1 | 192W | 32V | 6A | 10mV/1mA |
Technical Specification
| Model | UTP1310 |
| Key Specifications | |
| Type | Switching |
| Channels | 1 |
| Output Voltage | 0–32 V |
| Output Current | 0–10 A |
| Output Power | 320 W |
| Voltage Resolution | 10 mV |
| Current Resolution | 1 mA |
| Technical Details | |
|---|---|
| Ripple And Noise Voltage | ≤10 mVrms |
| Ripple And Noise Current | ≤5 mArms |
| Load Regulation CV | ≤0.1%+5 mV |
| Load Regulation CC | ≤0.2%+3 mA |
| Line Regulation CV | ≤0.01%+5 mV |
| Line Regulation CC | ≤0.2%+3 mA |
| Programming Accuracy Voltage | ≤0.1%+1 digit |
| Programming Accuracy Current | ≤0.2%+3 mA |
| Features | |
| Protection | OVP/OCP/OTP |
| General Information | |
| Display | 4-digit LED |
| Power | AC 110/220 V, 50/60 Hz |
| Product Net Weight | 2.5 kg |
| Product Dimensions (W×H×D) | 80 × 150 × 230 mm |
| Standard Quantity Per Carton | 6 pcs |
| Warranty | 3 Years |
