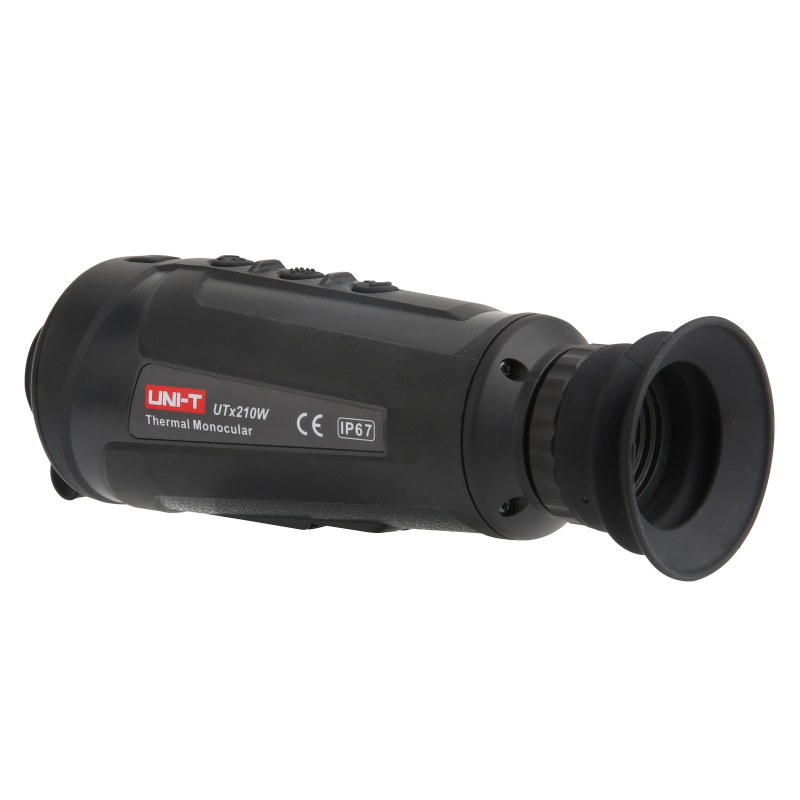

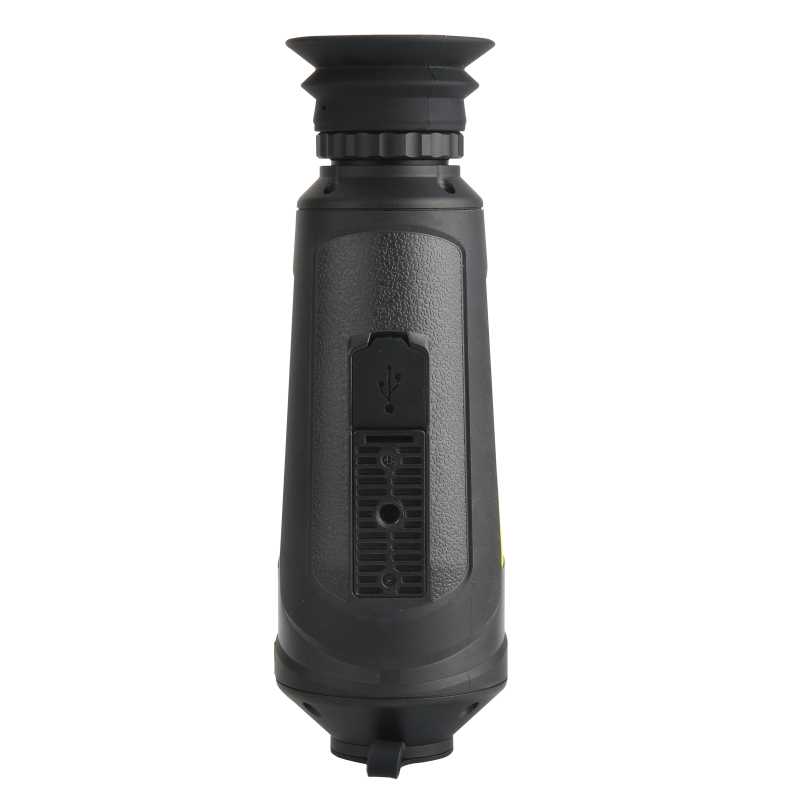

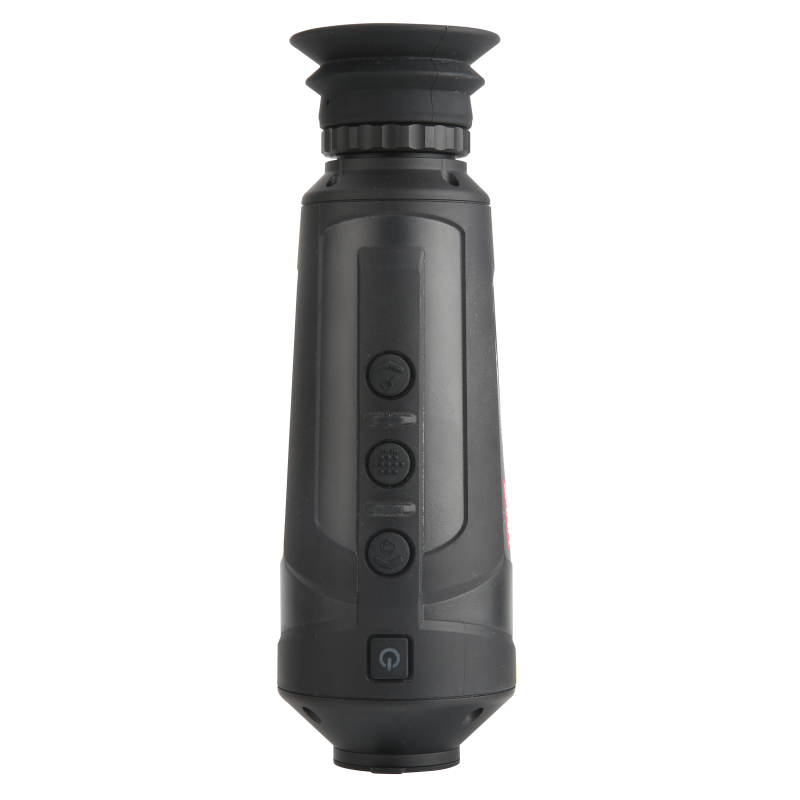

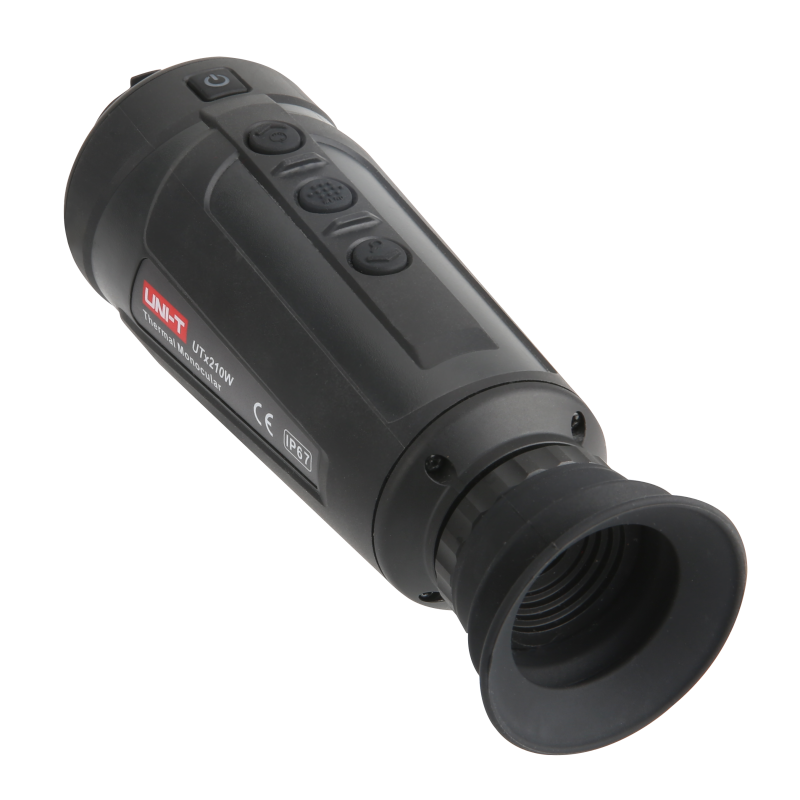

UTx210W
Thermal Monocular
Featuring a 256×192 detector and 10mm focal length lens. 0.23″ (640×400) display screen and 50Hz frame rate provide exceptional thermal vision. The built-in video recording, 8x magnification, and stadiametric functions make UTx210W show its capabilities in unknown forest and wooded scenarios.
IR Resolution
256×192
Temperature Range
-20℃~550℃
Thermal Sensitivity
≤35mK
Field of View (FOV)
17.5°×13.1°
Frame Rate
≤50Hz
Display
0.23″ OLED (640×400)
FEATURES
256×192 detector
Lorem ipsum dolor sit amet consectetur. Cursus amet non felis suscipit cursus ultricies nulla non. Nunc morbi proin dictumst purus.
50Hz frame rate
Lorem ipsum dolor sit amet consectetur. Fermentum magna sapien interdum imperdiet platea ligula donec tortor. Augue in orci praesent in dignissim etiam vel. Eu scelerisque at tincidunt dolor venenatis orci malesuada.
Precise high-resolution thermal imaging with fast refresh rates, delivering accurate temperature readings and hot-spot detection for critical diagnostics.
10mm lens focal length
Rugged, reliable, and user-friendly design engineered for demanding electrical, mechanical, and HVAC building diagnostic applications.
8x magnification
Advanced on-screen measurement and analysis capabilities with customizable color palettes and seamless report export.
Stadiametric ranging
Equipped with long-lasting rechargeable battery power and durable industrial-grade casing rated for reliable field operations.
Technical Specification
| Technical Data | |
| Display | 0.23″ OLED (640×400) |
| Detector type | UFPA (Vanadium oxide) |
| IR resolution(Pixels) | 256×192 |
| Spectral range | 8~14µm |
| Pixel size | 12μm |
| Frame rate | ≤50Hz |
| Thermal sensitivity(NETD) | ≤35mK |
| Focus | Focus free |
| Lens focal length | 10mm |
| Field of view(FOV) | 17.5°(H) × 13.1°(V) |
| Eyepiece relief distance | 19.9mm |
| Diopter adjustment | -5D~+5D |
| Functions | |
|---|---|
| Color palettes | Black hot, White hot, Hottest, Ironbow, Rainbow |
| Digital zoom | 2x, 4x, 8x / 1.0~8x continuous |
| Scene modes | Bird, Forest, Rock |
| Calibration modes | Auto, Manual, Background |
| Distance measurement | Stadiametric ranging |
| Hot trace | √ |
| PIP | √ |
| Video recording | √ |
| Photo viewing | Device Local, PC, APP |
| Wi-Fi download photo | √ |
| Wi-Fi live streaming | √ |
| Video output | Type-C interface |
| Analysis software | APP (Android & iOS) |
| General Characteristics | |
| Battery | 4000mAh rechargeable Li-ion battery |
| Operating time | ≥6 hours |
| USB | Type-C |
| Storage | Built-in 16GB |
| Image storage format | PNG |
| Video storage format | MP4 |
| Protection | IP67 & 2m drop proof |
| Certificates | CE, FCC, RoHS |
| Languages | EN, FR, DE, ES, IT, RU, UA |
| Weight | 410g (Inc. battery) |
| Dimension | 185.5mm×63.7mm×62mm |
| Packing Details | |
| Standard accessories | Type-C USB cable, Quick Start Guide, Tool Box |
| Standard individual packing | Gift box |
| Standard Qty per carton | 1pcs |
| Standard carton size | 370mm×140mm×275mm |
| Standard carton G.W. | 1.9kg |
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |

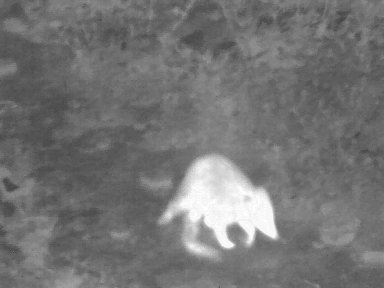

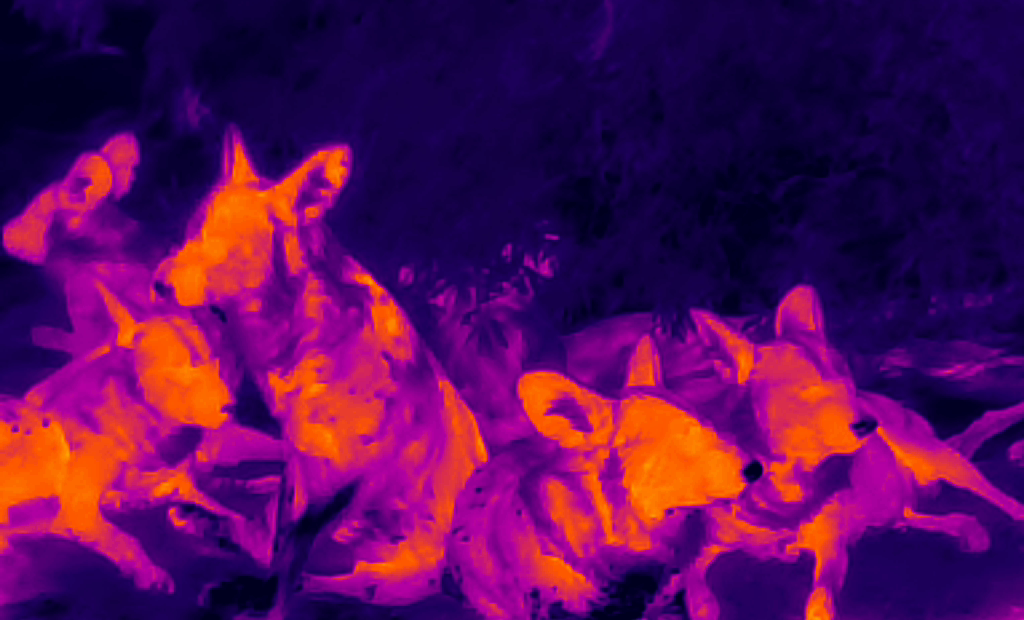

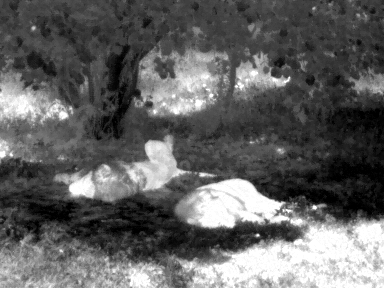

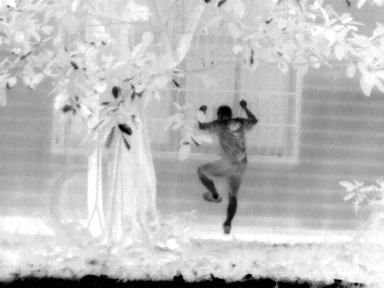

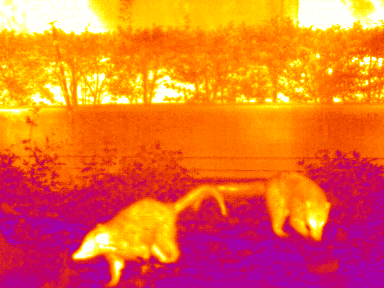

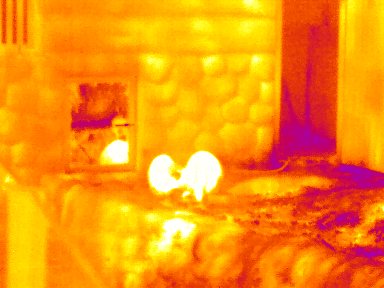

THERMAL GALLERY
