UTx313MR/UTx318MR/UTx325MR
Thermal Monocular
UTx MR series is a lighter weight thermal monocular that equipped with 400×300 IR detector and 0.39″ OLED display screen. The built-in laser sensor allows users to master the hunting distance easily. The detachable 18650 standard battery pack ensures the duration performance. Connecting “Thermal Xplorer” mobile app via Wi-Fi to realize real-time images projection, share the fun with other hunters. Ideal optics for explorers.
400×300
IR Resolution
-20℃~550℃
Temperature Range
≤25mK
Thermal Sensitivity
20°×15°
Field of View (FOV)
≤50Hz
Frame Rate
0.39″ OLED (1024×768)
Display
FEATURES
Light-weight & compact design
Lorem ipsum dolor sit amet consectetur. Cursus amet non felis suscipit cursus ultricies nulla non. Nunc morbi proin dictumst purus.
0.39" OLED display screen
Lorem ipsum dolor sit amet consectetur. Fermentum magna sapien interdum imperdiet platea ligula donec tortor. Augue in orci praesent in dignissim etiam vel. Eu scelerisque at tincidunt dolor venenatis orci malesuada.
Detachable 18650 standard battery pack (UT-M21)
Precise high-resolution thermal imaging with fast refresh rates, delivering accurate temperature readings and hot-spot detection for critical diagnostics.
Laser ranging
Rugged, reliable, and user-friendly design engineered for demanding electrical, mechanical, and HVAC building diagnostic applications.
Smart standby
Advanced on-screen measurement and analysis capabilities with customizable color palettes and seamless report export.
E-Compass
Equipped with long-lasting rechargeable battery power and durable industrial-grade casing rated for reliable field operations.
Technical Specification
| Model | UTx313MR | UTx318MR | UTx325MR |
|---|---|---|---|
| Key Points | |||
| Infrared Resolution | 400×300 | ||
| Focus | Manual Focus | ||
| Distance Measurement | Laser Ranging (Up to 1000m) | ||
| Image Enhancement | DDE & Scene Mode | ||
| Detection Range | 842m | 1156m | 1614m |
| Operating Time | ≥4 Hours (with Wi-Fi OFF) | ||
| Technical Details | |||
| Display | 0.39" OLED (1024×768) | ||
| Spectral Range | 8~14µm | ||
| Pixel Size | 12μm | ||
| Frame Rate | ≤50Hz | ||
| NETD | ≤25mK | ||
| Lens Focal Length | 13mm | 18mm | 25mm |
| FOV | 20°(H) × 15°(V) | 14.6°(H) × 11°(V) | 10.5°(H) × 7.9°(V) |
| Focusing Distance | 0.25m (Minimum) | 0.3m (Minimum) | 0.5m (Minimum) |
| Eyepiece Relief Distance | 18mm | ||
| Diopter Adjustment | -5D~+3D | ||
| Features | |||
| Color Palette | Black Hot, White Hot, Hottest, Ironbow, Rainbow | ||
| Magnification | 2x, 4x, 8x / 1.0~8x Continuous | ||
| Scene Mode | Bird, Forest, Rock | ||
| Calibration Mode | Auto, Manual, Background | ||
| Smart Standby | ✔ | ||
| Hot Trace | ✔ | ||
| E-Compass | ✔ | ||
| PIP | ✔ | ||
| Video Recording | ✔ | ||
| Photo Browsing | Device Local, PC, APP | ||
| Wi-Fi Download Photo | ✔ | ||
| Wi-Fi Live Streaming | ✔ | ||
| Video Output | Type-C Interface | ||
| Analysis Software | APP (Android & iOS) | ||
| General Information | |||
| Battery | 3250mAh Detachable Li-ion Battery (UT-M21) | ||
| USB | Type-C | ||
| Storage | Built-in 16GB | ||
| Image Format | PNG | ||
| Video Format | MP4 | ||
| Protection | IP67 & 2m Drop Proof | ||
| Certificates | CE, FCC, RoHS | ||
| Language | EN, FR, DE, ES, IT, RU, UA | ||
| Weight | 417g (Inc. Battery) | ||
| Dimension | 160mmx71.5mmX38.5mm | ||

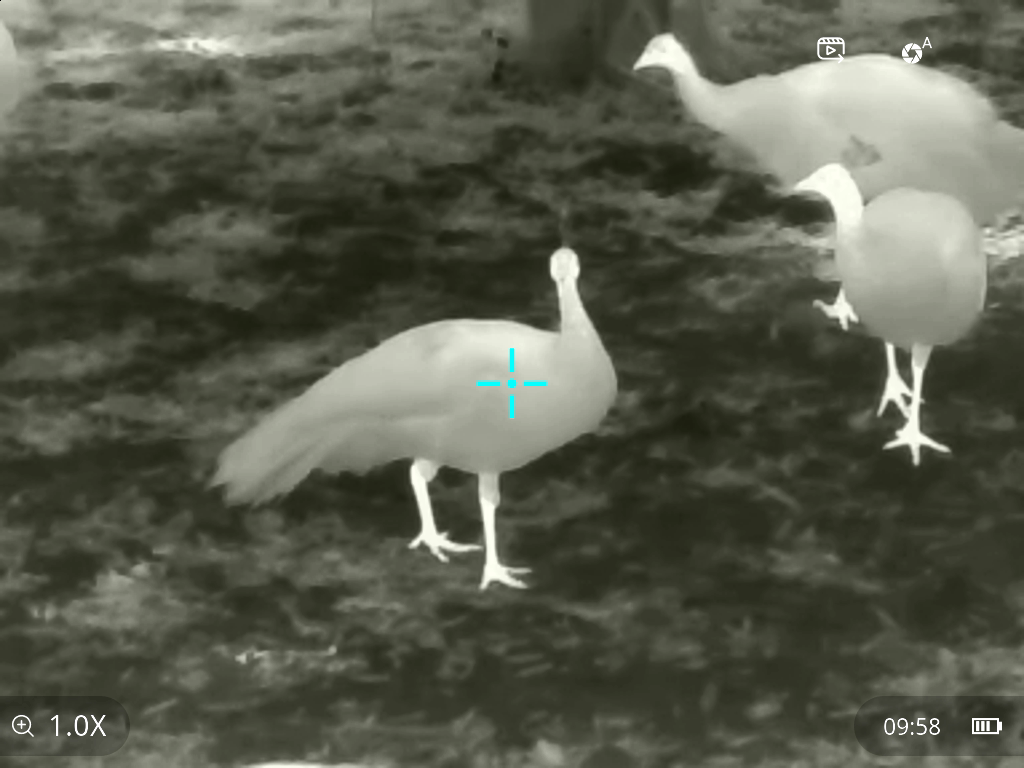

THERMAL GALLERY
Application
