UT685B KIT TDR Cable Tester
UT685B KIT can test various types of cables (including twisted pair cable, coaxial cable, and POE network cable): you can find the cable, detect the cable length, and line sequence, and confirm whether it is POE and POE standards. Plus, it integrated RJ11, RJ45, and coax test ports to support virtually any low-voltage cable testing without needing awkward adapters.
Effectively reduce the operator’s ineffective testing and improve work efficiency, which makes high-quality installations more efficient and easier to troubleshoot.
Key Features
- Multi-function all-in-one
- Applicable Cables:
i. CAT5/CAT6 twisted pair
ii. UTP (unshielded)
iii. FTP (foil-shielded)
iv. SSTP (double-shielded)Wire mapping
v. Coaxial cable: 50Ω, 75Ω, 93Ω - Wire Mapping:
i. Polarity detection;
ii. Warns of hazardous voltage (>10V)
iii. Crimping/mapping interface;
iv. Receiver RJ45
4. Length testing:
i. 2.5m~500m @0.3m accuracy
ii. ±4% or 0.6m (2 ft), whichever is greater
iii. Identifies fault distance
5. POE testing: DC5~60V @ 802.3AF、802.3AT、802.3BT
6. Port flashing:
i. 10M/100M/1000M switch,
ii. Checks Ethernet port connection status

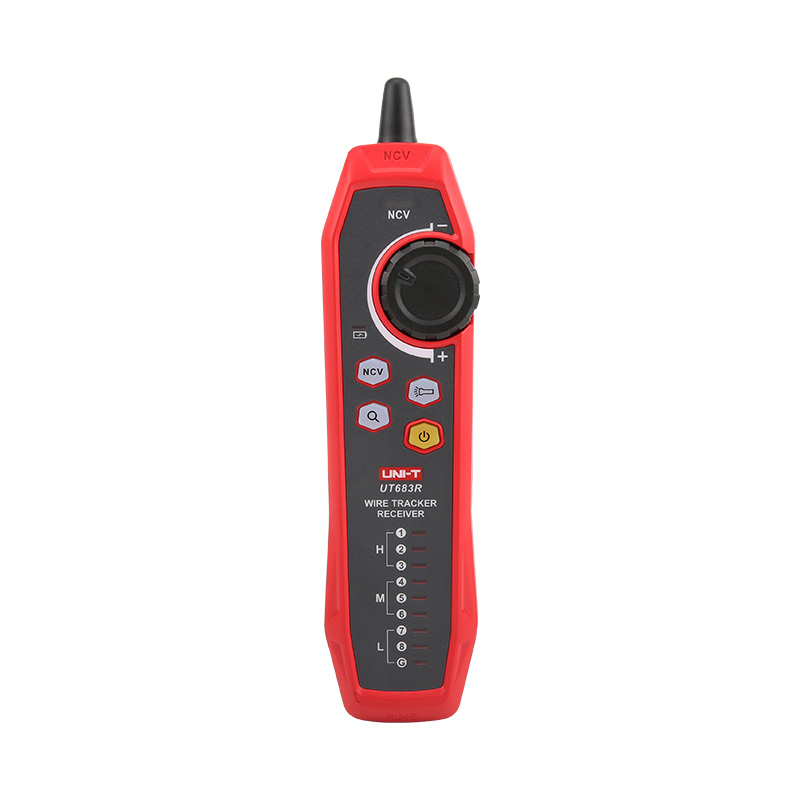

7. Wire tracing: RJ11 @ 3000m & RJ45 1000m
8. NCV testing
9. Type-C charging port
Technical Specification
| Specifications | UT685B KIT |
| Tested cable type | Twisted pair cable: 1. UTP (unshielded cable), 2. FTP (aluminum foil shielded cable); 3. SSTP (double shielded network cable); |
| Coaxial cable: 50Ω, 75Ω, 93Ω | |
| Cable length test | Range: 500 m |
| Resolution: 0.33 m | |
| Accuracy: ± 4% or 0.6 m | |
| POE detection | POE power detection |
| POE standard: 802.3AF | |
| POE standard: 802.3AT | |
| Ethernet port test | ✔ |
| Cable location | ✔ |
| Port blinks | ✔ |
| Input protection | 70VDC |
| Screen | 2.8″ LCD |
| Auto power off | Around 10 minutes |
| General Characteristics | |
|---|---|

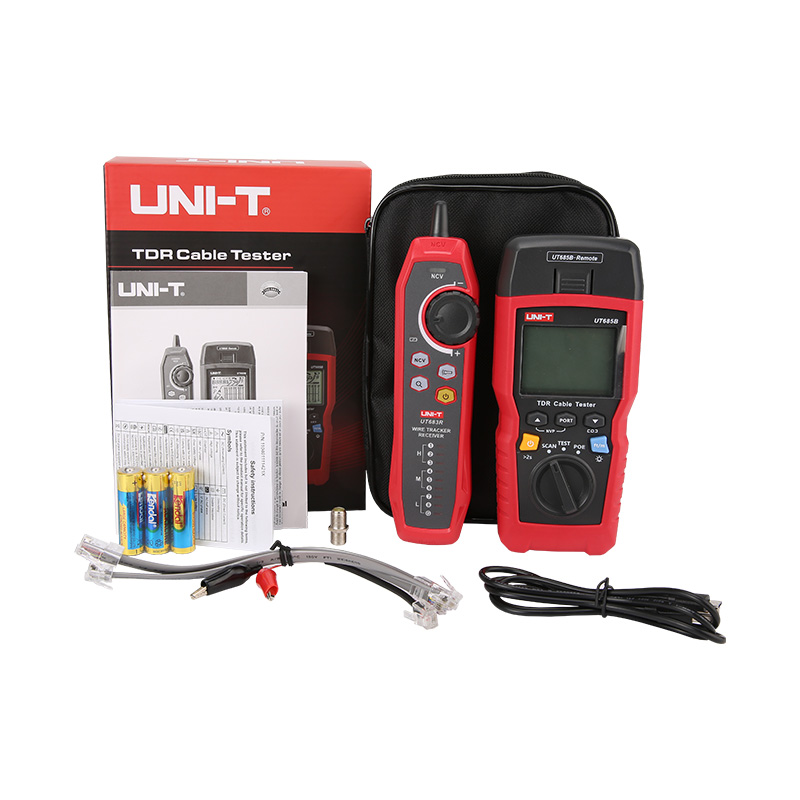

| Standard accessories | RJ45 adapting cable: 1 pc; RJ11 adapting cable: 1 pc; RJ11 adapting cable (adapted to alligator clip): 1 pc; Plug, F-connector to F-connector: 1 pc; User manual: 1 pc |
| Power | AAA alkaline batteries x4 |
| Product Dimension | 180mm×84mm×37.8mm |
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
Application

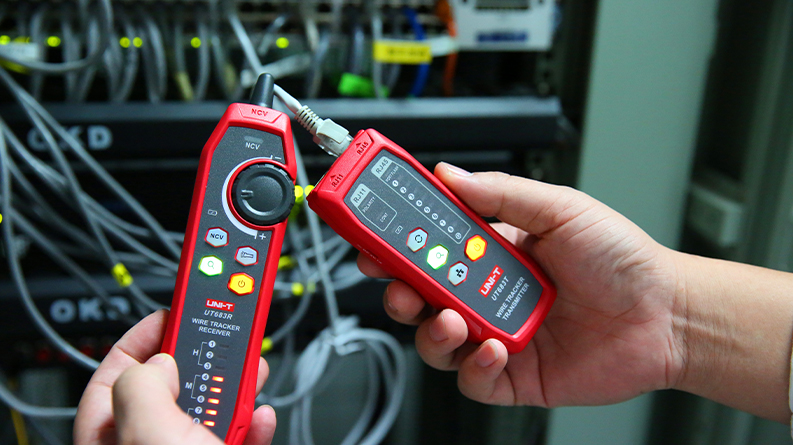

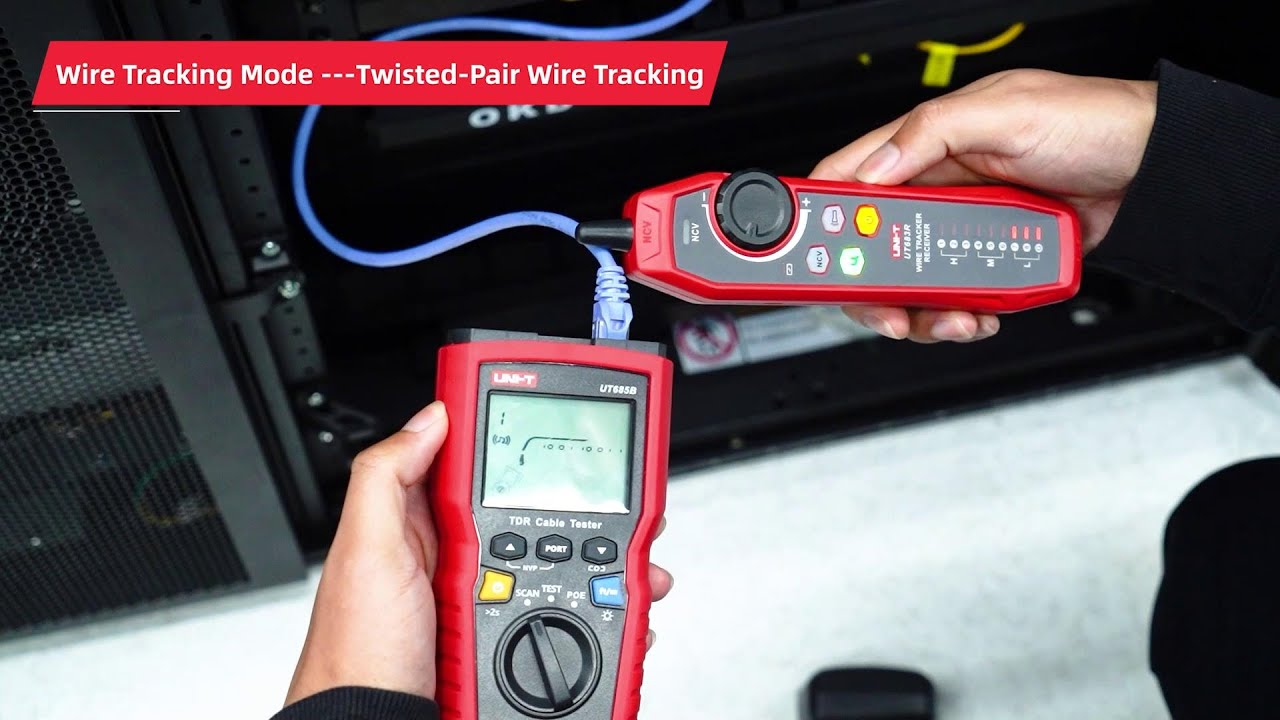

Wire tracking
NCV measurement
