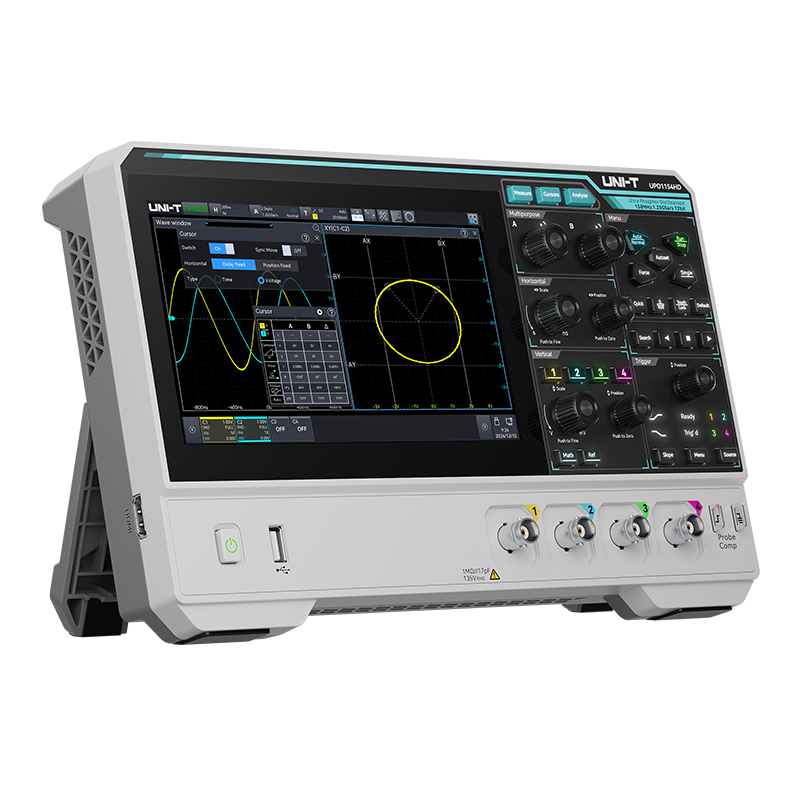

UPO1000HD
High-Resolution UPO1000HD series high-resolution oscilloscope has the maximum bandwidth of 150 MHz, the maximum sampling rate of 1.25 GSa/s, and is equipped with 4/2 analog channels , with the memory depth of up to 100 Mpts. High-Resolution UPO1000HD series adopts exclusive Ultra Phosphor 3.0 technology, achieving the waveform capture rate of up to 100,000 wfms/s, with 256 levels of gray temperature colors, and features an innovative digital trigger system with high trigger sensitivity and low jitter.
80 MHz~150 MHz
BANDWIDTH
2/4
ANALOG CHANNELS
1.25GSa/s
REAL-TIME SAMPLE RATE
100Mpts
MAX. MEMORY DEPTH
500,000wfms/s
WAVEFORM CAPTURE RATE
/
DIGITAL CHANNELS
KEY FEATURES
FEATURES

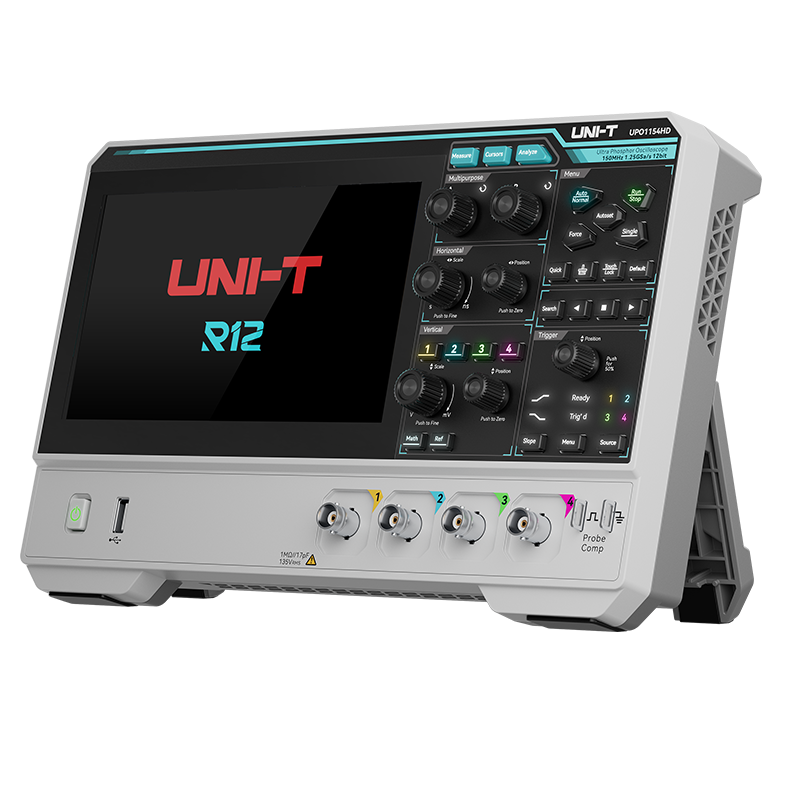

Brand New Appearance Design
Double-sided slim design for a modern and compact factor
Dimensions：28.2cm×17.5cm×4.9cm
Type-C for Power Supply
UPO1000HD series adopts the latest Type-C power supply method. When no power source is available outdoors, it can be powered by a portable charger
12-Bit High-Resolution ADC
12-bit high-resolution ADC sampling has a quantization level of up to 4096, which is 16 times that of a traditional 8-bit ADC, allowing for better restoration of waveform details.
Versatile Testing Equipment
-Oscilloscopes
-Spectrum Analyzer
-Protocol Analyzer
-Power Analyzer
-High Precision Frequency Counter
-Digital Voltmeter

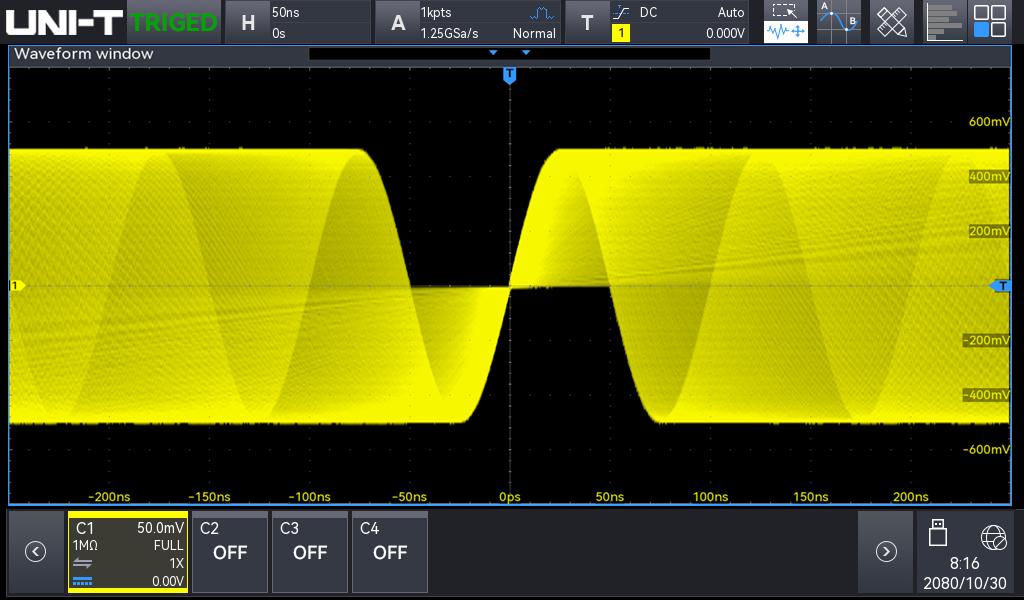

Ultra Phosphor 3.0
Supports 8-channel parallel graph mapping, the processing rate is up to 20 Gbps, the waveform capture rate is up to 100,000 wfms/s, and up to 500,000 wfms/s in the sequence mode.
56 Types: Measurement, Statistics, Trend Graphs
56 types of precise parameter automatic measurements covering multiple dimensions such as voltage, frequency, phase, and power. It also integrates advanced parameter statistics and trend graph visualization analysis functions, providing a comprehensive and multi-dimensional display of signal characteristic changes, achieving professional-level deep insights and efficient data interpretation.

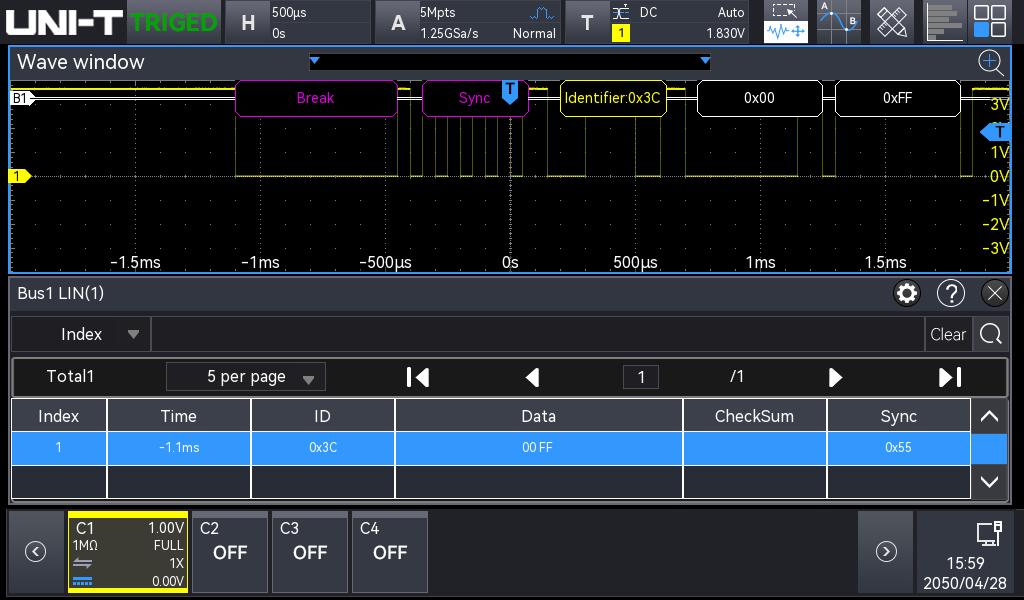

Protocol decoding and triggering
Supports 5 types of mainstream protocols, including
-Embedded: UART, I2C, SPI
-Automobile: CAN, LIN
Spectrum Analyzer
-Standard enhanced FFT with up to 1 Mpts
for 4-channel signal analysis
-Frequency range: 0 to 625 MHz
-Waterfall curve
-4 traces and 4 detections
-Mark type: Auto, manual, and threshold
-Marker point list
Power Analysis
Input Analysis
-Power Quality
-Harmonic Analysis
-Inrush Current
Switching Analysis
-Switching Loss
-Safe Operating Area (SOA)
-Slew Rate
-Steady-State On-Resistance
Output Analysis
-Ripple Analysis
-Modulation Analysis
-Power Efficiency
-Transient response
-ON/OFF time
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UPO1154HD |
150MHz | 4 | 1.25GSa/s | 100Mpts | 500,000wfms/s | / |
 UPO1152HD |
150MHz | 2 | 1.25GSa/s | 100Mpts | 500,000wfms/s | / |
 UPO1084HD |
80MHz | 4 | 1.25GSa/s | 100Mpts | 500,000wfms/s | / |
 UPO1082HD |
80MHz | 2 | 1.25GSa/s | 100Mpts | 500,000wfms/s | / |
Technical Specification
| Model | UPO1154HD | UPO1152HD | UPO1084HD | UPO1082HD |
| Key Specifications | ||||
| Bandwidth | 150 MHz | 150 MHz | 80 MHz | 80 MHz |
| Channels | 4 analog | 2 analog | 4 analog | 2 analog |
| Sample Rate | 1.25 GSa/s (single channel); 625 MSa/s (dual channels); 312.5 MSa/s (all channels) | 1.25 GSa/s (single channel); 625 MSa/s (all channels) | 1.25 GSa/s (single channel); 625 MSa/s (dual channels); 312.5 MSa/s (all channels) | 1.25 GSa/s (single channel); 625 MSa/s (all channels) |
| Vertical Resolution | 12-bit; ERes up to 16-bit | |||
| Max. Memory Depth | 100 Mpts | |||
| Max. Waveform Capture Rate | 100,000 wfms/s; 500,000 wfms/s sequence mode | |||
| Technical Details | ||||
|---|---|---|---|---|
| Rise Time | ≤2.2 ns (typ.) | ≤2.2 ns (typ.) | ≤4 ns (typ.) | ≤4 ns (typ.) |
| Time Base Scale | 2 ns/div to 1 ks/div | 2 ns/div to 1 ks/div | 5 ns/div to 1 ks/div | 5 ns/div to 1 ks/div |
| Vertical Scale | 500 μV/div to 10 V/div | |||
| Input Impedance | (1 MΩ ±2%) || 17 pF | |||
| Features | ||||
| Auto Measurements | 56 parameters | |||
| Protocol Analysis Count | 5 | |||
| Included Bus Protocols | RS-232/422/485/UART, I²C, SPI, CAN, LIN | |||
| DVM | 4-digit | |||
| Frequency Counter | 6-digit | |||
| Spectrum Analysis | Enhanced FFT, up to 1 Mpts | |||
| Power Analysis | 12 types (standard) | |||
| General Information | ||||
| Display | 7-inch HD capacitive touchscreen, 1024×600 | |||
| Interface | USB Host/Device, LAN | |||
| Power | 100–240 VAC / USB Type-C power | |||
| Product Net Weight | 1.56 kg | |||
| Product Dimensions (W×H×D) | 282 × 175 × 49 mm | |||
| Standard Quantity Per Carton | 1 pc | |||
| Certification | CE, cETLus | |||
| Warranty | 3 years | |||
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
