UTD2000M

The UTD2000M Series is a market-proven economical digital oscilloscope.The Series is available in 60, 70, 100 and 200MHz bandwidth models. includes a 32Mpts memory depth that helps to ensure accurate waveformresolution and to capture longer signal lengths. Along with a 1GSa/s sampling rate, the UTD2000M supports 34 parameters measurements and common mathematical operations to speed up complex / repetitive measurements. With maximum8-inch TFT-LCD screen (UTD2000CEM Models), there is adequate screen space to help betier see and analyze waveform details.

70 MHz~200 MHz

BANDWIDTH

ANALOG CHANNELS

1 GSa/s

REAL-TIME SAMPLE RATE

32 Mpts

MAX. MEMORY DEPTH

150,000 wfms/s

WAVEFORM CAPTURE RATE

DIGITAL CHANNELS

Get a quote

Download Resources

KEY FEATURES

Model

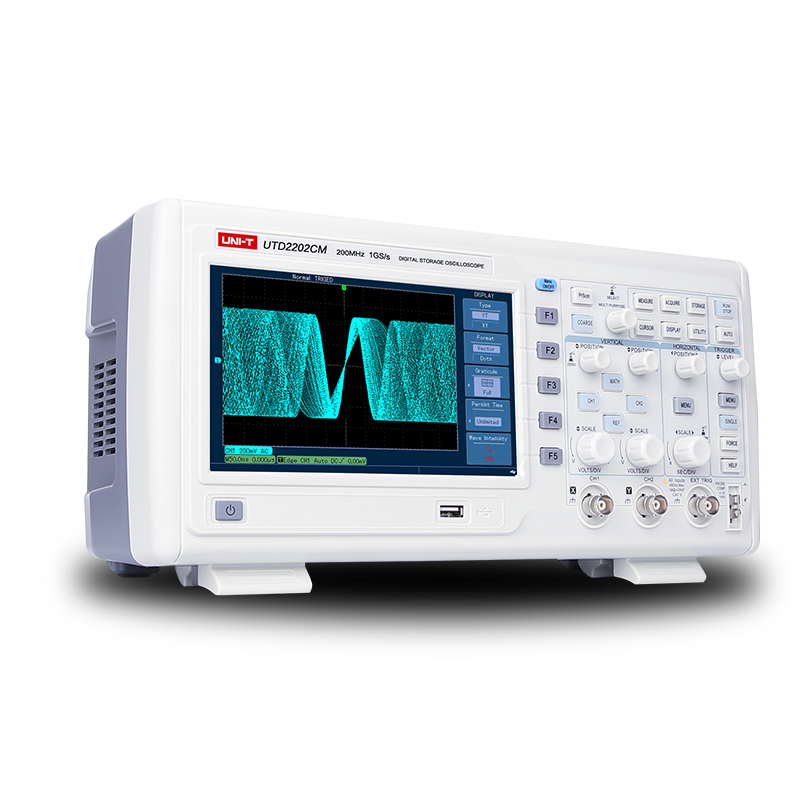

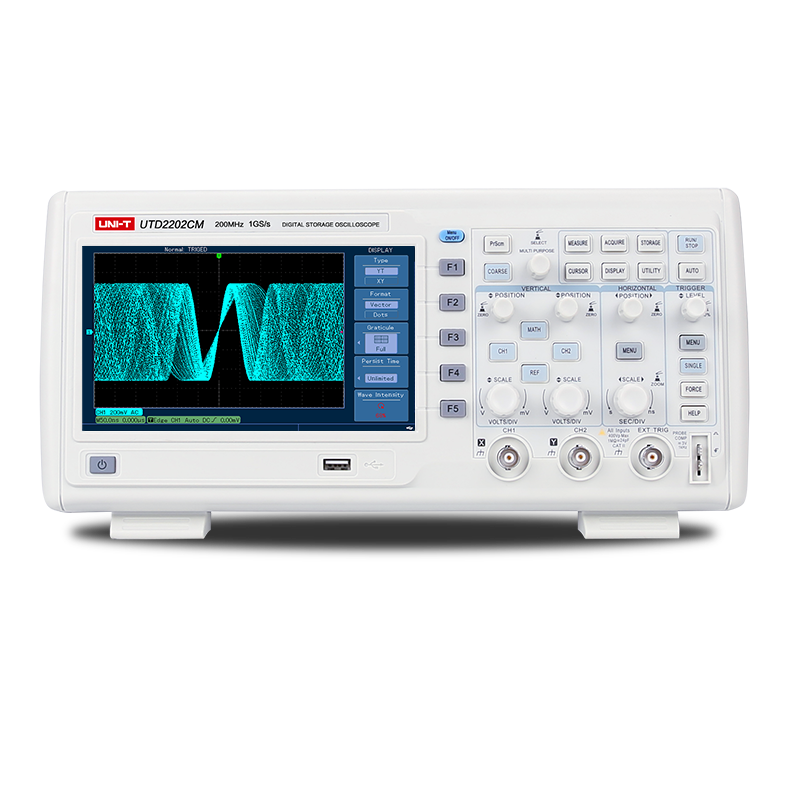

UTD2202CM

FEATURES

Deep storage mode

UTD2000CM series can switch between normal and deep storage modes, with a memory depth of 32Mpts (single channel) UTD2000CEM series deep storage mode Up to 28Mpts (single channel)

Up to 150,000wfms/s waveform capture rate

UTD2000CM series can switch between normal and deep storage modes,
with amemory depth of 32Mpts (single channel)
UTD2000CEM series deep storage mode Up to 28Mpts (single channel)

Lower noise floor

Lower noise floor, suitable for weak and small signals such
as various sensors and medicine

Comprehensive data measurement functions

Comes with 24 automatic measurement parameters + 2 advanced measurement parameters, as well as 5 customized parameter display analysis. It also supports Zoom, Math,Digital filtering,FFT functions.

MODEL

Model	Bandwidth	Analog Channels	Real-time Sample Rate	Max. Memory Depth	Waveform Capture Rate	Digital Channels
UTD2202CM	200 MHz	2	1 GSa/s	16 Mpts	150,000 wfms/s	/
UTD2102CM	100 MHz	2	1 GSa/s	32 Mpts	150,000 wfms/s	/
UTD2062CM	60 MHz	2	1 GSa/s	32 Mpts	150,000 wfms/s	/
UTD2102CEM	100 MHz	2	1 GSa/s	28 Mpts	20,000 wfm/s	/
UTD2072CEM	70 MHz	2	1 GSa/s	28 Mpts	20,000 wfm/s	/
