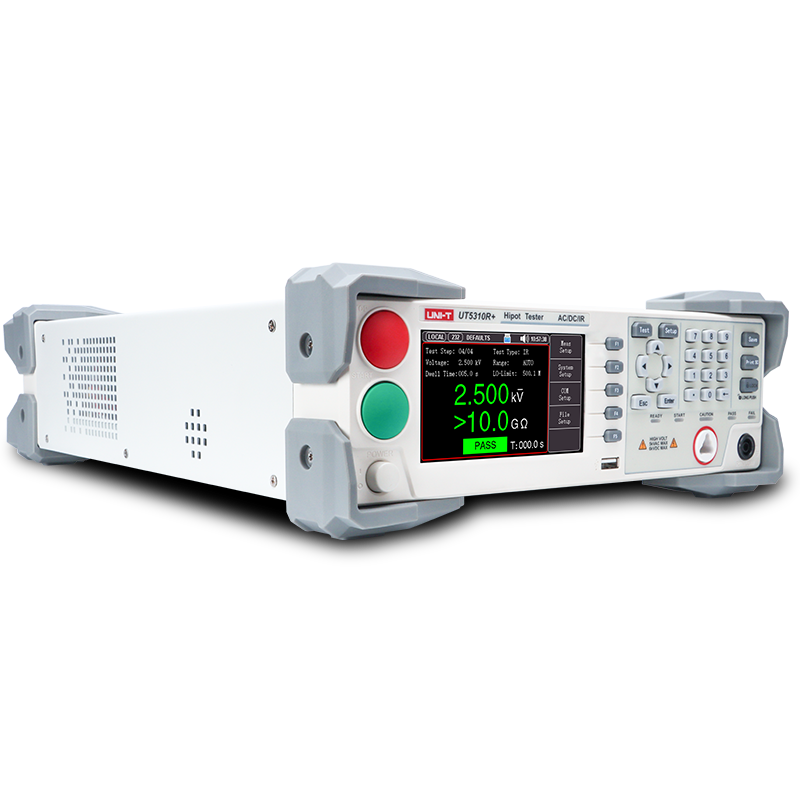

UT5300+
UT5300+ series is an instrument that integrates multiple testing functions of electrical strength (AC/DC withstand voltage) and insulation resistance. It can be widely used in the safety performance inspection of household appliances, transformers, electrical equipment and components.
1
CHANNELS
0.050kV~5.000kV
AC VOLTAGE
0.050kV~6.000kV
DC VOLTAGE
0.001mA~20mA
AC CURRENT
0.1μA~10.00mA
DC CURRENT
0.1MΩ– 10GΩ
INSULATION RESISTANCE
4.3'' TFT LCD
DISPLAY
RS232C，LAN，RS485(optional)
CONNECTIVITY
KEY FEATURES
FEATURES
Multiple test modes
Support multiple test modes, support AC, DC withstand voltage test, insulation resistance test. high accuracy and fast measurement speed

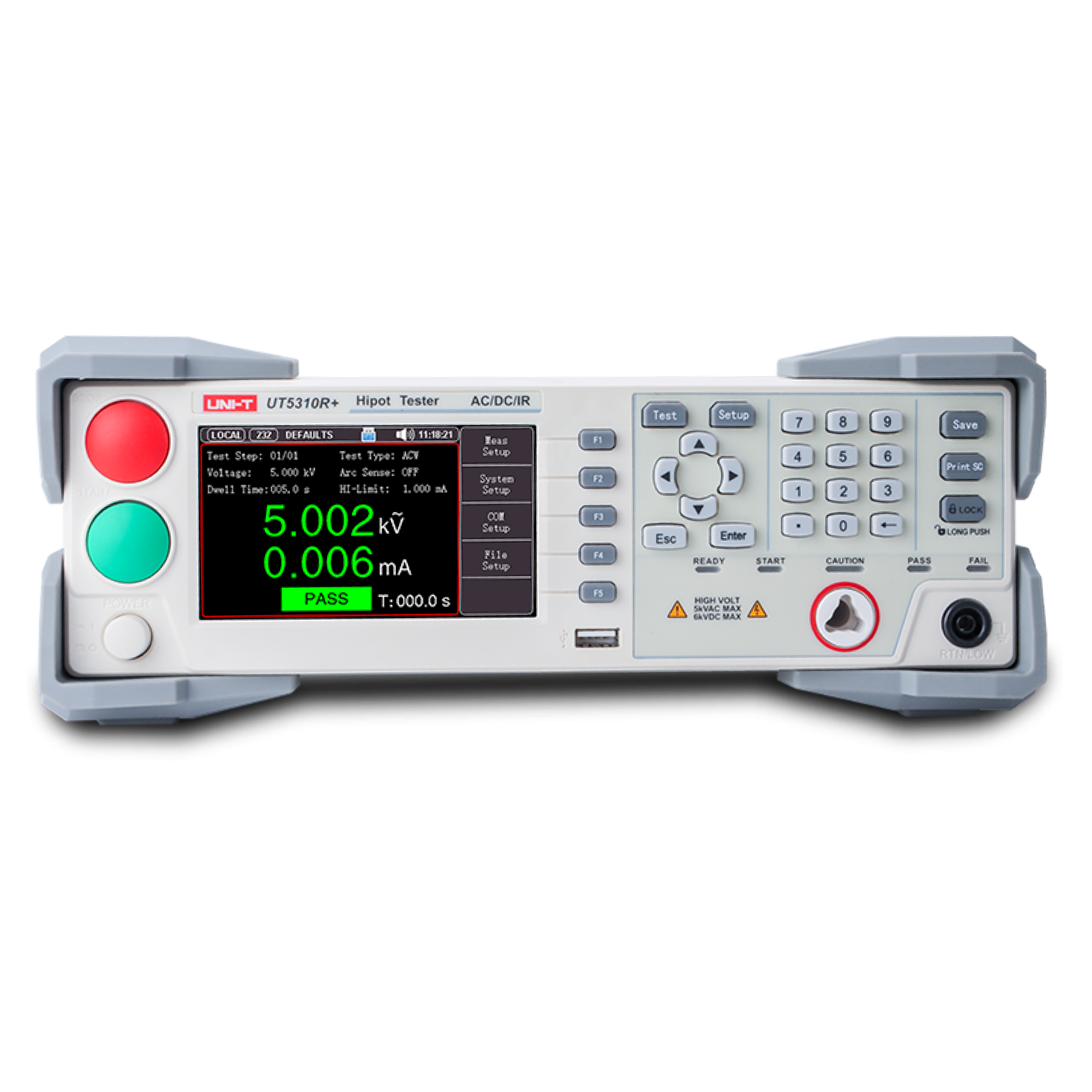

Easy to operate
With 4.3 inch LCD screen, numeric keys and function keys, it is convenient to set up, select and control the test process. The screen is large and the displayed content is specific and clear.

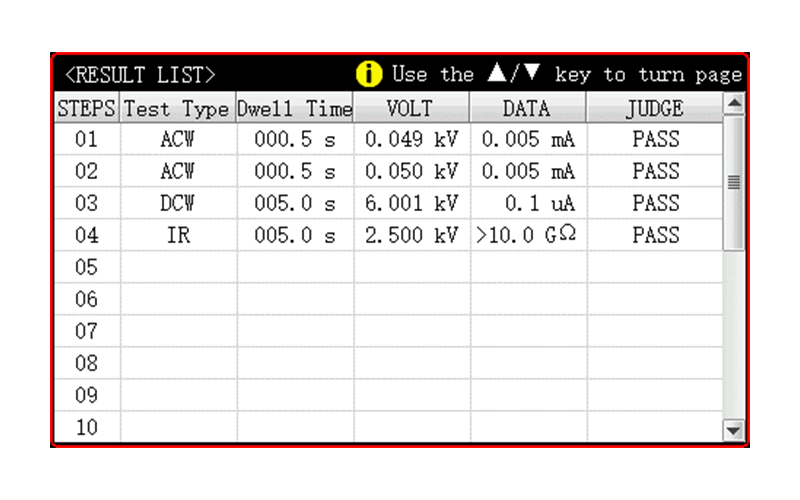

File management
Programmable 100 groups of test files, each group can contain 20 steps of test operations. Create favorable conditions for programmatic control of safety testing operations.
Intelligent judgment
Upper and lower limit intelligent judgment function, and provide sound and light alarm at the same time. Provide a good prompt for the measurement work, and broadcast the results immediately.
IR measurement
Insulation resistance test voltage is 2.5kV as standard, 5.0kV is optional, suitable for more test occasions.
Rich interface

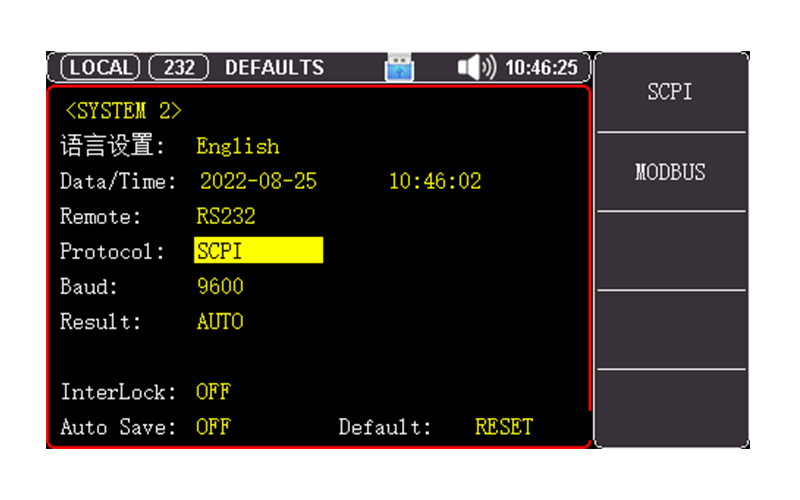

Equipped with Handler (PLC) interface for industrial control, RS485 (option), RS-232C and LAN interface for connecting to a computer. At the same time, it supports two communication protocols, SCPI and Modbus RTU, and efficiently completes the functions of remote control and data acquisition.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UT5320R+ |
1 | 0.050kV~5.000kV | 0.050kV~6.000kV | 0.001mA~20mA | 0.1μA~10.00mA | 0.1MΩ– 10GΩ |
 UT5310R+ |
1 | 0.050kV~5.000kV | 0.050kV~6.000kV | 0.001mA~10mA | 0.1μA~5.00mA | 0.2MΩ– 10GΩ |
 UT5310D+ |
1 | 0.050kV~5.000kV | 0.050kV~6.000kV | 0.001mA~10mA | 0.1μA~5.00mA | / |
 UT5310A+ |
1 | 0.050kV~5.000kV | / | 0.001mA~10mA | / | / |
DATA SHEET
MANUAL
SOFTWARE
UNIT PC Software
Current Version: V2.2.7 | 2025/11/26
Release Notes
Videos
Intelligent judgment
Multi-item continuous test
Insulation resistance test
Hipot test
