UT5400
NewUT5400 series comprehensive safety testers integrate five key test functions: AC Withstand Voltage (ACW), DC Withstand Voltage (DCW), Insulation Resistance (IR), AC Ground Bond (AC GB), and Ground Continuity (GC). The series provides a high-test capacity of 500 VA, supporting a maximum AC output of 5 kV / 100 mA with 1% voltage accuracy, meeting the requirements of high-power withstand voltage testing.
ACW, DCW, IR, GB, GC, OSC
Mode
5kV/100mA
ACW
6kV/10mA
DCW
6kV/50GΩ
IR
40A/600mΩ/8V
GB
RS232, RS485, USB Host, LAN, Handler
Connectivity
5'' TFT LCD(touch screen)
Display
KEY FEATURES
FEATURES

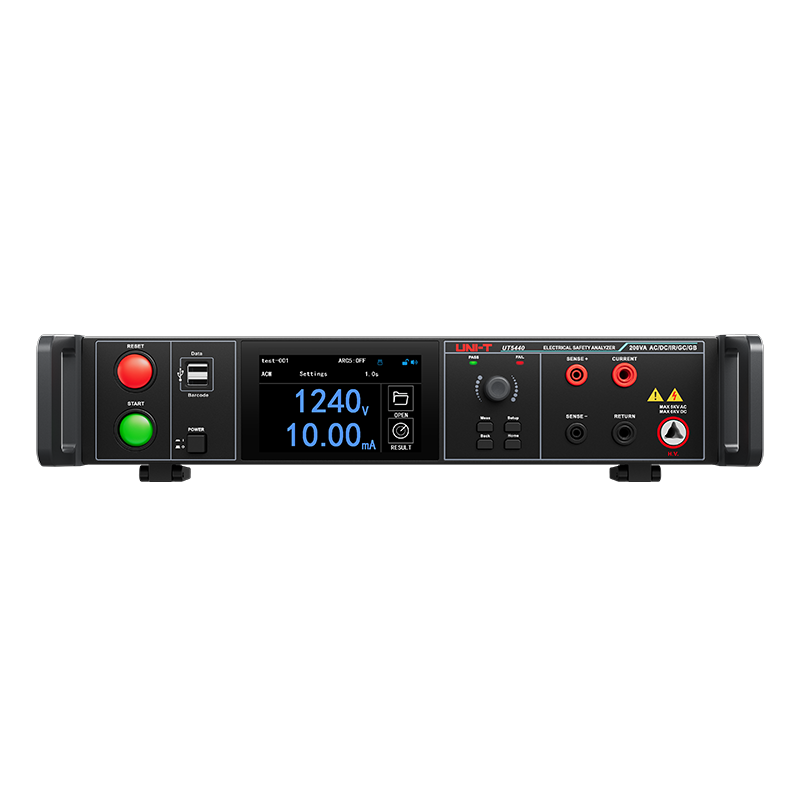

All in One Electrical Safety Analyzer
-AC Withstand Voltage (ACW) 5 kV/100 mA
-DC Withstand Voltage (DCW) 6 kV/10 mA
-Insulation Resistance (IR) 6 kV/50 GΩ
-Ground Bond (GB) 40 A/600 mΩ/8 V
-Ground continuity (GC) 1 mΩ~10 kΩ
-Open/Short/Circuit check (OSC)

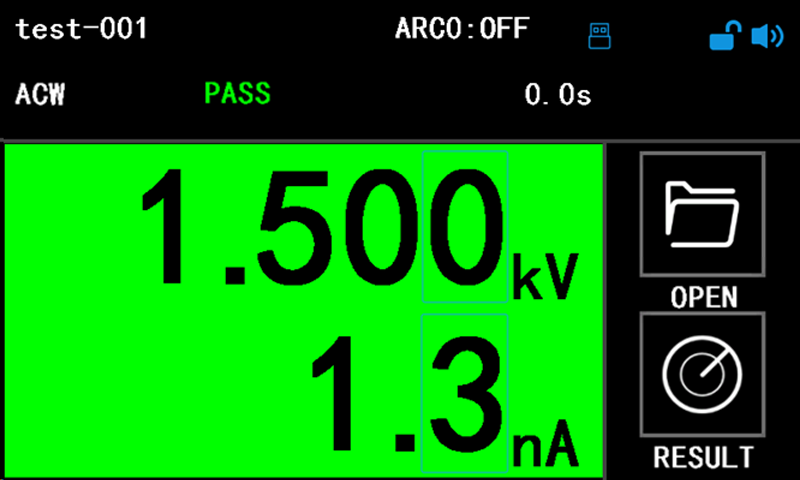

Convenient and Efficient User Interface
-5-inch capacitive touchscreen

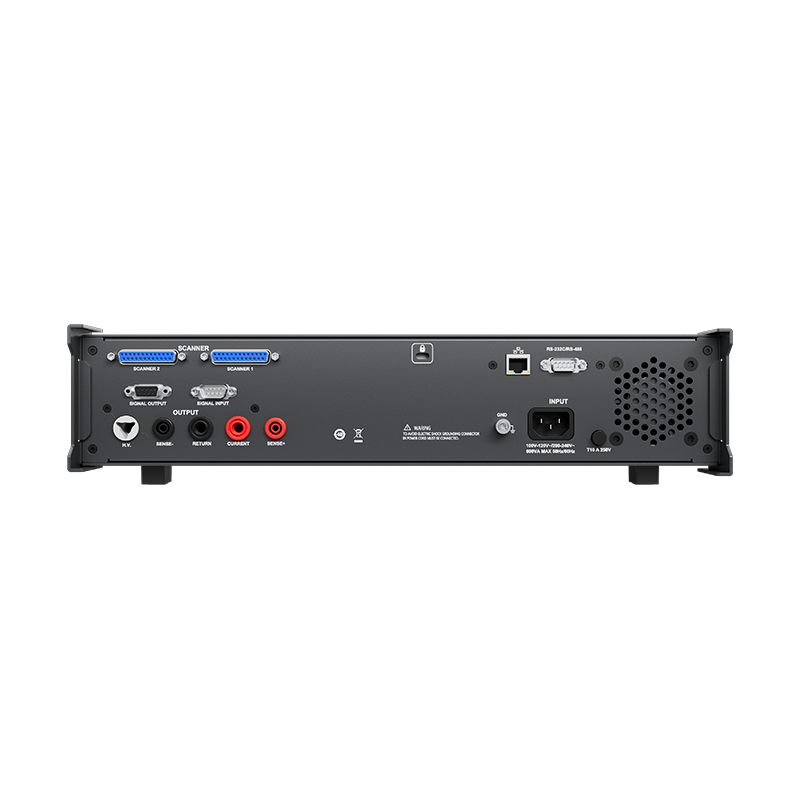

-Front and rear-panel dual outputs interface
-2U standard rack height
-Extensive interfaces: RS232/485, USB Host, LAN, Handler, Barcode
-Standard protocols: SCPI, MODBUS
Multiple Safety Protections

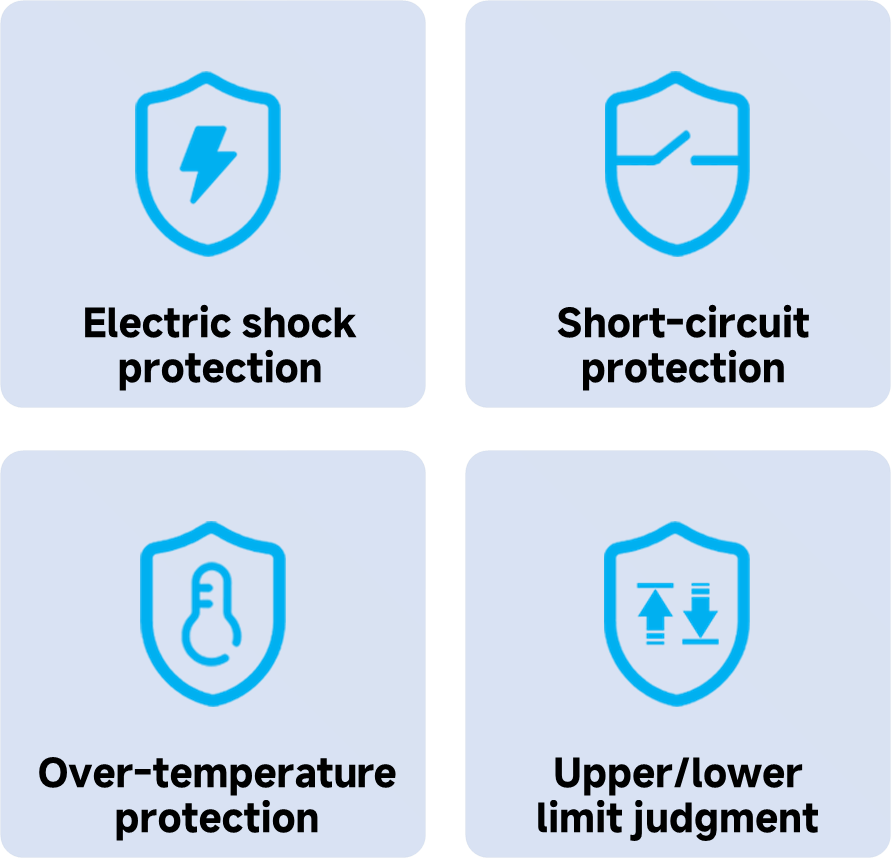

Designed with multiple layers of safety protection, the instrument includes electric shock protection, short-circuit protection, upper/lower limit judgment, and over-temperature protection to safeguard both operators and equipment.
High Precision, High Resolution, Rapid Judgment
Voltage and current accuracy reaches up to 1%, with resolution as fine as 1 V/0.1 nA.
Test time is only 0.1 s, enabling rapid judgment.

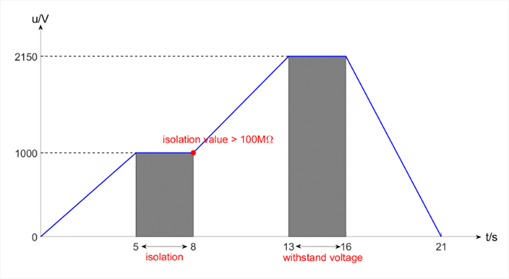

Continuous Output
Unlike conventional testers where voltage drops, continuous output enables step-by-step boosting and cyclic aging tests to meet advanced safety requirements.

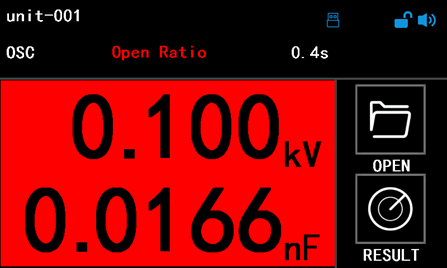

Wiring Reliability Detection
The UT5400 series features dual safeguards: OSC detection spots wiring faults, while the charging lower limit function simultaneously verifies lead contact during voltage tests, boosting efficiency and reliability.

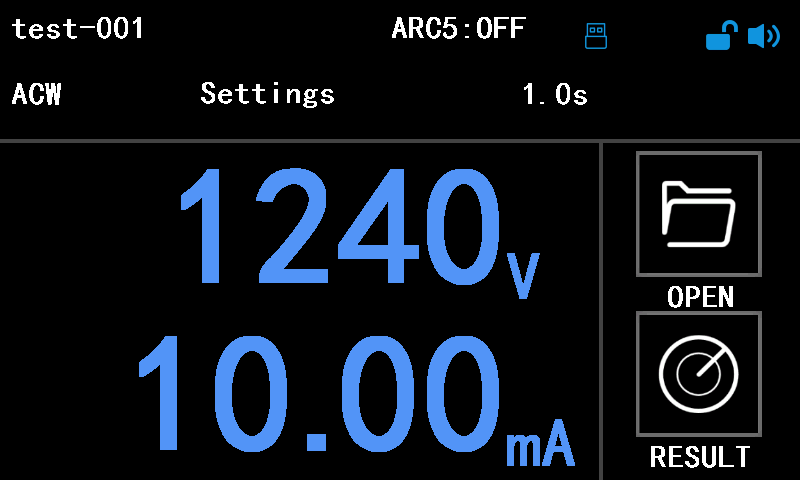

Level 9 Arc Detection
The adjustable Arc Detection (1-9 levels, with off option) provides unmatched precision in identifying hazardous leakage currents. This enhances test reliability and offers crucial flexibility for diverse safety compliance applications.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UT5430 |
ACW, DCW, IR, GC, OSC | 5kV/40mA | 6kV/10mA | 6kV/50GΩ | / | RS232, RS485, USB Host, LAN, Handler |
 UT5440 |
ACW, DCW, IR, GB, GC, OSC | 5kV/40mA | 6kV/10mA | 6kV/50GΩ | 40A/600mΩ/8V | RS232, RS485, USB Host, LAN, Handler |
 UT5451 |
ACW, DCW, IR, GC, OSC | 5kV/100mA | 6kV/10mA | 6kV/50GΩ | / | RS232, RS485, USB Host, LAN, Handler |
 UT5452 |
ACW, DCW, IR, GB, GC, OSC | 5kV/100mA | 6kV/10mA | 6kV/50GΩ | 40A/600mΩ/8V | RS232, RS485, USB Host, LAN, Handler |
