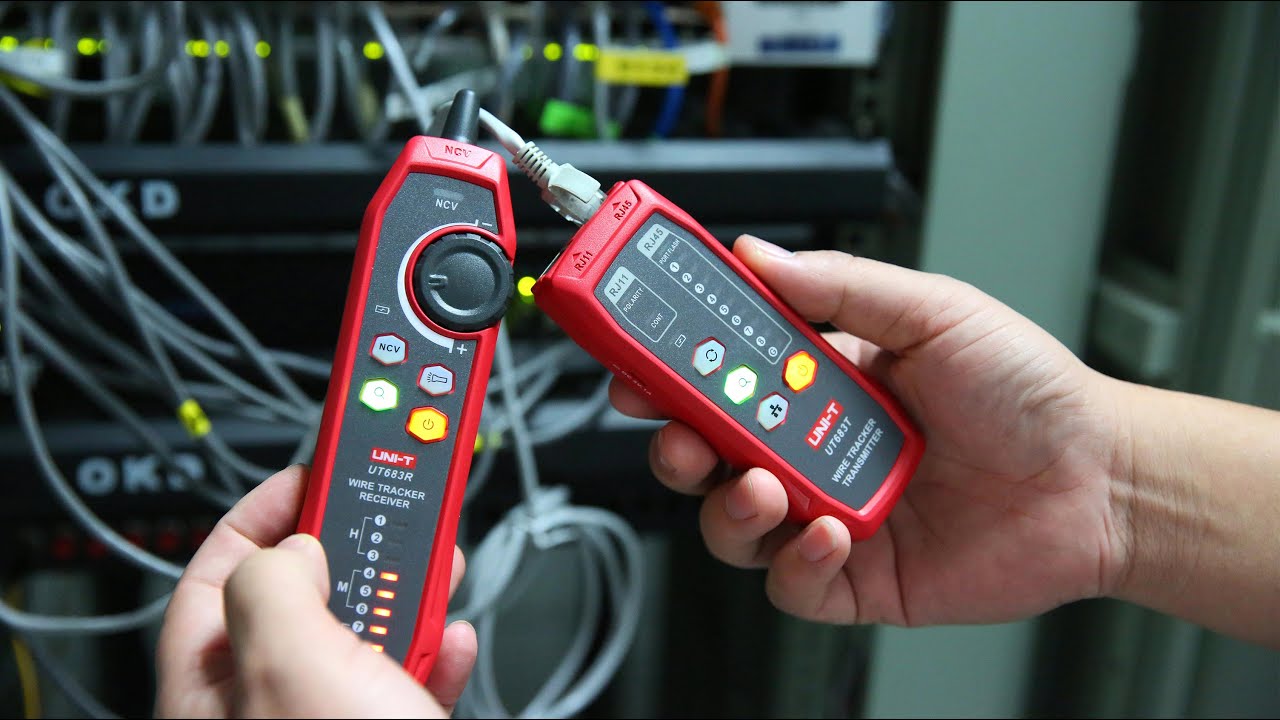

UT683KIT Wire Tracker
The UT683KIT is an intelligent wire tracker which consists of the transmitter and receiver, this kit is designed with strong anti-interference ability. The receiver can quickly and accurately locate the target cable. This kit can automatically identify open, short, polarity, and quickly distinguish cable failure.
Wire types
1, LAN cable;2, Telephone line;3, Coaxial cable;4, Electric wire
Transmitter-Port flashing
●
Transmitter-Wire tracking
●
Transmitter-Line alignment
●
Transmitter-Continuity
●
Transmitter-Polarity test
●
Key Features
Features
● Line function
● NCV function
● Withstand voltage DC 60V
● Port flashes
Model
UT683KIT
Technical Specification
| Specifications | Description |
| Certificates | CE, RoHS |
| Transmitter | |
|---|---|
| Port flashing | ✔ |
| Wire tracking | ✔ |
| Line alignment | ✔ |
| Open-short test | 10kΩ |
| Polarity test | ✔ |
| Operating time | ＞8 hours |
| Receiver | |
| Wire tracking | RJ11＞3000m; RJ45＞100m |
| NCV function | ✔ |
| Headset jack | 3.5mm |
| Low battery indication | ✔ |
| Operating time | ＞5 hours |
| General Characteristics | |
| Power | 1050mAh rechargeable lithium battery |
| Product net weight | Transmitter: around 95g; Receiver: around 127g |
| Product size | Transmitter-130mm x 51mm x 28mm; Receiver-197mm x 48mm x 34mm |
| Standard accessories | USB cable, RJ11 aligator clip test cable, RJ45 test cable, RJ11 test cable, English manual |
| Standard individual packing | Gift box, carrying bag |
| Standard quantity per carton | 20pcs |
| Standard carton measurement | 480mm x 370mm x 325mm |
| Standard carton gross weight | About 10kg |
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
Application

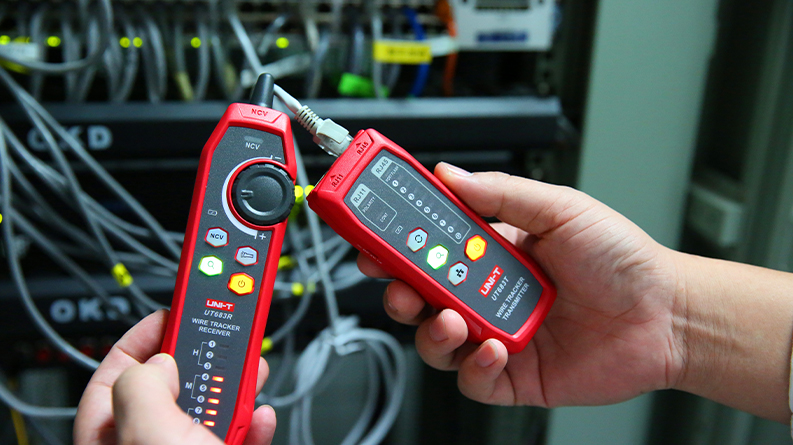

Wire tracking
NCV measurement
