UTE300
NewThe UTE300 series is a high-precision, high-performance digital power meter featuring a 4.3-inch full-color display, extensive interface options, and waveform display capabilities for an enhanced user experience. Its high accuracy and resolution deliver precise measurement results, while the 50A/1000V current and voltage measurement range, along with a 300kHz measurement bandwidth, make it suitable for a wide range of applications in production, testing, and research and development.
75mV~1000V
Voltage Range
25uA~50A
Current Range
DC, 0.1Hz~300kHz
Frequency Range
±(0.1% rdg.+ 0.05% F.S.)
Accuracy
DC, RMS, MN
Measurement Mode
RS-232/GPIB(optional), LAN, USB
Connectivity
½ 2U
Size
4.3'' TFT LCD
Display
KEY FEATURES
FEATURES
4.3 inch LCD

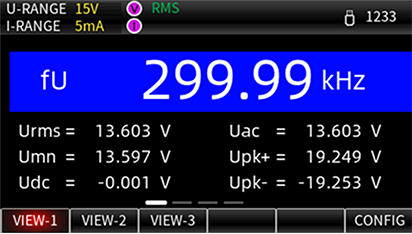

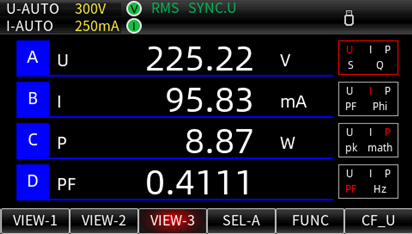

Three display modes provide access to a greater range of parameter information.
1MSa/s sampling rate
Measure transient signals more accurately and increase abnormal signal capture capabilities
Bandwidth 300kHz
Capture higher frequency signals and make signal testing more complete
Harmonic analysis
50th harmonic analysis, supporting IEC61000-4-7 standard
Display wave function

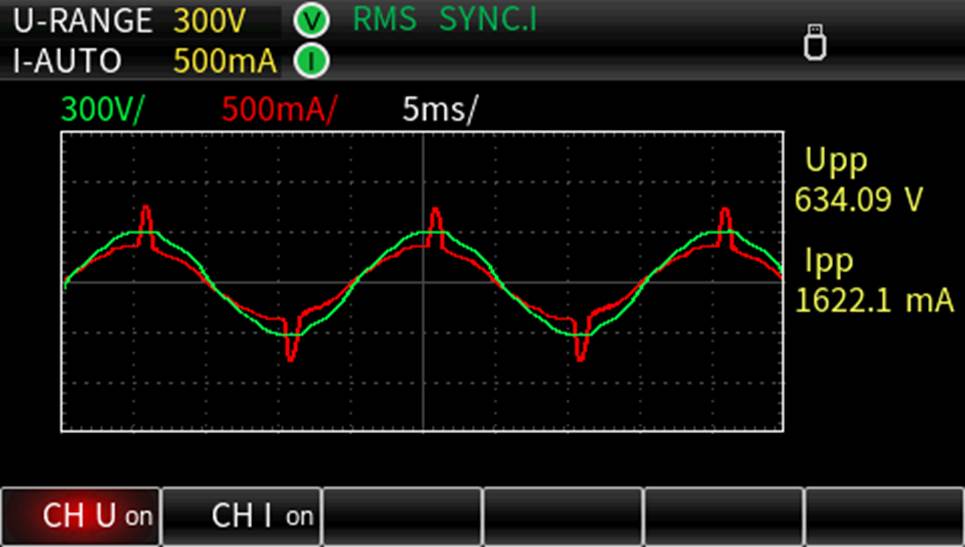

Intuitively displays real-time waveforms of voltage and current, and can automatically measure peak-to-peak values
Integral function

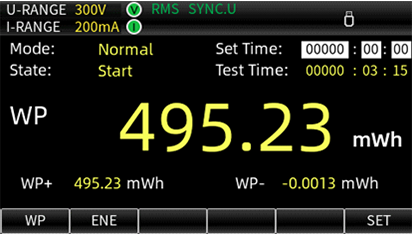

Supports average active power integration and current integration. Can be used as a power consumption test
DA output
The measured values are sent to the controller to cooperate with industrial control

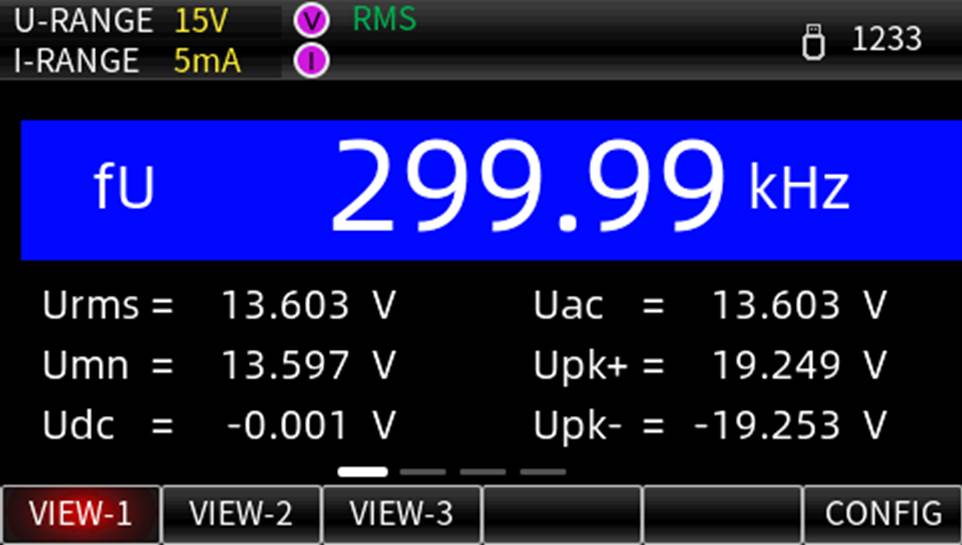

4.3 inch LCD
Three display modes provide access to a greater range of parameter information.
1MSa/s sampling rate
Enhance the accuracy of transient signal measurements and improve the ability to capture abnormal signals.
300kHz Bandwidth
Capture higher frequency signals for more comprehensive signal testing.
Harmonic analysis
Supports 50th harmonic analysis in compliance with the IEC61000-4-7 standard.
Waveform display function
Provides intuitive real-time voltage and current waveforms with automatic peak-to-peak measurement capabilities.
Integral function
Supports the integration of average active power and current, allowing it to be used for power consumption testing.
DA output
The measured values are transmitted to the controller for integration with industrial control systems.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UTE310HG |
75mV~1000V | 5mA~50A | DC, 0.1Hz~300kHz | ±(0.1% rdg.+ 0.05% F.S.) | DC, RMS, MN | GPIB, LAN, USB |
 UTE310H |
75mV~1000V | 5mA~50A | DC, 0.1Hz~300kHz | ±(0.1% rdg.+ 0.05% F.S.) | DC, RMS, MN | RS-232/GPIB(optional), LAN, USB |
 UTE310 |
75mV~600V | 25uA~20A | DC, 0.1Hz~300kHz | ±(0.1% rdg.+ 0.05% F.S.) | DC, RMS, MN | RS-232/GPIB(optional), LAN, USB |
 UTE310G |
75mV~600V | 25uA~20A | DC, 0.1Hz~300kHz | ±(0.1% rdg.+ 0.05% F.S.) | DC, RMS, MN | GPIB, LAN, USB |
Technical Specification
| Model | UTE310HG | UTE310H | UTE310G | UTE310 |
| Key Specifications | ||||
| Channels | 1 | |||
| Sample Rate | 1 MSa/s | |||
| Voltage Range | CF=3: 15 / 30 / 60 / 150 / 300 / 600 / 1000 V; CF=6/6A: 7.5 / 15 / 30 / 75 / 150 / 300 / 500 V | CF=3: 15 / 30 / 60 / 150 / 300 / 600 / 1000 V; CF=6/6A: 7.5 / 15 / 30 / 75 / 150 / 300 / 500 V | CF=3: 15 / 30 / 60 / 150 / 300 / 600 V; CF=6/6A: 7.5 / 15 / 30 / 75 / 150 / 300 V | CF=3: 15 / 30 / 60 / 150 / 300 / 600 V; CF=6/6A: 7.5 / 15 / 30 / 75 / 150 / 300 V |
| Current Range | CF=3: 1 / 2 / 5 / 10 / 20 / 50 A; CF=6/6A: 0.5 / 1 / 2.5 / 5 / 10 / 25 A | CF=3: 1 / 2 / 5 / 10 / 20 / 50 A; CF=6/6A: 0.5 / 1 / 2.5 / 5 / 10 / 25 A | CF=3: 5 / 10 / 20 / 50 / 100 / 200 mA / 0.5 / 1 / 2 / 5 / 10 / 20 A; CF=6/6A: 2.5 / 5 / 10 / 25 / 50 / 100 mA / 0.25 / 0.5 / 1 / 2.5 / 5 / 10 A | CF=3: 5 / 10 / 20 / 50 / 100 / 200 mA / 0.5 / 1 / 2 / 5 / 10 / 20 A; CF=6/6A: 2.5 / 5 / 10 / 25 / 50 / 100 mA / 0.25 / 0.5 / 1 / 2.5 / 5 / 10 A |
| Power Range | 15 W–50 kW | 15 W–50 kW | 75 mW–12 kW | 75 mW–12 kW |
| Frequency Range | DC / 0.1 Hz–300 kHz | |||
| Technical Details | ||||
|---|---|---|---|---|
| Voltage Resolution | Down to 0.01 mV | |||
| Current Resolution | Down to 1 μA | |||
| Power Resolution | Range-dependent | |||
| Voltage Accuracy | 45–66 Hz: ±(0.1% rdg + 0.05% F.S.) | |||
| Current Accuracy | 45–66 Hz: ±(0.1% rdg + 0.05% F.S.) | |||
| Power Accuracy | 45–66 Hz, PF=1: ±(0.1% rdg + 0.05% F.S.) | |||
| Frequency Accuracy | ±0.06% rdg | |||
| Sensor Channel Ext1 & Ext2 | Yes | |||
| Data Refresh Rate | 0.1 / 0.25 / 0.5 / 1 / 2 / 5 / 10 / 20 s / Auto | |||
| Features | ||||
| Waveform Display | Yes | |||
| Harmonic Measurement | 1–50 | |||
| Integral Function | Yes | |||
| Auto Range | Yes | |||
| Line Filter | Yes | |||
| Frequency Filter | Yes | |||
| D/A Output | 4 channels | |||
| Math Operation | 6 operations | |||
| Efficiency Measurement | Yes | |||
| Comparator Function | Yes | |||
| Support Protocol | SCPI, Modbus | |||
| USB Data Storage | Yes | |||
| Display Hold | Yes | |||
| Key Lock | Yes | |||
| General Information | ||||
| Display | 4.3-inch TFT LCD | |||
| Interface | GPIB, LAN, USB | RS-232; optional GPIB; LAN, USB | GPIB, LAN, USB | RS-232; optional GPIB; LAN, USB |
| Power | AC 100–240 V, 50/60 Hz | |||
| Product Net Weight | 2.6 kg | |||
| Product Dimensions (W×H×D) | 215 × 88 × 348.5 mm | |||
| Standard Quantity Per Carton | 1 pc | |||
| Certification | CE | |||
| Warranty | 3 Years | |||
