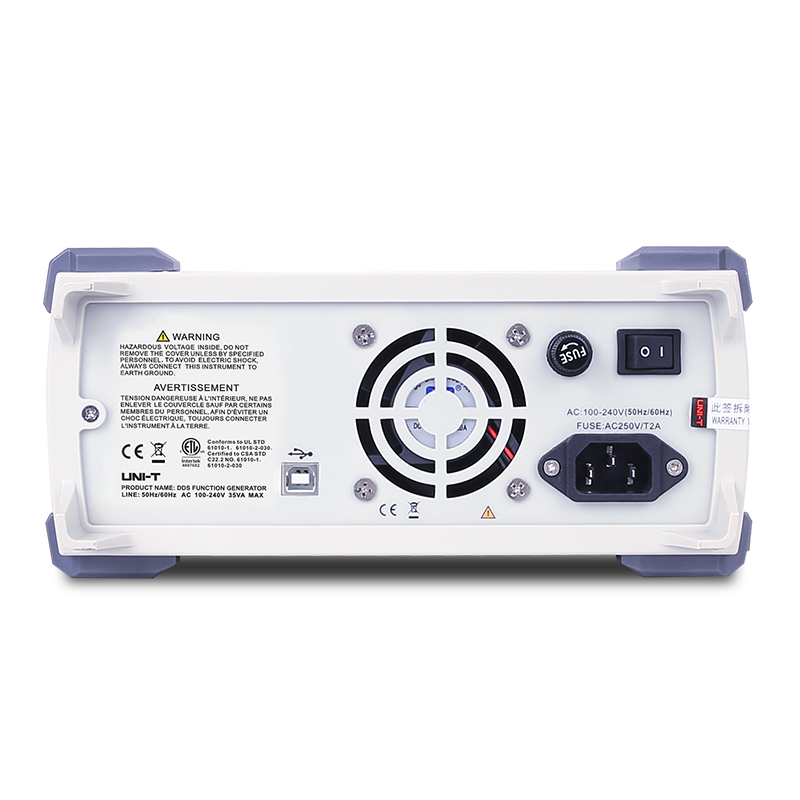

UTG1000A
The UTG1000A series of high performance function/ arbitrary waveform
generators adopt direct digital synthesis (DDS) technology to generate accurate,
stable,pure, low distortion output signals with high resolution up to 1μHz.
The MAX output frequency of UTG1000A is 5MHz/10MHz, provides multiple analog and digital modulation functions.UTG1000A series provides superior technical indicators and user-friendly operation interface, which can help you complete your tasks faster and greatly improve your work efficiency
10 MHz
MAX. OUTPUT FREQUENCY
125 MSa/s
SAMPLE RATE
14 bits
VERTICAL RESOLUTION
1
CHANNELS
16 Kpts
ARBITRARY WAVE LENGTH
KEY FEATURES
FEATURES
Single Channel/Multiple waveform output
Single channel output,Maximum output frequency 10MHz.
/multiple basic waveforms can be selected:
sine, square, triangle, pulse, ramp, noise, arbitrary wave.

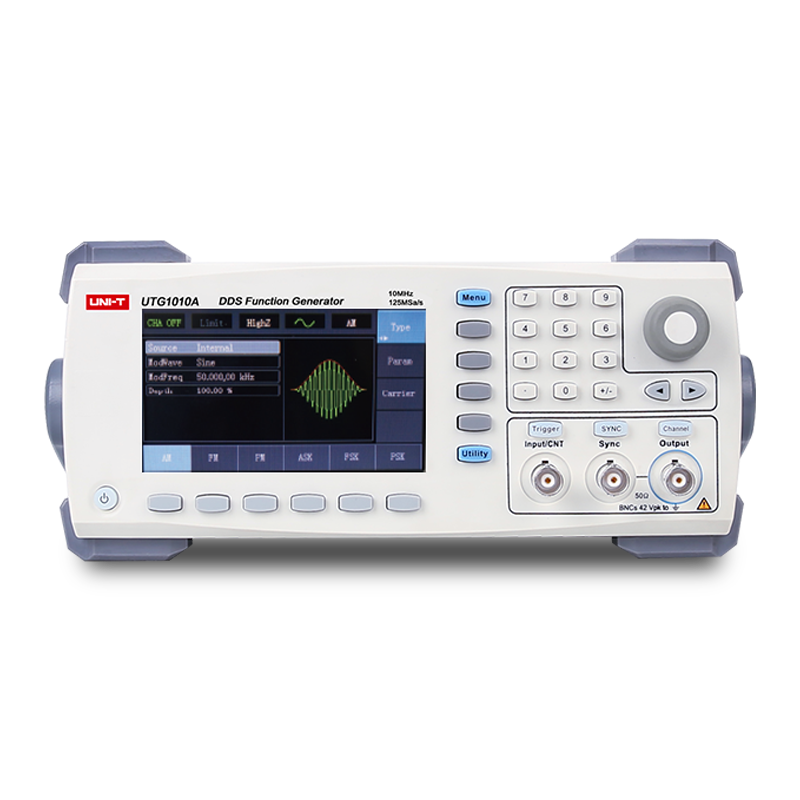

Multiple modulation functions
Modulation types include:
AM, FM, PM, ASK, FSK, PSK and PWM,
and support internal and external modulation sources,

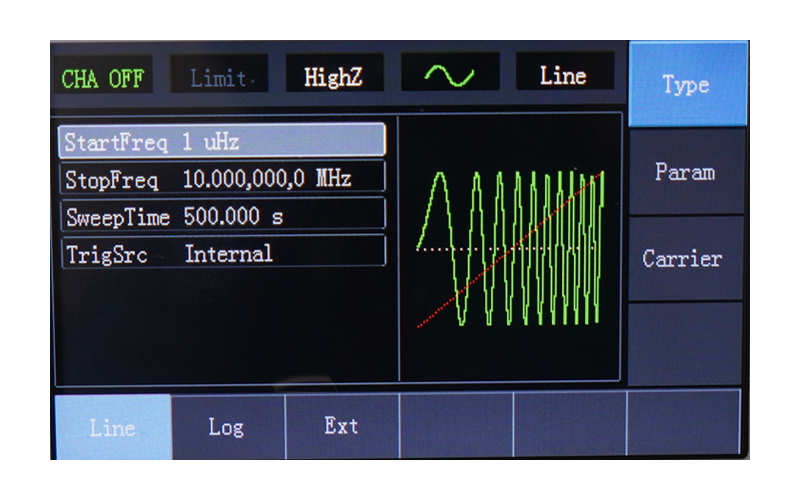

Sweep function
Sweep type: linear and logarithmic sweep signal

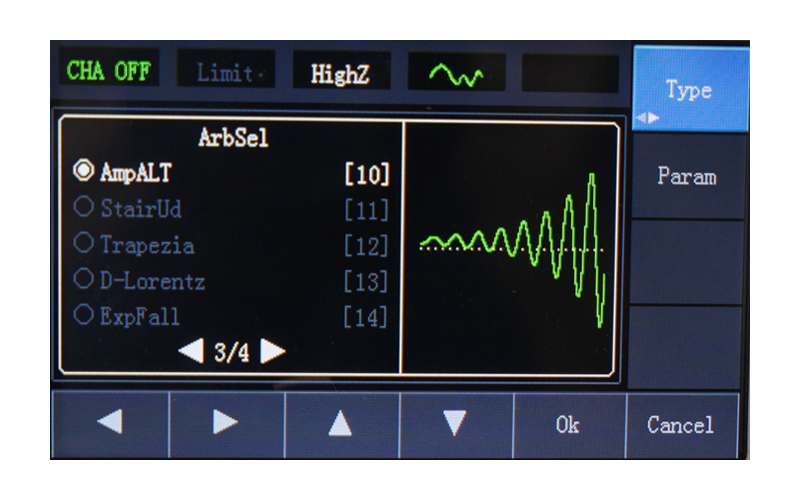

Built-in 16 arbitrary waveforms
Built-in fixed 16 groups of arbitrary waveforms optional
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UTG1005A |
5 MHz | 125 MSa/s | 14-bit | 1 | 16 kpts | - |
 UTG1010A |
10 MHz | 125 MSa/s | 14-bit | 1 | 16 kpts | - |
