UPO7000L
NewUPO7000L series digital phosphor oscilloscopes feature a compact, rack-mounted structural design with a slim and lightweight body. 1U height is designed for multi-machine system integration, high-density rack setups, and remote system operations, making it ideal for various application scenarios. The system supports multi-unit synchronous triggering and can be expanded to accommodate up to 128 oscilloscopes. Each unit integrates 4 analog channels, 1 external trigger channel, and 1 function/arbitrary waveform generator channel. With a flat body design and machine feet pads, the oscilloscopes are easy to stack and organize. leveraging the 7000 series platform, it ensures a smooth transition for users familiar with 7000X operation. Additionally, an external touch display can be connected, enabling a responsive touch experience similar to that of the 7000X series.
1GHz, 2GHz
Bandwidth
4
Analog Channels
10GSa/s
Real-time Sample Rate
1Gpts
Max. Memory Depth
2.000, 000wfms/s
Waveform Capture Rate
/
Digital Channels
KEY FEATURES
FEATURES

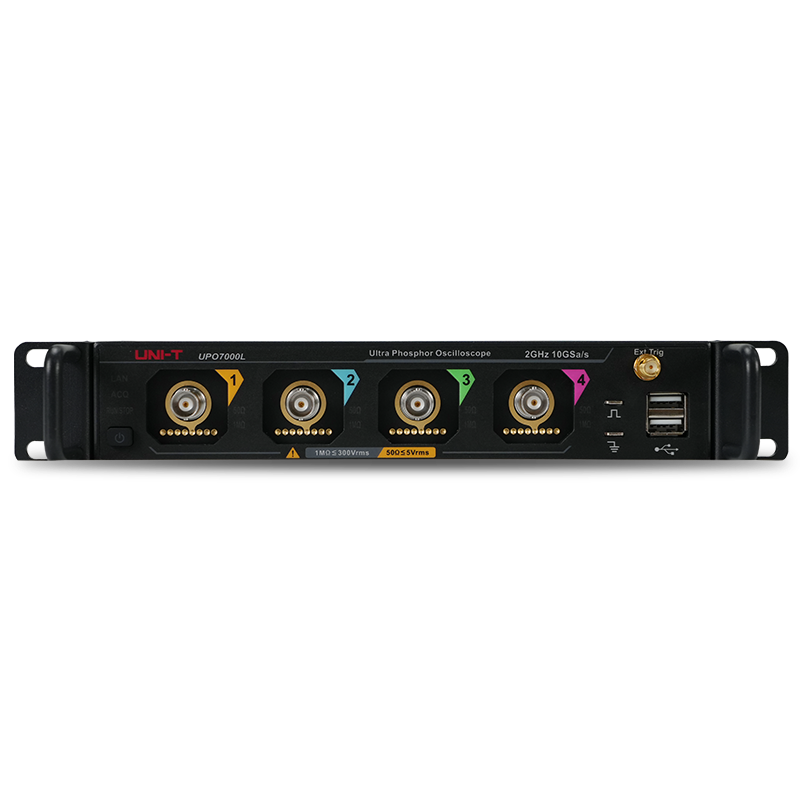

Compact Rack-Mounted Design
Compact Rack-Mounted Design for High-Density Integration: 214 mm (half-rack width) × 43 mm (1U height) × 500 mm (depth)
Multi-Machine Synchronization Scheme
-Supports clock synchronization
-Supports expansion to 512 channels
-Provide synchronization machine
-Gigabit Ethernet communication interface
-External trigger jitter ≤200ps rms
Flexible Near-end/Far-end Platform
-Supports connection to external displays and control devices.
-WebServer remote control: Enables oscilloscope access and control via mobile devices or PCs.
All-in-one Comprehensive Signal Measurement Instrument

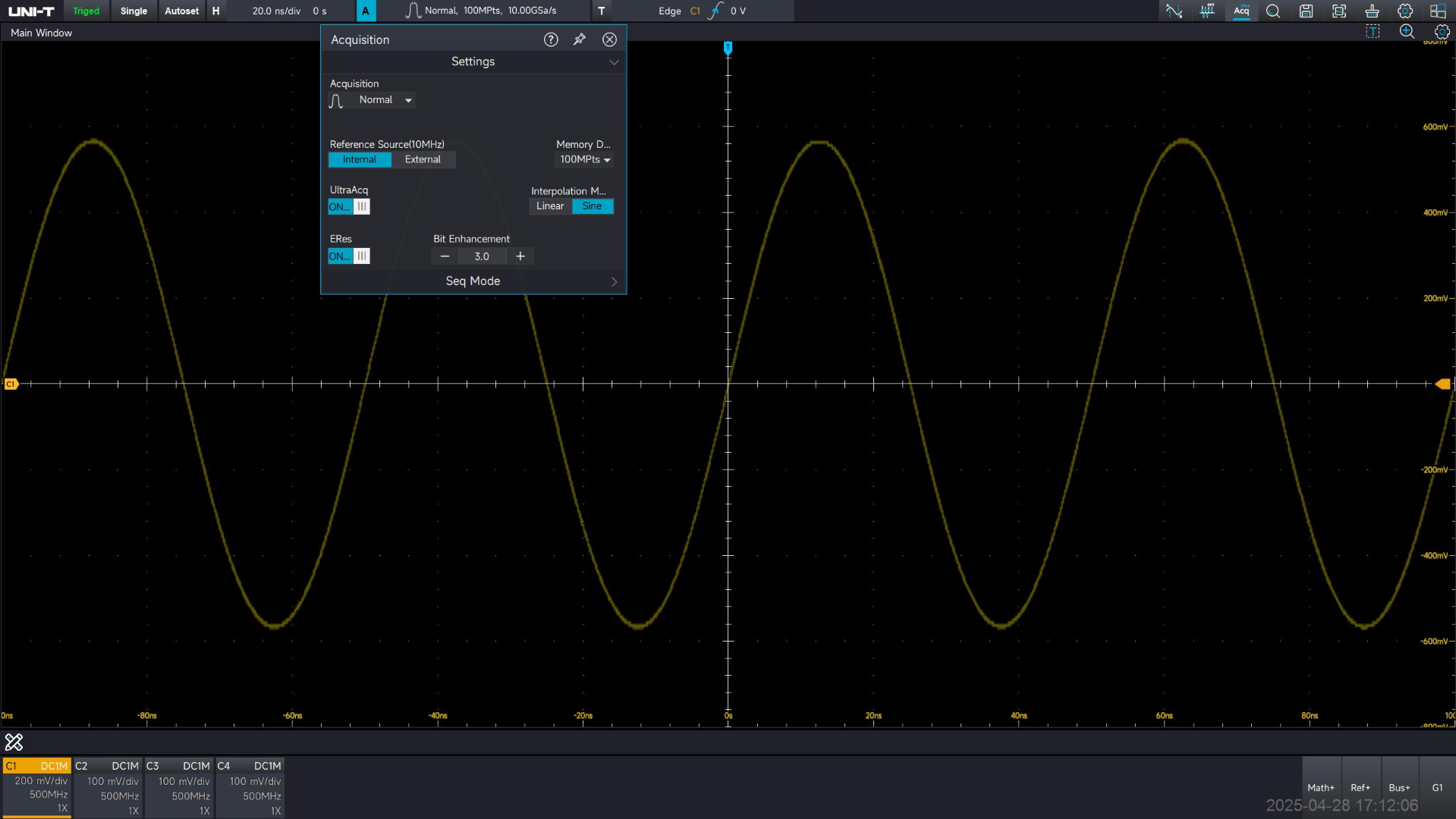

UltraAcq® Technology
– Upgrade real-time waveform capture rate to over 600,000 wfms/s
-2,000,000wfms/s in sequence mode

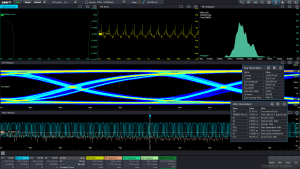

Jitter and Eye Diagram Analysis
Efficient measurement of clock and serial bus
-TIE, TJ, DJ, RJ, PJ, DDJ, DCD
-TIE Trend Chart, TIE Spectrogram
-TIE Histogram
-Bath Curve
MATLAB Embedded Programming
Support MATLAB embedded programming ，
Operational results are rendered directly to the oscilloscope window
Mathematical Operation
-Enhanced FFT: Provides the spectrum view of time-domain, frequency-domain, and modulation-domain
-Filter: High pass, low pass, band pass, and band limit
-Enhanced resolution mode: maximum resolution enhancement of 3-bit.
-User-defined function operation
-Embedded MATLAB
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UPO7204L |
2GHz | 4 | 10GSa/s | 1Gpts | 2,000,000wfms/s | / |
 UPO7104L |
1GHz | 4 | 10GSa/s | 1Gpts | 2,000,000wfms/s | / |
Technical Specification
| Model | UPO7204L | UPO7104L |
| Key Specifications | ||
| Bandwidth | 2 GHz | 1 GHz |
| Channels | 4 analog + EXT | |
| Sample Rate | 10 GSa/s (single channel); 5 GSa/s (dual channels); 2.5 GSa/s (all channels) | |
| Vertical Resolution | 8-bit; high-resolution/ERes modes | |
| Max. Memory Depth | 1 Gpts | |
| Max. Waveform Capture Rate | 800,000 wfms/s; 2,000,000 wfms/s sequence mode | |
| Technical Details | ||
|---|---|---|
| Rise Time | ≤175 ps (typ.) | ≤350 ps (typ.) |
| Time Base Scale | 100 ps/div to 1000 s/div | |
| Vertical Scale | 500 μV/div to 10 V/div (1 MΩ); up to 1 V/div (50 Ω) | |
| Input Impedance | 1 MΩ; 50 Ω | |
| Features | ||
| Auto Measurements | 48 parameters | |
| GEN | Single-channel, 60 MHz, 625 MSa/s (optional) | |
| Protocol Analysis Count | 11 | |
| Included Bus Protocols | RS-232/422/485/UART, I²C, SPI, CAN, LIN | |

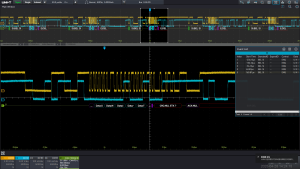

| Optional Bus Protocols | CAN-FD, FlexRay, SENT, AudioBus (I²S/LJ/RJ/TDM), MIL-STD-1553, ARINC 429 | |
| DVM | 4-digit | |
| Frequency Counter | 8-digit | |
| Spectrum Analysis | Enhanced FFT, up to 1 Mpts | |

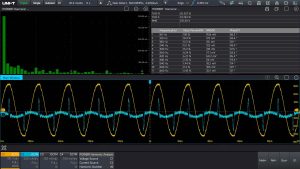

| Power Analysis | 6 types (optional) | |
| Jitter Analysis And Eye Diagram | Optional | |
| General Information | ||
| Display | External HDMI display / WebServer | |
| Interface | 4×USB Host, 2×Gigabit LAN, HDMI, AUX, Ref In/Out | |
| OS | Windows 10 64-bit | |
| Power | 100–240 VAC, 50/60 Hz | |
| Product Net Weight | Not specified in Data Sheet | |
| Product Dimensions (W×H×D) | 214 × 43 × 478 mm | |
| Standard Quantity Per Carton | 1 pc | |
| Certification | CE, cETLus | |
| Warranty | 3 years | |
