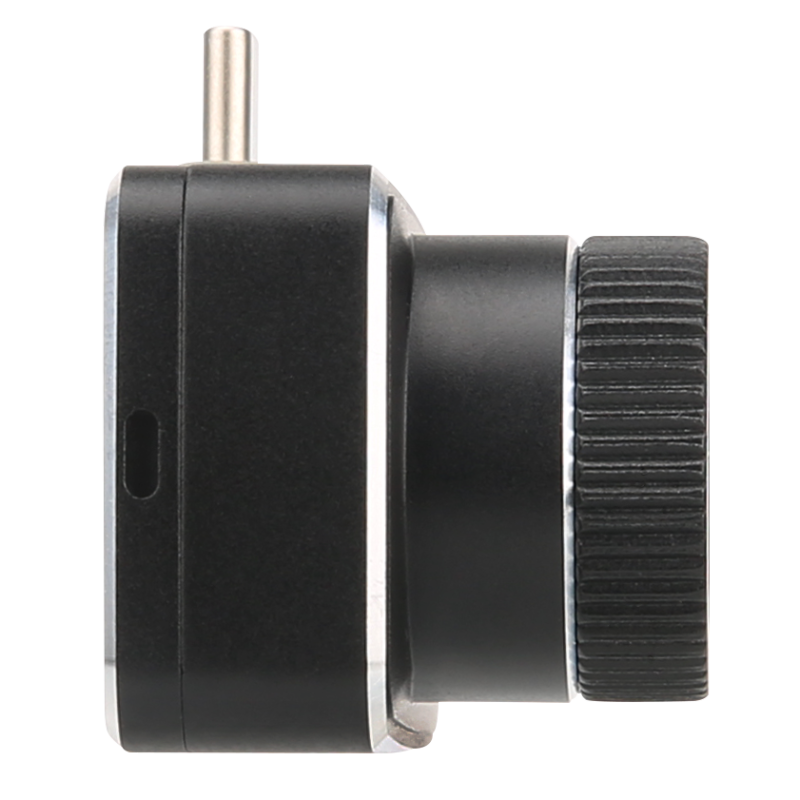

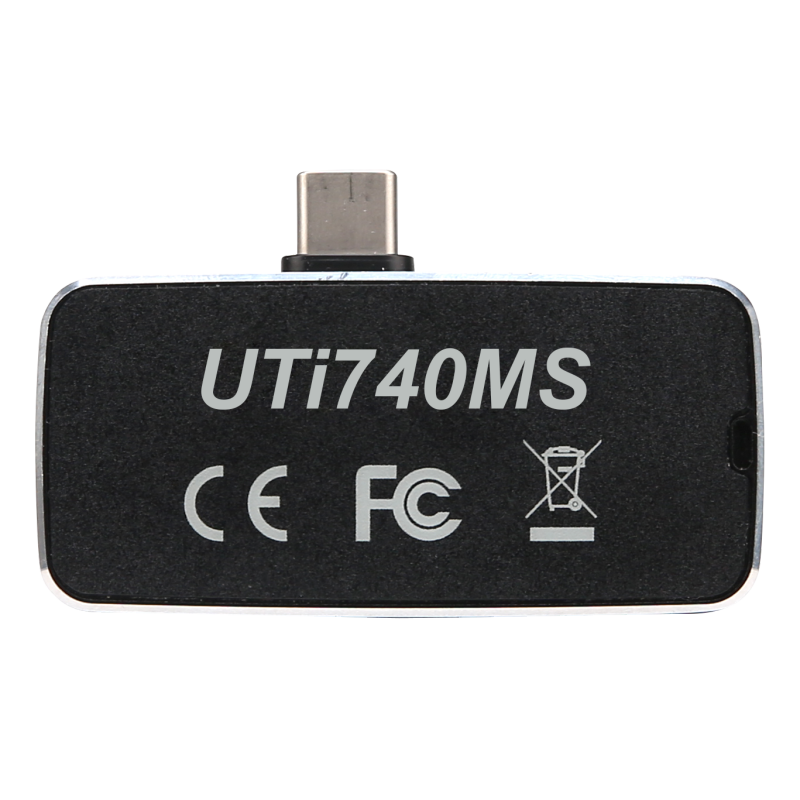

UTi740MS
Thermal Imager for Smart Phone
UTi740MS thermal camera module with manual focus feature is specially design for Android & iOS mobile devices with Type-C USB interface. With light-weight & battery-free design. Plug & play with “Thermal Mobile ”APP. User-friendly, fast imaging. Perfect measurement tool for building inspection & DIY use.
IR Resolution
400×300
Temperature Range
-20℃~550℃
Thermal Sensitivity
≤45mK
Field of View (FOV)
29°×21.5°
Frame Rate
≤25Hz
Display
Smartphone Display
FEATURES
400×300 pixels (upgrades to 800×600 when Super Resolution is on)
Lorem ipsum dolor sit amet consectetur. Cursus amet non felis suscipit cursus ultricies nulla non. Nunc morbi proin dictumst purus.
Temp. measurement range from -20℃ to 550℃
Lorem ipsum dolor sit amet consectetur. Fermentum magna sapien interdum imperdiet platea ligula donec tortor. Augue in orci praesent in dignissim etiam vel. Eu scelerisque at tincidunt dolor venenatis orci malesuada.
Compatible with Android 7.0/iOS15 and later
Precise high-resolution thermal imaging with fast refresh rates, delivering accurate temperature readings and hot-spot detection for critical diagnostics.
Manual Focus
Rugged, reliable, and user-friendly design engineered for demanding electrical, mechanical, and HVAC building diagnostic applications.
Plug & play with "Thermal Mobile" APP
Advanced on-screen measurement and analysis capabilities with customizable color palettes and seamless report export.
PDF analysis report generation
Equipped with long-lasting rechargeable battery power and durable industrial-grade casing rated for reliable field operations.
Technical Specification
| Technical Data | |
| IR resolution(Pixels) | 400×300 |
| Spectral range | 8~14µm |
| Pixel size | 12µm |
| Frame rate | ≤25Hz |
| Thermal sensitivity(NETD) | ≤45mK @25℃ |
| Focus | Manual Focus |
| Lens focal length | 9.5mm |
| Field of view(FOV) | 29°(H) × 21.5°(V) |
| Measurement modes | Industrial & EST screening |
| Temperature measurement range | -20℃~550℃ |
| Accuracy | Industrial: ±2° or ±2% whichever is greater (-10℃~550℃) EST: ±0.5° (20℃~50℃) |
| Functions | |
|---|---|
| Color palettes | Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC |
| Image modes | Thermal, Fusion, PIP |
| On screen analyzer | 5 Points/1 Lines/3 Rectangles/3 Circles |
| Isotherm | Auto/Below/Above/Section/Manual |
| Hi/Lo temperature alarm | LCD animation & Buzzer |
| Hi/Lo temperature tracking | √ |
| Video recording | √ |
| General Characteristics | |
| USB | Type-C |
| Image storage format | JPG |
| Video storage format | MP4 |
| Certificates | CE, FCC, RoHS |
| Languages | ZH, EN, FR, DE, IT, ES, SV, PL, CZ |
| Weight | 46g |
| Dimension | 58mm×27mm×28.6mm |
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
THERMAL GALLERY

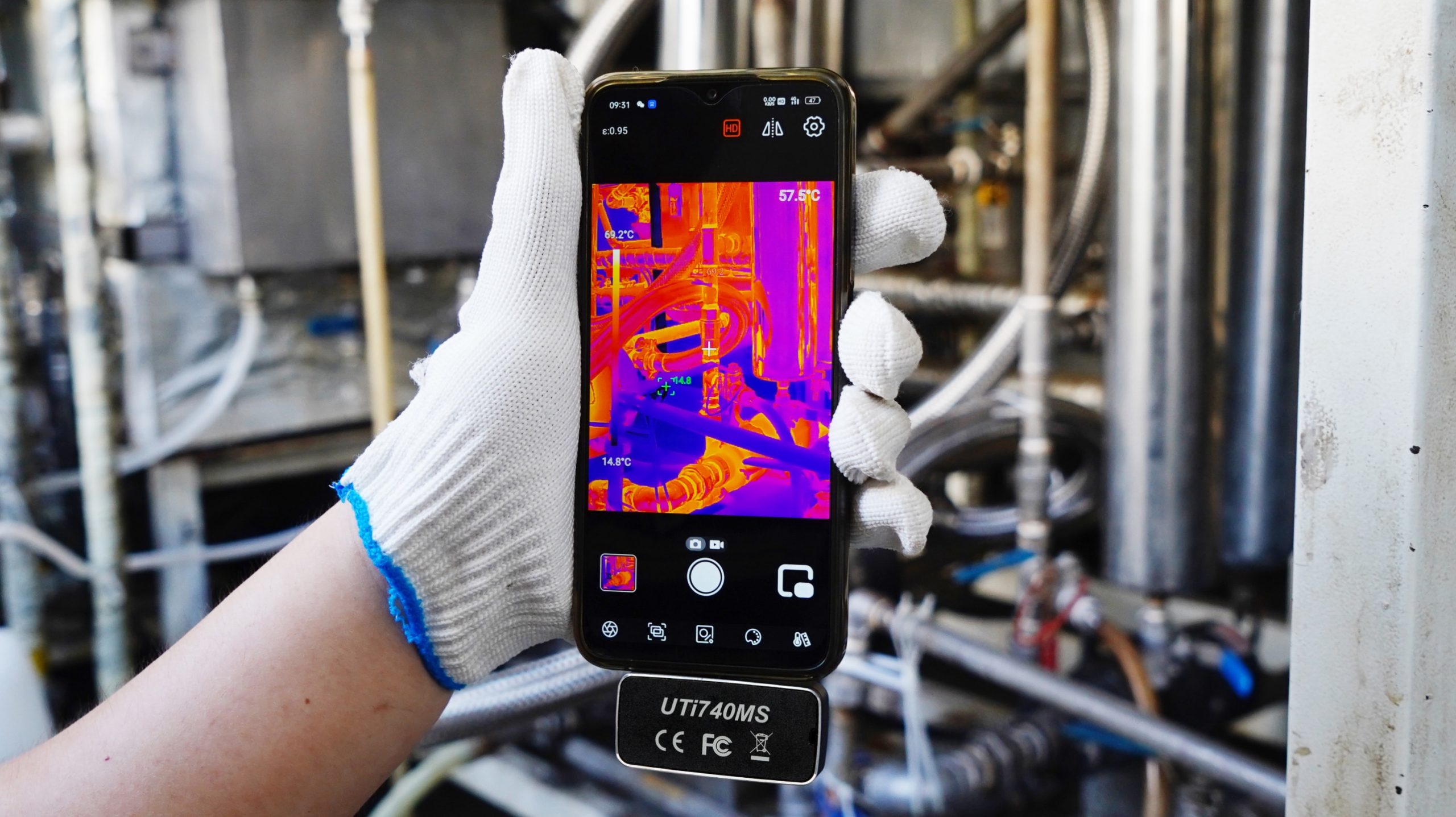

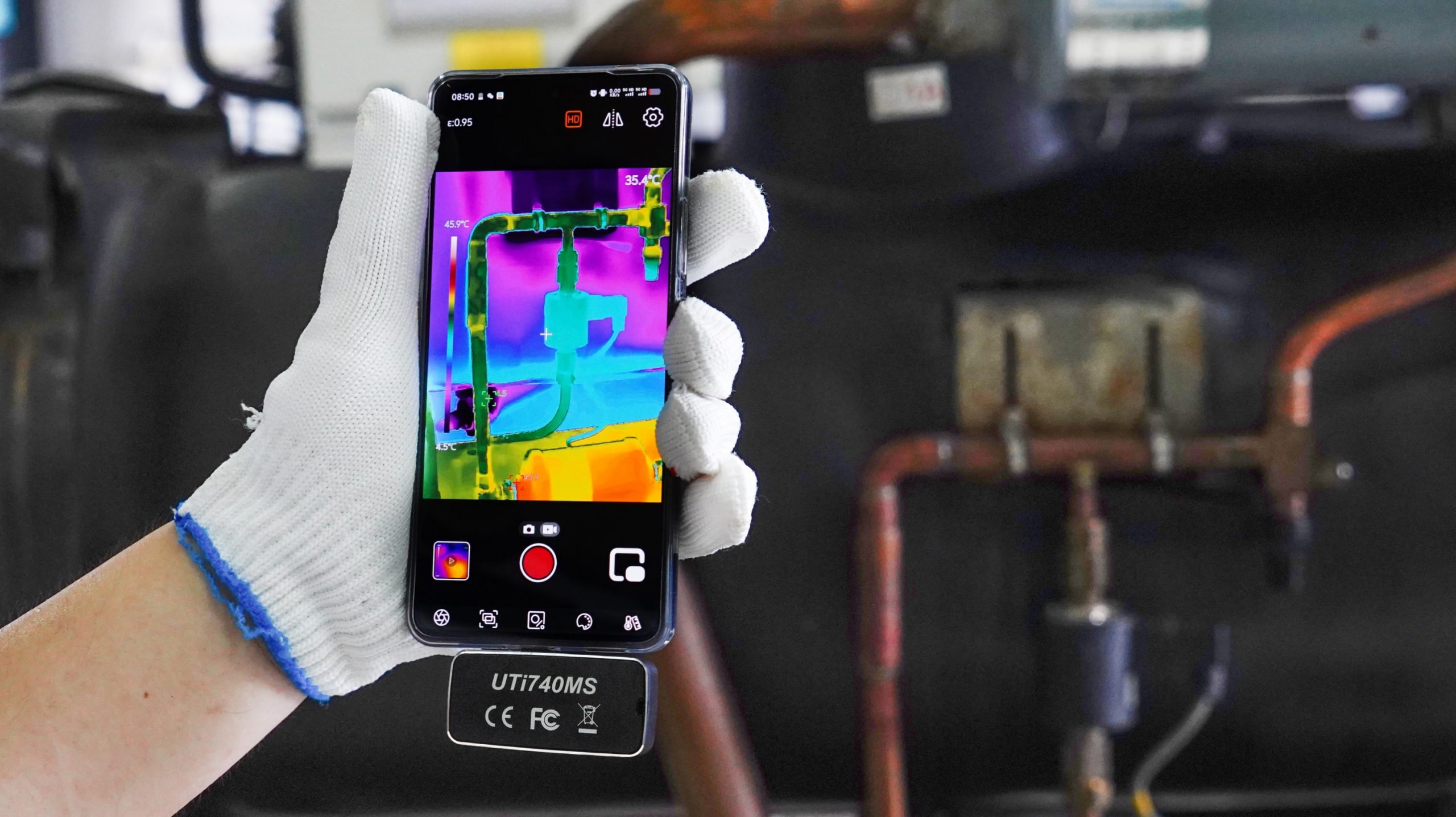

Application
