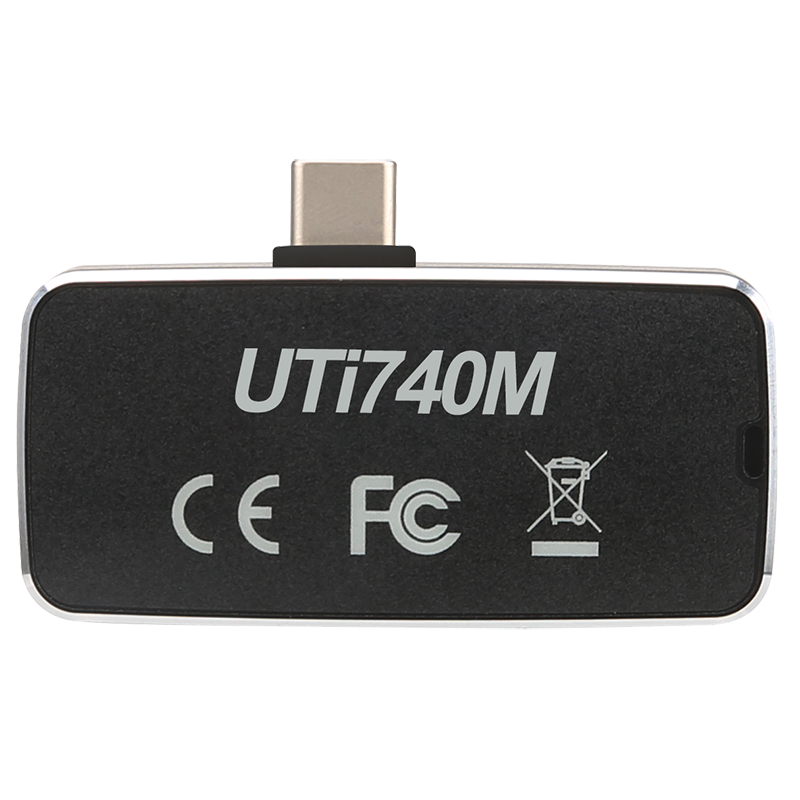

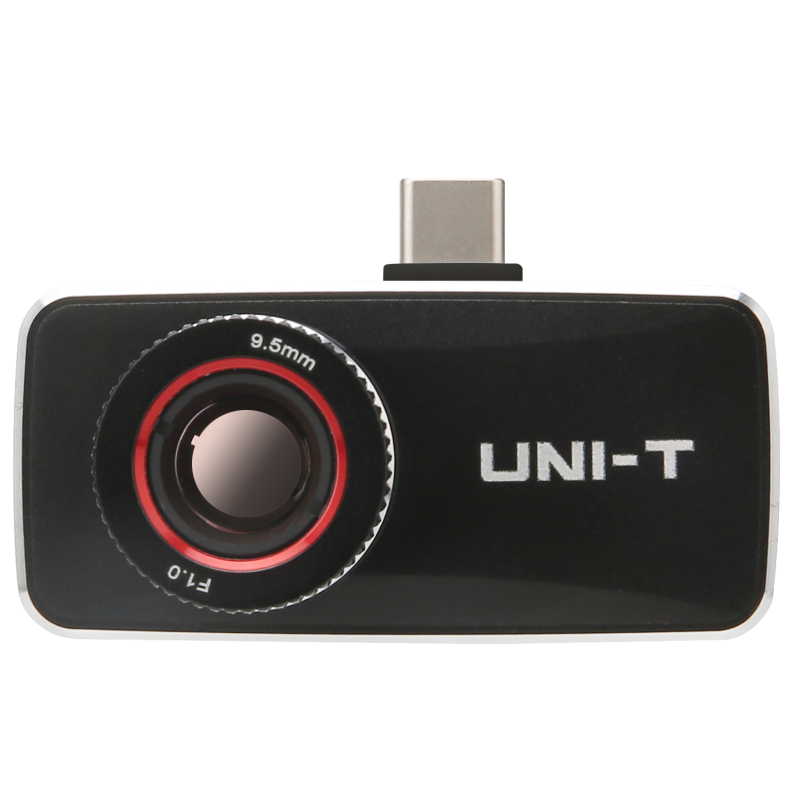

UTi740M
Smartphone Thermal Camera Module for Android

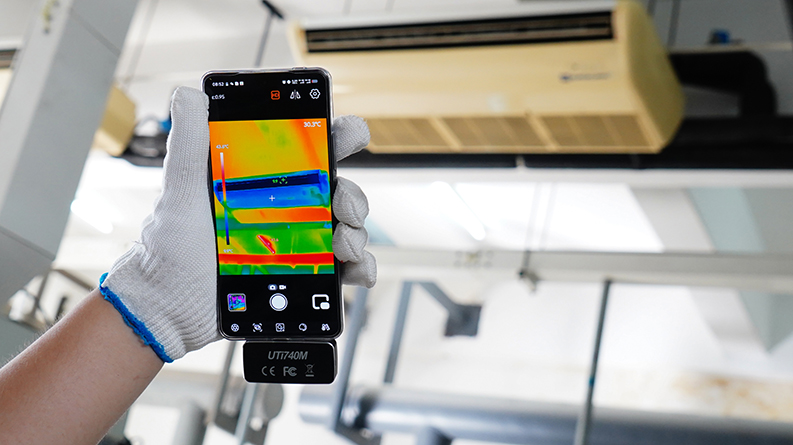

UTi740M features a high-sensitivity (NETD<45mK) VOx detector with 400×300 pixels of IR resolution. With the blessing of Super resolution function, quality of thermal images can be real-time improved in 4x. The manual focus design can meet the inspection requirements at various distances. Install an APP only to transform your phone into a professional thermal camera instantly. A handy measurement tool for building diagnosis and HVAC inspection.
IR Resolution
400×300
Temperature Range
-20℃~550℃
Thermal Sensitivity
≤45mK
Field of View (FOV)
29°×21.5°
Frame Rate
≤25Hz
Display
Smartphone Display
FEATURES
400×300 pixels / 12μm infrared detector
Lorem ipsum dolor sit amet consectetur. Cursus amet non felis suscipit cursus ultricies nulla non. Nunc morbi proin dictumst purus.
Temp. measurement range from -20℃ to 550℃
Lorem ipsum dolor sit amet consectetur. Fermentum magna sapien interdum imperdiet platea ligula donec tortor. Augue in orci praesent in dignissim etiam vel. Eu scelerisque at tincidunt dolor venenatis orci malesuada.

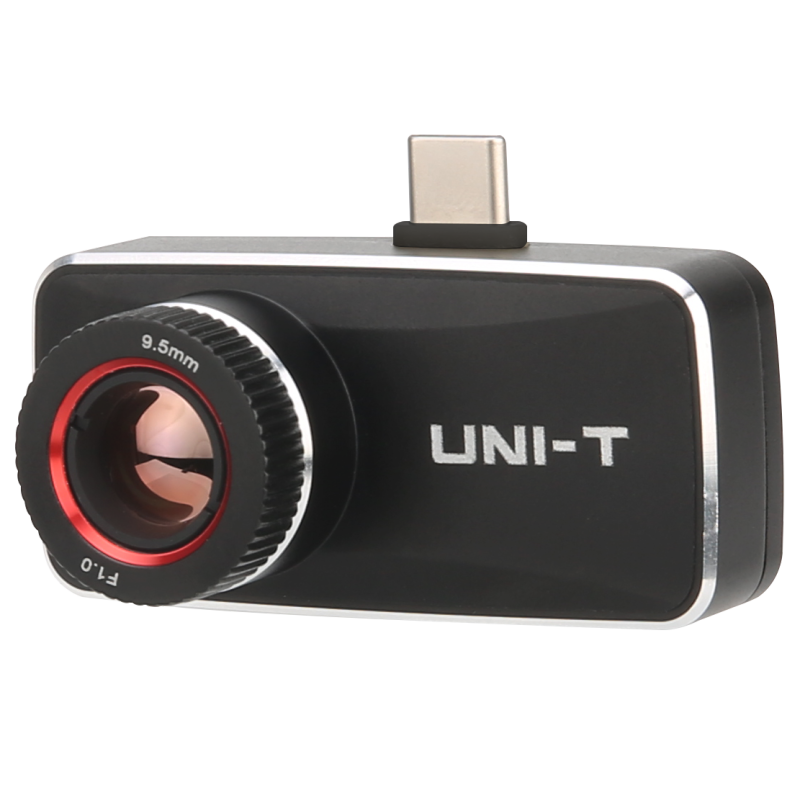

Manual Focus
Precise high-resolution thermal imaging with fast refresh rates, delivering accurate temperature readings and hot-spot detection for critical diagnostics.
Featuring real-time super resolution function, IR resolution up to 800×600

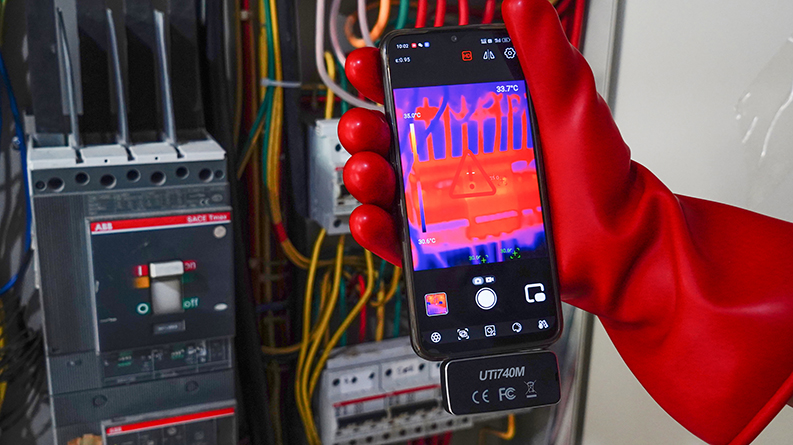

Rugged, reliable, and user-friendly design engineered for demanding electrical, mechanical, and HVAC building diagnostic applications.
Plug & play with "Thermal Mobile" APP
Advanced on-screen measurement and analysis capabilities with customizable color palettes and seamless report export.
Lightweight and easy to use
Equipped with long-lasting rechargeable battery power and durable industrial-grade casing rated for reliable field operations.
Technical Specification
| Technical Data | |
| IR resolution(Pixels) | 400×300 |
| Spectral range | 8~14µm |
| Pixel size | 12µm |
| Frame rate | ≤25Hz |
| Thermal sensitivity(NETD) | ≤45mK @25℃ |
| Focus | Manual Focus |
| Lens focal length | 9.5mm |
| Field of view(FOV) | 29°(H) × 21.5°(V) |
| Measurement modes | Industrial & EST screening |
| Temperature measurement range | -20℃~550℃ |
| Accuracy | Industrial: ±2° or ±2% whichever is greater (-10℃~550℃) EST: ±0.5° (20℃~50℃) |
| Functions | |
|---|---|
| Color palettes | Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC |
| Image modes | Thermal, Fusion, PIP |
| On screen analyzer | 5 Points/1 Lines/3 Rectangles/3 Circles |
| Isotherm | Auto/Below/Above/Section/Manual |
| Hi/Lo temperature alarm | LCD animation & Buzzer |
| Hi/Lo temperature tracking | √ |
| Video recording | √ |
| General Characteristics | |
| USB | Type-C |
| Image storage format | JPG |
| Video storage format | MP4 |
| Certificates | CE, FCC, RoHS |
| Languages | ZH, EN, FR, DE, IT, ES, SV, PL, CZ |
| Weight | 46g |
| Dimension | 58mm×27mm×28.6mm |
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |

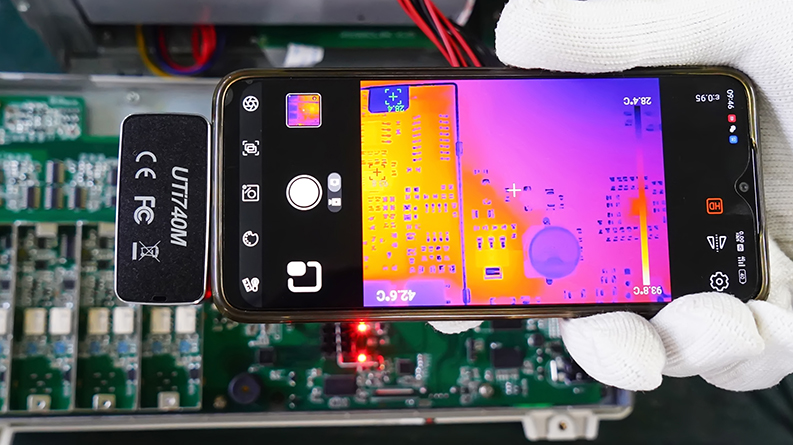

THERMAL GALLERY
Application
