UT-T Series Thermocouples

Models:

UT-T01, UT-T03, UT-T04, UT-T05, UT-T06, UT-T07, UT-T09K, UT-T10K, UT-T11, UT-T12, UT-T15

Get a quote

Data Sheet

Download Resources

Key Features

Features

UT-T01 Thermocouple

● Accuracy: ±0.75%

● Test range: -40°C~260°C（40°F~500°F）

● Features and application: Teflon covered insulation, through hole input, used for general temperature measurement, not for liquid measurement

● Amount: 1PC

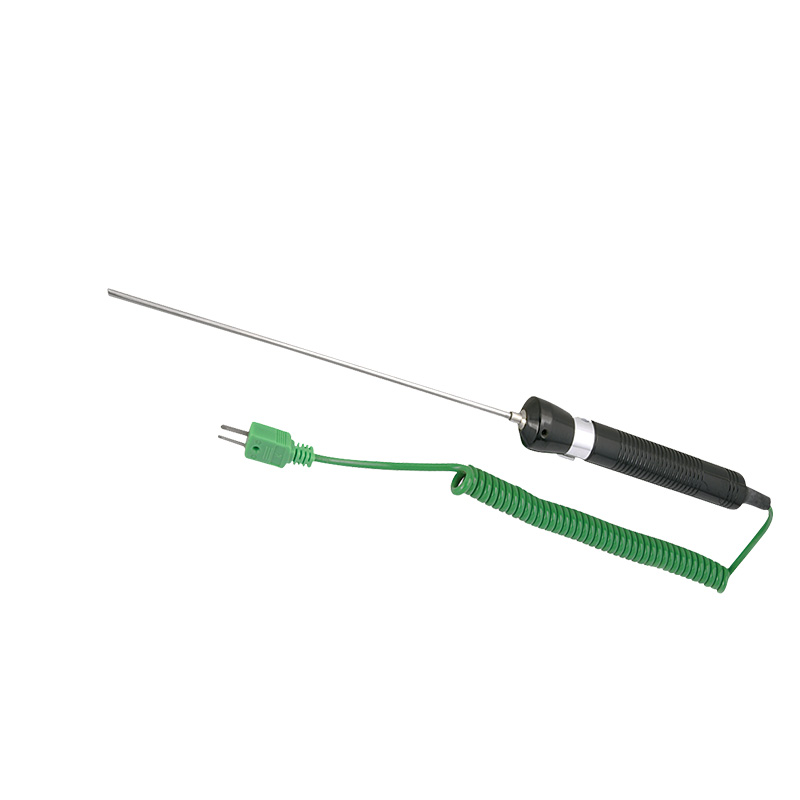

UT-T03 Submersed thermocouple

● Probe length: 180mm

● Lead wire length: 1000mm

● Test range: -50°C~600°C（58°F~1112°F）

● Features and application: metal covers from head to handle, used for liquid and gel temperature measurement

● Amount: 1PC

UT-T04 Through hole thermocouple

● Probe length: 180mm

● Lead wire length: 1000mm

● Test range: -50°C~600°C（58°F~1112°F）

● Features and application:

metal covers from head to handle, used for food and other liquid or gel temperature measureme

● Amount: 1PC

UT-T05 Gas thermocouple

● Probe length: 56mm

● Lead wire length: 1000mm

● Test range: -50°C~900°C（58°F~1652°F）

● Features and application: protected by stainless steel gas adjusting hole, used for air or gas temperature measurement, not for liquid temperature measurement

● Amount: 1PC

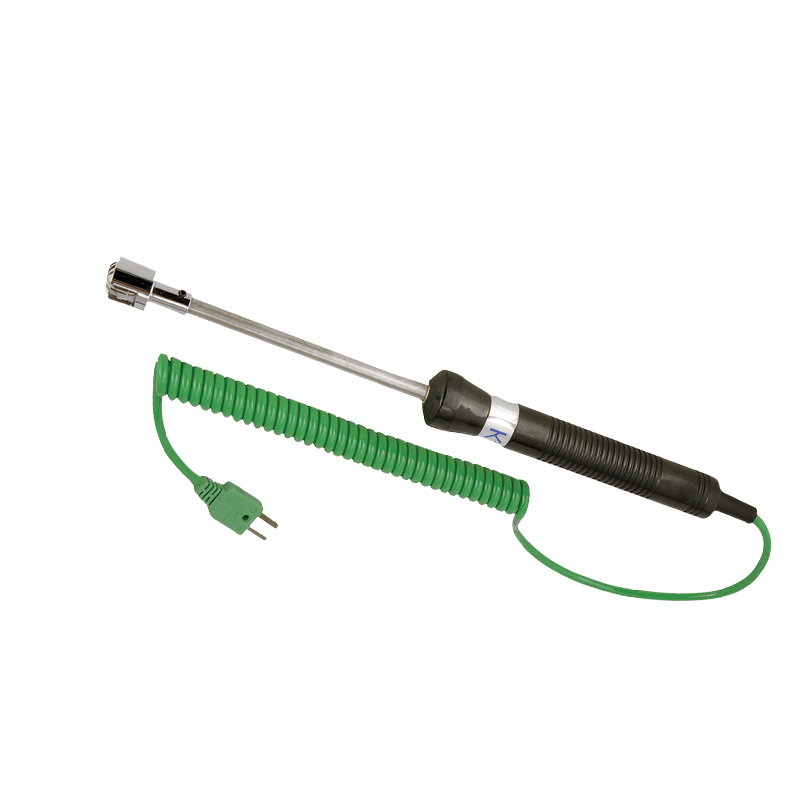

UT-T06 Surface temperature thermocouple

● Probe length: 125mm

● Lead wire length: 1000mm

● Test range: -50°C~500°C（58°F~932°F）

● Features and application:

aimed at flat or slightly convex surface, used for hot roller and vessel surface temperature measurement

● Amount: 1PC

UT-T07 Surface temperature measuring thermocouple

● Probe length: 200mm

● Lead wire length: 1000mm

● Test range: -50°C~500°C（58°F~932°F）

● Features and application: probe bends for 90°, aimed at flat or slightly convex surface, used for hot roller and vessel surface temperature measurement

● Amount: 1PC

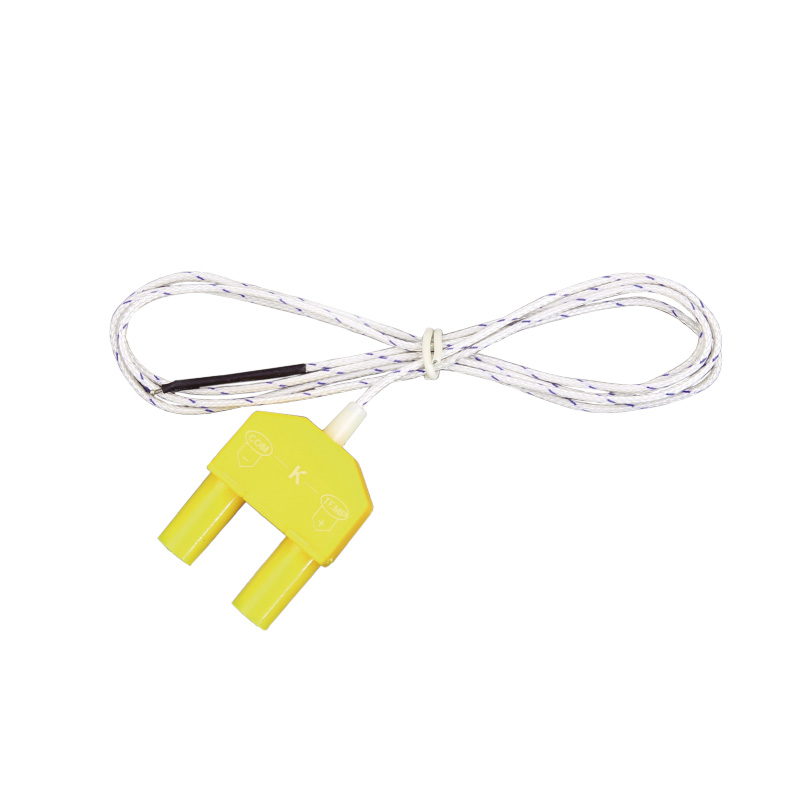

UT-T09K Temperature probe

● Test range: -40°C~260°C（40°F~500°F）

● Accuracy: ±0.75%

● Features and application: crosshead socket type input, used for UT139C/E/S, UT216C/D, UT210D, UT213B/C, UT171B/C, UT219M, UT219DS, UT222

● Amount: 1PC

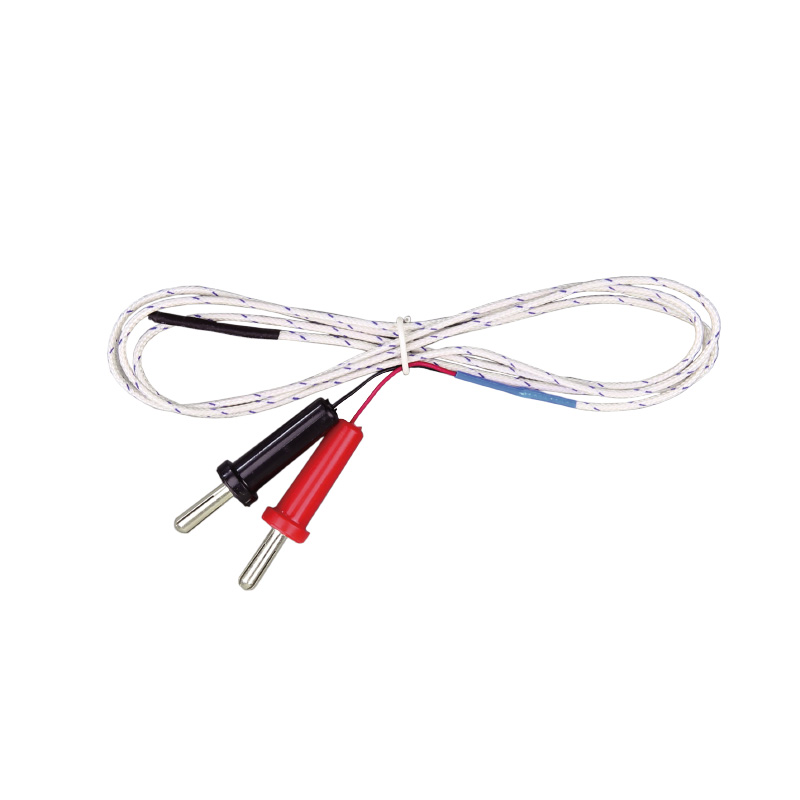

UT-T10K Temperature probe

● Test range: -40°C~260°C（40°F~500°F）

● Accuracy: ±0.75%

● Features and application: used for UT213 series, UT39C, UT204A, UT206, UT208, UT208A, UT107, UT109, UT136C+, UT133A, UT89X, UT39C+

● Amount: 1PC

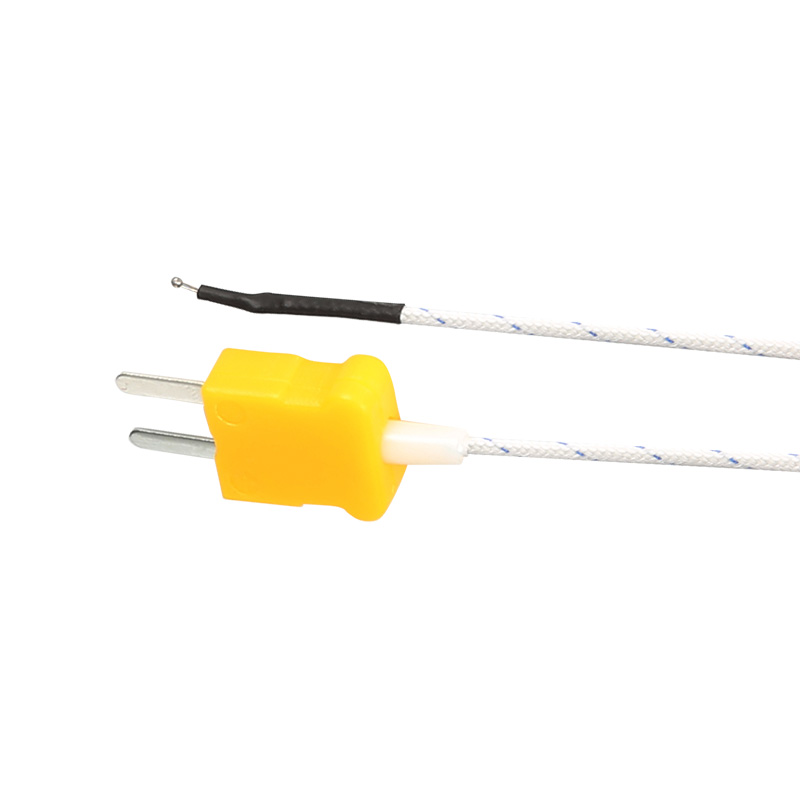

UT-T11 Temperature probe

● Test range: -40°C~260°C（40°F~500°F）

● Accuracy: ±0.75%

● Features and application: Through hole input, used for UT58 series, UT195M

● Amount: 1PC

UT-T12 Temperature probe

● Test range: 0°C-800°C (Error ±0.4%t)

● Features and application: Through hole input, used for UT321, UT322, UT325, UT181A

● Amount: 1PC

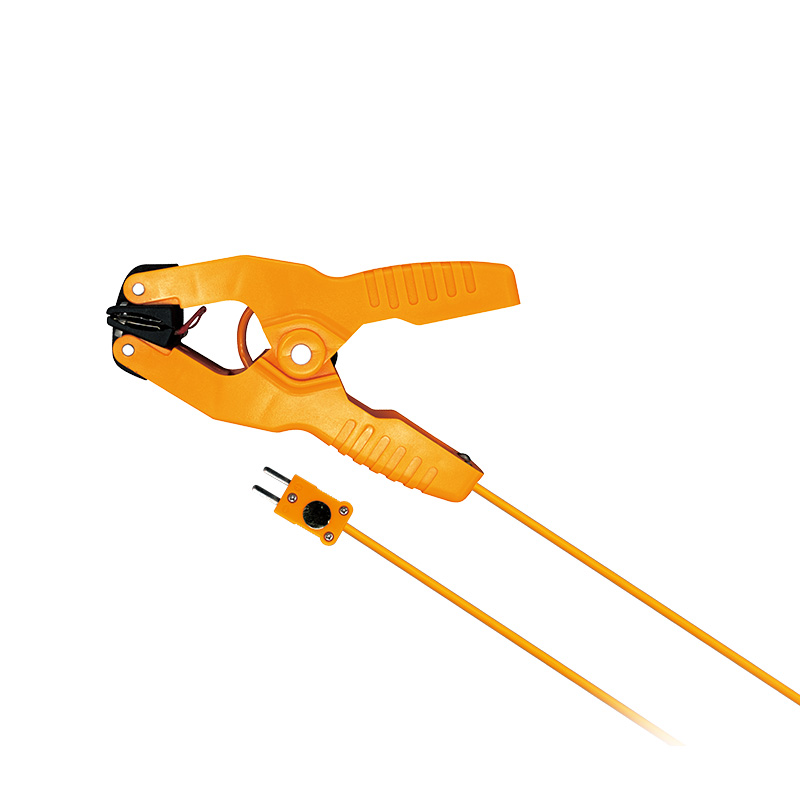

UT-T15 K-type temp clamp

● Test range: -40°C~200°C

● Jaw opening: 35mm

● Features and application: Flat plug for any K-type temperature recording meter

● Amount: 1PC

Technical Specification

Specifications	UT-F Series
Models	General specifications	Brand	Safety certificates	Suitable products	Amount
UT-F01	Φ6.35×31.8 500mA/600V	HOLLY	CE	UT61(GS) series, UT139B, UT125C	1pc
UT-F02	Φ6.3×25.4 10A/600V	BUSSMANN	UL	UT139 series, UT133A/B	1pc
UT-F03	Φ6.35×31.8 0.5A/1000V	HOLLY	TUV	UT71 series, UT81B, UT81C, UT505B	1pc
UT-F04	Φ6×32 0.2A/600V	HOLLY	TUV	UT139A, UT105	1pc
UT-F05	Φ6.35×31.8 600mA/600V	HOLLY	TUV	UT139C, UT139E, UT139S	1pc
UT-F06	Φ6.35×31.8 10A/600V	HOLLY	TUV	UT105, UT81B, UT81C	1pc
UT-F07	Φ10.3×38 10A/1000V	HOLLY	CCC, UR/CUR, VDE	UT61 series (2010 CE), UT71(CE), UT171A/B/C, UT181A	1pc
UT-F08	Φ6.35×31.8 600mA/1000V	HOLLY	TUV	UT61 series, UT61 series-US	1pc
UT-F10	Φ6.35×31.8 800mA/1000V	HOLLY	UL	UT171 series, UT181A	1pc
