UT219PV Professional AC/DC Clamp Meter
The UT219PV is an advanced AC/DC clamp meter specially designed for high-voltage photovoltaic environments. It offers exceptional accuracy and performance, with a wide range of features. With its automatic range selection and a clear display capable of showing up to 9999 digits, this clamp meter allows for precise measurements of AC/DC voltage, current, low-pass filtered voltage/current, surge current, peak current, DC power (using an external flexible clamp head), resistance, circuit continuity, diodes, capacitance, and temperature. Its versatility extends beyond photovoltaic applications, as it can also be used in other high-voltage settings like energy storage systems, uninterruptible power supplies (UPS), and large motors.
999.9 A
AC Current (A)
999.9 A
DC Current (A)
999.9V/1500V
AC Voltage (V)
999.9V/2500V
DC Voltage (V)
999.9Ω/9.999KΩ/99.99kΩ
Resistance (Ω)
100.0μF/1000 μF
Capacitance (F)
Key Features
Certifications (UT219PV only): CE, RoHS, cETLus
Technical Specification
| Technical Specifications | ||
| Current (ACA) | 999.9 A | 40Hz~100Hz: ±(2.0%+5) 100Hz~1000Hz: ±(2.5%+5) |
| Current (DCA) | 999.9 A | ±(2.0%+5) |
| Voltage (ACV) | 999.9V/1500V | 40Hz~1000Hz: ±(1.0%+5) |
| Voltage (DCV) | 999.9V/2500V | ±(1.0%+5) |
| Voltage (DC mV) | 999.9 mV | ±(1.0%+5) |
| ACV(with LPF) | 999.9V | ±(2.0％＋9) |
| ACA(with LPF) | 999.9A | ±(2.5％＋9) |
| ACA(with LPF): flex clamp sensor | 30.00A/300.0A/3000A | ±(4.0%+9)(center area) |
| ACA;with flex clamp sensor | 30.00A/300.0A/3000A | ±(3.0%+5) (center area) |
| Power (DC) | 999.9 kVA/2500 kVA | ±(2.0%+20) |
| Frequency (A&V) | 5.0 Hz to 999.9Hz | ±(0.5%+5) |
| Resistance (Ω) | 999.9Ω/9.999KΩ/99.99kΩ | ±(1.0％+5） |
| Cpacitance（F） | 100.0μF/1000 μF | ±(1.0％+5） |
| Temperature | -40℃~400℃/-40℉~752℉ | ±(1.0%+30); ±(1.0%+60) |
| Features: | ||
|---|---|---|
| True RMS | √ | |
| Display count | 9999 | |
| Display | LCD: Dual display (V+A) | |
| Jaw (Max conductor dia.) | 35mm | |
| Diode | √ | |
| Solar panel polarity indication | when <-10 DCV, Audible & Visual alarm | |
| High voltage alarm | √ | |
| Over range indication | √ | |
| AUTO HOLD | √ | |
| Inrush current | √ | |
| PEAK | √ | |
| Bluetooth app | BT 5.0 | |
| Auto backlight | √ | |
| Low battery indication | √ | |
| Flexiable clamp compatible | UT-CS09D (optional) | |
| IP rating | IP65 | |
| Overvoltage category | CAT III 1500V; CAT IV 600V | |
| Certificates | CE, cETLus, RoHS | |
| General Characteristics | ||
| Power supply | 2 * AA | |
| Product dimension | 295mm x 73mm x 50mm | |
| Product color | Grey + Red | |
| Accessories | test probe, temperature probe, batteries, manual | |
Application

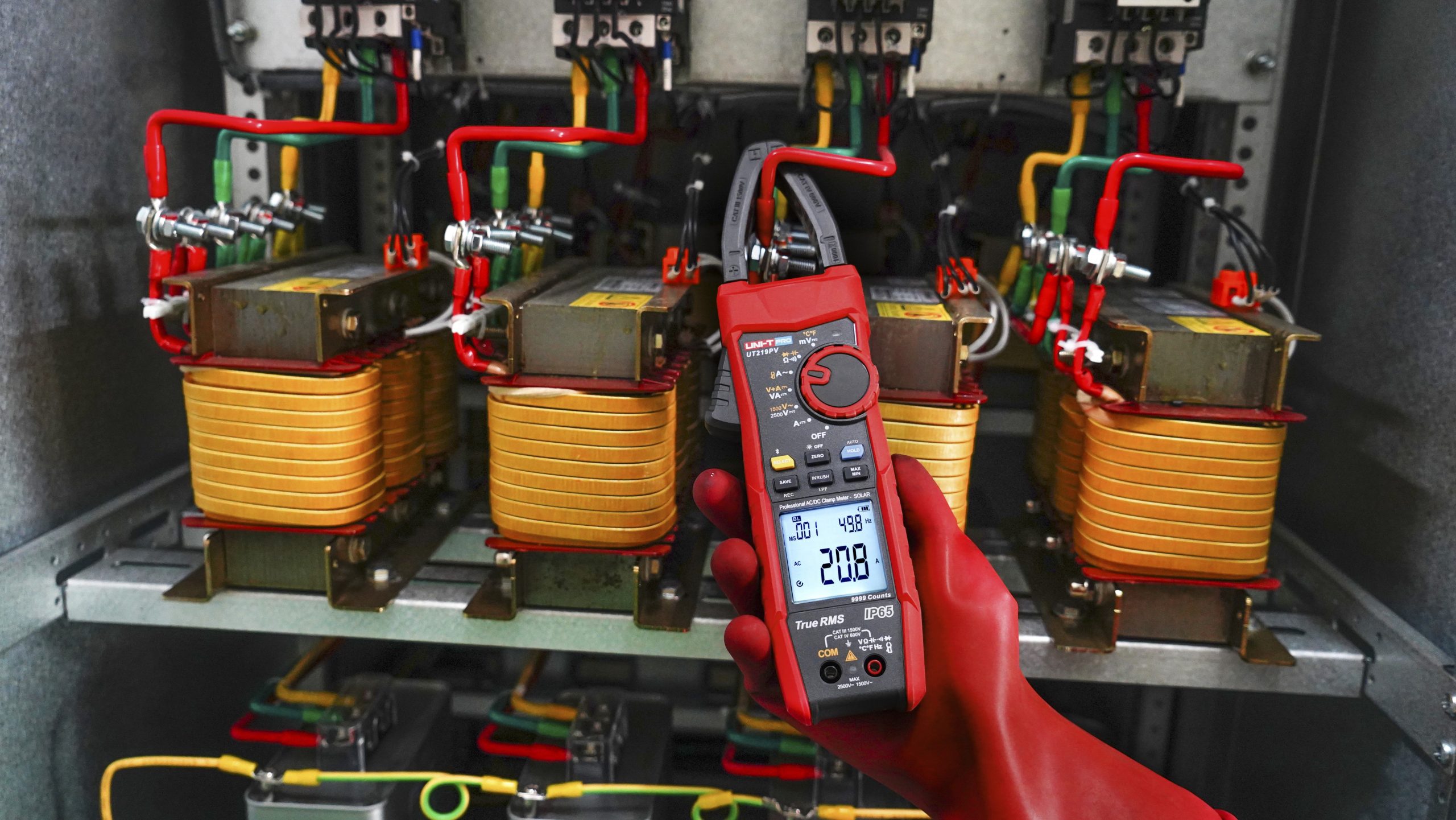

Ultra-thin Clamp:35mm ultra-thin clamp, designed for narrow gaps in the combiner or inverter and other tight spaces environment.

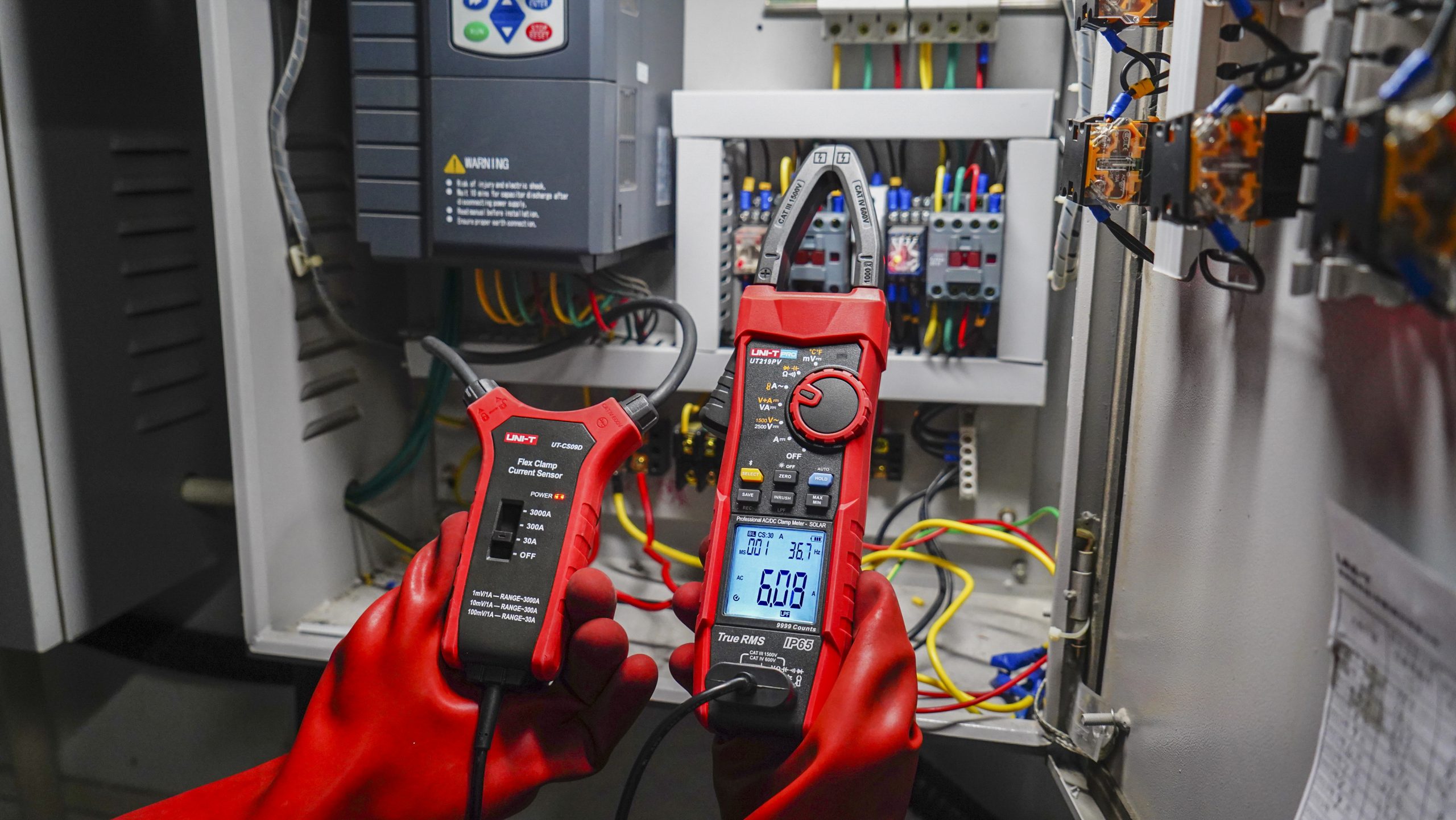

External clamp sensor:The UT-CS09D flex clamp sensor is supported, which means the AC current measurement range can expand to 3000A, and the flexible coils can handle measurements in narrow spaces.

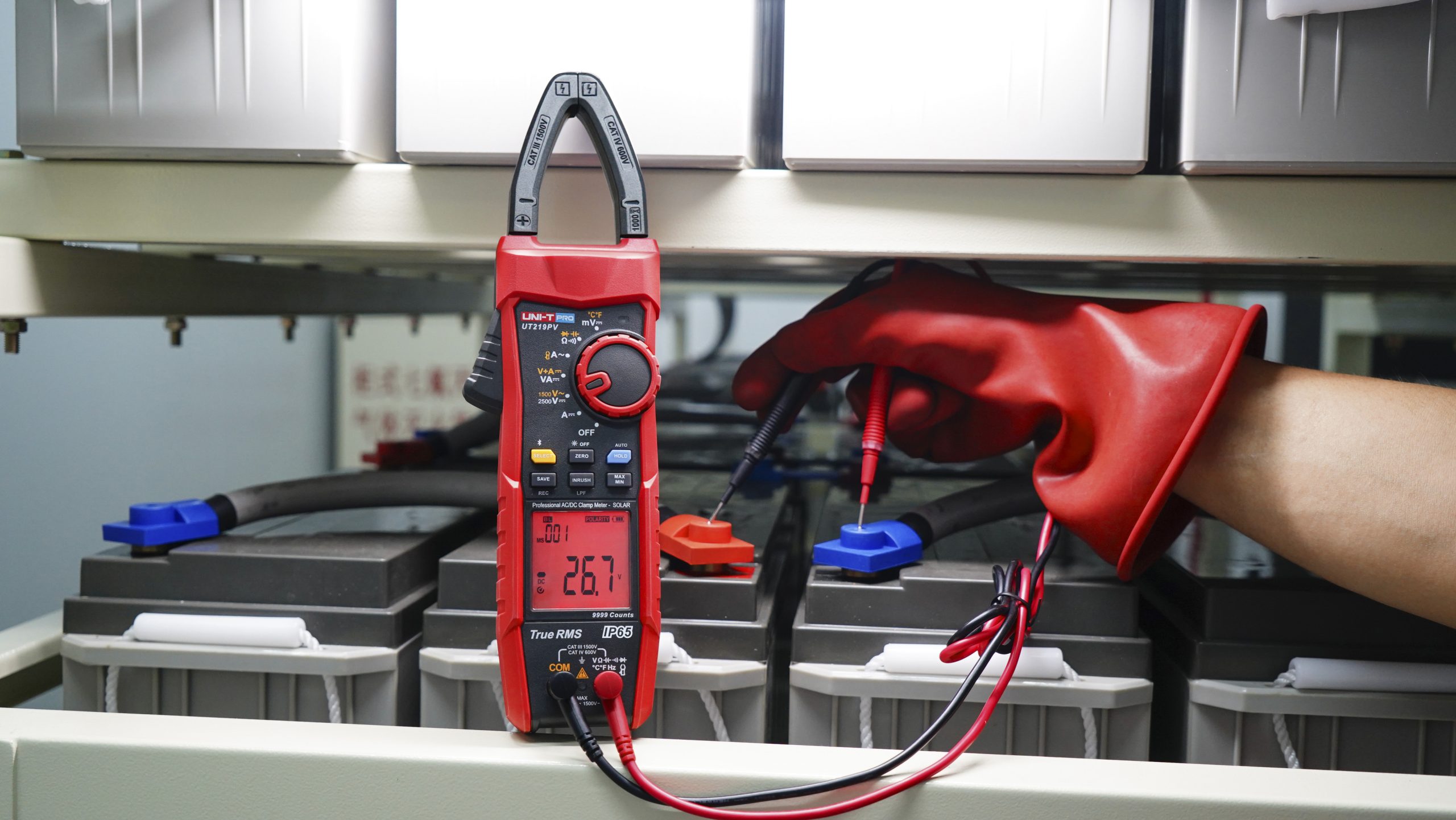

Polarity indication:If the voltage is below -10V DC, the system will activate a series of indicators: The red LED will flash for a period of 10 seconds, accompanied by buzzing. Additionally, the LCD screen will display the ``POLARITY`` symbol, alerting the user to the reversed probe.

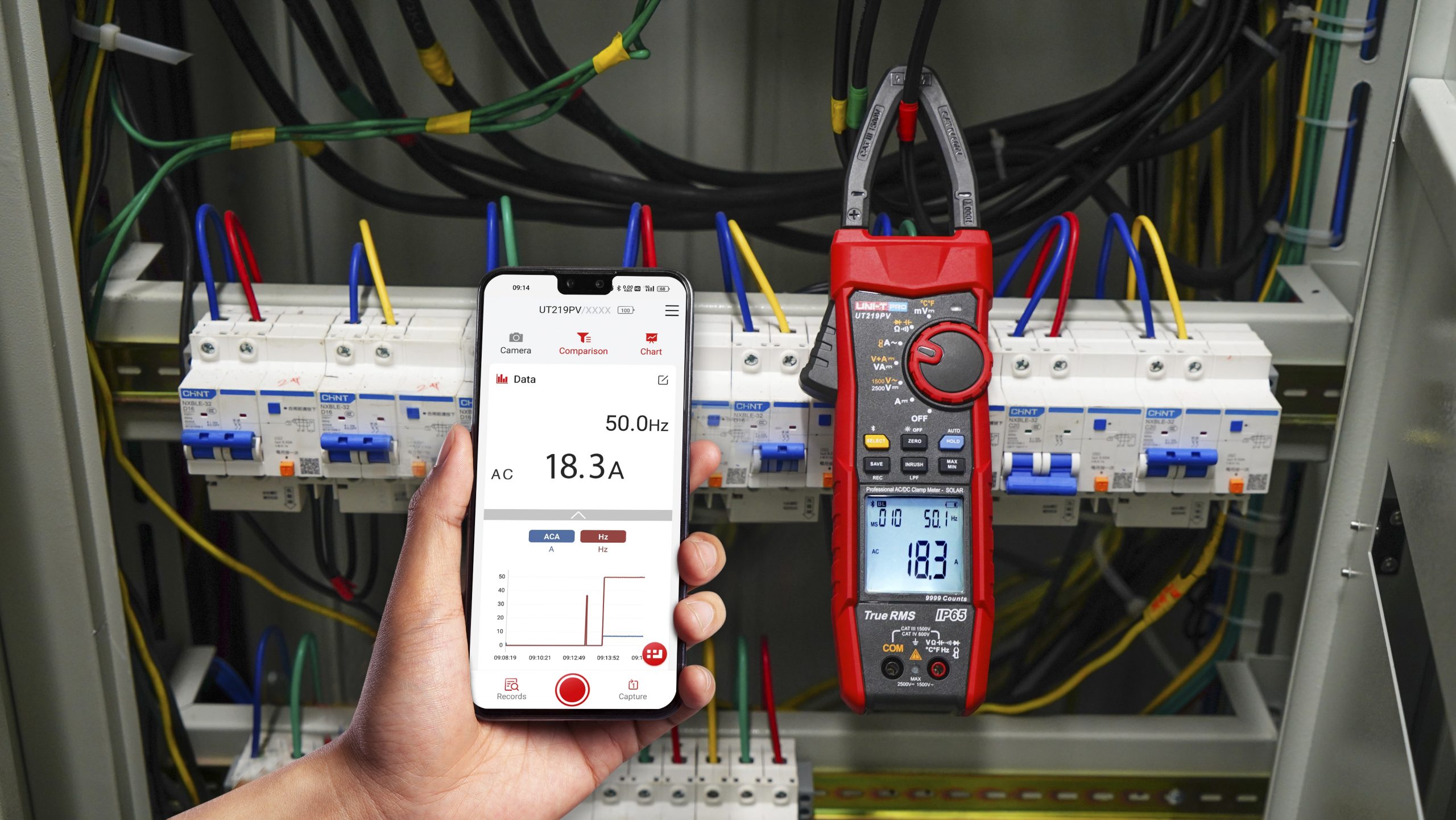

Bluetooth APP:By utilizing the Bluetooth app, you can conveniently record the testing results and measurement details. Moreover, the testing reports and data can be effortlessly transported and shared with your colleagues or team members.
