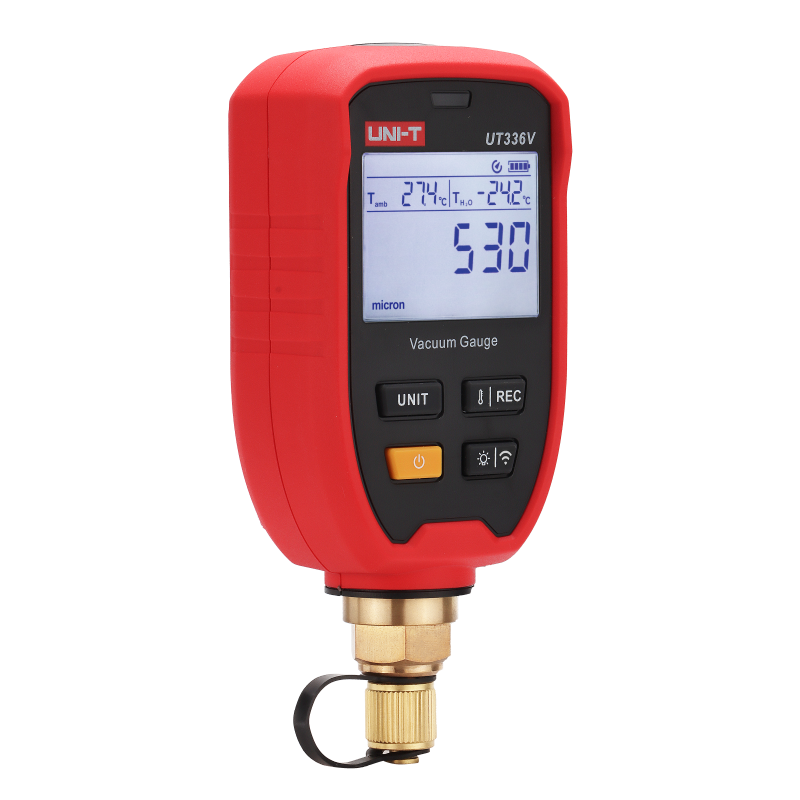

UT336V Wireless Vacuum Gauge
The UT336V is a compact, high-precision digital vacuum gauge with integrated Bluetooth, designed for critical measurement tasks in refrigeration and heat pump systems. It accurately monitors vacuum levels to verify system dehydration and cleanliness, making it an essential tool for installation, commissioning, and maintenance professionals who require reliable performance and wireless convenience in a portable device.

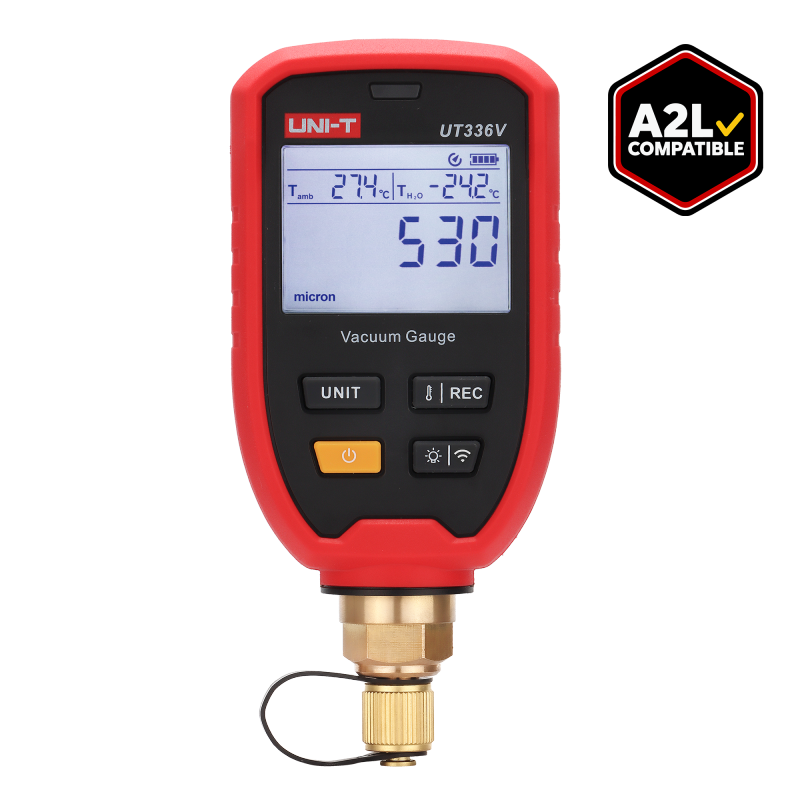

* Compatible with A1 / A2L / A2 / A3 and part of B1 refrigerants.
* The device cannot be used with ammonia refrigerants (NH3 / R717).
Key Features
Features
Language:EN, FR, DE, IT, ES, SV, PL, CZ
- Ambient Temperature Measurement
- Water Saturation Temperature Display
- Mobile APP Connection
- 8000 Data Storage
- IP54 Rating
- Hook Design
Technical Specification
| Specification | |
| Interface | 1/4” SAE |
| Vacuum Unit | microns, mBar, Pa, kPa, hPa, mTorr, Torr, mmHg, inHg, inH2o, psia, |
| Temperature Unit | ℃, ℉ |
| Vacuum Range | 1-19000 micron |
| Ambient Temperature Range | -20 ~ 60℃ |
| Overload Pressure | 27.5 Bar |
| Resolution | 1 -400 micron 1 micron |
| 400 – 3000 micron 10 micron | |
| 3000 – 10000 micron 100 micron | |
| 10000 – 19000 micron 250 micron | |
| Ambient temperature: 0.1°C | |
| Accuracy | 1 – 10000 micron ±10%rdg+10 micron |
| 10000 – 19000 micron ±20% | |
| Ambient temperature: ±0.5°C | |
| Unit Memory | ✔ |
| Auto Power Off | ✔ |
| Battery State | ✔ |
| Mobile APP | ✔ |
| OTA Upgrade | ✔ |
| Water Saturation Temperature | ✔ |
| ΔT(TH₂O-Tamb) | ✔ |
| Data Storage | 8000 |
| Battery Type | AA 1.5V * 3 |
| Working Environment | -10～50℃, ＜90%RH(non-condensing ) |
| Storage Environment | -20～60℃, ＜80%RH(non-condensing ) |
| General Characteristics | |
|---|---|
| Battery | AA 1.5V * 3 |
| Battery Life | About 100h(Backlight OFF) |
| Size | 145×68×39mm |
| Weight | About 245g(Battery not included) |
| Accessories | Wireless Vacuum Gauge*1, User Manual*1, Safety Guide*1, General Download Operation Guide*1, AA Battery*3, Hanging Hook*1, Cloth Bag (Hard) *1 |
| Standard Quantity Per Carton | 5pcs |
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
