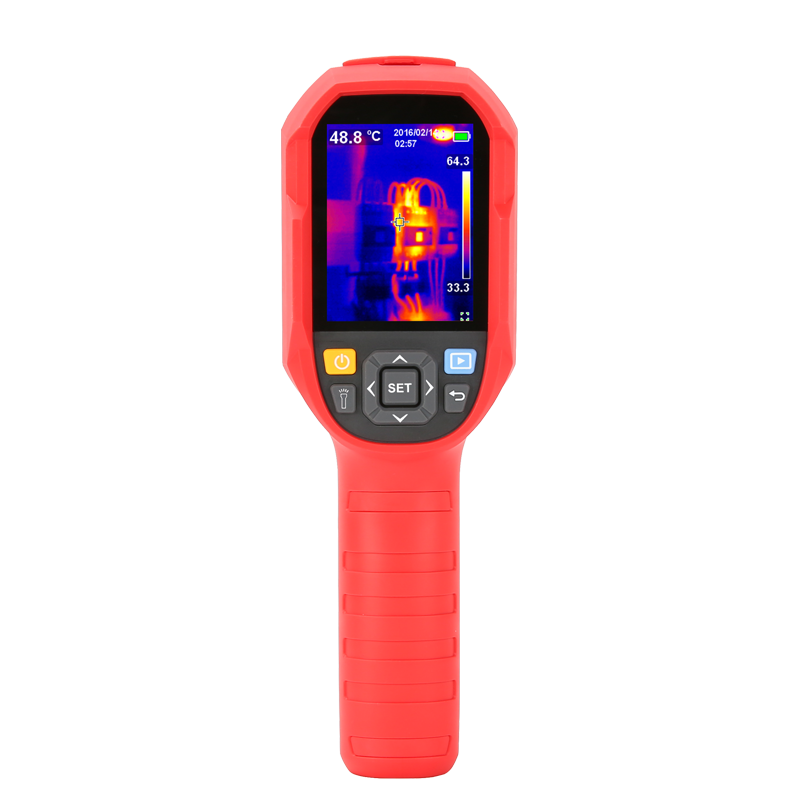

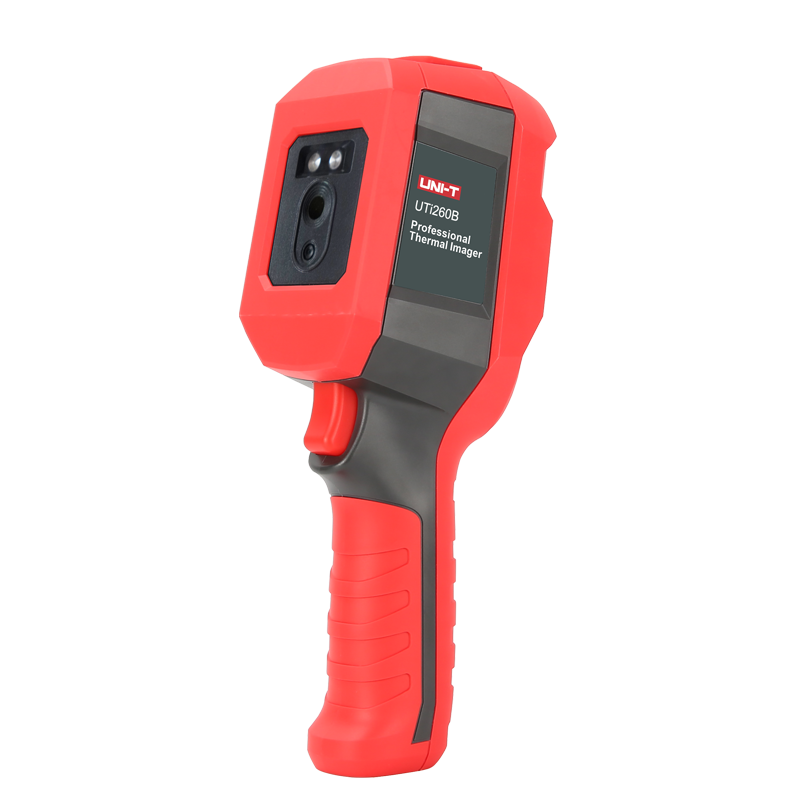

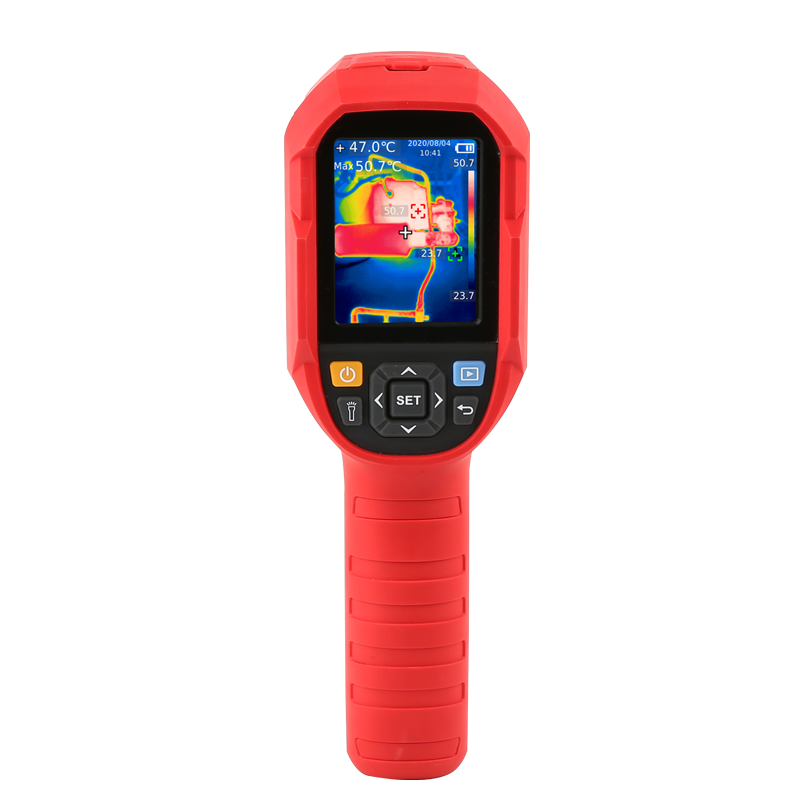

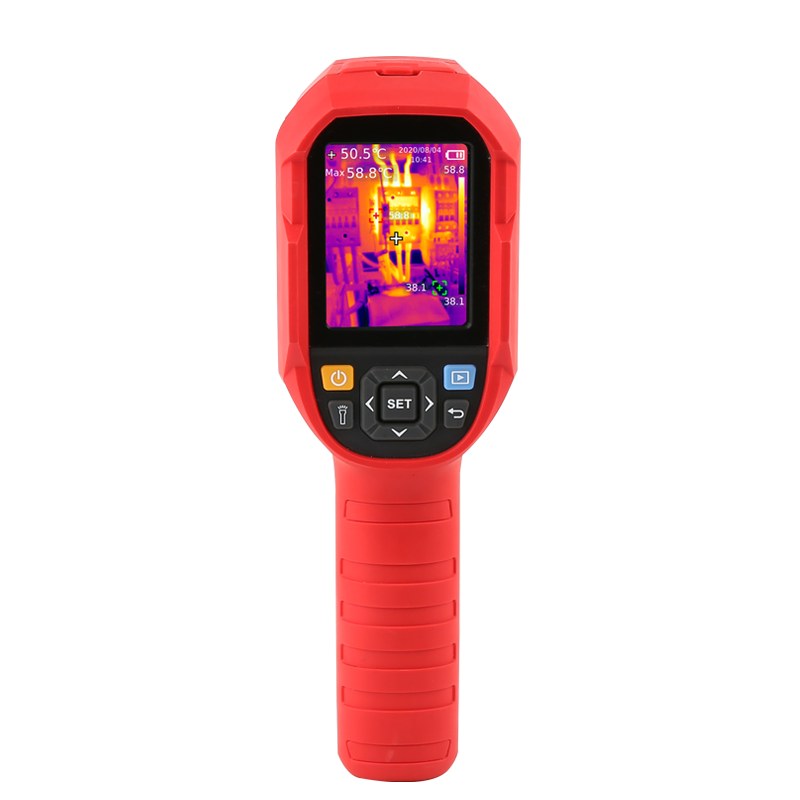

UTi260B
Heavy Duty Thermal Camera
UTi260B is a featured product of UNI-T heavy duty series thermal cameras. It is cost effective and with a wide temperature range: -20℃~550℃. It has higher IR resolution: 256×192 pixels than other models, and includes 7 color palettes and four display modes: thermal, visual image, fusion, and picture in picture. It is also user friendly and rugged enough to pass IP65 and 2m drop test.
IR Resolution
256×192
Temperature Range
-20℃~550℃
Thermal Sensitivity
≤60mK
Field of View (FOV)
56°×42°
Frame Rate
≤25Hz
Display
2.8” TFT (320×240)
FEATURES
Durable and user-friendly
Lorem ipsum dolor sit amet consectetur. Cursus amet non felis suscipit cursus ultricies nulla non. Nunc morbi proin dictumst purus.
2.8” TFT display screen (320×240 Pixels)
Lorem ipsum dolor sit amet consectetur. Fermentum magna sapien interdum imperdiet platea ligula donec tortor. Augue in orci praesent in dignissim etiam vel. Eu scelerisque at tincidunt dolor venenatis orci malesuada.
IR resolution: 256×192
Precise high-resolution thermal imaging with fast refresh rates, delivering accurate temperature readings and hot-spot detection for critical diagnostics.
Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
Rugged, reliable, and user-friendly design engineered for demanding electrical, mechanical, and HVAC building diagnostic applications.
Auto alarm for high/low temperature
Advanced on-screen measurement and analysis capabilities with customizable color palettes and seamless report export.
Auto tracking for hot spot/cold spot
Equipped with long-lasting rechargeable battery power and durable industrial-grade casing rated for reliable field operations.
Technical Specification
| Technical Data | |
| Display | 2.8” TFT (320×240) |
| IR resolution(Pixels) | 256×192 |
| Spectral range | 8~14µm |
| Pixel size | 12µm |
| Frame rate | ≤25Hz |
| Thermal sensitivity(NETD) | ≤60mK |
| Focus | Focus Free |
| Field of view(FOV) | 56°(H) × 42°(V) |
| Temperature measurement range | -20℃~550℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Functions | |
|---|---|
| Color palettes | White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC |
| Image modes | Thermal, Visual image, Fusion, PIP |
| On-screen analyzer | 3 Points |
| Hi/Lo temperature alarm | LCD animation & LED flashlight |
| Hi/Lo temperature tracking | ✔ |
| Digital camera resolution | 640×480 |
| LED lighting | ✔ |
| Analysis software | PC |
| General Characteristics | |
| Battery | 5000mAh rechargeable Li-ion battery |
| Operating time | ≥6 hours |
| USB | Type-C |
| Image storage format | BMP |

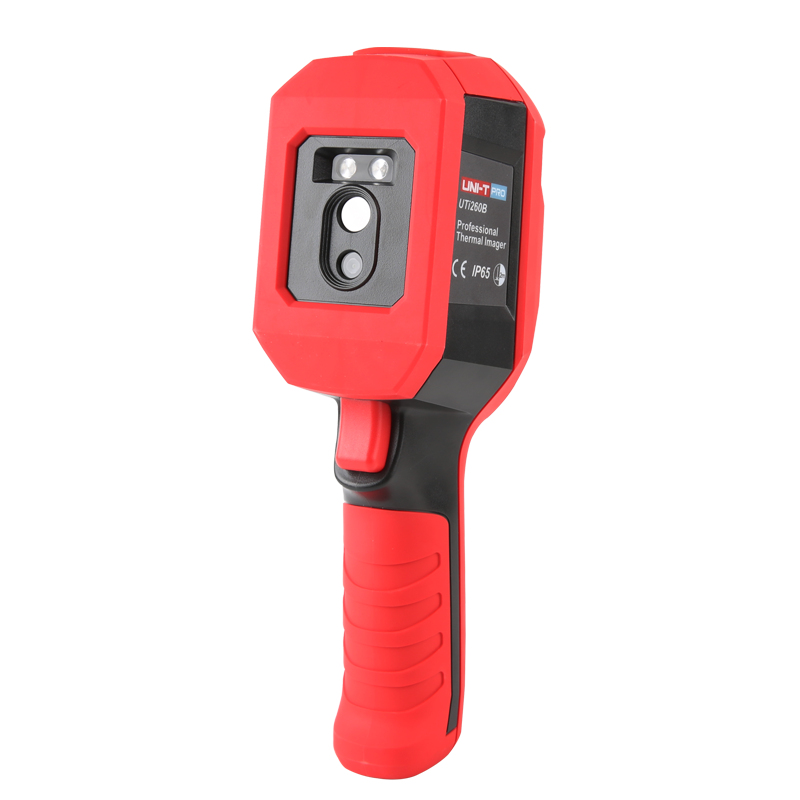

| Protection | IP65 & 2m drop proof |
| Certificates | CE, FCC, RoHS |
| Languages | ZH, EN |
| Weight | 490g |
| Dimension | 236mm×75.5mm×86mm |
| Packing Details | |
| Standard accessories | Type-C USB cable, English Manual, Documents Download, Operation Guide |
| Standard individual packing | Gift box |
| Standard Qty per carton | 10pcs |
| Standard carton size | 500mm×315mm×295mm |
| Standard carton G.W. | 10.1kg |
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
THERMAL GALLERY
