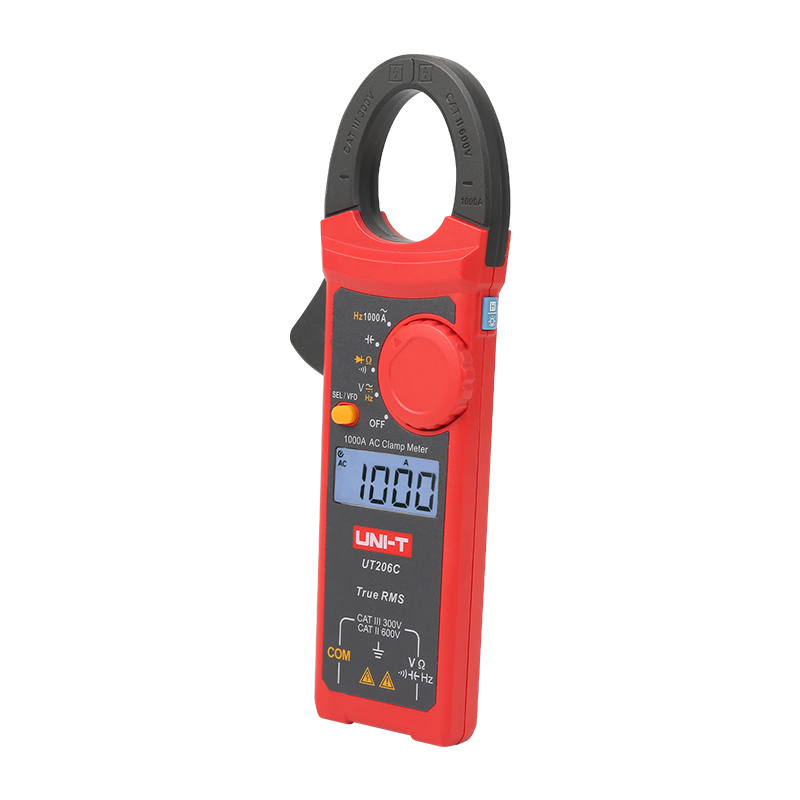

UT206C 1000A AC Clamp Meter
NewThe UT206C is a compact, pocket-sized digital clamp-meter. It can stably measure voltage, current, frequency, and other parameters of sine waves superimposed with carrier frequencies and various distorted interference signals (VFD). The AC measurement range reaches up to 1000A. The product is designed in accordance with CATⅡ 600V / CATⅢ 300V safety ratings and has obtained corresponding EC and cETLus certifications.
1000A
AC Current (A)
400Hz
AC Current Frequency (Hz)
600V
AC Voltage (V)
100kHz
AC Voltage Frequency (Hz)
600V
DC Voltage (V)
1MΩ
Resistance (Ω)
Key Features
Features
- True RMS measurement with 6000 display count
- Ultra-narrow/thin Jaw: Jaw is 10mm thick
- Lightweight design: around 130 g
- AC/DC Voltage test: 600V
- AC test: 1000A
- VFD measurement
- Auto power off & Flashlight
- CAT II 600V & CAT III 300V
- CE & ETL certified
Technical Specification
| Model | UT206C | ||
| Current(AC) | 60.00A | 0.01A | ± (2.0%+10) |
| 600.0A | 0.1A | ± (2.0%+5) | |
| 1000A | 1A | ± (2.0%+5) | |
| Frequency(ACA) | 45Hz～400Hz | 0.01Hz～0.1Hz | ± (0.1%+3) |
| Voltage(AC) | 6.000V | 0.001V | ± (1.2%+5) |
| 60.00V | 0.01V | ||
| 600.0V | 0.1V | ||
| VFD(AC) | 600.0V | 0.1V | ± (8%) |
| Frequency(ACV) | 10Hz～100kHz | 0.01Hz～0.1kHz | ± (0.1%+3) |
| Voltage(DC) | 6.000V | 0.001V | ± (1.0%+2) |
| 60.00V | 0.01V | ||
| 600.0V | 0.1V | ||
| Resistance (Ω) | 600.0Ω | 0.1Ω | ±(1.0%+5) |
| 6.000kΩ | 0.001kΩ | ±(1.0%+2) | |
| 60.00kΩ | 0.01kΩ | ||
| 600.0kΩ | 0.1kΩ | ||
| 1.000MΩ | 0.001MΩ | ||
| Capacitance(F) | 6.000μF | 0.001uF | ± (2%+5) |
| 60.00μF | 0.01uF | ± (5%+5) | |
| 600.0μF | 0.1uF | ||
| 6.00mF | 0.01mF | ± (10%) | |
| 10.00mF | 0.01mF | ||
| Features | |||
|---|---|---|---|
| Clamp opening size | 33mm | ||
| Display count | 6000 | ||
| True RMS | ✔ | ||
| Clamp thick | 10mm | ||
| Continuity | ✔ | ||
| Auto identification | Resistance/Continuity/Diode | ||
| Data hold | ✔ | ||
| Backlight | ✔ | ||
| Category rating | CAT III 300V CAT II 600V | ||
| Characteristic | |||
| Power supply | 1.5V AAA * 2 | ||
| Product weight | About 130g | ||
| Product dimension | 190 × 68 × 20mm | ||
| Accessories | Batteries, testing probe, manual, cloth bag | ||

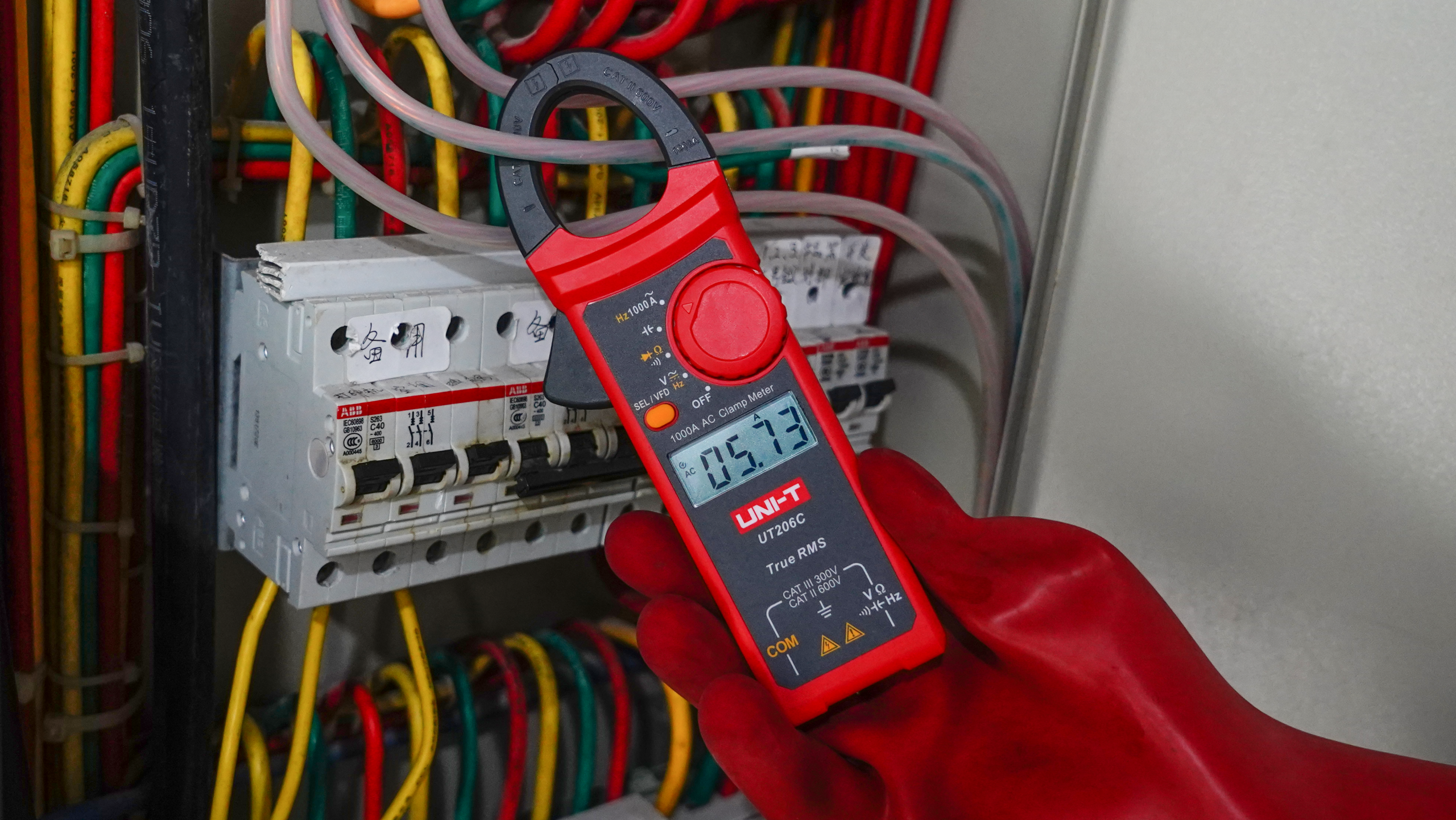

Application
