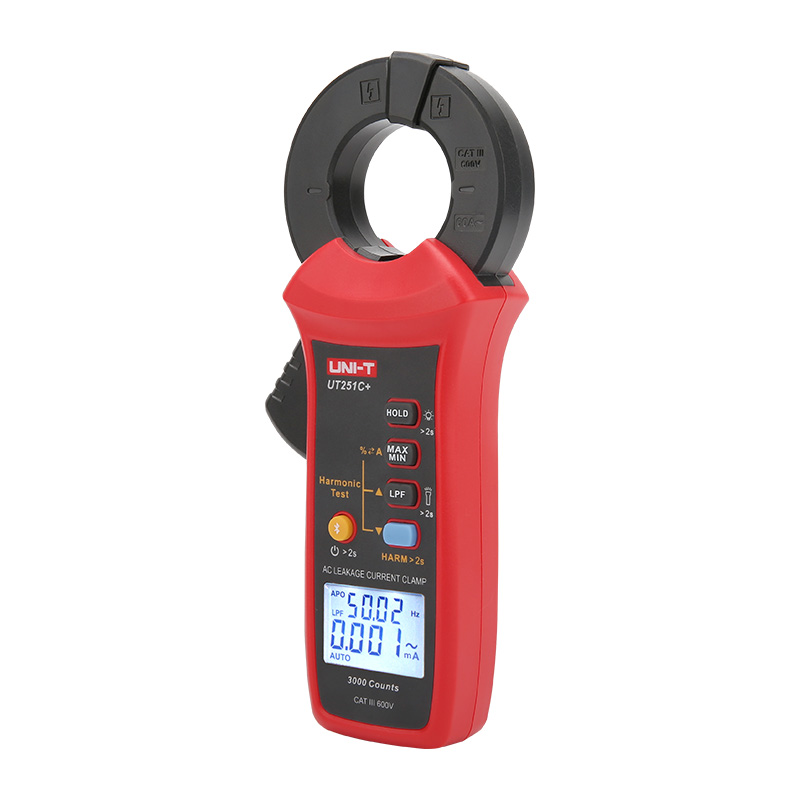

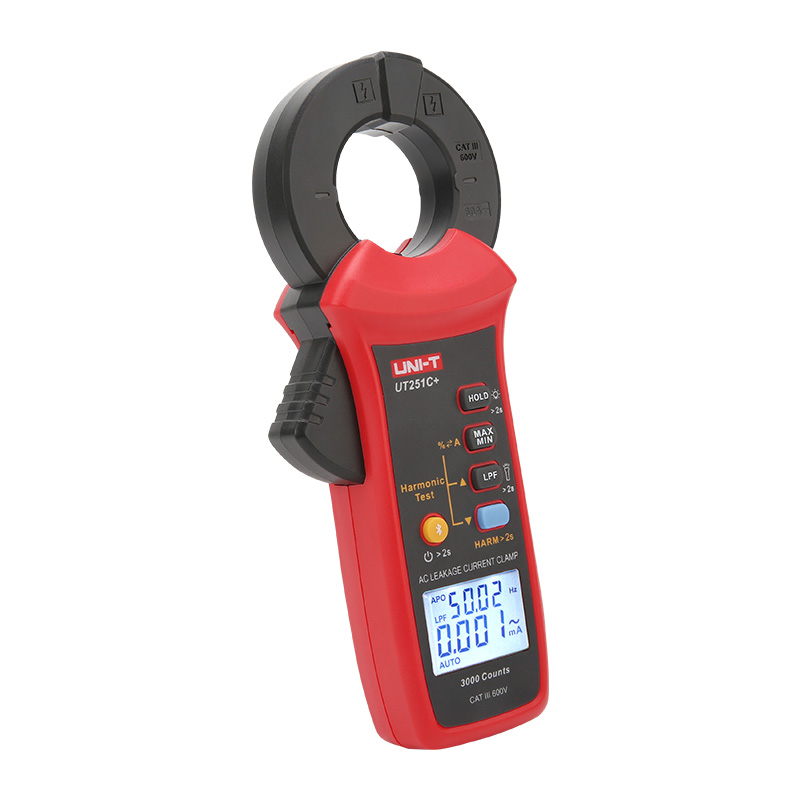

UT251C+ AC Leakage current clamp
UT251C+ high-accuracy high sensitivity leakage current clamp meters are designed for testing AC leakage current. The high resolution meter is great for applications such as checking leakage current for motor, home appliances and other electrical equipment up to 60A.
3.000mA~60.0A
Leakage current (A)
50-60Hz
Frequency response
5Hz~5.000KHz
Frequency
21
Harmonic test
40mm
Jaw size
√
True RMS
Key Features
Features
1. Jaw size: 40mm
2. Current: 3.000mA~60.0A; 1 μA
3. Harmonic measurement: 20
4. Frequency: 5Hz~5KHz
5. Frequency response: 45Hz~1.2KHz
6. Strong anti- interference
7. Stable reading
8. Bluetooth app
9. CAT III 600V
Technical Specification
| Specifications | Range | Resolution | Accuracy |
| Current | 3.000mA | 1 μA | ±(2%+5) |
| 30.00mA | 0.01mA | ±(1%+5) | |
| 300.0mA | 0.1mA | ||
| 3.000A | 0.001A | ||
| 30.00A | 0.01A | ||
| 60.0A | 0.1A | ||
| Frequency | 99.99Hz | 0.01Hz | ±(0.1%+5) |
| 999.9Hz | 0.1Hz | ||
| 5.000KHz | 0.001KHz | ||
| Frequency response | 45Hz~1.2KHz | N/A | |
| 1～6 | Jan/00 | ±（3.5%+10) | |
| 7～8 | ±（4.5%+10) | ||
| 9～10 | ±（5%+10) | ||
| 11～15 | ±（7%+10) | ||
| 16～20 | ±（10%+10) | ||
| Features | |||
|---|---|---|---|
| Display count | Mar/08 | ||
| Jaw size | Measurable dia.:40mm | ||
| Display | HTN LCD; Dual display | ||
| LPF function | ✔ | ||
| Sample rate | 2 times/s | ||
| Auto range | ✔ | ||
| MAX/MIN | ✔ | ||
| PEAK Hold | ✔ | ||
| Data hold | ✔ | ||
| Data transmission | Bluetooth | ||
| Backlight | ✔ | ||
| Flashlight | ✔ | ||
| Low battery indication | ✔ | ||
| Harmonic test | ✔ | ||
| CAT rating | CAT III 600V | ||
| Certificates | CE, ETL, RED, FCC | ||
| General Characteristics | |||
| Power supply | AAA 1.5V*3 | ||
| Product Color | Gray + Red | ||
| Product Dimension | 200*84*40(mm) | ||
| Main features (flyer) | |||
| Large Jaw size | Safety regulation | ||
| (up to 40mm) | (CAT III 600V) | ||
| High resolution (1uA) | Bluetooth supported | ||
| Strong anti-interference | Stable reading | ||
