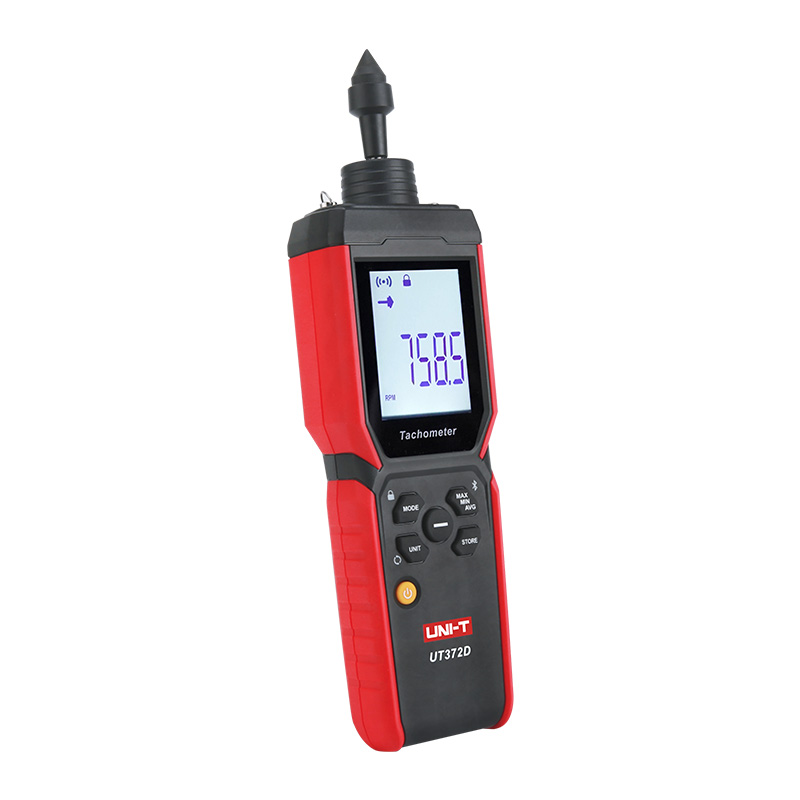

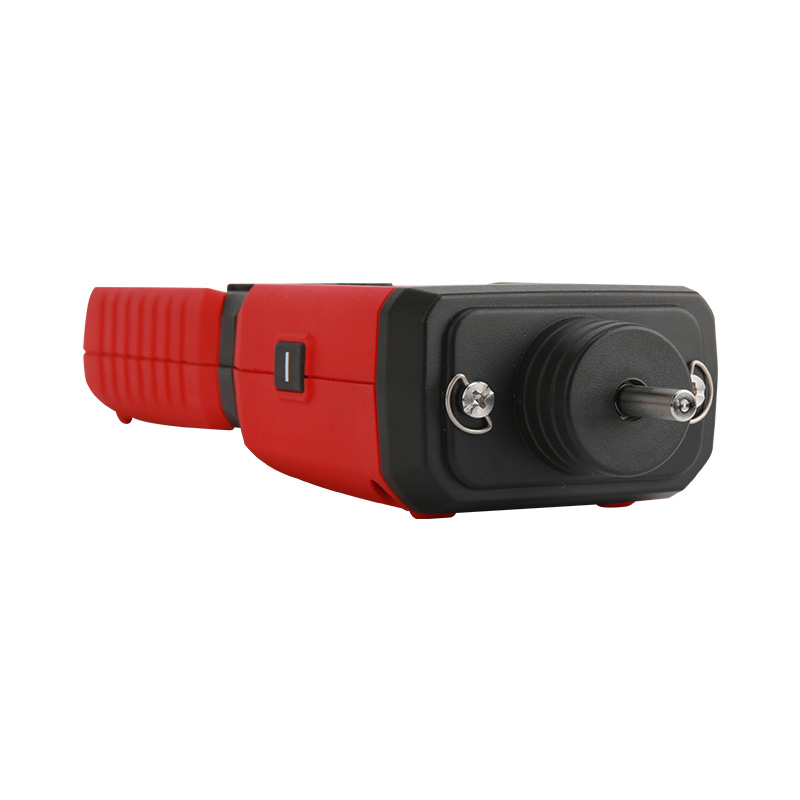

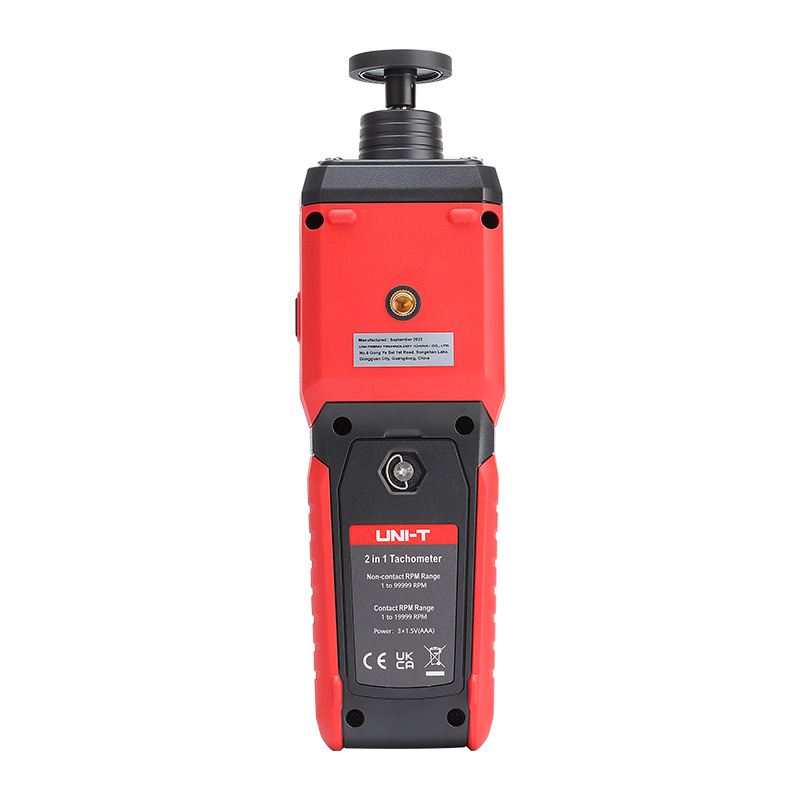

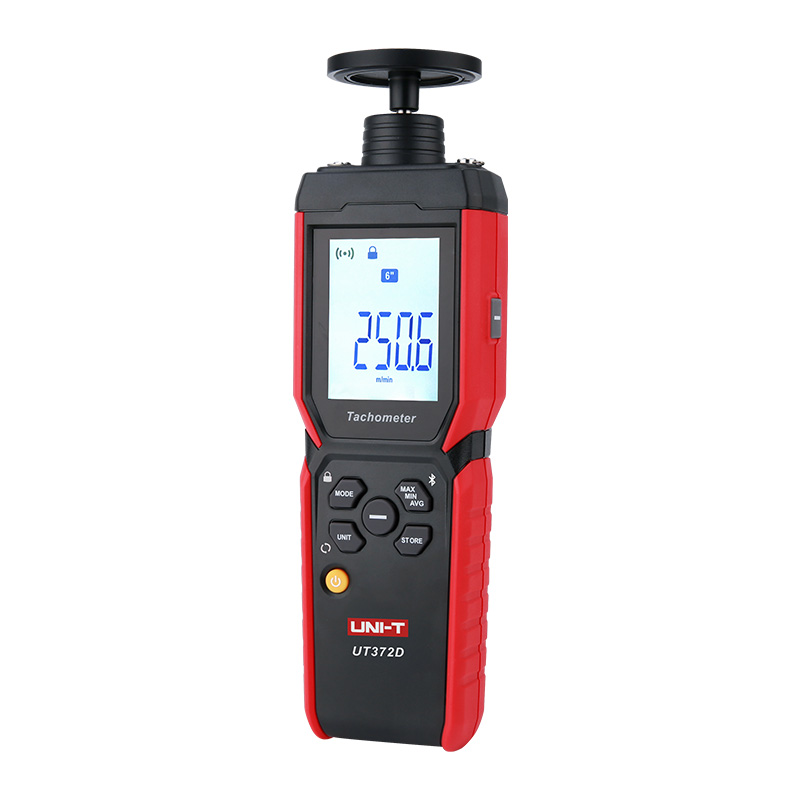

UT372D 2-in-1 Tachometer

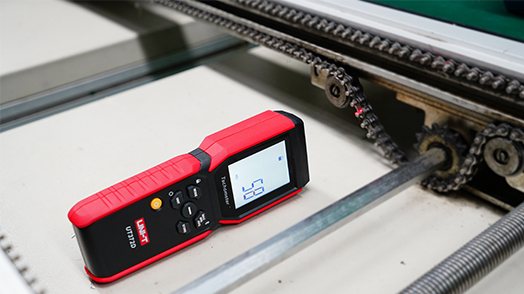

UT372D 2-in-1 Tachometer is a reliable and safe tachometer, which combines contact and non-contact measurement modes. It is mainly used to measure Revolutions Per Minute(RPM) , frequency, surface velocity and length in the fields of motors, fans, automobiles, papermaking, etc.

Get a quote

Data Sheet

Download Resources

Key Features

Features

Languages: EN, FR, DE, IT, ES, SV, PL, CZ
● Contact and non-contact measurements

● MAX/MIN/AVG/HOLD
● Rotatable LCD backlight screen
● Unit conversion
● Bluetooth APP
● Auto power off
● Data storage

● Two measurement buttons

Model

UT372D

Technical Specification

General Characteristics
Sepecification		Range

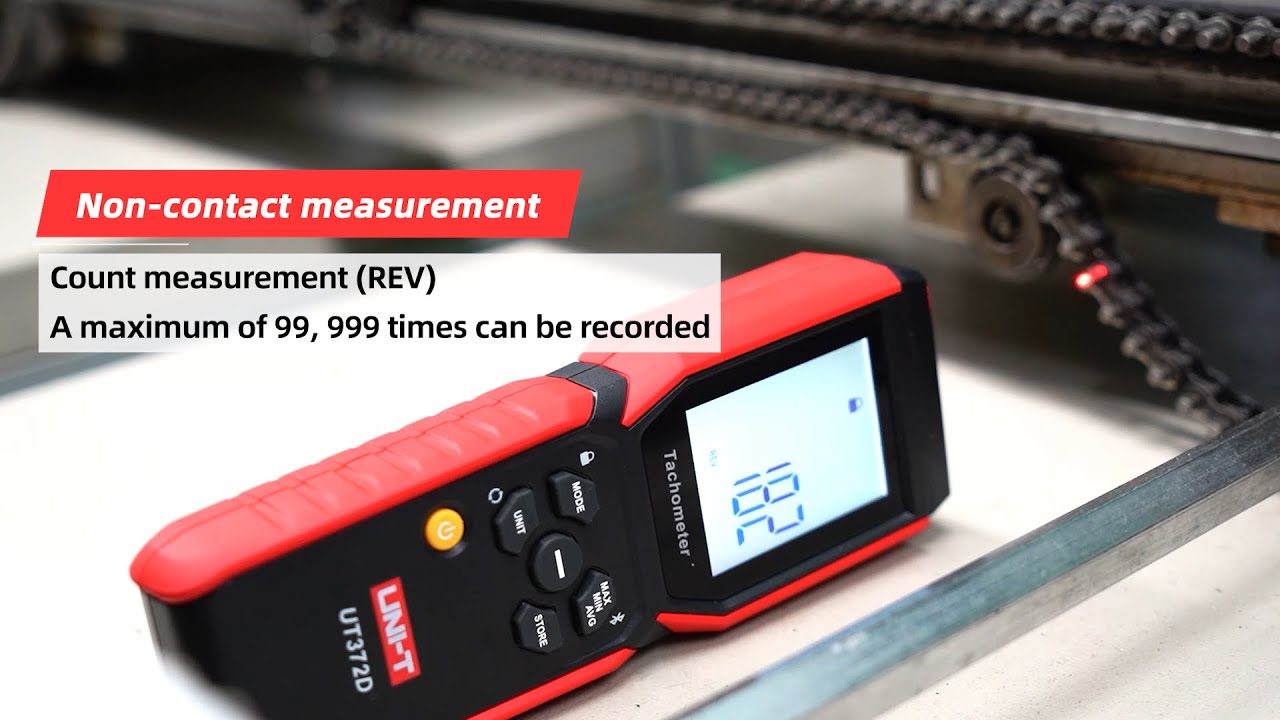

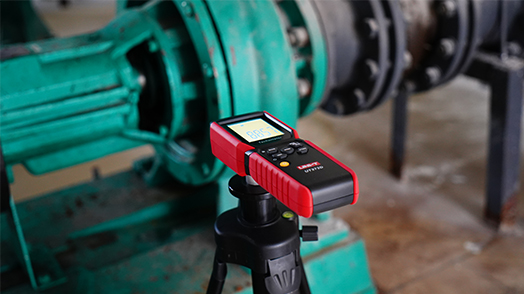

Non-contact (optical) measurement	Rotational velocity (RPM)	1-99,999
	Frequency (HZ)	1-1,666
	Count(REV)	1-99,999
	Target distance	50~500mm

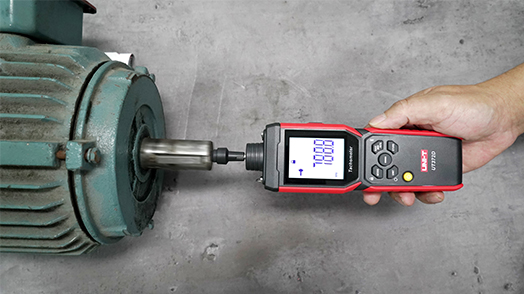

Contact measurement	Rotational velocity (RPM)	1-19,999
	Frequency (HZ)	1-333

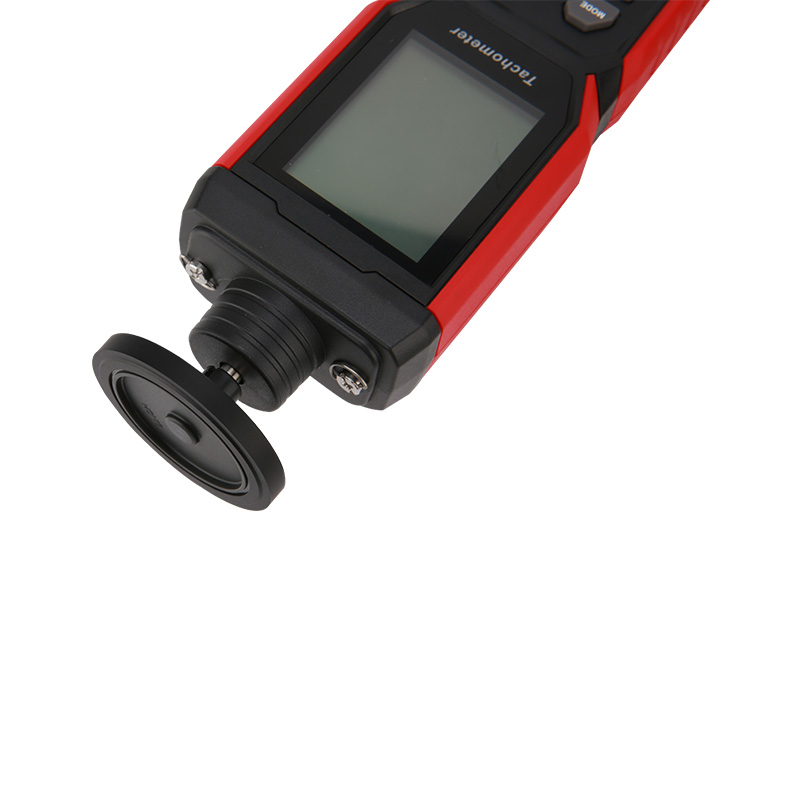

	Surface velocity	0.1m wheel
		0.1-1,999m/min
		0.4-6,550ft/min
		4-78,700in/min
		6”wheel
		0.15-1,524m/min
		0.5-5,000ft/min
		6-60,000in/min
	Length	0-99999(m/ft/in)
Accuracy	±0.02% ±1 digit
Measurement modes	Contact RPM/Non-contact RPM/counting/frequency/Surface velocity/length
Contact measurement unit	m/min, ft/min, in/min,m, ft, in
Statistical measurement	Max/Min/Last reading/Average
Data storage	10 groups

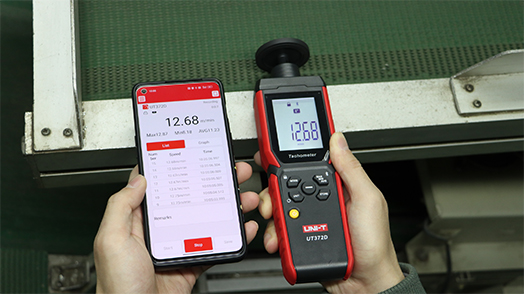

Bluetooth APP	✔ (iENV)
Display	Rotatable LCD backlight screen
Operating temperature/humidity	0°C~50°C; ≤80%RH
Storage temperature	-20°C~60°C; ≤80%RH
Drop test	1m
Auto power off	After about 15 minutes of inactivity
Product color	Red and grey
Product weight	About 181g (without batteries)
Product size	176 × 63 x 38mm
Battery type	AAA 1.5V ×3

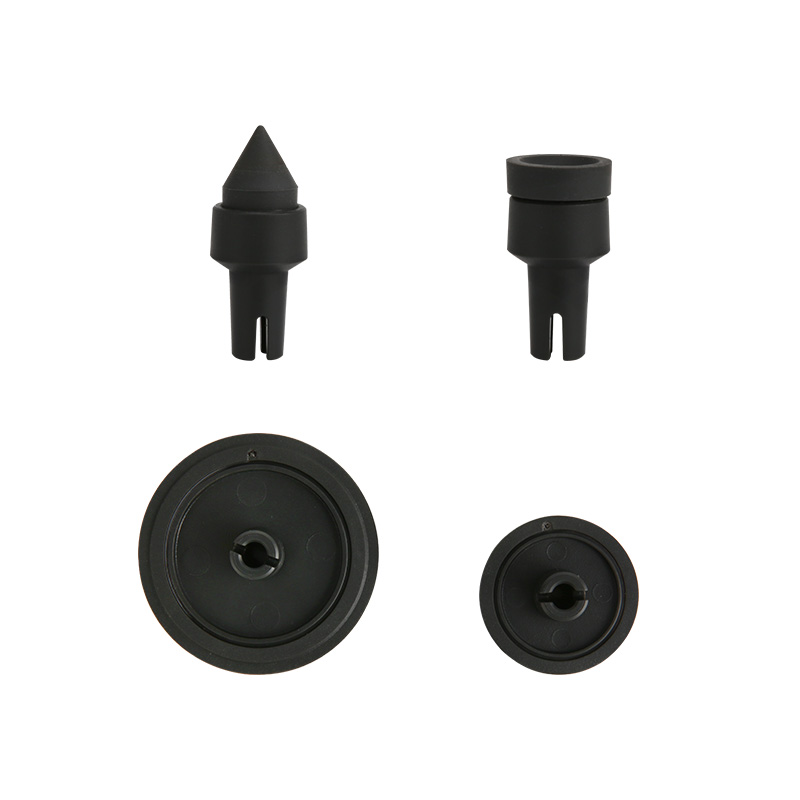

Standard accessories	user manual quick start guide safety instruction shaft contacts(cone/internal cone) contact wheels(6in/0.1m) cloth bag reflecting tape
Standard carton measurement	395mm × 330mm x 330mm
Standard quantity per carton	10pcs
