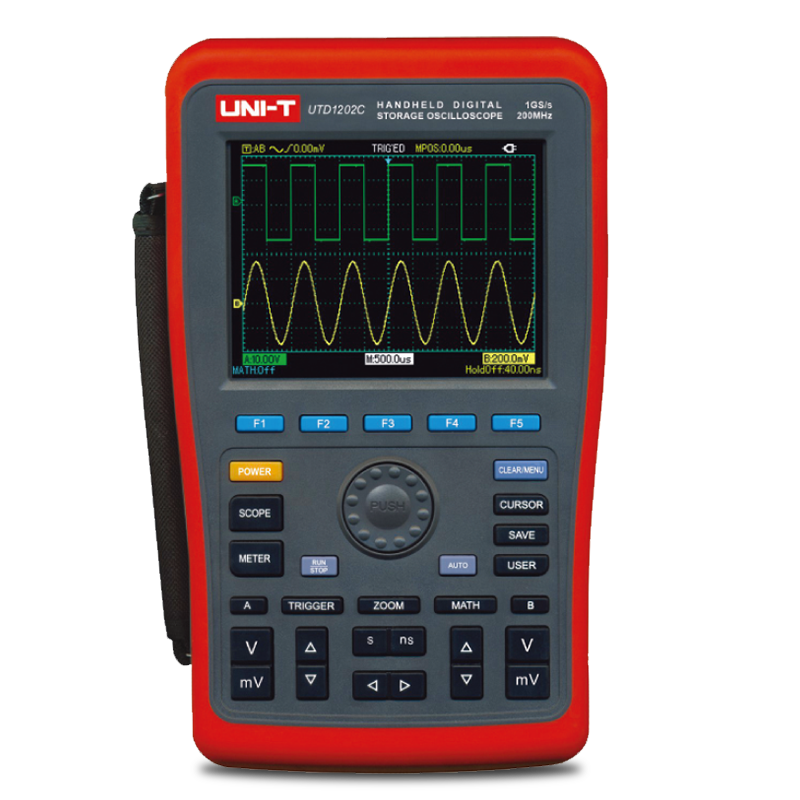

UTD1000C
The UTD1000C Series handheld oscilloscope offers user-friendliness, outstanding technical indicators and a host of advanced features which can be powered by external AC power supply or powered by built-in lithium batiery. Its powerful trigger and analytical functions also make it easy to acquire and analyses waveforms, while the sharp and clear LCD and mathematics functions ensure clear observation and reliable analysis of signal conditions. It is the perfect tool for completing testing switily and efficiently. As the design is based on the controls of traditional instruments, users can use the new units without spending considerable time in learning and familiarizing with operation.
60MHz/100MHz/200MHz
BANDWIDTH
2
ANALOG CHANNELS
200MSa/s~1GSa/s
REAL-TIME SAMPLE RATE
7.5 kpts
MAX. MEMORY DEPTH
/
WAVEFORM CAPTURE RATE
/
DIGITAL CHANNELS
KEY FEATURES
FEATURES
2 in 1
Oscilloscope & Multimeter

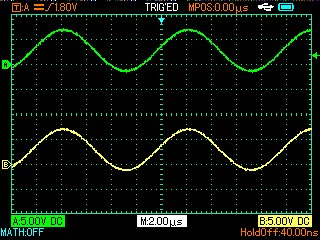

More parameter measurement types
Display cursor peak-to-peak value, amplitude, maximum value, minimum value, top value, bottom value, middle value, average value, rms value, overshoot, preshoot, frequency, period, rise time, fall time during automatic measurement , positive pulse width, negative pulse width, positive duty cycle, negative duty cycle, rise delay, fall delay measurement of a total of 27 kinds

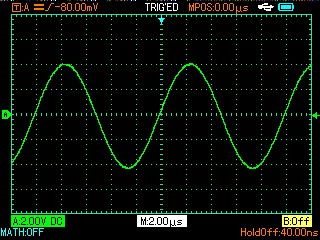

Monochrome display
Single color display can be set, more suitable for outdoor use under strong light
Fully automatic setup function
Automatic setting function (AUTO SCALE) Vertical and time base gears can be automatically adjusted with signal changes without manual intervention
Auto configuration
Powerful automatic setting function, fast and accurate automatic setting for signals containing any DC component
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UTD1202C |
200 MHz | 2 | 1 Gsa/s | 7.5 kpts | - | - |
 UTD1102C |
100 MHz | 2 | 500 Msa/s | 7.5 kpts | - | - |
 UTD1062C |
60 MHz | 2 | 250 Msa/s | 7.5 kpts | - | - |
Technical Specification
| Model | UTD1102C |
| Key Specifications | |
| Bandwidth | 100 MHz |
| Channels | 2 analog |
| Sample Rate | 500 MSa/s (maximum) |
| Vertical Resolution | 8-bit |
| Max. Memory Depth | 7.5 kpts |
| Technical Details | |
|---|---|
| Rise Time | ≤3.5 ns |
| Time Base Scale | 5 ns/div to 50 s/div |
| Vertical Scale | 5 mV/div to 50 V/div |
| Input Impedance | (1 MΩ ±2%) || (21 pF ±3 pF) |
| Features | |
| Auto Measurements | 27 parameters |
| Protocol Analysis Count | 0 |
| DVM | 6000-count multimeter |
| General Information | |
| Display | 5.7-inch TFT LCD, 320×240 |
| Interface | USB Host, USB OTG |
| Power | 7.4 V 4400 mAh Li-ion; 100–240 V adapter |
| Product Net Weight | 1.8 kg |
| Product Dimensions (W×H×D) | 268 × 168 × 60 mm |
| Standard Quantity Per Carton | 1 pc |
| Certification | CE |
| Warranty | 3 years |
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
