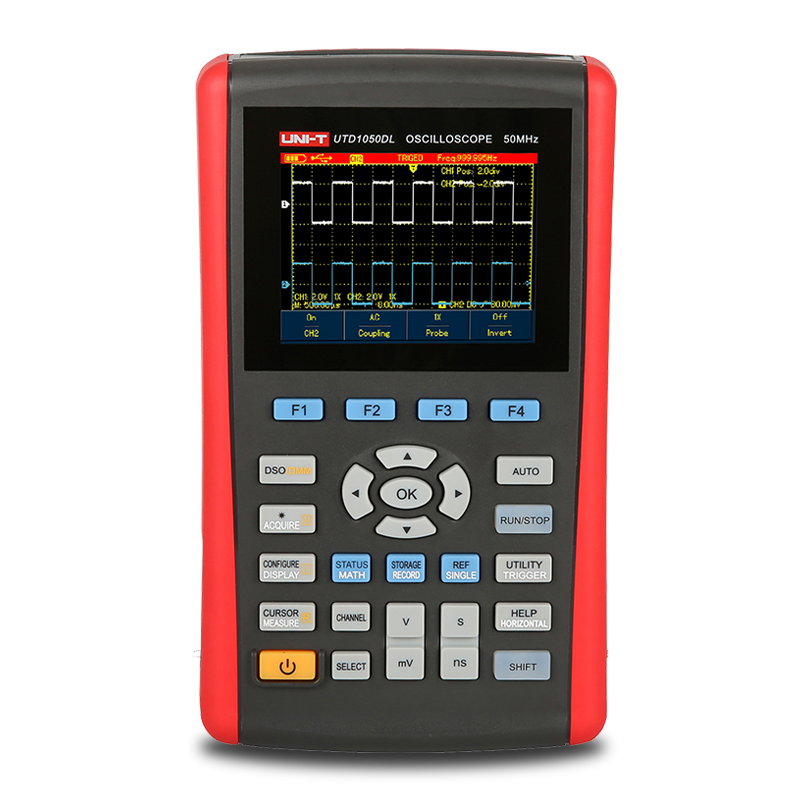

UTD1000L
The UTD1000L Series is an economical hand-held digital storage oscilloscope, which integrates oscilloscope, multi-meter, trend chart and waveform recording function. The compact and portable design brings different visual and operational experience to users. This series can be powered by external power supply or built-in lithium batieries. It is a popular portable measuring instrument tailored for engineers.
25 MHz~50 MHz
Bandwidth
1/2
Analog Channels
250 MSa/s
Real-time Sample Rate
12 kpts
Max. Memory Depth
/
Waveform Capture Rate
/
Digital Channels
KEY FEATURES
FEATURES
2 in 1
Oscilloscope & Multimeter
More parameter measurement types
Peak to Peak, Amplitude, Maximum, Minimum, Top, Bottom, Mid, Average, RMS, Overshoot, Preshoot, Frequency, Period, Rise Time, Fall Time, Positive Pulse Width, Negative pulse width, positive duty cycle, negative duty cycle, rising delay, falling delay, phase, a total of 22 types of measurements.

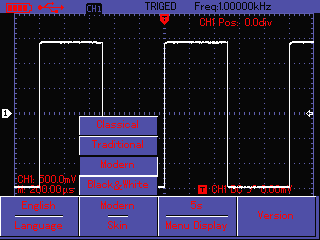

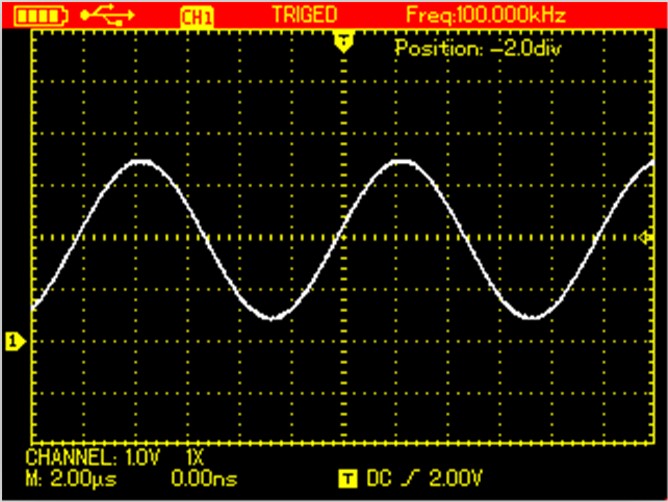

Monochrome display
Single color display can be set, more suitable for outdoor use under strong light
Fully automatic setup function
Automatic setting function (AUTO SCALE) The vertical and time base gears can be automatically adjusted with signal changes without manual intervention;
Auto configuration
Powerful automatic setting function, fast and accurate automatic setting for signals containing any DC component
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UTD1050DL |
50 MHz | 2 | 250 Msa/s | 12 kpts | - | - |
 UTD1025DL |
25 MHz | 2 | 250 Msa/s | 12 kpts | - | - |
 UTD1050CL |
50 MHz | 1 | 200 Msa/s | 12 kpts | - | - |
 UTD1025CL |
25 MHz | 1 | 200 Msa/s | 12 kpts | - | - |
Technical Specification
| Model | UTD1050DL | UTD1025DL | UTD1050CL | UTD1025CL |
| Key Specifications | ||||
| Bandwidth | 50 MHz | 25 MHz | 50 MHz | 25 MHz |
| Channels | 2 analog | 2 analog | 1 analog | 1 analog |
| Sample Rate | 250 MSa/s (maximum) | 250 MSa/s (maximum) | 200 MSa/s (maximum) | 200 MSa/s (maximum) |
| Vertical Resolution | 8-bit | |||
| Max. Memory Depth | 12 kpts | |||
| Technical Details | ||||
|---|---|---|---|---|
| Rise Time | ≤7 ns | ≤14 ns | ≤7 ns | ≤14 ns |
| Time Base Scale | 5 ns/div to 50 s/div | 10 ns/div to 50 s/div | 5 ns/div to 50 s/div | 10 ns/div to 50 s/div |
| Vertical Scale | 5 mV/div to 20 V/div | |||
| Input Impedance | (1 MΩ ±2%) || (21 pF ±3 pF) | |||
| Features | ||||
| Auto Measurements | 22 parameters | |||
| Protocol Analysis Count | 0 | |||
| DVM | 3999-count multimeter | |||
| General Information | ||||
| Display | High-resolution color LCD | |||
| Interface | USB | |||

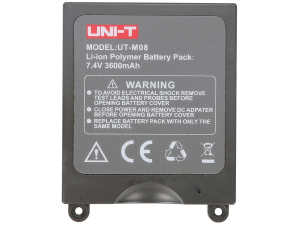

| Power | Built-in lithium battery / external supply | |||
| Product Net Weight | Not specified in Data Sheet | |||
| Product Dimensions (W×H×D) | Not specified in Data Sheet | |||
| Standard Quantity Per Carton | 2 pcs | |||
| Certification | CE | |||
| Warranty | 3 years | |||
