UTE9800
The UTE9800 Series intelligent electric parameter measuring instrument, also known as digital power meter, is an economical and por table measuring instrument. It is a multifunctional measuring instrument integrating voltage, current, power, power factor and frequency. It has high cost performance and is widely used in many fields such as production, testing, quality and scientific research.
Voltage Range
3.0V~600V
Current Range
0.5mA~20.0A
Frequency Range
40Hz~130Hz；BW 5kHz
Accuracy
± (0.4% reading + 0.1 range + 1 digit)
Measurement Mode
AC，DC，AC+DC
Connectivity
RS-232/RS-485
Size
½ 2U
Display
VA LCD
KEY FEATURES
FEATURES

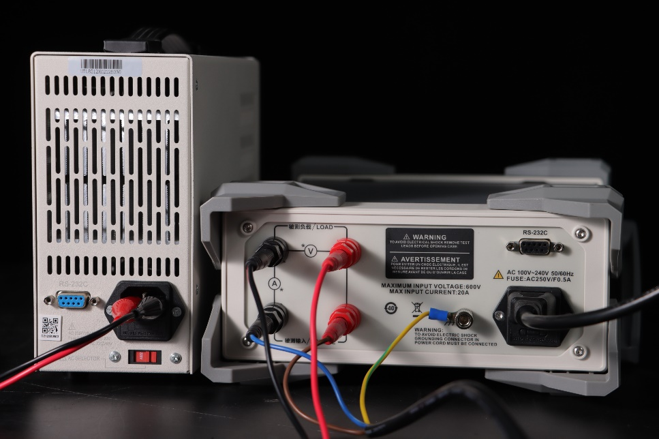

Effortless to build
Optional test cable, easy to build measurement environment
Remote control
It is equipped with RS232 port and supports remote control
True RMS measurement
UTE9802 true RMS measurement. Can measure AC、DC、AC+DC
Harmonic measurement
UTE9811 adopts phase locked loop (PLL) synchronization method, and the maximum harmonic analysis is 50 times

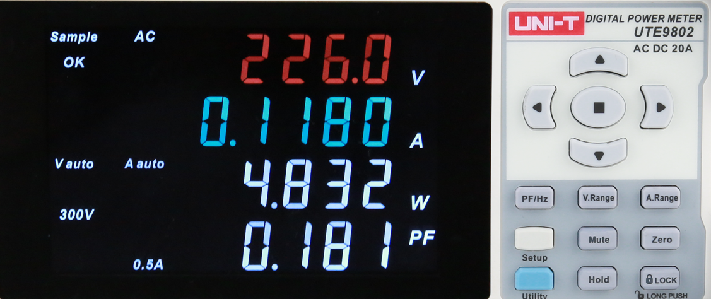

Four-window display
Four windows simultaneously display voltage, current, power, power factor/frequency, UTE9811 has voltage crest ratio and current crest ratio. 5-digit high-precision display
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UTE9811 |
3.0V~600V | 5mA~20.0A | 40Hz~70Hz；BW 5kHz | ± (0.4% reading + 0.1 range + 1 digit) | AC | RS-232/RS-485 |
 UTE9802 |
3.0V~600V | 0.5mA~20.0A | 40Hz~130Hz；BW 5kHz | ± (0.4% reading + 0.1 range + 1 digit) | AC，DC，AC+DC | RS-232/RS-485 |
