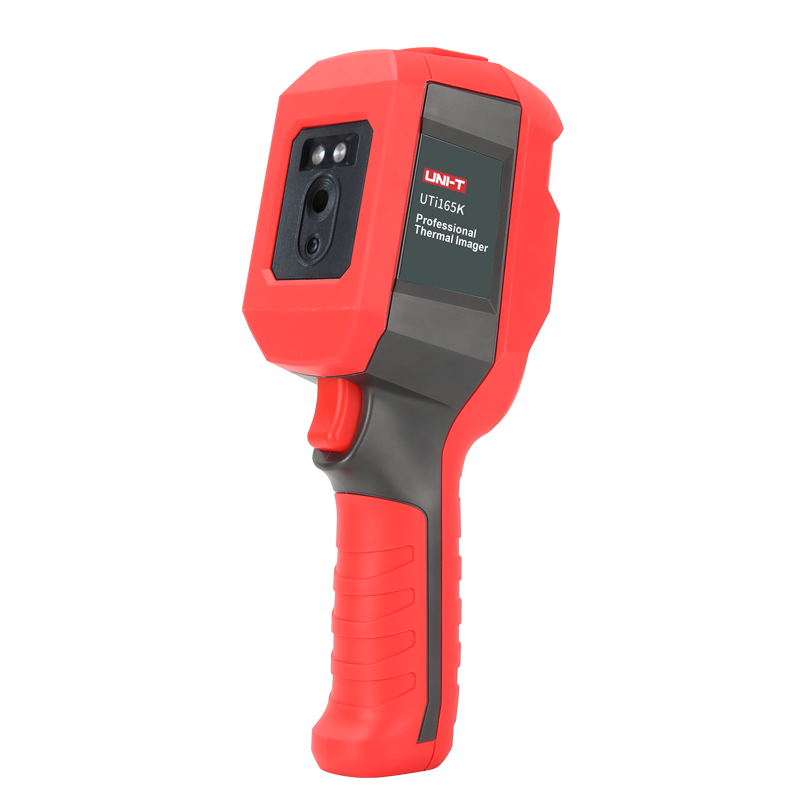

UTi165H
EST Thermal Camera

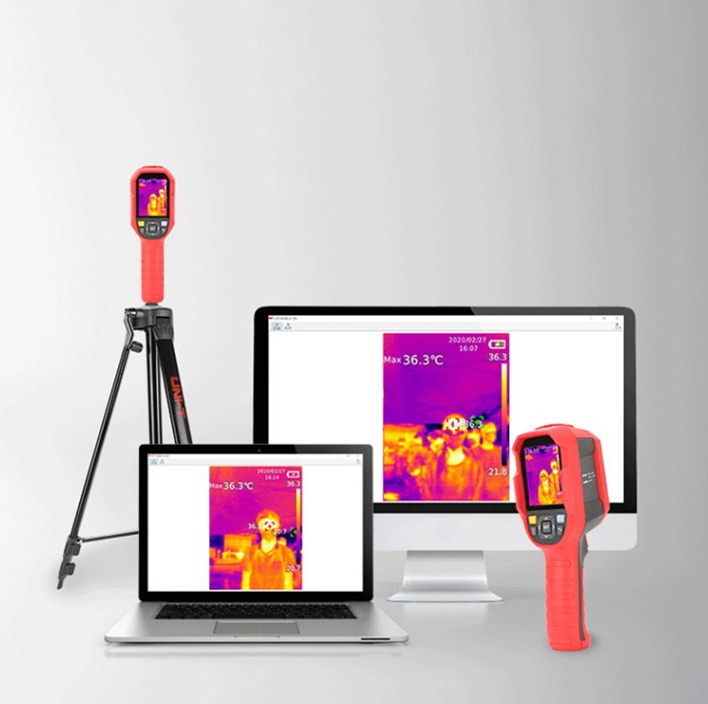

UTi165K EST thermal camera can quickly and effectively measure surface temperatures to identify elevated body temperature. It can aslo be mounted on a tripod and set in public locations, such as schools, shopping malls,airport and other high traffic areas. The thermal camera is with PC software (support data review, analysis and report sharing), it also supports real time projection to display the image and data on a large monitor and automaticlly tracking and alarm for high temperature.
160×120
IR Resolution
30℃ to 45℃
Temperature Range
≤50mk
Thermal Sensitivity
56°×42°
Field of View (FOV)
≤9Hz
Frame Rate
2.8”TFT LCD (320×240)
Display
FEATURES
Durable and user-friendly
Lorem ipsum dolor sit amet consectetur. Cursus amet non felis suscipit cursus ultricies nulla non. Nunc morbi proin dictumst purus.
IR resolution: 160×120
Lorem ipsum dolor sit amet consectetur. Fermentum magna sapien interdum imperdiet platea ligula donec tortor. Augue in orci praesent in dignissim etiam vel. Eu scelerisque at tincidunt dolor venenatis orci malesuada.
8” TFT display screen (320×240 Pixels)
Precise high-resolution thermal imaging with fast refresh rates, delivering accurate temperature readings and hot-spot detection for critical diagnostics.
Temperature measurement range: 30℃ to 45℃
Rugged, reliable, and user-friendly design engineered for demanding electrical, mechanical, and HVAC building diagnostic applications.
Auto alarm for high temperature
Advanced on-screen measurement and analysis capabilities with customizable color palettes and seamless report export.
Image modess: Thermal,Visual image,Fusion
Equipped with long-lasting rechargeable battery power and durable industrial-grade casing rated for reliable field operations.
Technical Specification
| Technical Data | ||
|---|---|---|
| IR resolution（Pixels） | 160×120 | |
| Display | 2.8”TFT LCD (320×240) | |
| Field of view(FOV) | 56°(H) x 42°(V) | |
| Thermal sensitivity(NETD) | ≤50mk | |
| Spatial resolution(IFOV) | 6.11mrad | |
| Frame rate | ≤9Hz | |
| Temeperature range | 30℃~45℃ (86℉-113℉) | |
| Accuracy | ±0.5° (@25˚C ambient temperature) | |
| Functions | ||
| Color palattes | 7 (Ironbow, Rainbow, White hot, Black hot, Red hot, Lava, Rainbow HC) |
|
| Image modes | Thermal, Visual Image, Fusion | |
| Auto alarm for high/low temperature | Icon | √ |
| LED flashlight | √ | |
| Buzzer | ||
| PC software | √ | |
| General Characteristics | ||
| Battery | Fixed Li-ion battery (3.7V 5000mAh) | |
| Battery operating Time | ≥ 6 hours | |
| USB | Type-C | |
| Storage | 16G Micro SD card | |
| Image/Video storage format | BMP | |
| Certificates | CE,RoHs | |
| Weight | 910g | |
| Product Size | 236mm x 75.5 mm x 86mm | |
| Packing Details | ||
| Standard accessories | Type-C USB cable, 16GB TF card, English manual | |
| Standard individual packing | Gift Box | |
| Standard Qty per carton | 10pcs | |
| Standard carton measurement | 500mm x 315mm x 295mm | |
| Standard carton G.W. | 2.2kg | |
THERMAL GALLERY
Application
