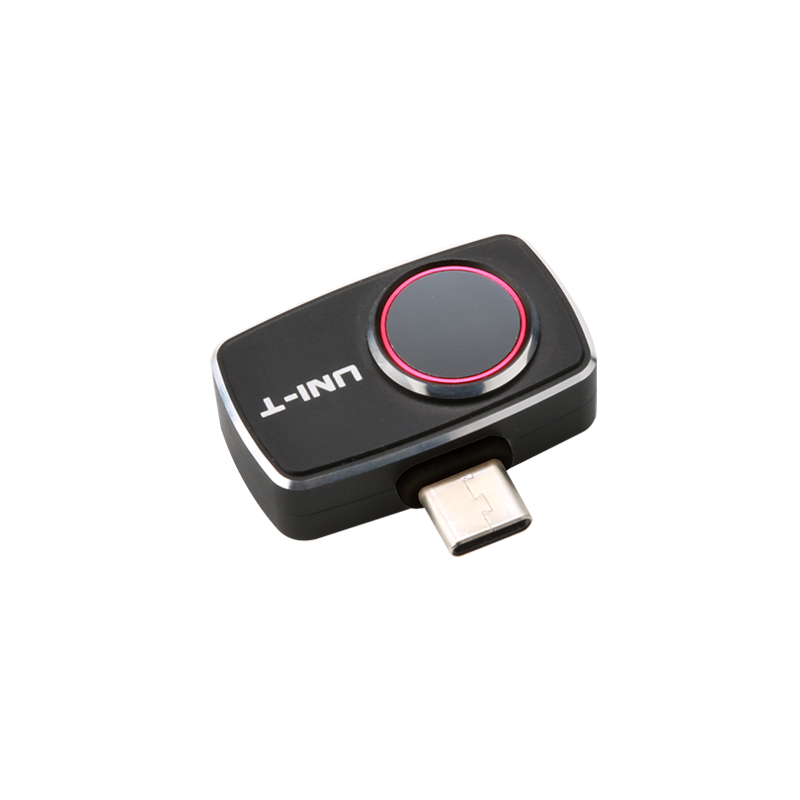

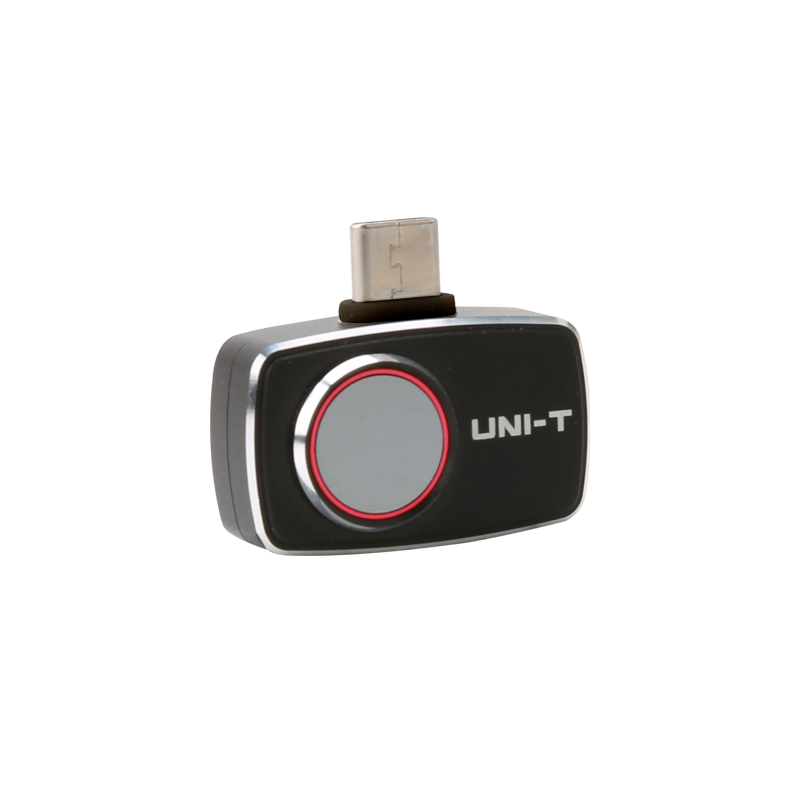

UTi721M
Smartphone Thermal Camera Module for Android
UTi721M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response. UTi721M is with wide temperature measurement range -20℃ ~ 550℃. It includes two measurements modes for elevated skin temperature inspection and industry applications. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.
It can be equipped with macro lens UT-Z005 (Optional), the recommended distance is 4 cm.
256×192
IR Resolution
-20℃ ~ 550℃
Temperature Range
≤50mK
Thermal Sensitivity
56.0°×42.2°
Field of View (FOV)
≤25Hz
Frame Rate
Smartphone Display
Display
FEATURES
IR resolution: 256×192
Lorem ipsum dolor sit amet consectetur. Cursus amet non felis suscipit cursus ultricies nulla non. Nunc morbi proin dictumst purus.
Temperature measurement range: -20℃to 550℃ / -4℉ to 1022 ℉
Lorem ipsum dolor sit amet consectetur. Fermentum magna sapien interdum imperdiet platea ligula donec tortor. Augue in orci praesent in dignissim etiam vel. Eu scelerisque at tincidunt dolor venenatis orci malesuada.

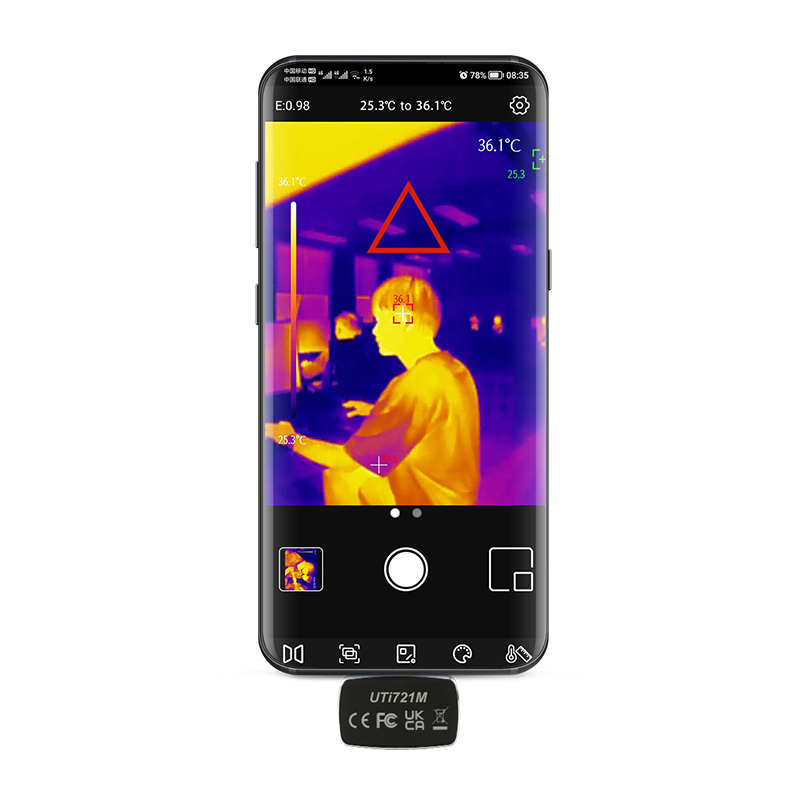

Measurement modes: Industry, EST(Elevated Skin Temperature)
Precise high-resolution thermal imaging with fast refresh rates, delivering accurate temperature readings and hot-spot detection for critical diagnostics.
Auto alarm for high/low temperature
Rugged, reliable, and user-friendly design engineered for demanding electrical, mechanical, and HVAC building diagnostic applications.
Auto tracking for hot spot/cold spot
Advanced on-screen measurement and analysis capabilities with customizable color palettes and seamless report export.
On screen analyzer: 3 Points/3 Lines/3 Rectangles
Equipped with long-lasting rechargeable battery power and durable industrial-grade casing rated for reliable field operations.
Technical Specification
| Model | UTi721M |
|---|---|
| Key Points | |
| Infrared Resolution | 256×192 |
| Temperature Measurement Range | -20℃~550℃ |
| Technical Details | |
| Frame Rate | ≤25Hz |
| NETD | ≤50mK @25℃ |
| Focus | Focus Free |
| Spectral Range | 8~14µm |
| Pixel Size | 12µm |
| Super Resolution | 512×384 |
| Lens | Standard |
| Lens Focal Length | 3.2mm |
| FOV | 56°(H) × 42.2°(V) |
| IFOV | 3.8mrad |
| Accuracy | Industrial: ±2° or ±2% (0℃~550℃) EST Screening: ±0.5° (30℃~40℃) |
| Features | |
| Color Palette | Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC |
| Image Mode | Thermal, Fusion, PIP |
| On Screen Analyzer | 3 Points/3 Lines/3 Rectangles |
| Isotherm | Auto/Below/Above/Section/Manual |
| HI/LO Temperature Alert | LCD Animation & Buzzer |
| HI/LO Temperature Tracking | ✔ |
| Digital Zoom | 1x~4x Continuous |
| Video Recording | ✔ |
| Analysis Software | APP |
| General | |
| Battery | Battery-Free |
| Power Supply System | Powered by connected device |
| USB | Type-C |
| Image Format | JPG |
| Video Format | MP4 |
| Certificates | CE, UKCA, FCC, RoHS |
| Language | ZH, EN, FR, DE, IT, ES, SV |
| Weight | 13g |
| Dimension | 33mm×28.2mm×11.3mm |
