UPO1000

UPO1000 series digital oscilloscope adopts Ultra Phosphor 2.0 technology . This series is equipped with three levels of bandwidth of 50MHz/100MHz/200MHz, and the real-time sampling rate is as high as 2GSa/s. The whole series is equipped with 4 channels as standard; supports independent DVM module; has rich trigger and bus decoding functions, and supports full-memory hardware real-time decoding. It can be widely used in embedd system design, instrumentation, consumer electronics, automotive electronics, field maintenance, and education and many other fields.

50MHz~200MHz

BANDWIDTH

ANALOG CHANNELS

2GSa/s

REAL-TIME SAMPLE RATE

56Mpts

MAX. MEMORY DEPTH

500,000wfms/s

WAVEFORM CAPTURE RATE

DIGITAL CHANNELS

Get a quote

Download Resources

KEY FEATURES

Model

UPO1054

FEATURES

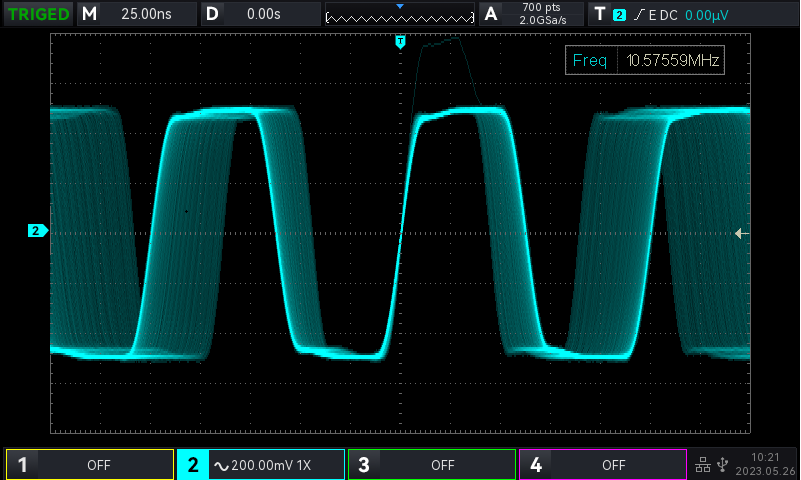

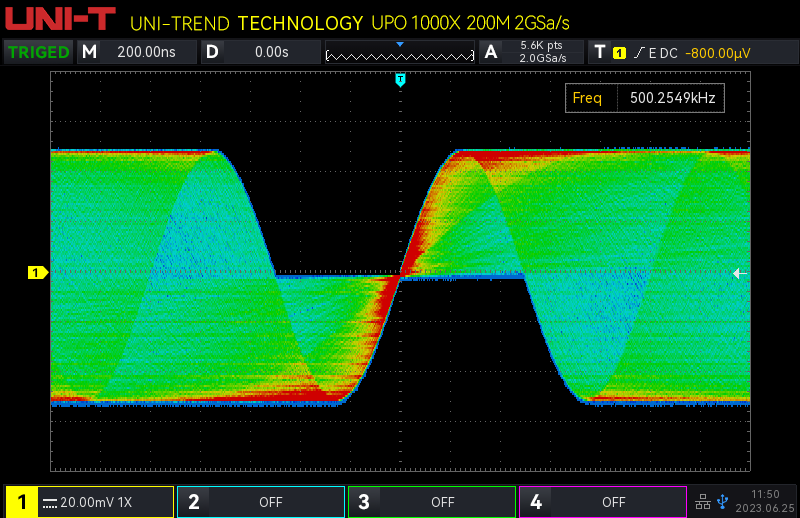

Fast Acquire Phosphor ™

Using the original Ultra Phosphor display technology

Hardware real-time recording

Maximum recording 120000 frames

56Mpts long memory depth

Capture waveforms for long periods of time and still obtain full frequency domain information at high sample rates without waveform distortion.

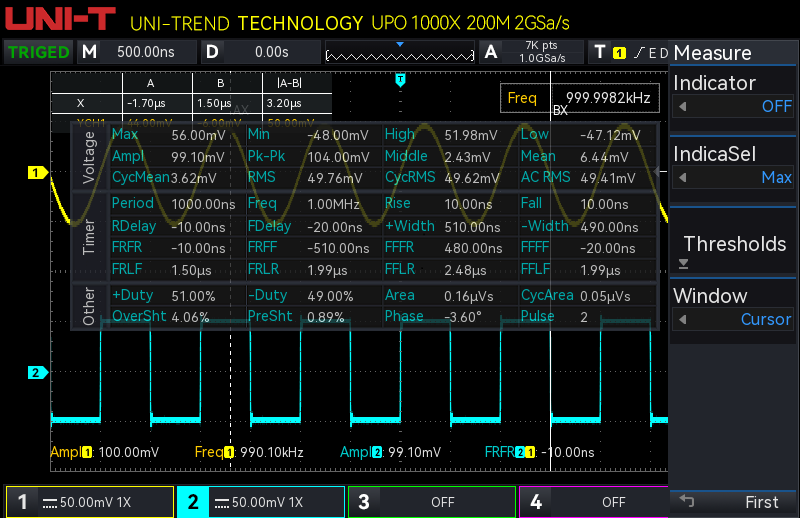

36 parameter measurements

Support for quick measurement of all parameters and statistical functions. Optional on-screen measurement and cursor selected measurement area, threshold settings, helping you accurately analyze specific parameters.

High capture

Adopting innovative digital signal parallel processing technology, the normal sampling can reach 150,000wfms/s ultra-high capture rate, and the Fast Acquire mode can reach 500,000 wfms/s.

Navigation function

Provides three modes of time, marker and segment navigation to quickly locate the target waveform. Supports automatic scrolling to view memory waveforms, with multiple speeds adjustable to facilitate comprehensive observation of trends.

DVM

Built-in digital voltmeter (DVM), can set over limit alarm

Cursor measurement

Support CH1, CH2, CH3, CH4, MATH, REF measurement at the same time; support screen measurement, can measure time and voltage at the same time

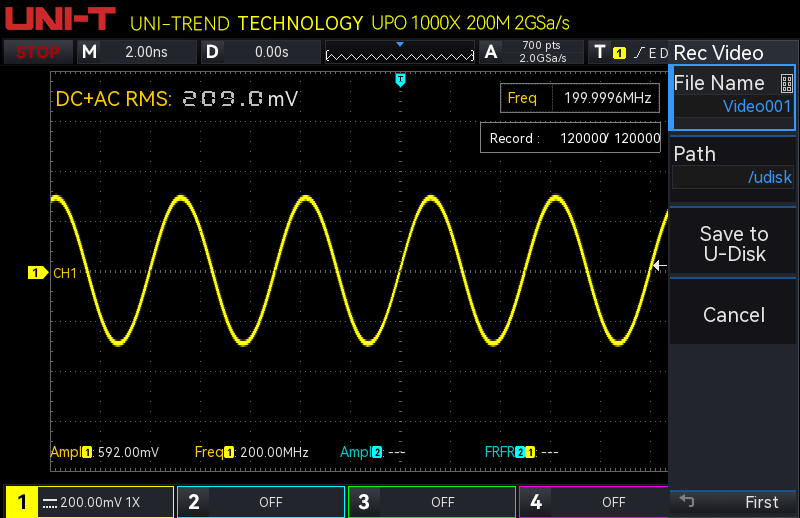

Waveform records can be saved in Video format

The recorded waveform can be played back and observed on the PC side to improve the user experience.

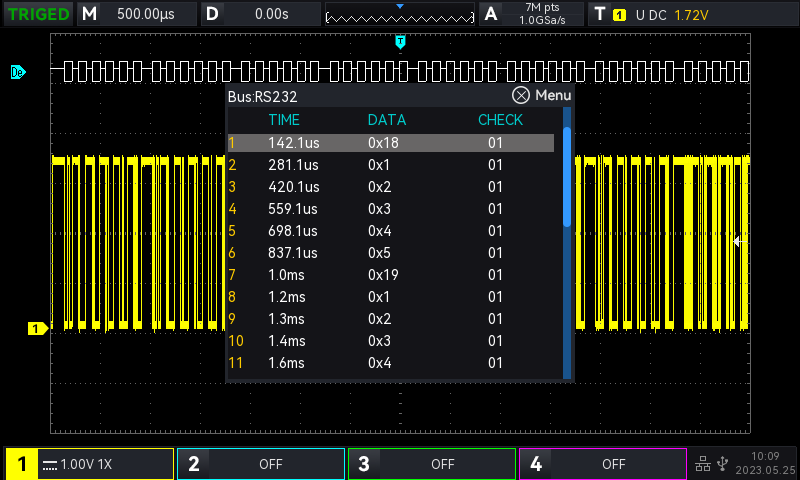

Full-memory hardware real-time decoding

With 56Mpts deep memory, the decoding speed of 3 protocols (RS232/UART, I2C, SPI) reaches milliseconds, which is hundreds of times faster than the software decoding speed, and significantly improves the analyzing efficiency.

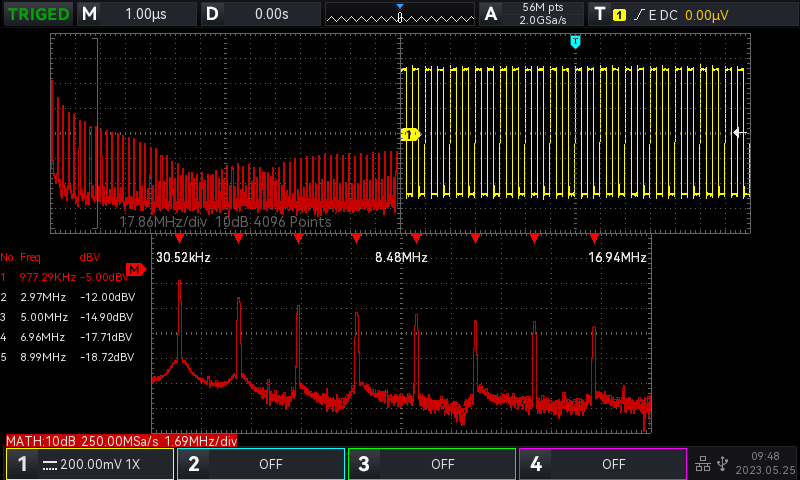

1Mpts enhanced FFT

Support multi-domain view, independent spectrum view display, multi-dimensional visualization of signal characteristics. Provides 4 trace and 4 detector modes to meet different analysis needs. Support automatic trace peak measurement to quickly identify key spectral features.

MODEL

Model	Bandwidth	Analog Channels	Real-time Sample Rate	Max. Memory Depth	Waveform Capture Rate	Digital Channels
UPO1054	50MHz	4	2GSa/s	56Mpts	500,000wfms/s	/
UPO1104	100MHz	4	2GSa/s	56Mpts	500,000wfms/s	/
UPO1204	200MHz	4	2GSa/s	56Mpts	500,000wfms/s	/

Technical Specification

Technical Details
Model	UPO1204	UPO1104	UPO1054
Key Specifications
Bandwidth	200 MHz	100 MHz	50 MHz
Channels	4 analog
Sample Rate	2 GSa/s (single channel); 1 GSa/s (dual channels); 500 MSa/s (all channels)
Vertical Resolution	8-bit
Max. Memory Depth	56 Mpts
Max. Waveform Capture Rate	150,000 wfms/s; 500,000 wfms/s Fast Acquire
Rise Time	≤1.8 ns (typ.)	≤3.5 ns (typ.)	≤7 ns (typ.)
Time Base Scale	1 ns/div to 1000 s/div
Vertical Scale	500 μV/div to 20 V/div
Input Impedance	(1 MΩ ±2%) \|\| 16 pF
Features
Auto Measurements	36 parameters
Protocol Analysis Count	3
Included Bus Protocols	RS-232/UART, I²C, SPI
DVM	4-digit
Frequency Counter	7-digit
Spectrum Analysis	Enhanced FFT, up to 1 Mpts
General Information
Display	7-inch TFT LCD, 800×480
Interface	USB Host, USB Device, LAN, EXT Trig, AUX Out
Power	100–240 VAC, 50/60 Hz
Product Net Weight	2.45 kg
Product Dimensions (W×H×D)	336 × 170 × 110 mm
Standard Quantity Per Carton	1 pc
Certification	CE, cETLus
Warranty	3 years

specifications	Range	Accuracy
AC Voltage Detection	0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω	±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω）
Current (AC)	0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω	±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω）
Features
Jaw size	0.010Ω-0.199Ω
Timer	✔
