UTL8200+

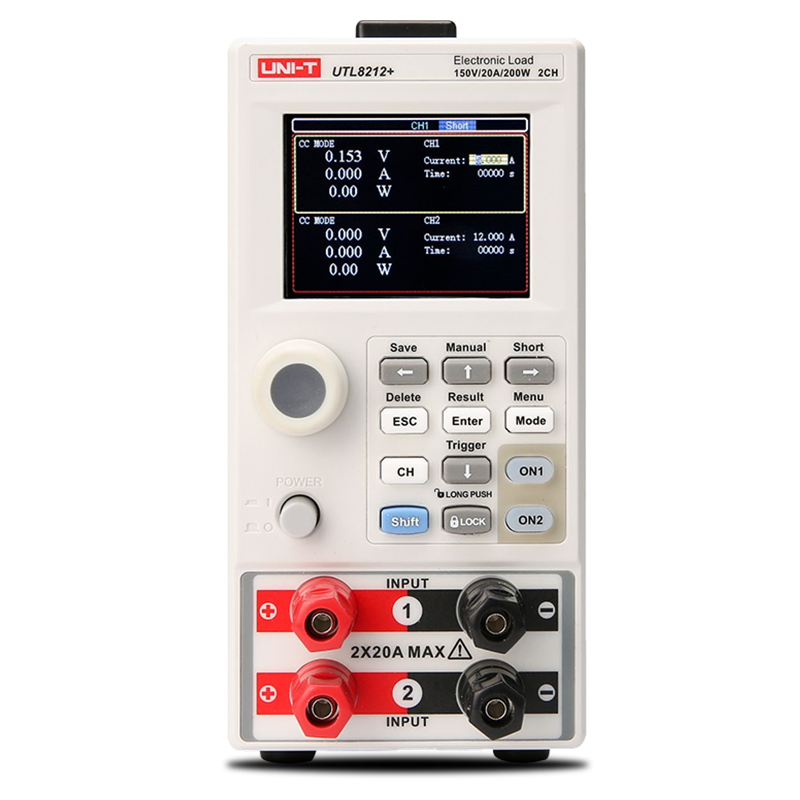

UTL8200+ series electronic load is equipped with a 2.8-inch LCD display, which is easy to operate and stylish in appearance. Its test resolution is up to 1mV/1mA. Equipped with rich test functions and modes for you to choose. The equipment is equipped with RS232 communication module, which can flexibly meet various on-site test conditions, and is convenient for seamless connection with automated production lines and automatic test systems. The electronic load operates stably and has a wide range of applications, adapting to various testing requirements.

150V

VOLTAGE

20A/40A

CURRENT

400W

TOTAL POWER

1mV/1mA

RESOLUTION

5kHz

MAX. DYNAMIC FREQUENCY

0.04A/mS~0.2A/μS

CURRENT SLEW RATE

¼ 4U

SIZE

RS232,optional RS485

CONNECTIVITY

Get a quote

Download Resources

KEY FEATURES

Model

UTL8212+

FEATURES

7 test modes to help you complete the test work better

Multiple protection functions and flexible adjustment

2.8inch LCD display, clearly displaying more information

CC,CR,CP Multi-mode battery discharge test

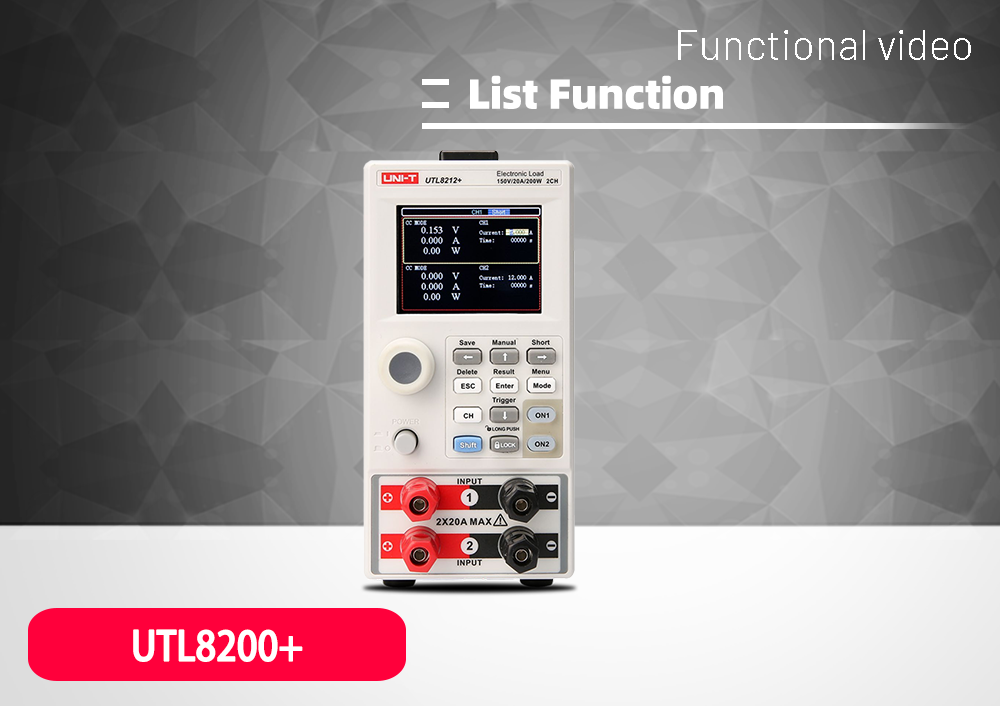

List mode to help you automate

Combining automatic unloading and self-starting voltage to effectively improve test efficiency

Standard 232 ports, optional 485 ports. Support SCPI protocol, providing a more convenient choice for remote control

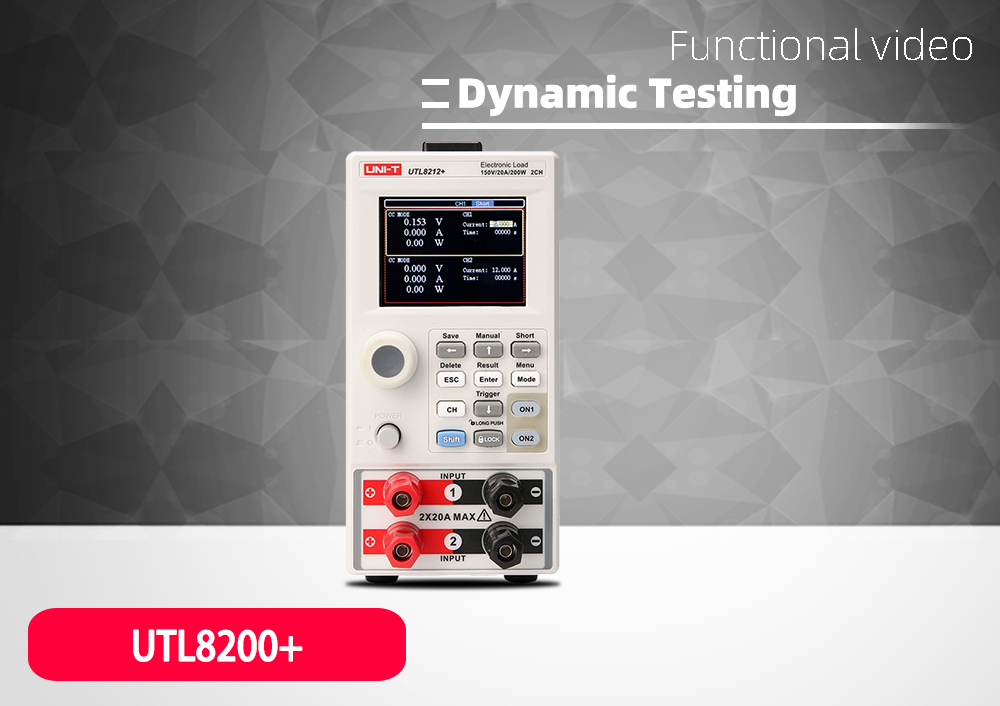

Dynamic load is up to 5kHz

MODEL

Model	Bandwidth	Analog Channels	Real-time Sample Rate	Max. Memory Depth	Waveform Capture Rate	Digital Channels
UTL8212+	150V	20A	2X200W	1mV/1mA	5kHz	0.04A/mS~0.2A/μS
UTL8211+	150V	40A	400W	1mV/1mA	5kHz	0.08A/mS~0.4A/μS

Technical Specification

Technical Details
Model	UTL8211+	UTL8212+
Key Specifications
Channels	Single channel	2 channels
Input Power	400 W	2 × 200 W
Input Voltage	0–150 V	0–150 V / CH
Input Current	0–4 A / 0–40 A	0–2 A / 0–20 A per CH
Resolution	1 mV, 1 mA
Rack Size	4U
CC Mode Range	0–4 A / 0–40 A	0–2 A / 0–20 A per CH
CC Mode Accuracy	±(0.1%+0.1% FS)
CV Mode Range	0–150 V
CV Mode Accuracy	±(0.05%+0.1% FS)
CR Mode Range	0.05 Ω–7.5 kΩ
CR Mode Accuracy	±(0.3%Vin/Rset+0.2%IF.S)
CP Mode Range	400 W	200 W
CP Mode Accuracy	±(0.1%+0.5% FS)
Dynamic Mode T1 T2	100 μs–50 s / Res: 100 μs
Dynamic Mode Accuracy	5 μs ±100 ppm
Rise Fall Slope	0.08 A/ms–0.4 A/μs	0.04 A/ms–0.2 A/μs
Readback Voltage Range	0–150 V	0–150 V / CH
Readback Voltage Accuracy	±(0.1%+0.1% FS)
Readback Current Range	0–4 A / 0–40 A	0–2 A / 0–20 A per CH
Readback Current Accuracy	±(0.1%+0.1% FS)
Readback Power Range	400 W	200 W
Readback Power Accuracy	±(0.1%+0.5% FS)
Features
Test Mode	CC, CV, CR, CP, Dynamic, List, Battery
Protection	OVP, OCP, OPP, OTP
Quick Uninstall	Yes
General Information
Display	2.8-inch LCD
Interface	RS-232; RS-485 optional; SCPI
Power	AC 110/220 V ±10%, 50/60 Hz
Product Net Weight	3.42 kg
Product Dimensions (W×H×D)	88 × 174.6 × 230 mm
Standard Quantity Per Carton	2 pcs
Warranty	3 Years

specifications	Range	Accuracy
AC Voltage Detection	0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω	±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω）
Current (AC)	0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω	±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω）
Features
Jaw size	0.010Ω-0.199Ω
Timer	✔

DATA SHEET

UTL8200+ Series DC Electronic Loads

Data Sheet

Current Version: V1.0 | 466 KB | 2024/10/29

MANUAL

UTL8200+ Series DC Electronic Loads

Programming Manual

Current Version: V1.1 | 2026/4/30

UTL8200+ Series DC Electronic Loads

User Manual

Current Version: V1.0 | 1 MB | 2024/10/29

SOFTWARE

UNI-T SDK

Current Version: V2.3 | 2025/8/8

Release Notes

Software Development Kit, a collection of tools and resources that developers use to do second development with UNI-T instruments which have programmable feature.

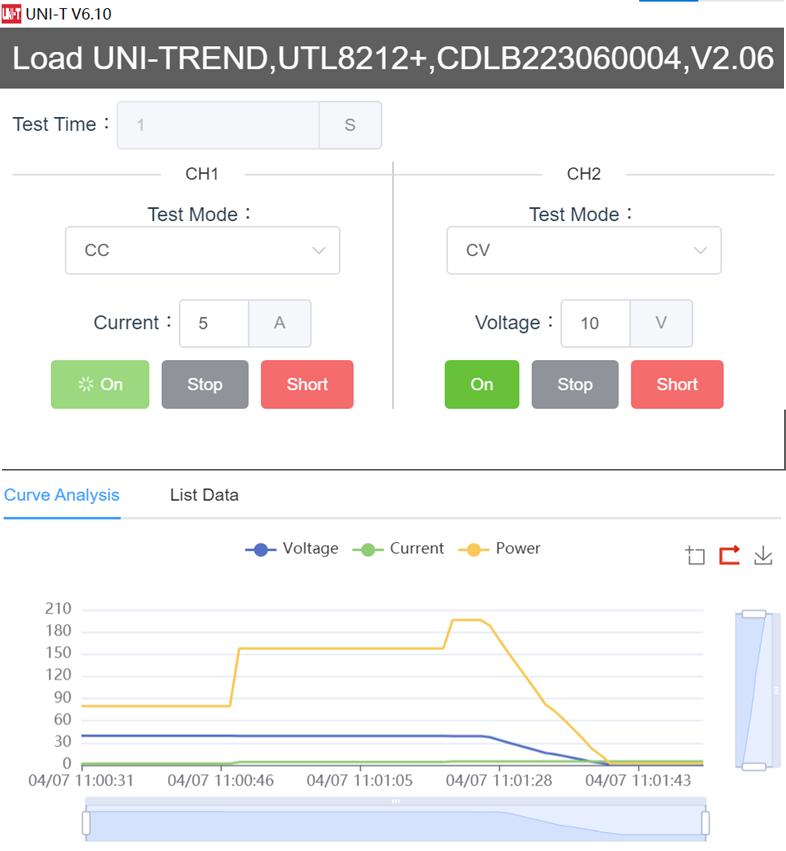

UNIT PC Software

Current Version: V2.2.7 | 2025/11/26

Release Notes

UNI-T PC Software …………………………………………………………………………………………………………………………………………………… Version: 2.2.7 Date: 2025/11/12 -new: add UT3510+、UT3515-Sx、UT5140、UT3300+、UT5470、UT5400 Series -fix: some known bugs …………………………………………………………………………………………………………………………………………………… Version: 1.5.1 Date: 2024/10/30 -new: Fixed the problem of UTL2800+ upper computer control failure -fix: some known bugs …………………………………………………………………………………………………………………………………………………… Version: 1.5.0 Date: 2024/9/25 -new: default language changed to English after version installation -fix: some known bugs …………………………………………………………………………………………………………………………………………………… Version: 1.4.3 Date: 2024/6/25 -new: add UTR2810+ Series、UDP6723/6724，UT3510+ Series -fix: some known bugs …………………………………………………………………………………………………………………………………………………… Version: 1.4.2 Date: 2024/5/28 -new: add UTL8500X+ Series -fix: some known bugs …………………………………………………………………………………………………………………………………………………… Version: 1.1.0 Date: 2024/3/20 -new: UAP500/1000A UDP6722 UTL8500+ Series、 UTL8200+ Series UTR2830 Series UTR2810 Series UT3200+ Series UT3200 Series UT5300+ Series UT5320R-SXA Series UT5583 Please note that these updates are aimed at improving the performance and stability of the software. We recommend updating to the latest version for a better user experience. If you encounter any issues while using the software, please contact our technical support team. Thank you for your support and usage of our software!
