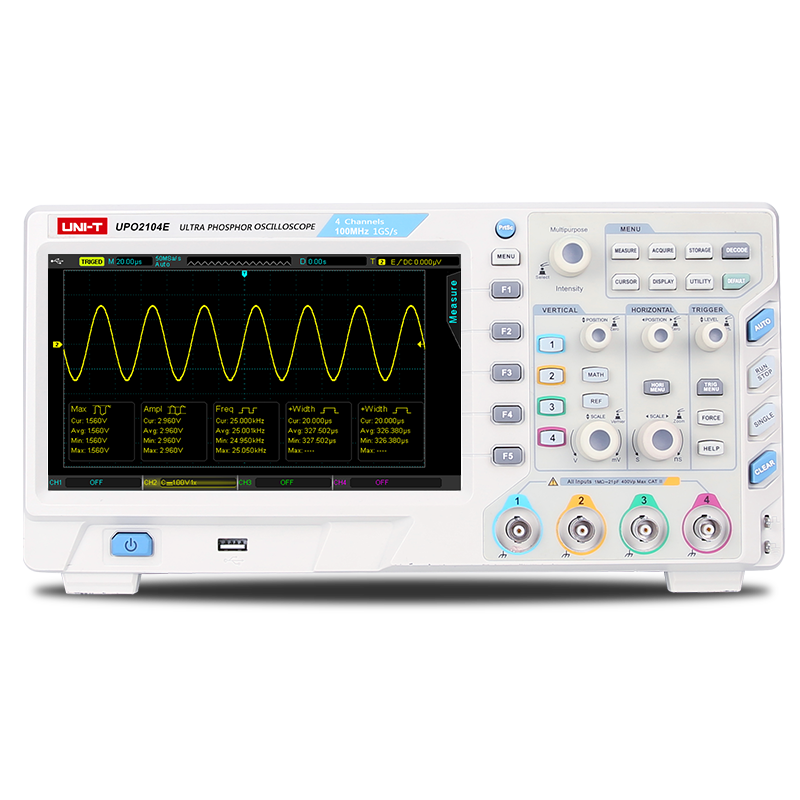

UPO2000E
The UPO2000E Series offers unprecedented value in customer applications with its innovative technology,industry leading specifications, powerful trigger functions and broad analysis capabilities.
The Series is available in 70MHz and 100MHz bandwidth and 2 or 4 analog channels. It adopts UNI-T UPO visualization technology, has a maximum sample rate of 1GSa/s and a standard memory depthof 56Mpts.It comes with a minimum vertical scale input range of 1mV/div, an innovative digital trigger system with high sensitivity and low jitier, and a waveform capture rate of 80,000wfms/s.
70 MHz~100 MHz
BANDWIDTH
4
ANALOG CHANNELS
1 GSa/s
REAL-TIME SAMPLE RATE
56 Mpts
MAX. MEMORY DEPTH
80000 wfms/s
WAVEFORM CAPTURE RATE
/
DIGITAL CHANNELS
KEY FEATURES
FEATURES

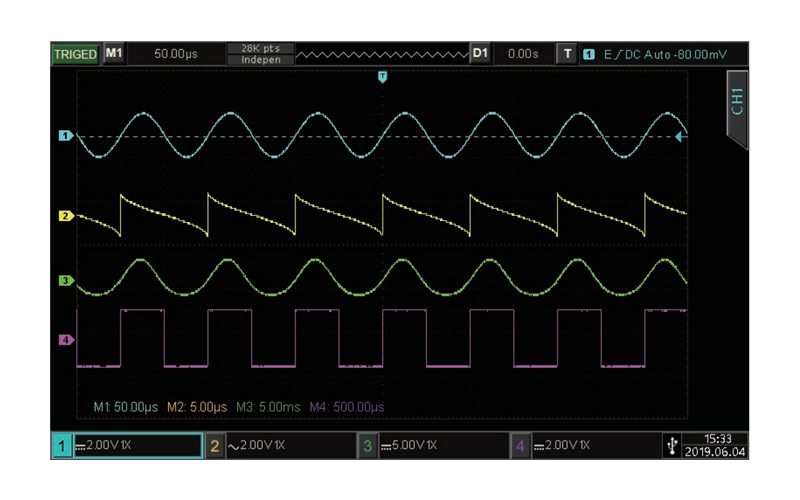

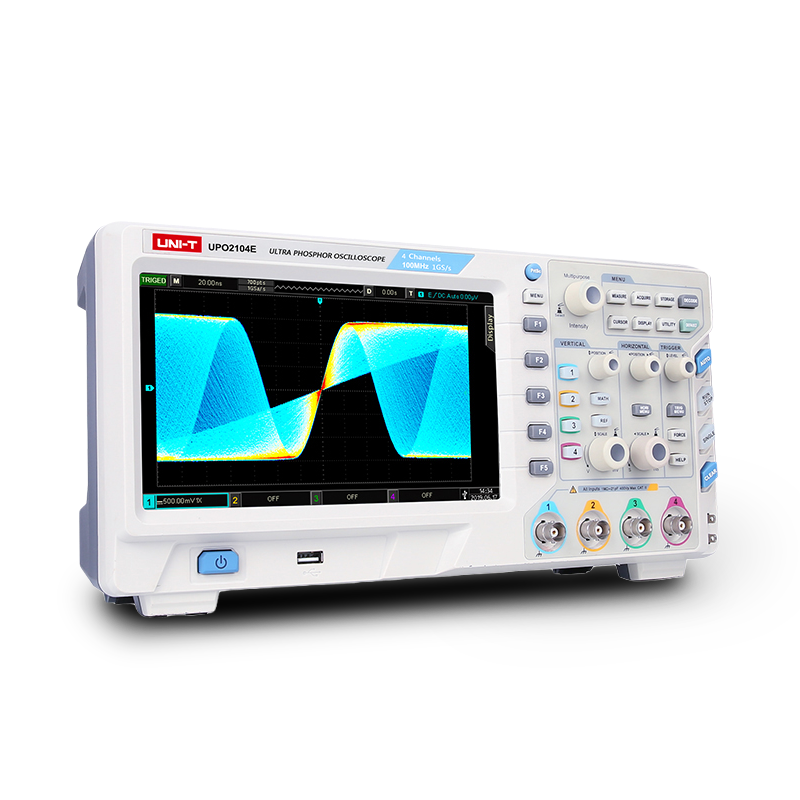

Digital fluorescent display
256-level grayscale display capability, timely reflecting
the probability of the appearance of the waveform,
and the waveform change is clearly visible.
Long memory depth
Up to 56Mpts memory depth, users can capture longer time signal without losing waveform details.
Up to 80,000wfms/s waveform capture rate
Up to 80,000wfms/s waveform capture rate,discover occasional problemsin time, greatly improve the ability to capture extremely low-probability events,and observe signal jitter and glitches more intuitively
Independent time base adjustable
Up to 80,000wfms/s waveform capture rate,discover occasional problems
in time, greatly improve the ability to capture extremely low-probability events,
and observe signal jitter and glitches more intuitively
Rich data measurement functions
Support 34 kinds of automatic measurement parameter functions,
Support Zoom, Math, statistics and advanced calculation functions.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UPO2104E |
100 MHz | 4 | 1 GSa/s | 56 Mpts | 80,000 wfms/s | / |
 UPO2102E |
100MHz | 2 | 1 GSa/s | 56 Mpts | 80,000 wfms/s | / |
 UPO2074E |
70 MHz | 4 | 1 GSa/s | 56 Mpts | 80,000 wfms/s | / |
 UPO2072E |
70 MHz | 2 | 1 GSa/s | 56 Mpts | 80,000 wfms/s | / |
