UT118C Pen-Type Meter
The UT118C Pen-type meter is a lightweight and durable device that boasts True RMS measurement capability, allowing for accurate readings. With the ability to measure voltage up to AC/DC 600, a wide resistance and capacitance range, and gold-plated special-tip test leads for versatility and safe operation (CAT III 600V & CAT IV 300V), it is an excellent and cost-effective choice for residential appliance repair and DIY enthusiasts.
600V
DC Voltage (V)
600V
AC Voltage (V)
60MΩ
Resistance (Ω)
60mF
Capacitance (F)
100kHz
Frequency (Hz)
6000
Display Count
Key Features
Certifications (UT118C series only): CE, cETLus, RoHS
Technical Specification
| Technical Specifications | ||
| DC voltage (V) | 6.000V/60.00V/600.0V | ±（1％＋3） |
| AC voltage (V) | 6.000V/60.00V/600.0V | ±（1％＋4） |
| Resistance | 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ | ±(1%+3) |
| 6.000MΩ | ±(1.5%+5) | |
| 60.00MΩ | ±(2.5%+5) | |
| Capacitance | 600.0nF/6.000uF/60.00uF/600.0uF | ±（3.5%+8) |
| 6.000mF | ±（5.0%+9) | |
| 60.00mF | ±（10.0%+9) | |
| Frequency | 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz | ±(0.01%+5) |
| Features | ||
|---|---|---|
| Display count | 6000 | |
| Duty cycle | 0.1% to 99.9% | |
| NCV/LIVE test | ✔ | |
| True RMS | ✔ | |
| Diode | ✔ | |
| Continuity | ✔ | |
| Resistance | ✔ | |
| Auto range | ✔ | |
| Screen | HTN LCD 36*15mm | |
| Auto power off | ✔ | |
| Flash light | ✔ | |
| Indicator | Dual color | |
| Battery | AAA*1 | |
| Category rating | CAT IV 300V; CAT III 600V | |
| Certificates | CE/cETLus/ROHS | |
| General Characteristics | ||
| Power supply | AAA*1 | |
| Product dimension | 182.5mm x 38.0mm x 38.5mm | |
| Product color | Gray + Red | |
| Accessories | User manual 1pcs, 1.5V AAA battery 1pcs | |
Application

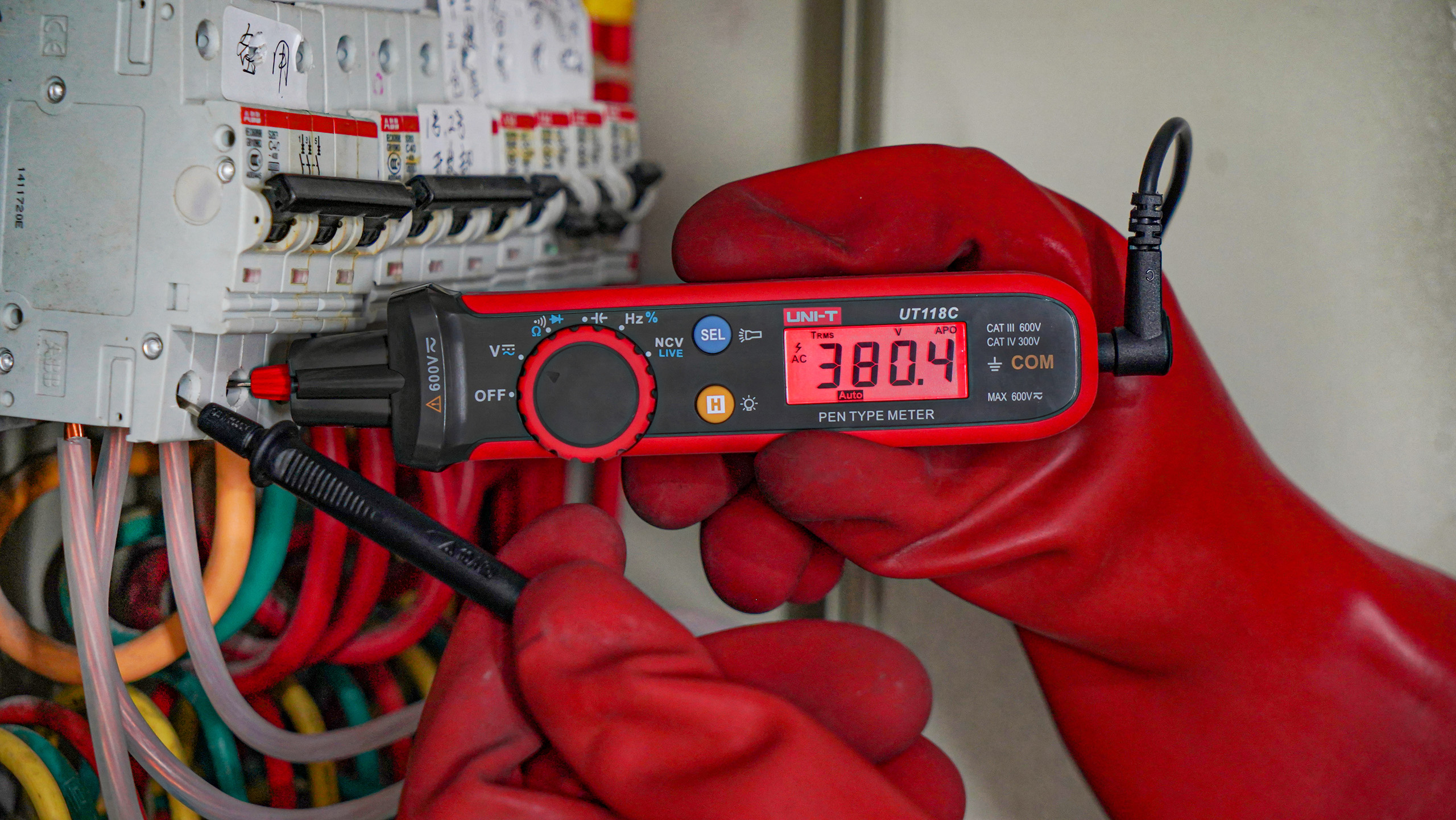

NCV live test:Equipped with NCV function, this meter utilizes a red flashing LED and buzzing to promptly indicate live wires, ensuring enhanced safety during electrical inspections.
Safety & reliable:This meter ensures safe and reliable measurements with CAT III 600V and CAT IV 300V certifications, providing accurate readings and minimizing electrical hazards.
Portable and lightweight design:This meter's portable and lightweight design offers operators convenience and ease of use, making it a versatile and indispensable tool for various tasks.
Gold-plated special-tip test lead:With its gold-plated special-tip test lead, this product makes electronic measurements effortless and precise.
