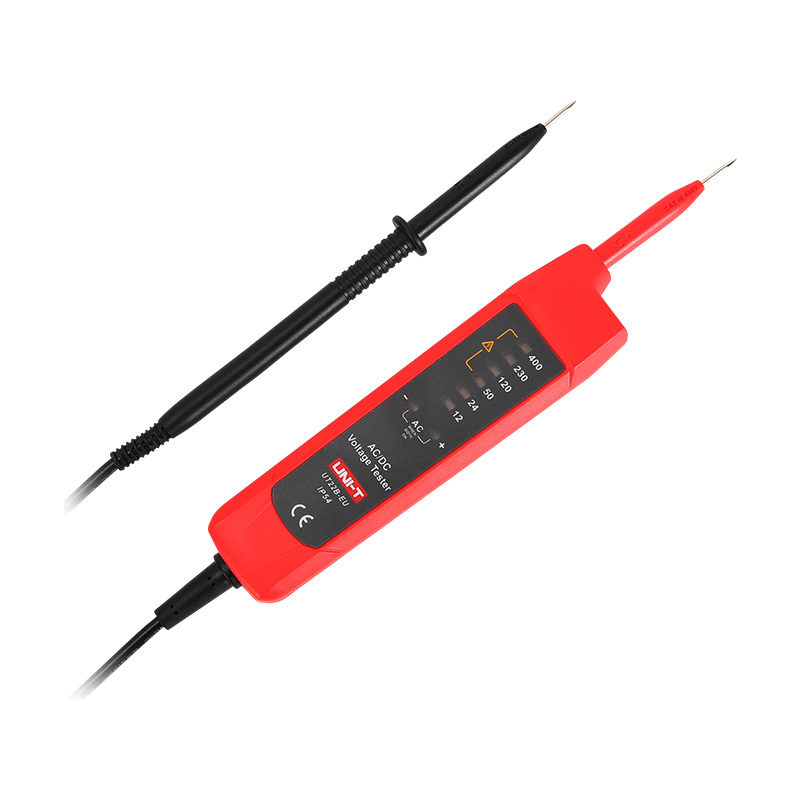

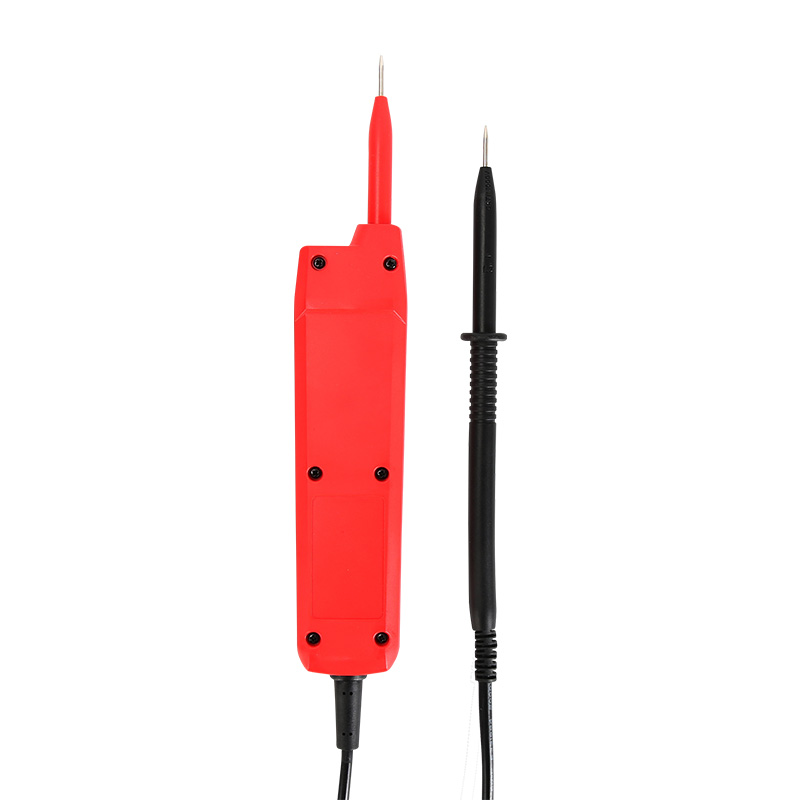

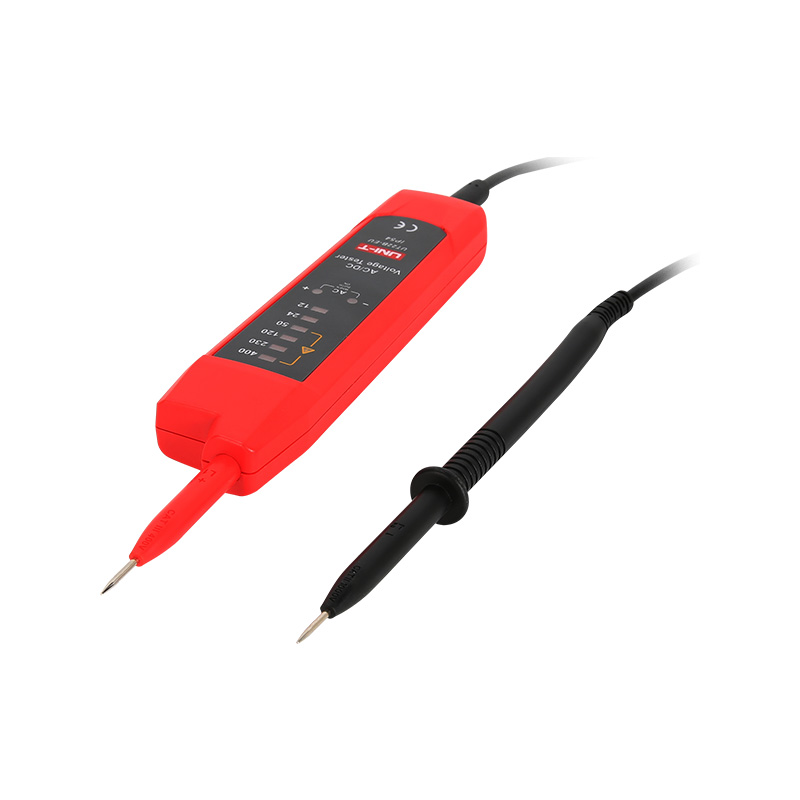

UT22B-EU Voltage Tester
The UT22B-EU voltage tester is a simple to use tool for electricians and DIYers to measure AC/DC voltage. This voltage tester is IP54 rated, and designed to withstand a 2-meter drop. The great thing about this product is that it does not require any battery, its power is supplied by the voltage being tested! UT22B can automatically distinguish between AC and DC voltage, indicated by the number of LED lights.
Ac/Dc Voltage Led Indications
12~400V
Polarity Detection
●
Over Voltage Protection
●
Ip Rating
IP54
Power By
No need battery
Safety Rating
CAT III 400V
Key Features
● Automatically detect AC/DC voltage
● Automatically indicate DC polarity (+/-)
● Hazardous voltage indicator when voltage >50V
● Auto detection of AC/DC
● Input protection
Technical Specification
| Specifications | Range | UT22B-EU |
| Voltage indication (V AC/DC) | 12V | 6V~12V |
| 24V | 17V~24V | |
| 50V | 35V~50V | |
| 120V | 84V~120V | |
| 230V | 161V~230V | |
| 400V | 280V~400V | |
| Features | ||
|---|---|---|
| Frequency (AC) | 50/60Hz | √ |
| Voltage indication | LED | |
| Auto detection of AC/DC | √ | |
| Input protection | √ | |
| Drop test | 2m | |
| IP54 | √ | |
| General Characteristics | ||
| Power | None, powered by external source | |
| Product color | Red and grey | |
| Product net weight | 150g | |
| Product size | 116mm x 33mm x 22mm | |
| Standard individual packing | Gift box | |
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |

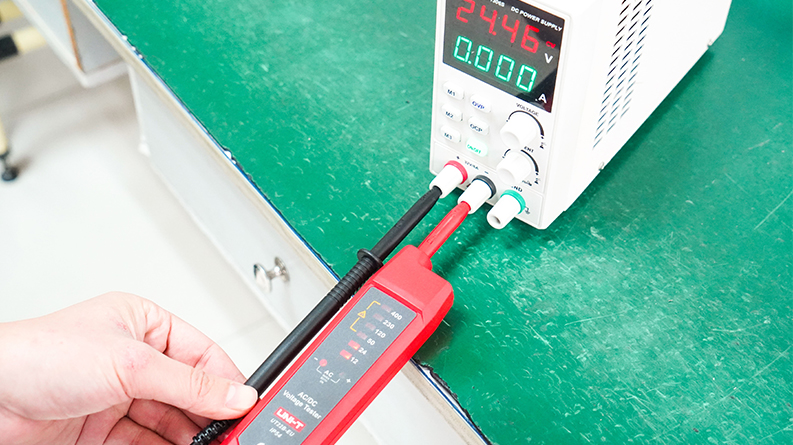

Application

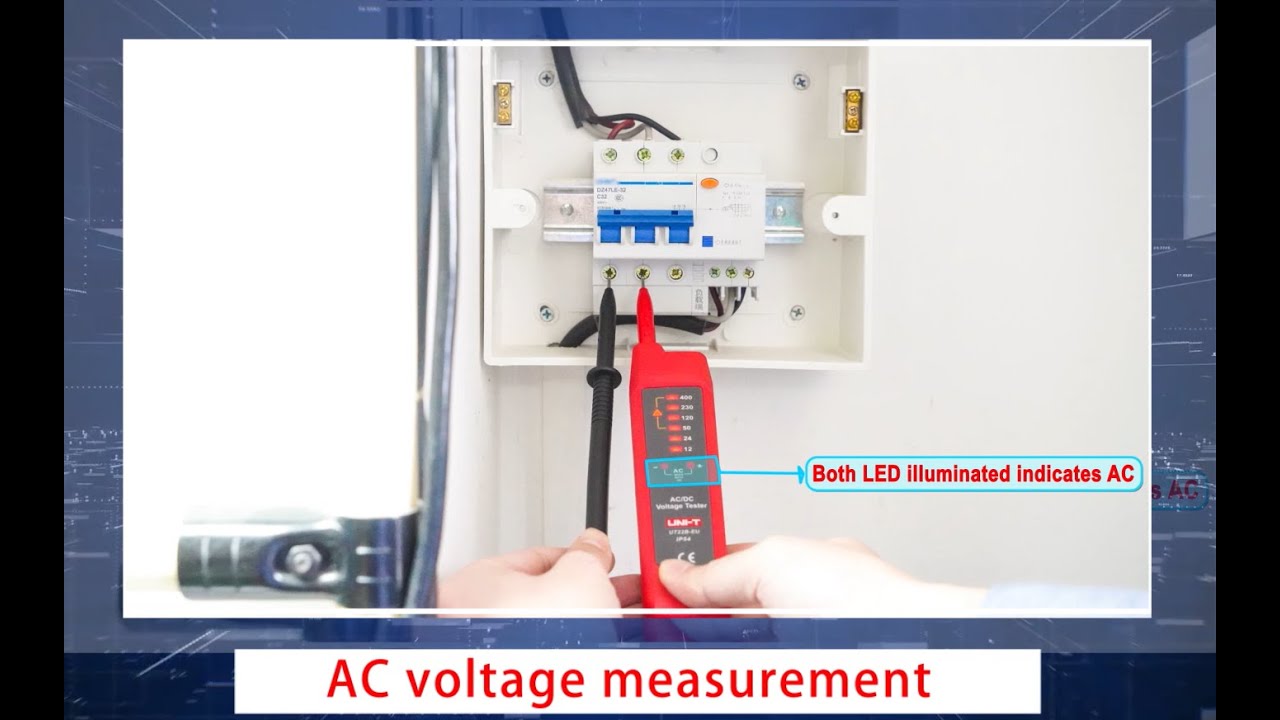

Videos
UT22B-EU Voltage Tester
