UTD2000CEX+
The UTD2000CEX+ provides a richer trigger mode, 34 kinds of automatic parameter measurement and common mathematical operation functions, and optimizes the panel operation, which greatly improves the work efficiency and can easily cope with the measurement needs of complex signals.
50MHz~200 MHz
BANDWIDTH
2
ANALOG CHANNELS
1 GSa/s
REAL-TIME SAMPLE RATE
64 kpts
MAX. MEMORY DEPTH
5,000 wfms/s
WAVEFORM CAPTURE RATE
/
DIGITAL CHANNELS
KEY FEATURES
FEATURES
Wider display range and multiple frequency square wave options
The UTD2000CEX+ series display range is 8divX16div,

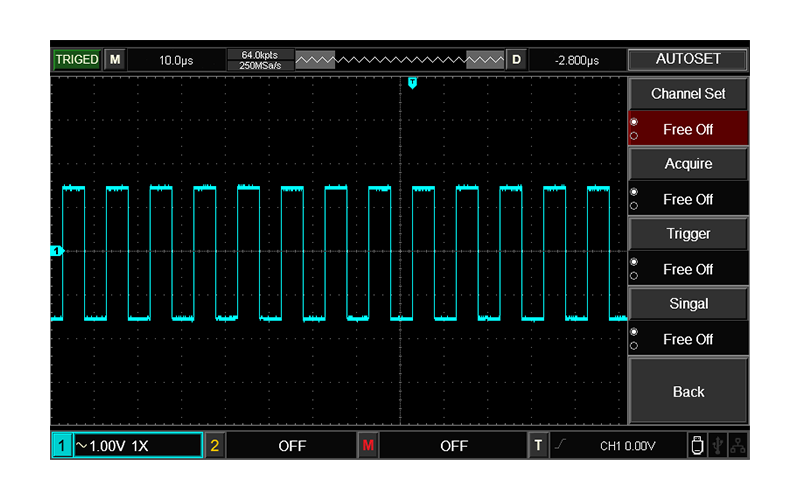

and has a new AUTOSET strategy, which can easily copewith complex test scenarios.
Multi-language optional, multi-frequency square wave optional

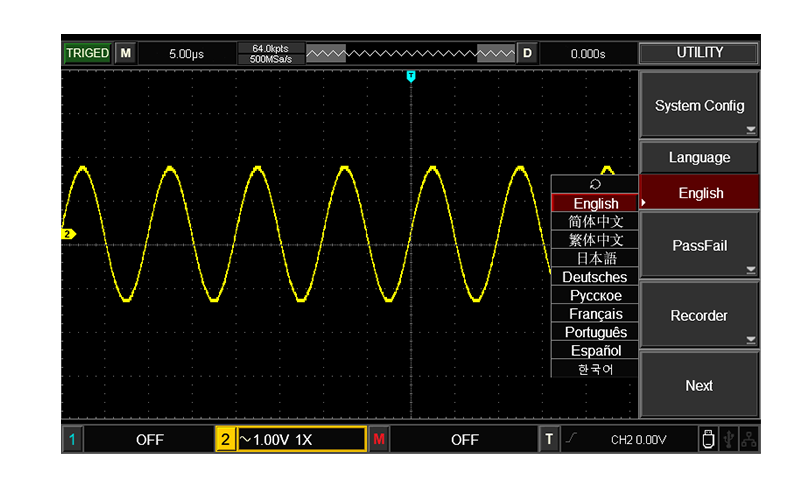

With 9 languages, it can meet the needs of users in more countries.

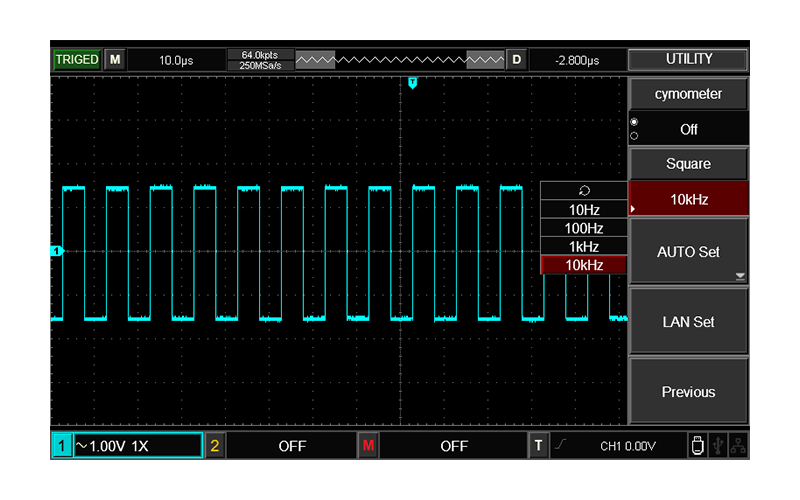

Output standard square wave 10Hz, 100Hz, 1kHz, 10kz optional.
Various parameter measurement and waveform recording functions

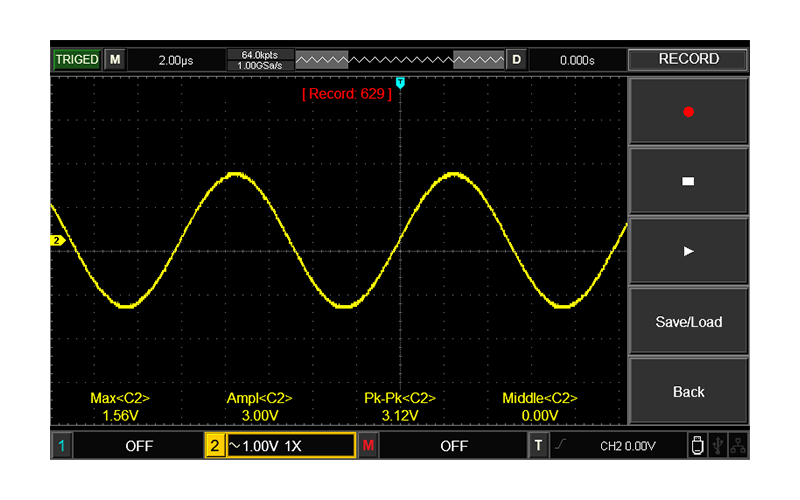

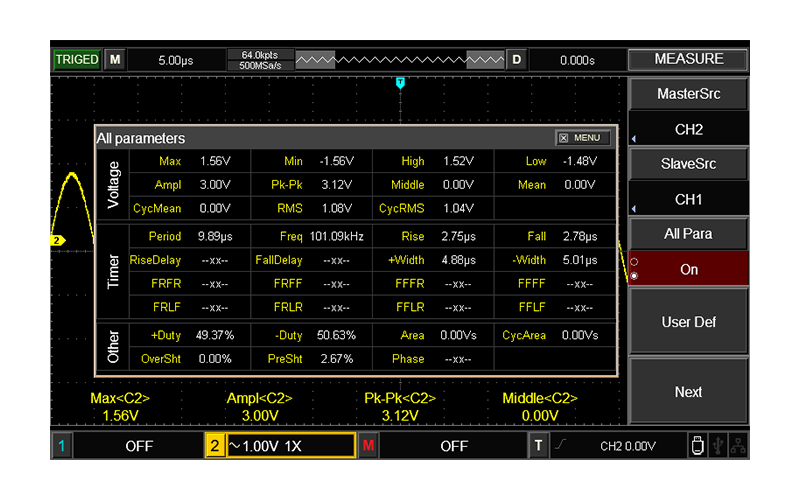

The UTD2000CEX+ series supports 34 kinds of automatic measurement functions and waveform recording functions, which can record up to 1000 frames, and can achieve better waveform analysis effects through playback and storage functions.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UTD2202CEX+ |
200 MHz | 2 | 1 GSa/s | 64 kpts | 5,000 wfms/s | / |
 UTD2102CEX+ |
100 MHz | 2 | 1 GSa/s | 64 kpts | 5,000 wfms/s | / |
 UTD2052CEX+ |
50MHz | 2 | 1 GSa/s | 64kpts | 5,000 wfms/s | / |
Technical Specification
| Model | UTD2202CEX+ | UTD2102CEX+ | UTD2052CEX+ |
| Key Specifications | |||
| Bandwidth | 200 MHz | 100 MHz | 50 MHz |
| Channels | 2 analog | ||
| Sample Rate | 1 GSa/s/CH (all channels) | ||
| Vertical Resolution | 8-bit | ||
| Max. Memory Depth | 64 kpts | ||
| Max. Waveform Capture Rate | 5,000 wfms/s | ||
| Technical Details | |||
|---|---|---|---|
| Rise Time | <1.8 ns | <3.5 ns | <7 ns |
| Time Base Scale | 2 ns/div to 50 s/div | ||
| Vertical Scale | 1 mV/div to 20 V/div | ||
| Input Impedance | 1 MΩ ±2%, 18 pF ±3 pF | ||
| Features | |||
| Auto Measurements | 34 parameters | ||
| Protocol Analysis Count | 0 | ||
| Frequency Counter | 6-digit | ||
| General Information | |||
| Display | 7-inch TFT LCD, 800×480 | ||
| Interface | USB Host, USB Device, Pass/Fail | ||
| Power | 100–240 VAC, 45–440 Hz | ||
| Product Net Weight | 2.5 kg | ||
| Product Dimensions (W×H×D) | 306 × 138 × 124 mm | ||
| Standard Quantity Per Carton | 2 pcs | ||
| Certification | CE | ||
| Warranty | 3 years | ||
| specifications | Range | Accuracy |
|---|---|---|
| AC Voltage Detection |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Current (AC) |
0.010Ω-0.199Ω 0.010Ω-0.199Ω 0.010Ω-0.199Ω |
±（1%＋0.02Ω） ±（1%＋0.02Ω） ±（1%＋0.02Ω） |
| Features | ||
| Jaw size | 0.010Ω-0.199Ω | |
| Timer | ✔ |
