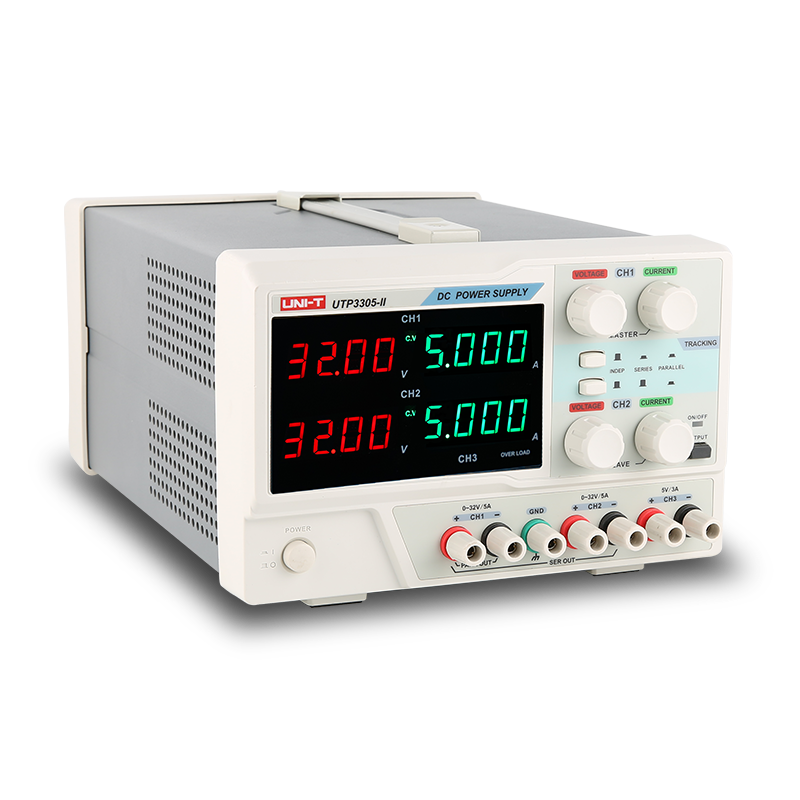

UTP3300-II
UTP3300-II Series are three-channel linear DC power supplies of adjustable dual channel and fixed single-channel output, featuring tracking, constant voltage/current,series/parallel output, temperature controlled cooling fan,and over voltage/current protection.
Linear
Type
3
Channels
335W
Total Power
32V
Output Voltage
5A
Output Current
10mV/1mA
Resolution
Voltage:＜(0.01% + 3mV), Current:≤(0.1% + 3mA)
Setting Accuracy
/
Connectivity
KEY FEATURES
FEATURES

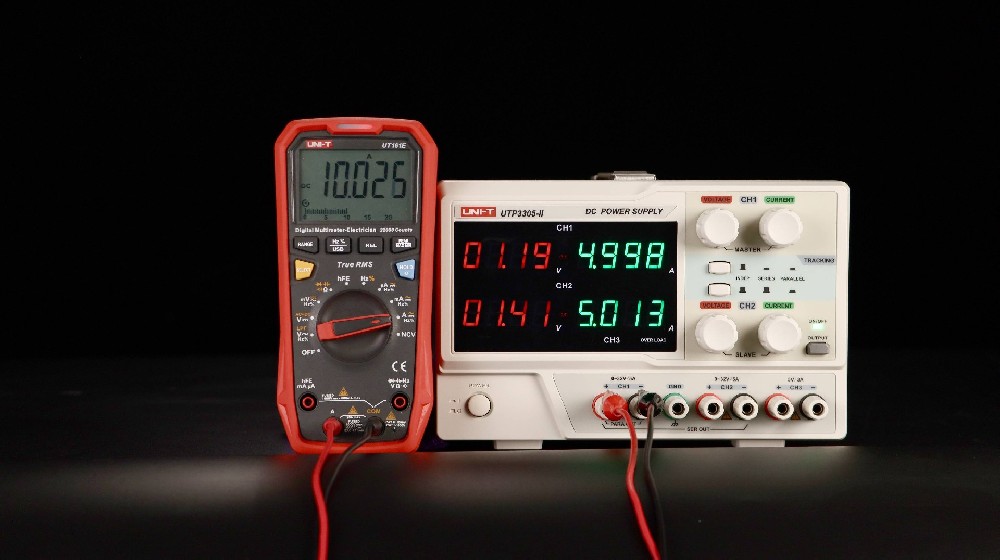

Parallel mode
When both the upper button and the lower button are “on”, it enters the parallel mode. The positive pole of CH1 is the parallel positive output terminal, and the negative pole of CH1 is the parallel negative output terminal. The voltage and current value settings in parallel mode can only be adjusted through CH1. The total voltage value is equal to the voltage value of CH1, and the current value is equal to CH1+CH2
Series mode
When the upper button is “on” and the lower button is “off”, it enters the series mode. The output voltage is output from the positive electrode of CH1 and the negative electrode of CH2. The voltage and current value of the series mode can only be adjusted through CH1, and the total voltage value is equal to two of CH1. Times, the current value is equal to the current of CH1.
MODEL
| Model | Bandwidth | Analog Channels | Real-time Sample Rate | Max. Memory Depth | Waveform Capture Rate | Digital Channels |
|---|---|---|---|---|---|---|
 UTP3305-II |
linear | 3 | 335W | 32V | 5A | 10mV/1mA |
 UTP3303-II |
linear | 3 | 207W | 32V | 3A | 10mV/1mA |
Technical Specification
| Model | UTP3305-II |
| Key Specifications | |
| Type | Linear |
| Channels | 3 |
| Output Voltage | CH1/2: 0–32; CH3: 5 V |
| Output Current | CH1/2: 0–5; CH3: 3 A |
| Output Power | 335 W |
| Voltage Resolution | 10 mV |
| Current Resolution | 1 mA |
| Technical Details | |
|---|---|
| Ripple And Noise Voltage | ≤1 mVrms |
| Ripple And Noise Current | ≤3 mArms |
| Load Regulation CV | <0.01%+3 mV |
| Load Regulation CC | ≤0.2%+3 mA |
| Features | |
| Series Parallel Operation | CH1/CH2 series/parallel |
| Protection | OVP/OCP/OTP/reverse polarity |
| General Information | |
| Display | 4-window LED |

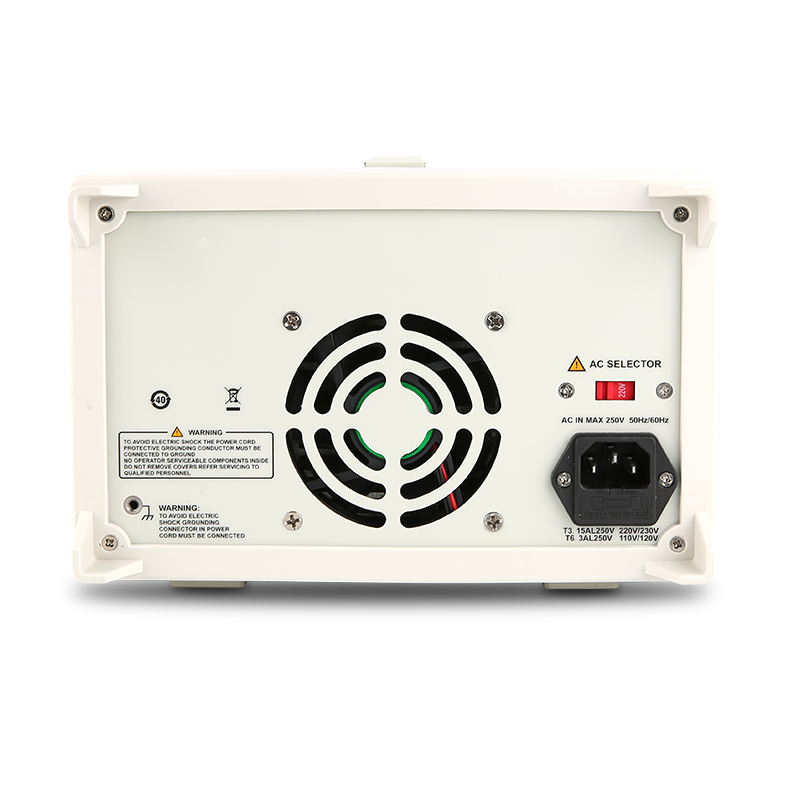

| Power | AC 115/230 V, 47–63 Hz |
| Product Net Weight | 10.5 kg |
| Product Dimensions (W×H×D) | 319 × 146 × 226 mm |
| Standard Quantity Per Carton | 1 pc |
| Certification | CE |
| Warranty | 3 Years |
