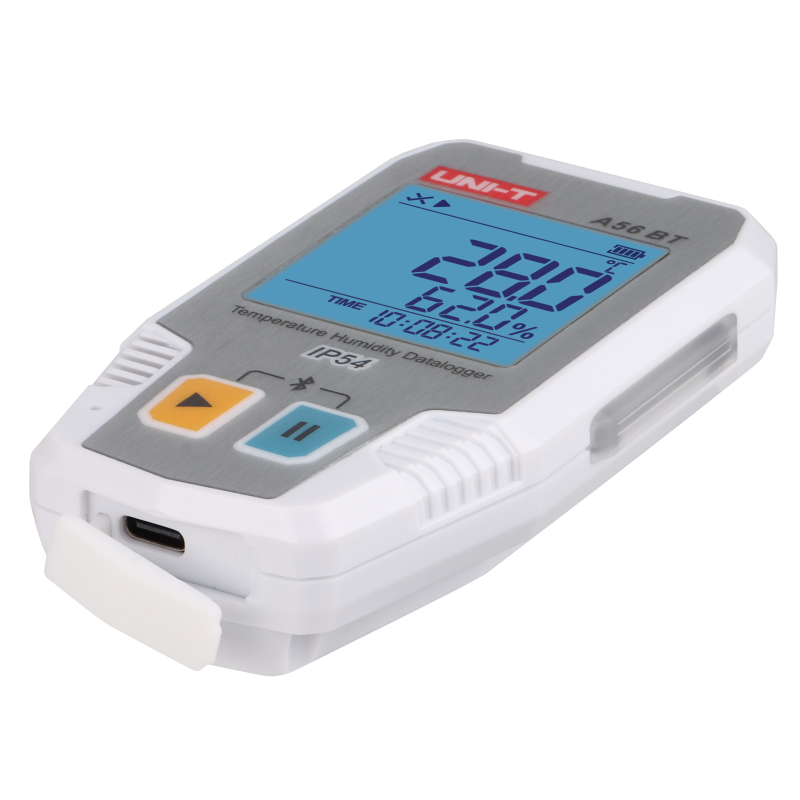

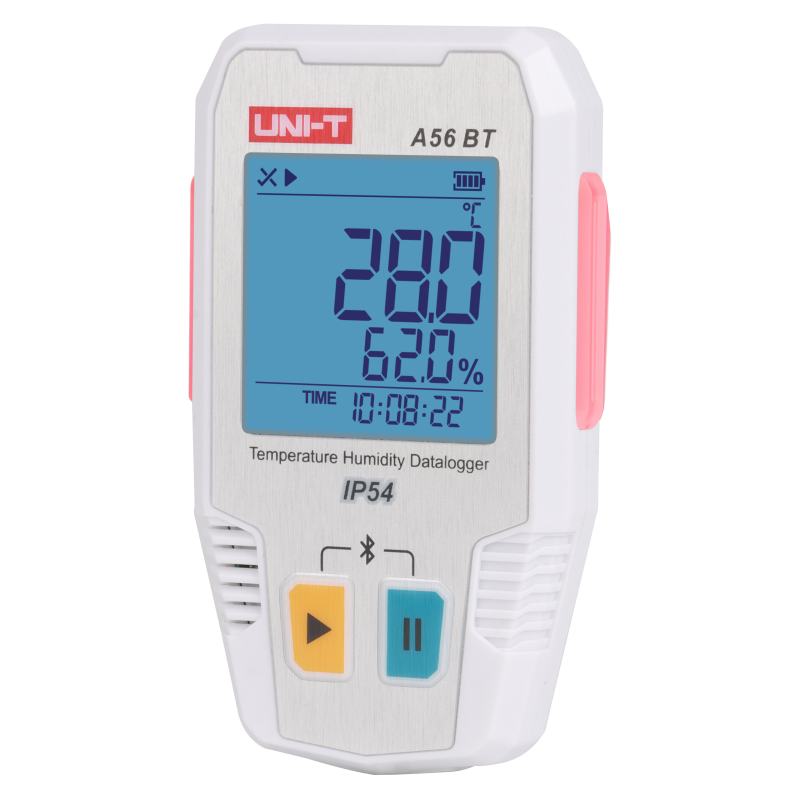

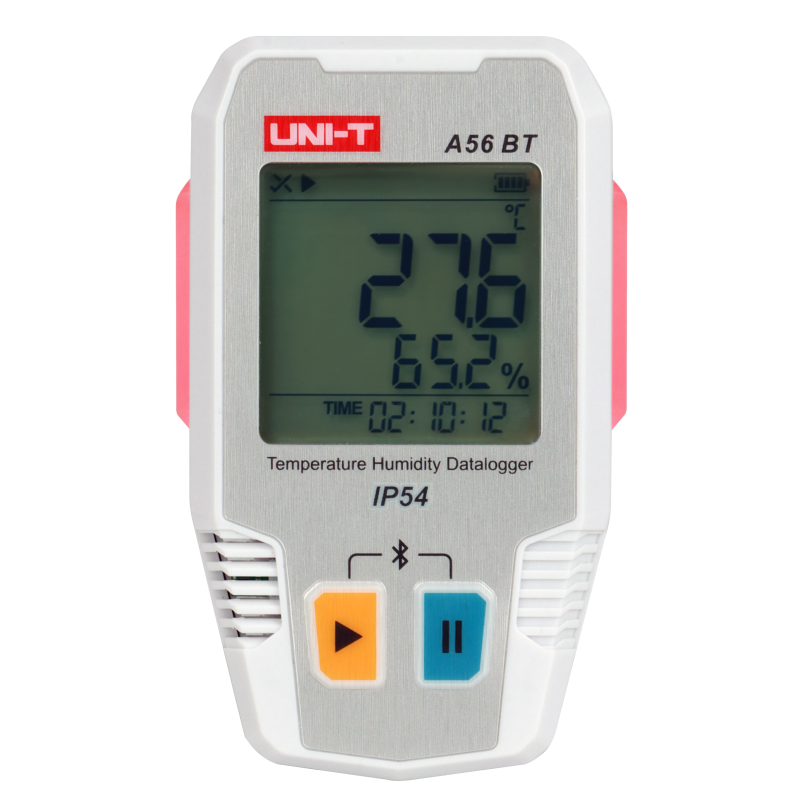

A56 BT Temperature Humidity Datalogger

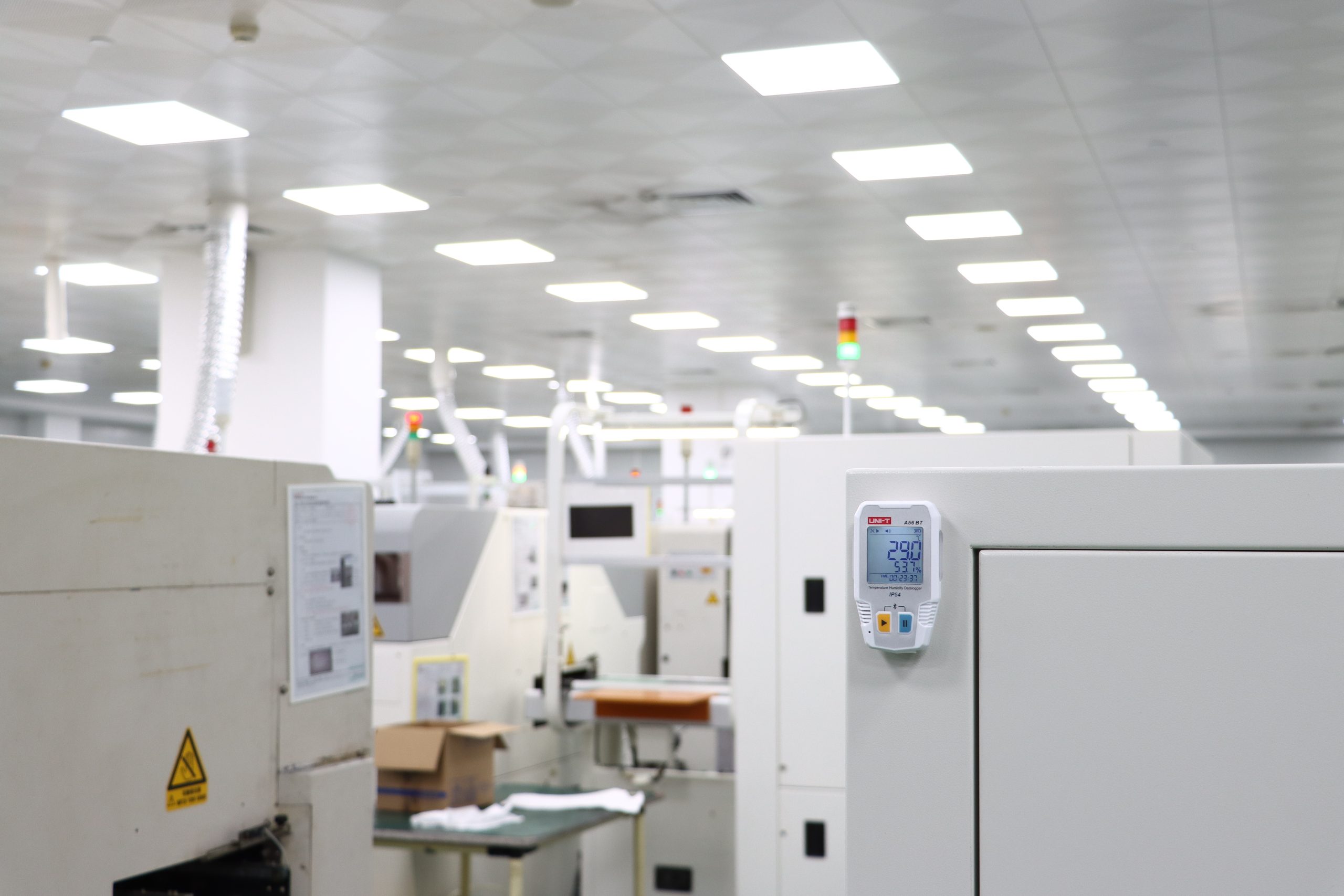

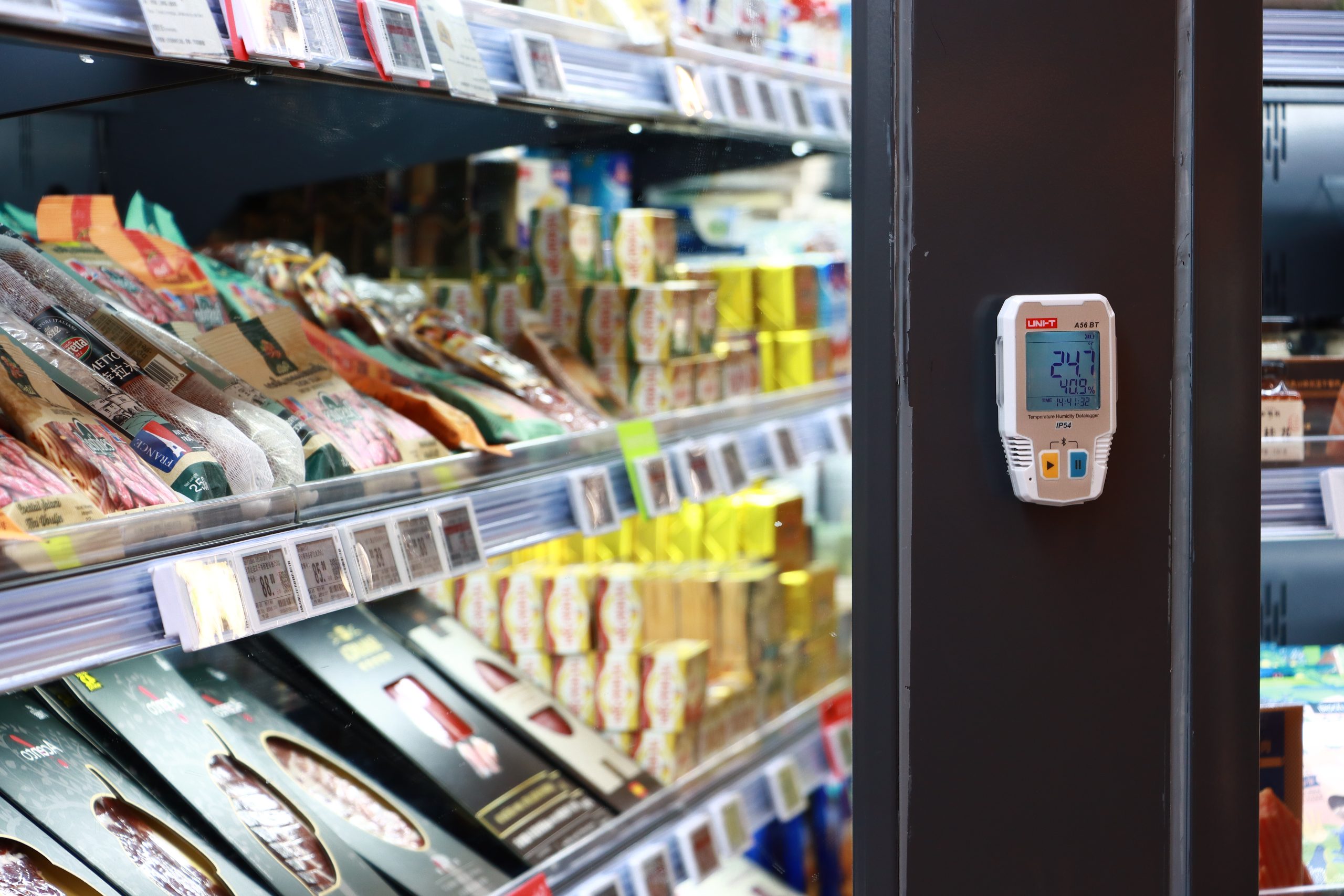

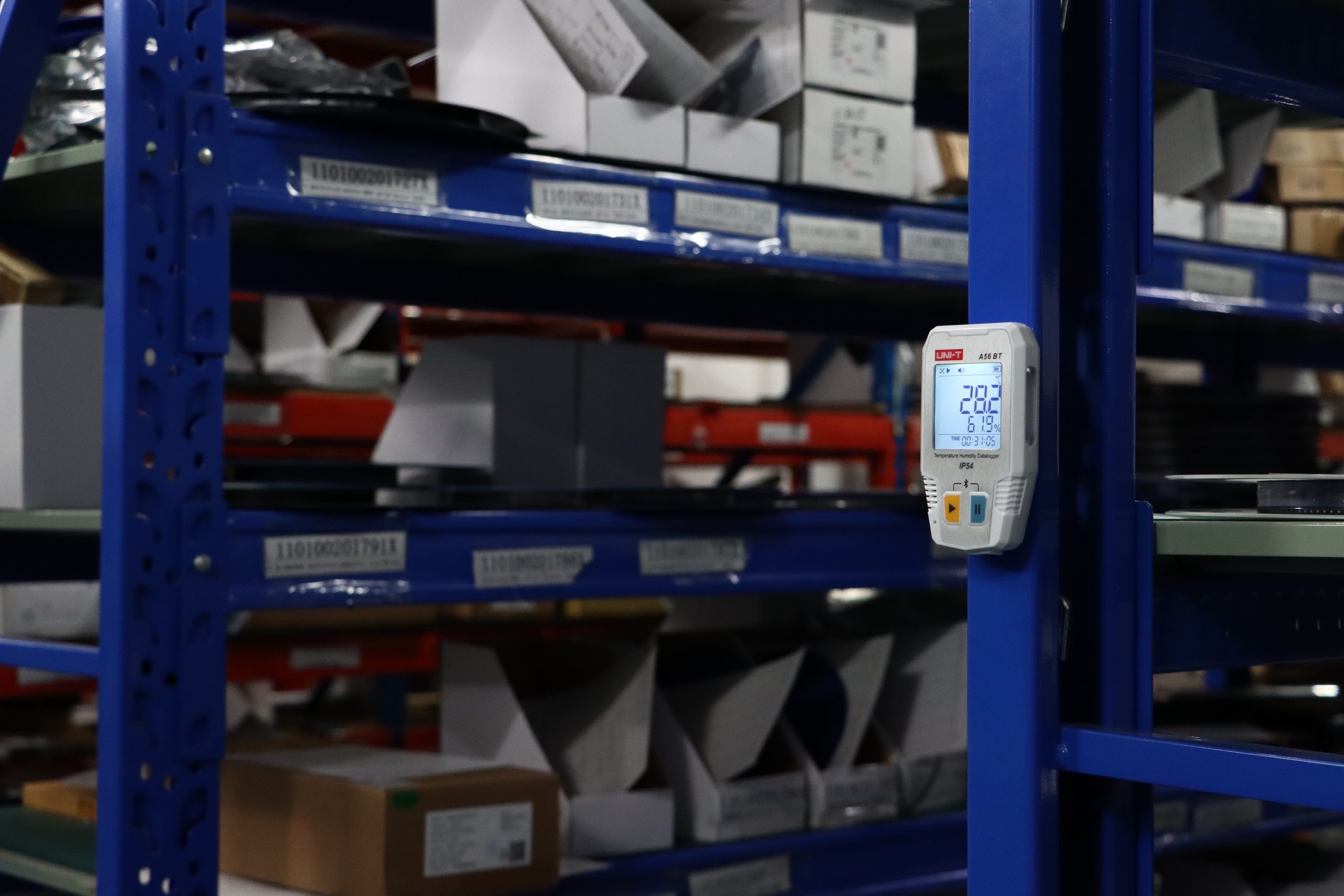

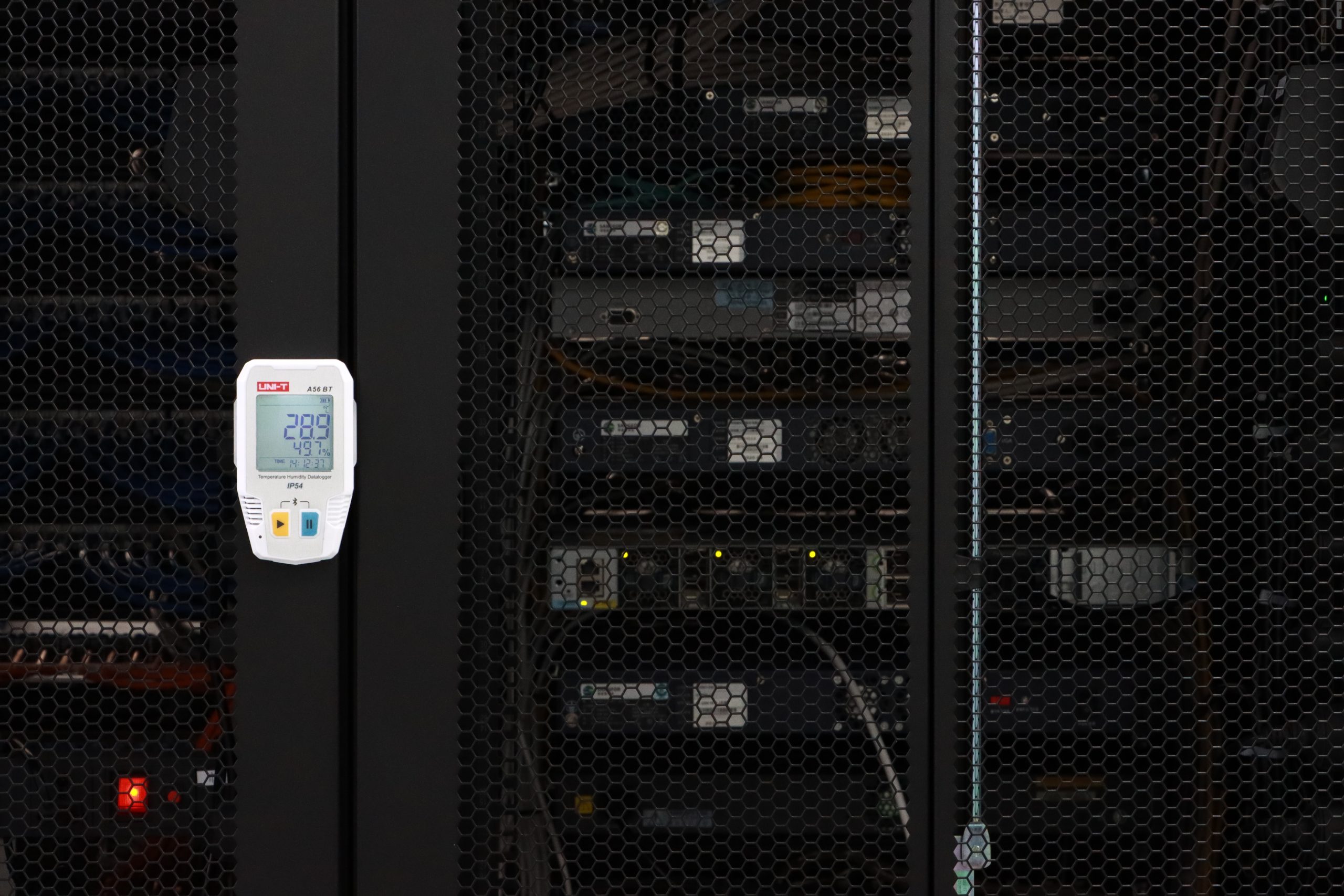

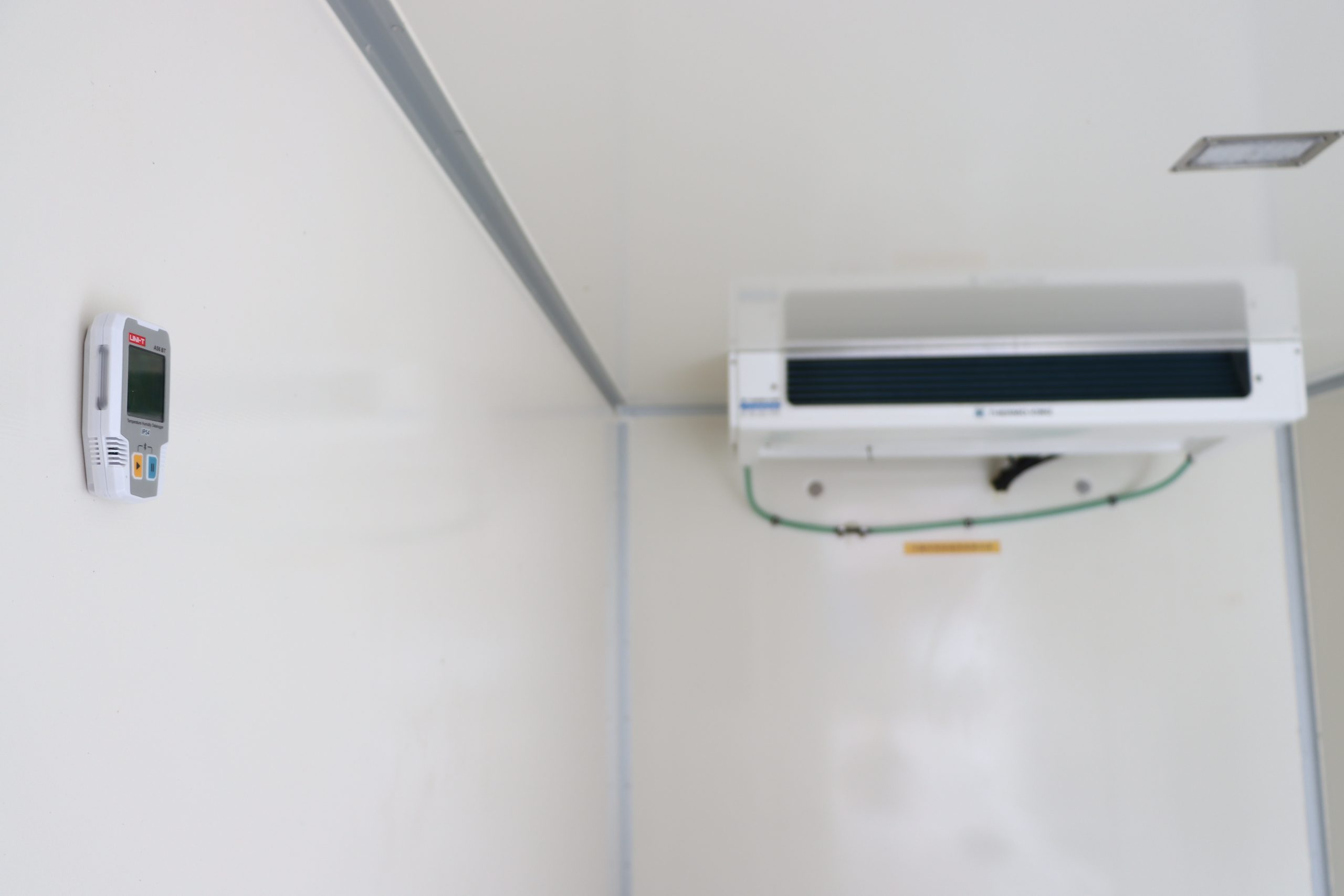

A56BT Bluetooth Temperature Humidity Datalogger is using high-accuracy digital temperature humidity module as the sensor, and with low-power microprocessor. It features high accuracy, large storage capacity, auto record, time display, LED sound-light alarm, ultra-low temperature record and etc. Meanwhile, it supports to modify records, view data and export PDF report via the mobile App or PC software. The datalogger can satisfy high-accuracy measurement and long-time temperature humidity record requirement in different conditions, widely used in the food processing, cold-chain transportation, storage and etc.

Get a quote

Data Sheet

Download Resources

Key Features

Features

Language:EN, FR, DE, IT, ES, SV, PL, CZ

1. Wide Range: -40℃~85℃

2. High Accuracy: ±3℃

3. Bluetooth APP

4. PC Analysis Software

5. Audible and Visible Alarm

6. IP54 Protection

7. 64000 Sets of Data Storage

8. Magnetic Wall-Mounted Design

Model

A56 BT

Technical Specification

Characteristics
Specifications
Temperature Range	-40℃～ 85℃ (-40℉～ 185℉)
Humidity Range	0%～100% RH
Temperature	Range	Accuracy
	0℃＜ t ≤60℃	±0.3℃
	-40℃≤ t ≤0℃	±0.5℃
	60℃＜ t ≤85℃	±0.5℃
	32℉＜ t ≤140℉	±0.6℉
	-40℉≤ t ≤32℉	±0.9℉
	140℉＜ t ≤185℉	±0.9℉
Humidity	Range	Accuracy
	0%≤ RH ≤90%	±2.5%RH（25℃）
	90%＜ RH ≤100%	±3.5%RH（25℃）
Temperature/Humidity Resolution	0.1℃(0.1℉)/0.1%RH
Record Capacity	64000 sets
MAX/MIN/AVG	√
LED Indicators	√
Backlight	√
Buzzer Alarm	√
PC Software	√
Mobile App	√（TempLink）
Low Battery Indication	√
Record Interval	10s～ 24h (Set through the PC/App)
Start-up Ways	Buttons/Software/Booking
Time of Screen OFF	15s±2s (Set through the PC/App)

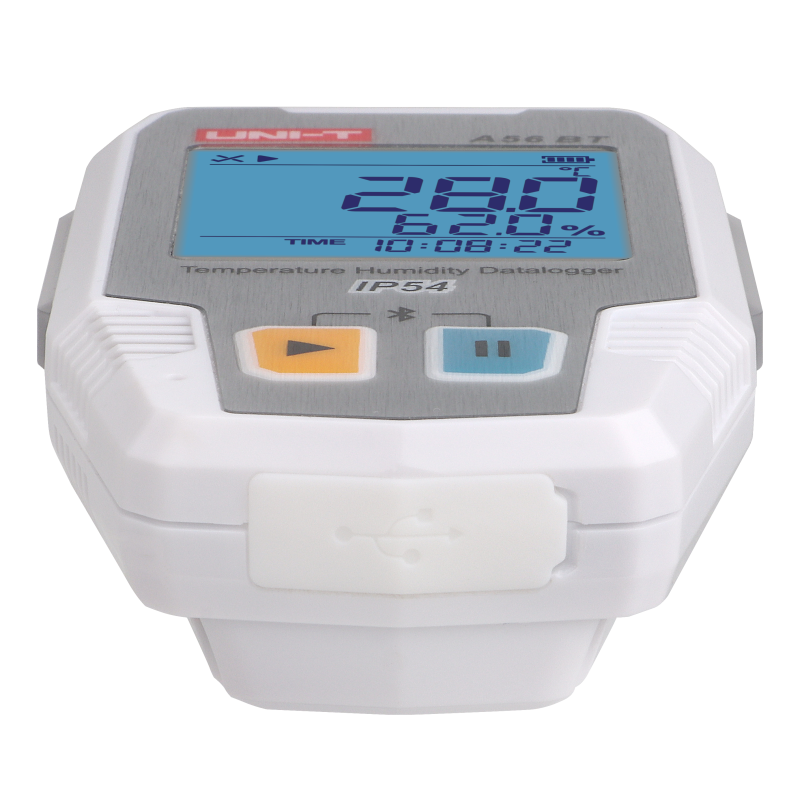

USB Port	USB Type-C
USB Power Supply	√
Working Time	2yr

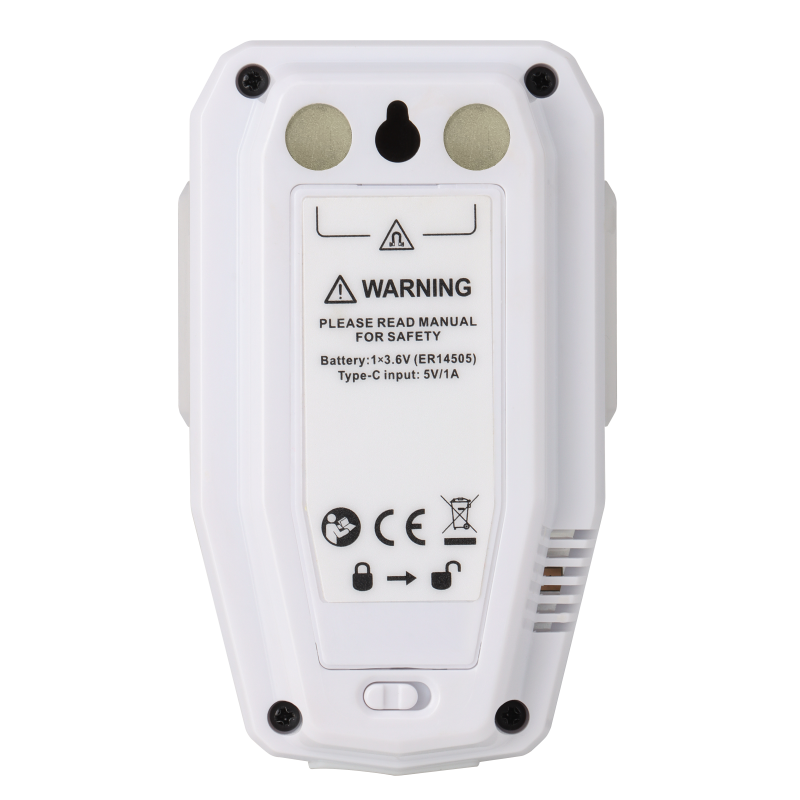

Hangings Way	Rear magnetic or Wall mounting
Working Temperature and Humidity	-40℃～+85℃，≤99%RH
Storage Temperature	-40℃～+85℃（Not battery included）
Storage Temperature	-40℃～+60℃（ER14505 battery included）
Certificate	EMC: EN 61326-1:2021,ROHS
IP Rating	IP54
Battery Type	Single-use Li-SOCl2 Battery 3.6V 2700mAh（ER14505）
Size	104×62×25mm
Weight	About 100g(Not battery included)
Standrad Accessories	Gift box, quick start guide, safety instruction, download operation guide, battery, wall-mounted Screws2, expandable rubber plug2, USB cable
Standard Quantity Per Carton	20pcs
