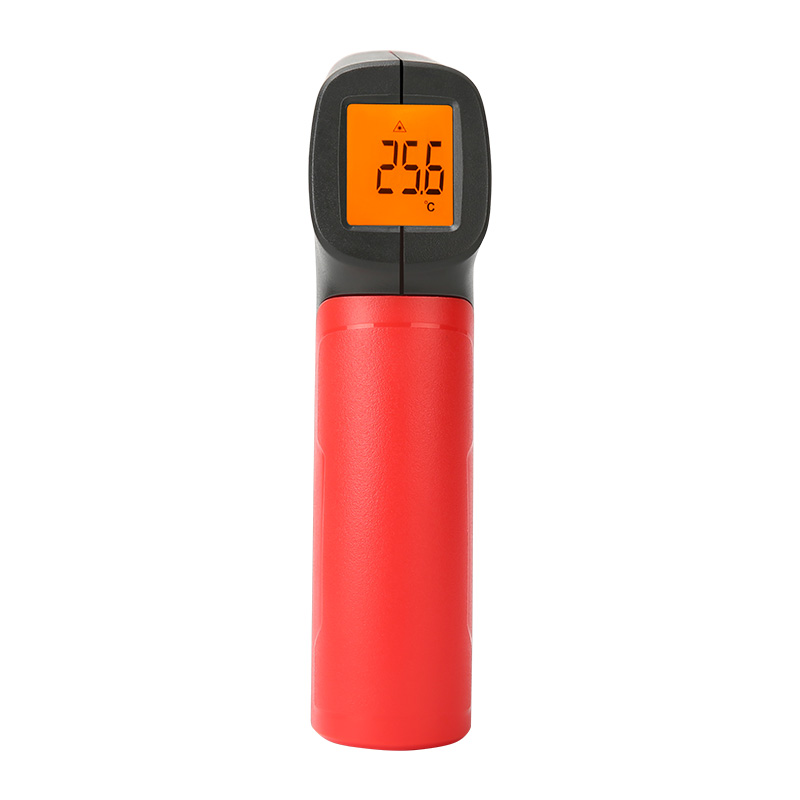

UT300 Series Infrared Thermometers

UT300 series is an economical infrared thermometer. Its compact and simple design makes it easier for users to carry and operate. Designed with high accuracy, high repeatability, quick response, long measuring distance, and more features, UT300A+ is suitable for measuring the surface temperature of hard-to-reach or dangerous objects.

Models in UT300 Series: UT300A+, UT300S

Get a quote

Data Sheet

Download Resources

Key Features

Features

● Simple one button operation
● Data hold
● Backlight
● D:S ratio: 10:1 (UT300A+); 12:1 (UT300S)

● Temperature range: -20℃～400℃ (UT300A+); -32℃～400℃ (UT300S)

Model

UT300A+

Technical Specification

Features
Specifications	UT300A+	UT300S
Temperature range	-20℃~400℃	-32°C～400°C
Temperature range	-4℉~752℉	-25.6°F～752°F
Accuracy	>0℃: ±2.0℃ or ±2%; ≤0℃: ±(2.0℃+0.1℃/℃)	±2°C or ±2%
Accuracy	>32℉: ±4.0℉ or ±2%; ≤32℉: ±(4.0℉+0.1℉/℉)	±2°C or ±2%
Repeatability	1℃ or 1.0% (2℉ or 1.0%)	±0.5°C or ±0.5%
D:S ratio	10:1	12:1
Response time	≤500ms (95% of reading)	500ms
Emissivity	0.95	0.10~1.00 Adjustable
Spectral response	5.5um~14um	8μm～14μm
Laser power	< 1mW	＜1mW
Auto power off	8s	8s
Low battery indication	√	√
Data hold	√	√
℃/℉ selection	√	√
Backlight	√	√
Laser	√	√
Operating temperature	0℃~50℃ (32℉~122℉)
Storage temperature	-20℃~60℃ (-4℉~140℉)
Operating humidity	<90% RH (non-condensing)
Drop test	1m
General Characteristics
Power	1.5V battery (LR03) x 2	9V Battery (6F22)
Display	20mm x 24mm	22mm X 22mm
Product color	Red and grey
Product net weight	146g	185g
Product size	135mm x 94mm x 36.5mm	153mm X 108mm X40mm
Standard individual packing	Blister, English manual
Standard quantity per carton	20pcs	48pcs
Standard carton measurement	430mm x 265mm x 300mm	590×530×360mm (0.11 CBM Per Standard Carton)
Standard carton gross weight	6.97kg	14.8kg
