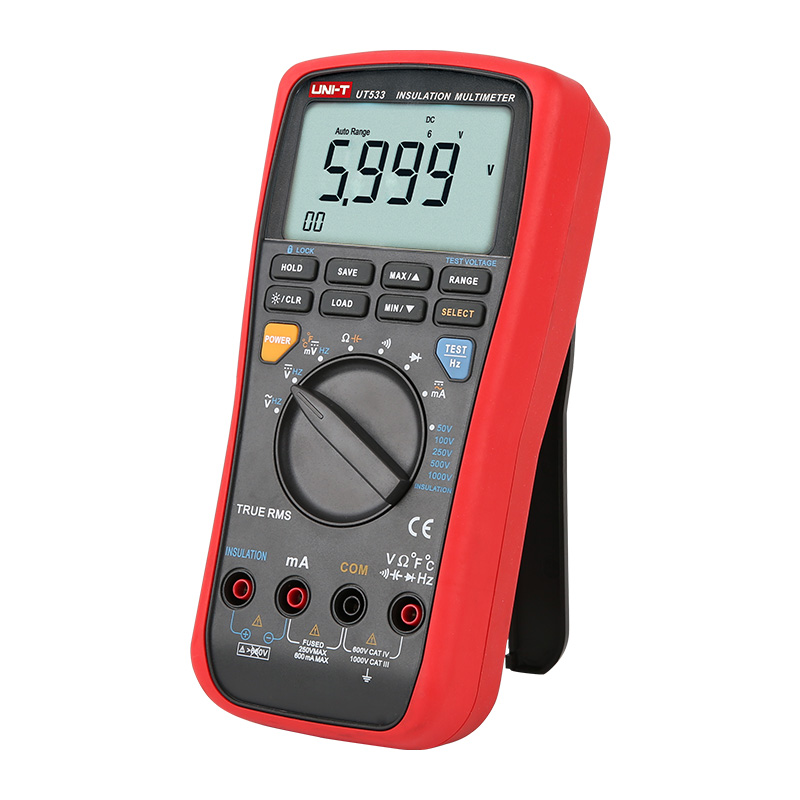

UT533 Insulation Multimeter
UT533 insulation multimeter is a fully functional digital multimeter and digital insulation tester with RMS, widely used in industrial, laboratory, home and other Applications. It features AC and DC voltage, AC and DC current, resistance, capacitance, frequency and temperature, and also has 1000V testing voltage insulation resistance measurement function.
Key Features
Features
● AC/DC voltage measurement
● AC/DC current measurement
● Insulation resistance measurement
● Resistance & Capacity test
● Frequency & Temperature test
● 1000V output voltage
● Double insulation design
Model
UT533
Technical Specification
| Specifications | Range | UT533 |
| Insulation resistance | 0.1MΩ~2GΩ | ±(5%+5) |
| Output voltage | 50~1000V | – |
| AC voltage (V) | 6V~1000V | ±(2%+3） |
| DC voltage (V) | 6mV~1000V | ±(0.3%+4） |
| AC Current | 60mA ~600mA | ±(1.5%+2） |
| DC Current | 60mA ~600mA | ±(1.0%+2) |
| Resistance (Ω) | 600Ω~40MΩ | ±(1.5%+3) |
| Capacitance (F) | 10nF~100uF | ±(3%+5) |
| Frequency (Hz) | 60Hz~1MHz | ±(0.1%+3) |
| Temperature(℃) | -40℃ ~ 537℃ | ±(1%+10) |
| Features | ||
|---|---|---|
| Display count | 5999 | |
| Diode & Continuity | √ | |
| Dual display | √ | |
| Auto/Manual range | √ | |
| Backlight | √ | |
| MAX/MIN | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| Data hold | √ | |
| Category ratings | CAT III 1000V, CAT IV 600V | |
| Certificates | CE/RoHS | |
| General Characteristics | ||
| Standard accessories | Test lead, battery, Crocodile clip, K type thermal probe | |
| Power | 1.5V LR6 * 6 | |
| Display | 81 * 46mm | |
| Product size | 96.7 * 202.8 * 46mm | |
| Product net weight | 505g | |
| Standard quantity per carton | 20 pcs | |
| Standard carton measurement | 460 * 400 * 368mm | |
| Standard carton gross weight | 22.2Kg | |

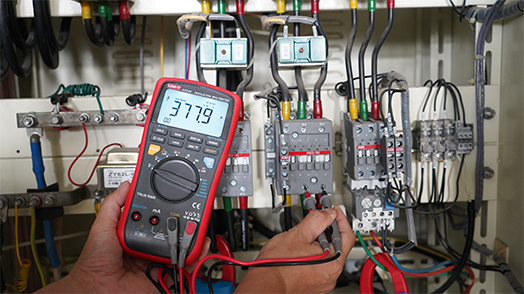

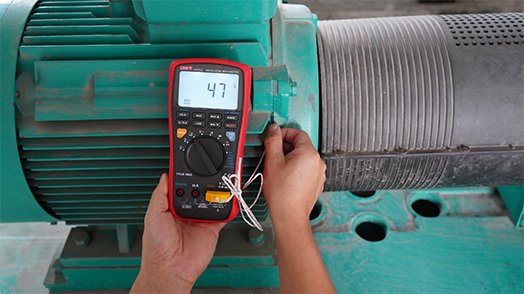

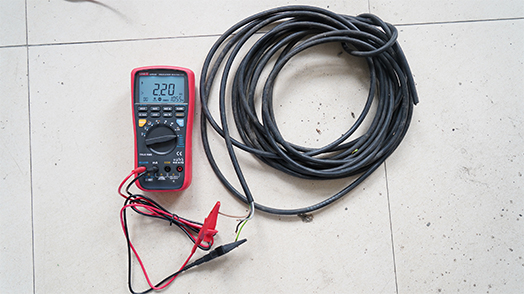

Application
